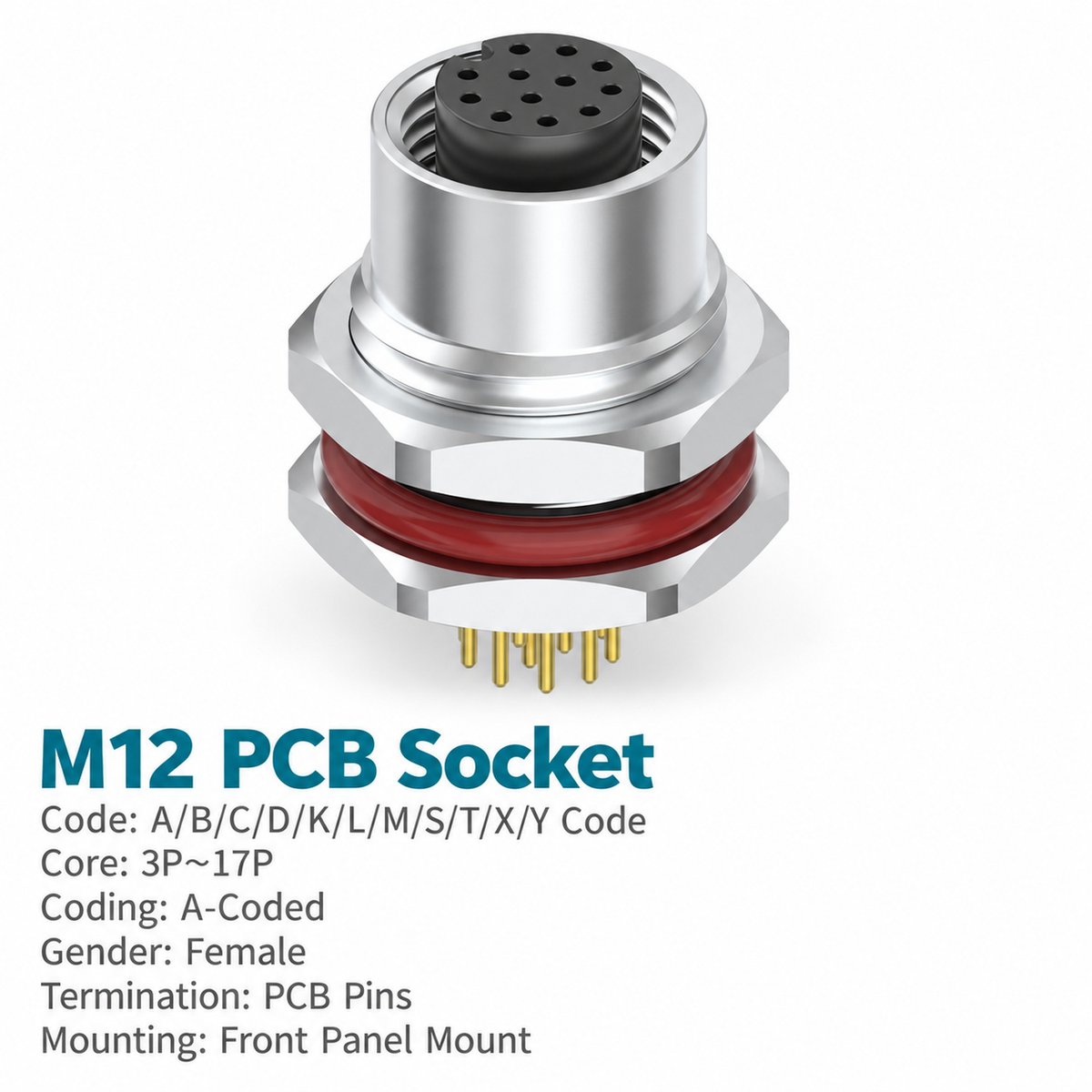

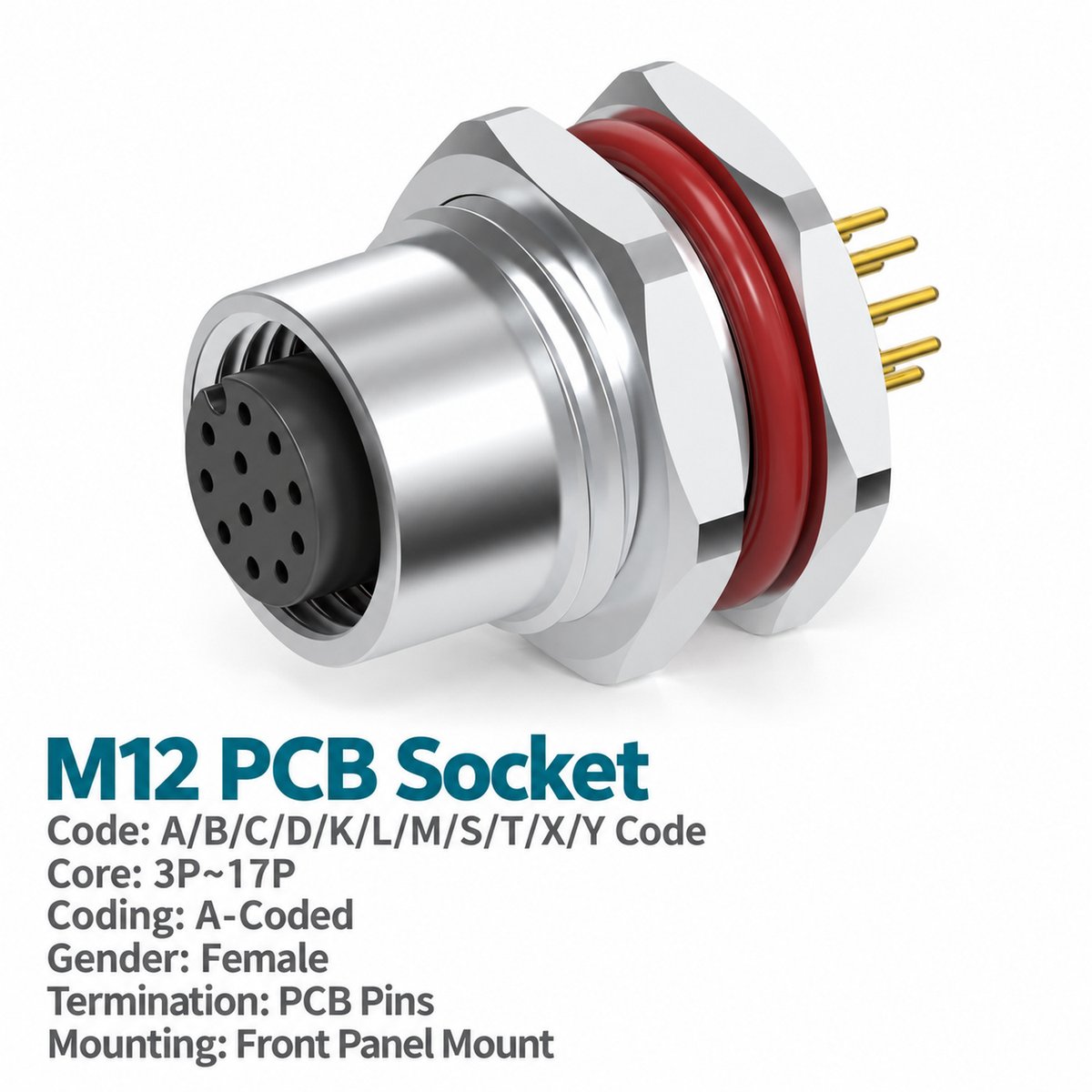

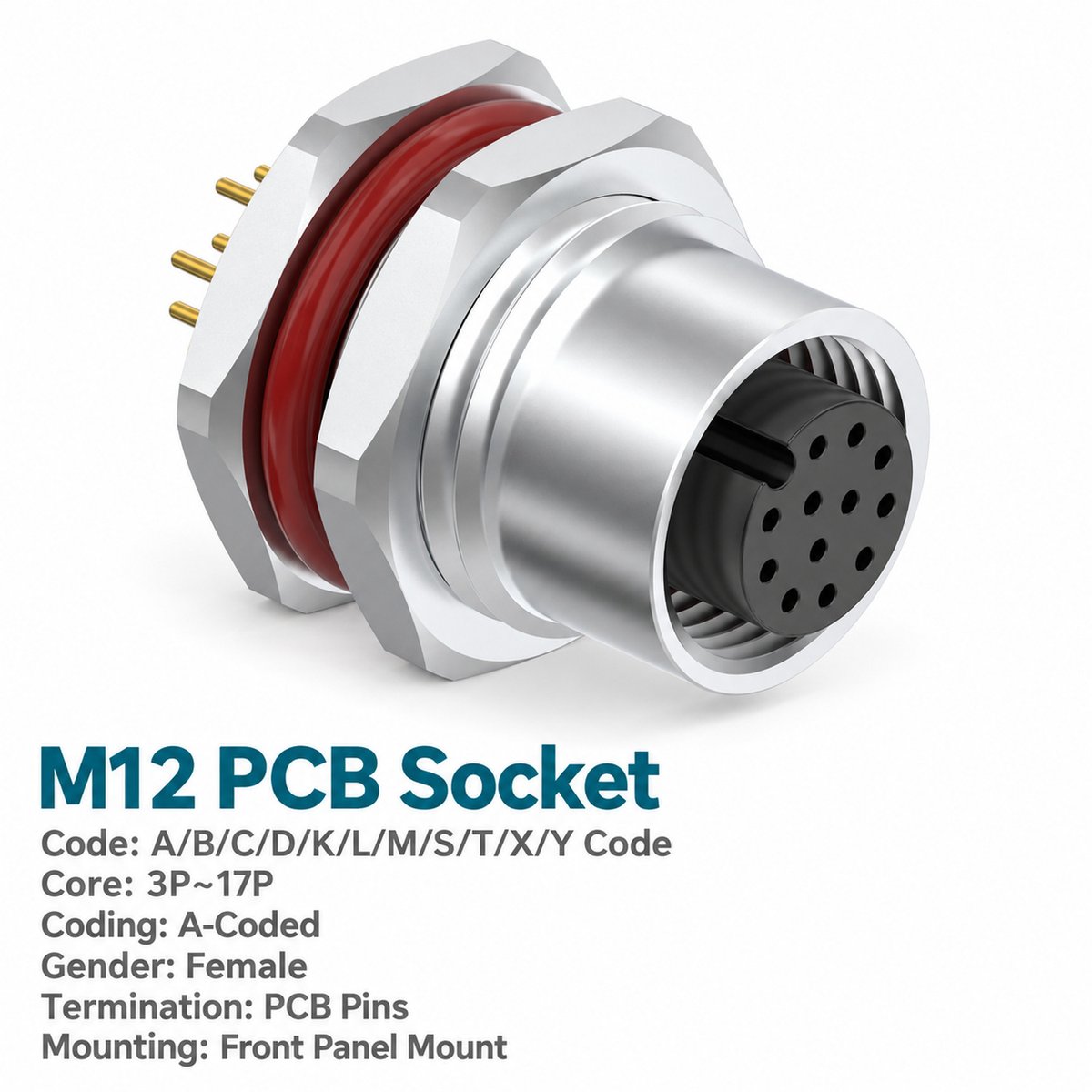

Xmost M12 A-coded female front mount PCB socket provides a detachable connection between an external male cable connector and the equipment’s circuit board. Its rear PCB contacts support board insertion and dip soldering.
The front fastened construction suits equipment designed around a front mount panel interface. Select the mounting thread and check the outline drawing against the enclosure opening and board position.
Grounded and ungrounded versions are available, along with shielded or unshielded options. Specify the grounding and shielding requirements separately when requesting a quotation.
Key Features
- Front mount construction: For equipment requiring a front fastened panel socket.
- Female A-coded interface: Accepts a compatible M12 A-coded male cable connector.
- Six contact counts: Available with 3, 4, 5, 8, 12 or 17 pins.
- PCB dip-solder contacts: Connects the panel interface to the internal circuit board.
- Grounding options: Choose grounded or ungrounded construction.
- Shielding options: Select shielded or unshielded construction.
- Metal mounting components: Nickel-plated brass or zinc alloy materials are listed.
- Ratings by contact count: Supports selection according to the circuit requirements.
Product Dimensions
[Insert the female front mount socket outline drawing and corresponding panel cut-out drawing from page 3 here.]

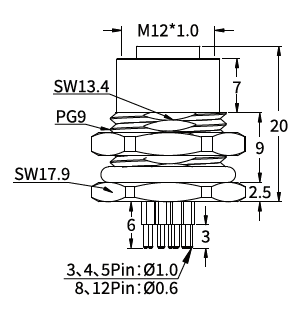

Illustrated PG9 Front Mount Version — Dimensions in mm
| Item to Check | Drawing Value |
|---|---|
| Mating thread | M12 × 1.0 |
| Panel mounting thread shown | PG9 |
| Body dimension shown, excluding PCB contacts | 20 |
| Upper axial section shown | 7 |
| Middle axial section shown | 9 |
| Lower axial section shown | 2.5 |
| Upper wrench size | SW13.4 |
| Mounting nut wrench size | SW17.9 |
| Rear contact section dimension shown | 6 |
| Contact tip section dimension shown | 3 |
| PCB contact diameter, 3 / 4 / 5-pin versions | Ø1.0 |
| PCB contact diameter, 8 / 12-pin versions | Ø0.6 |
The outline drawing does not specify the 17-pin PCB contact diameter. Confirm this dimension for the selected part.
Needle Arrangement (Front View)
[Insert the female needle arrangement row from page 3, showing 3, 4, 5, 8, 12 and 17 pins.]
The diagrams show the female mating-face view. Match the contact count and numbered arrangement to the external male connector and equipment schematic.
The 3-pin version uses contact positions 1, 3 and 4.
Product Specifications
| Parameter | Specification |
|---|---|
| Product type | M12 A-coded female front mount PCB socket |
| Mounting | Front fastened |
| Termination | PCB dip soldering |
| Grounding options | Grounded / ungrounded |
| Shielding options | Shielded / unshielded |
| Standard listed | IEC 61076-2-101 |
| Mating thread | M12 × 1.0 |
| Insulation resistance | ≥100 MΩ |
| Contact resistance | ≤5 mΩ |
| Recommended coupling torque | 0.4 N·m |
| Maximum coupling torque | 0.8 N·m |
| Temperature range, flexible use | −25°C to +80°C |
| Temperature range, static use | −40°C to +80°C |
| Protection ratings listed | IP67 / IP68 |
| Pollution degree | 3 |
| Insulator materials listed | PA66+GF / TPU+GF |
Electrical Ratings by Contact Count
| Contacts | Rated Current | Rated Voltage |
|---|---|---|
| 3 pins | 4 A | 250 V |
| 4 pins | 4 A | 250 V |
| 5 pins | 4 A | 60 V |
| 8 pins | 2 A | 30 V |
| 12 pins | 1.5 A | 30 V |
| 17 pins | 1.5 A | 30 V |
Applications
This M12 A-coded female front mount PCB connector can be considered for:
- Sensor interface modules: Connecting external sensor cables to internal electronics.
- Actuator control equipment: Providing a detachable connection within the selected ratings.
- Automation enclosures: Combining a front mount panel interface with PCB termination.
- Multi-contact control devices: Matching the contact count to the equipment circuits.
Select the connector according to the electrical ratings, panel dimensions, board position and grounding requirements.
Selection and Ordering
| Selection Item | Available Choices |
|---|---|
| Contact count | 3 / 4 / 5 / 8 / 12 / 17 pins |
| Contact gender | Female |
| Mounting style | Front mount |
| Termination | PCB dip soldering |
| Grounding | Grounded / ungrounded |
| Shielding | Shielded / unshielded |
| Panel mounting thread | Specify the required thread and confirm the corresponding drawing |
Example enquiry: M12 A-coded female front mount PCB socket, 4-pin, PG9 panel mounting, grounded construction, shielded version, PCB dip-solder contacts.
