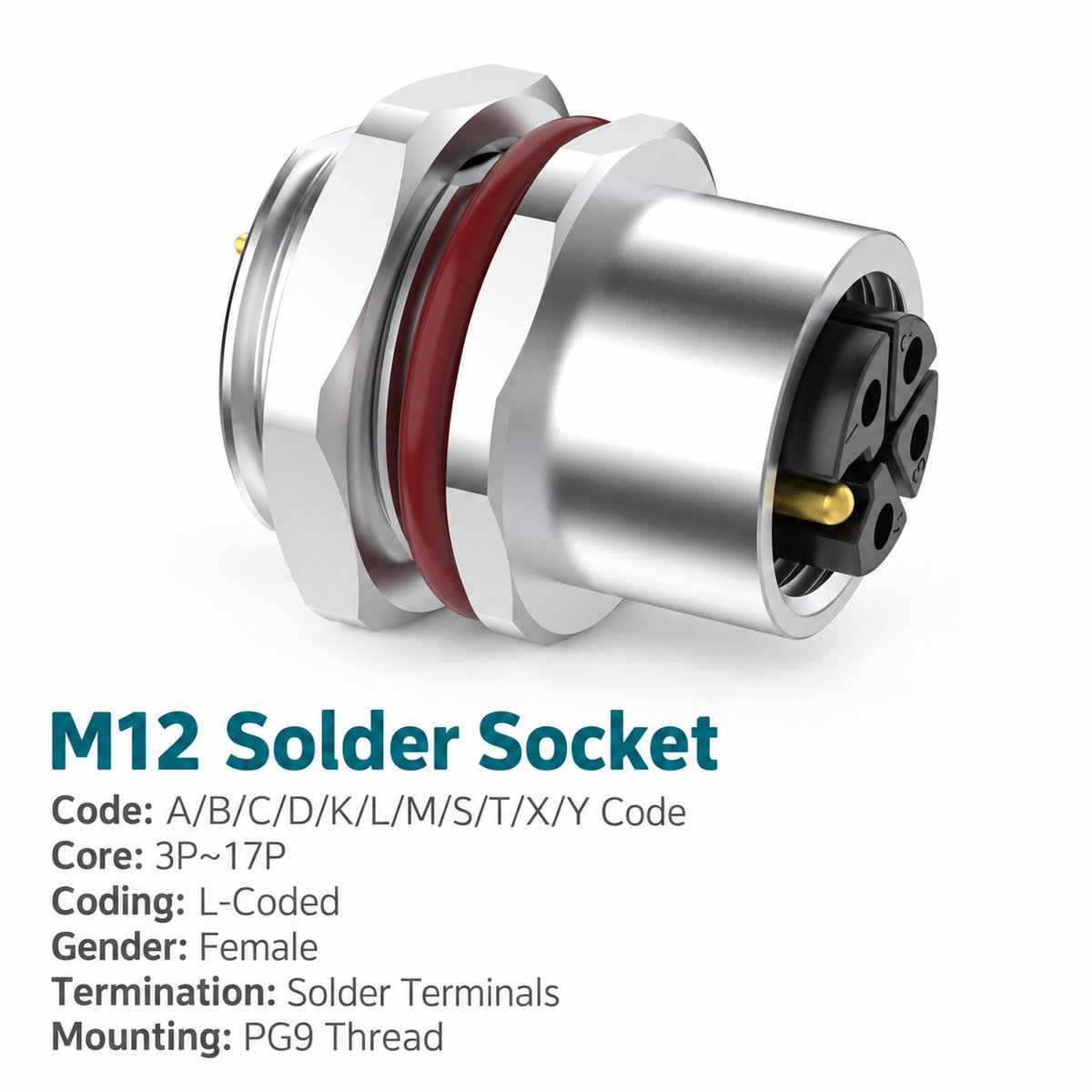

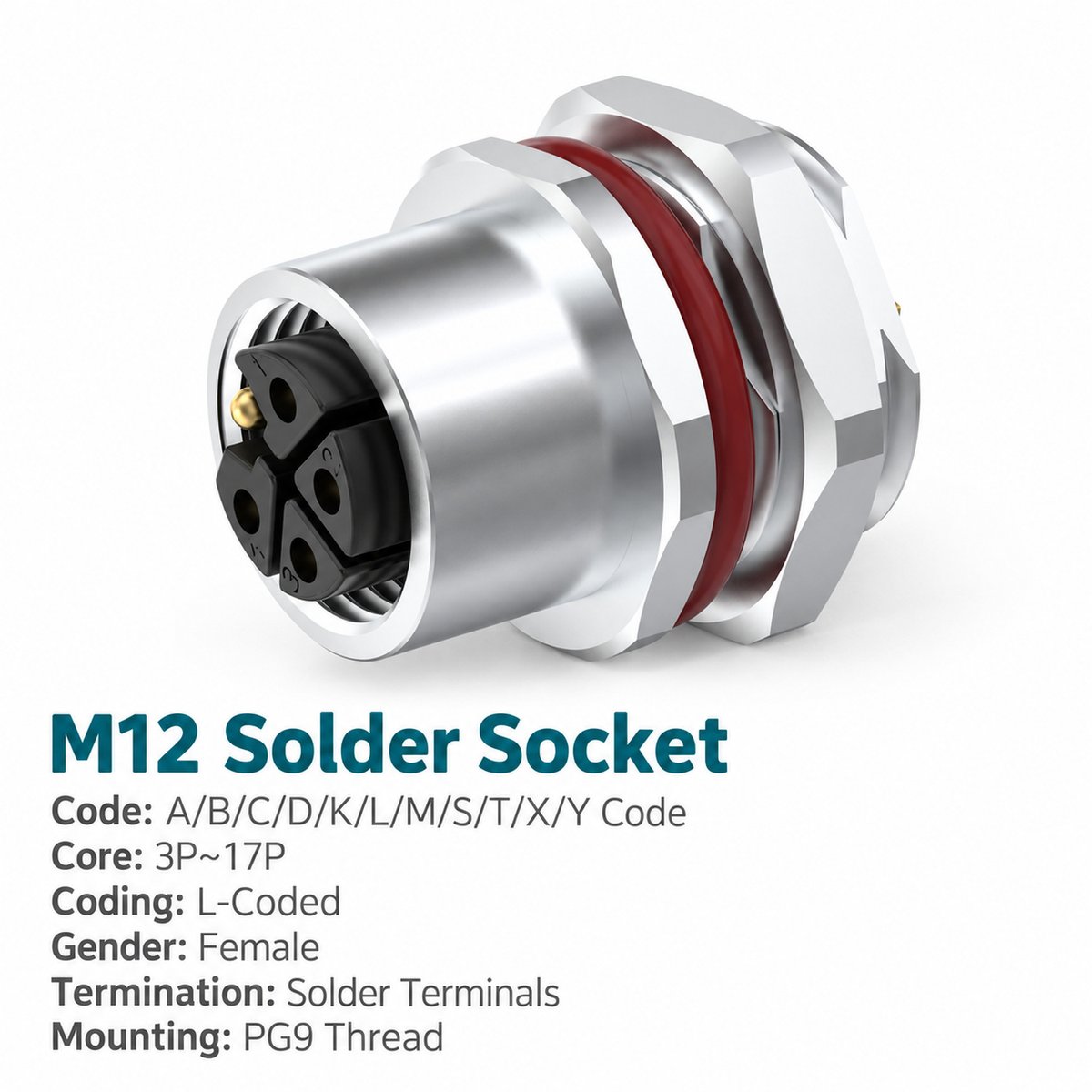

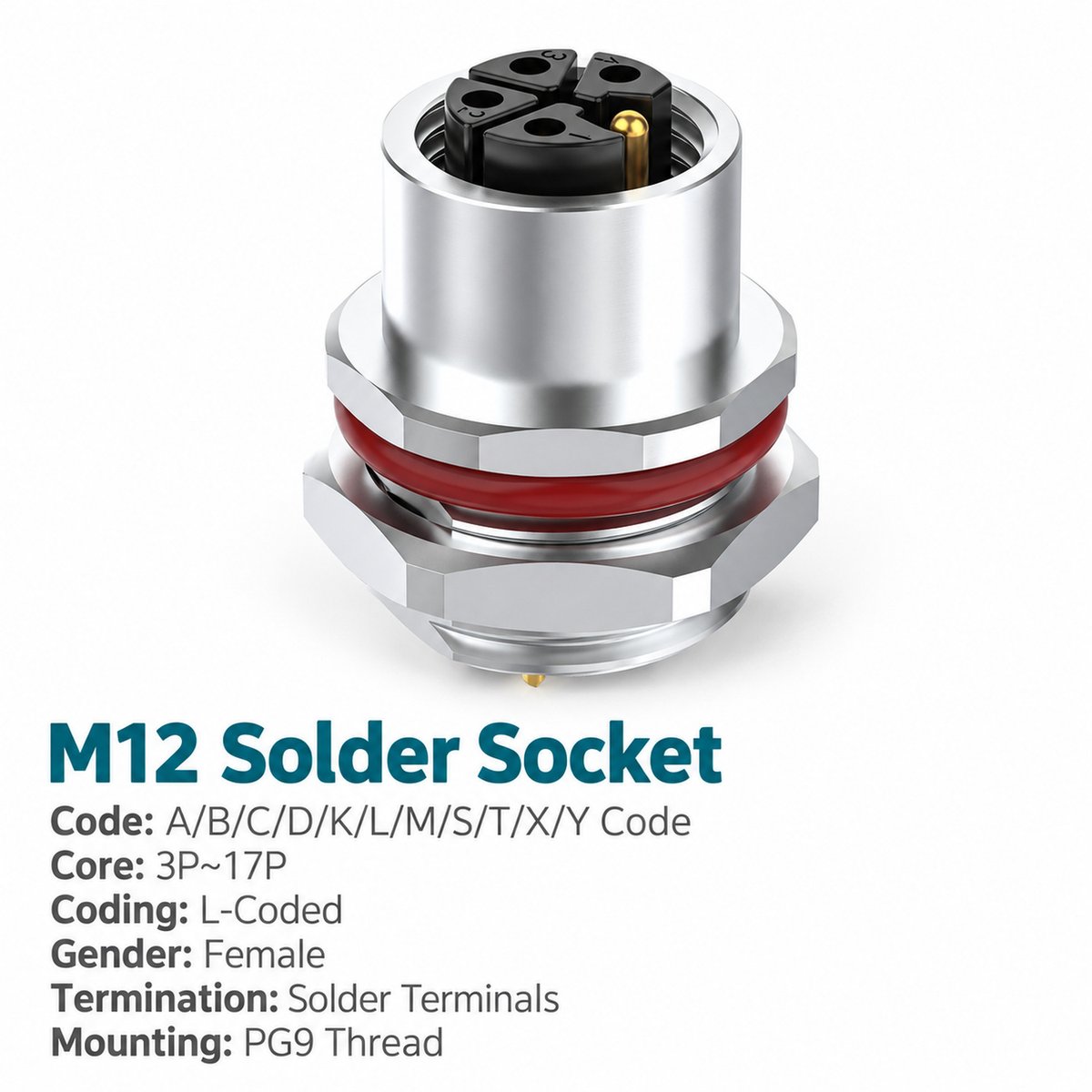

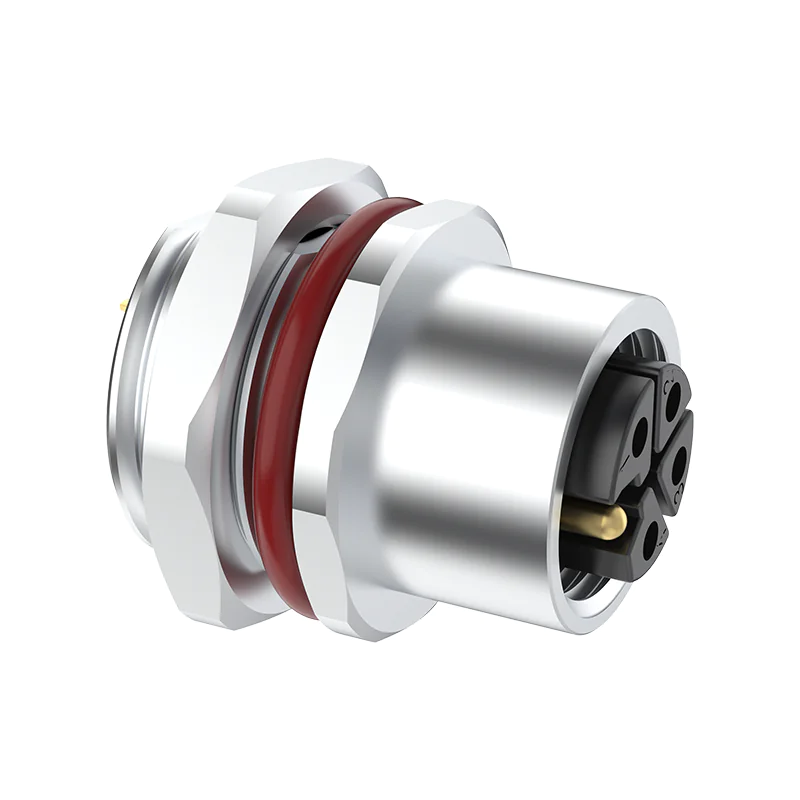

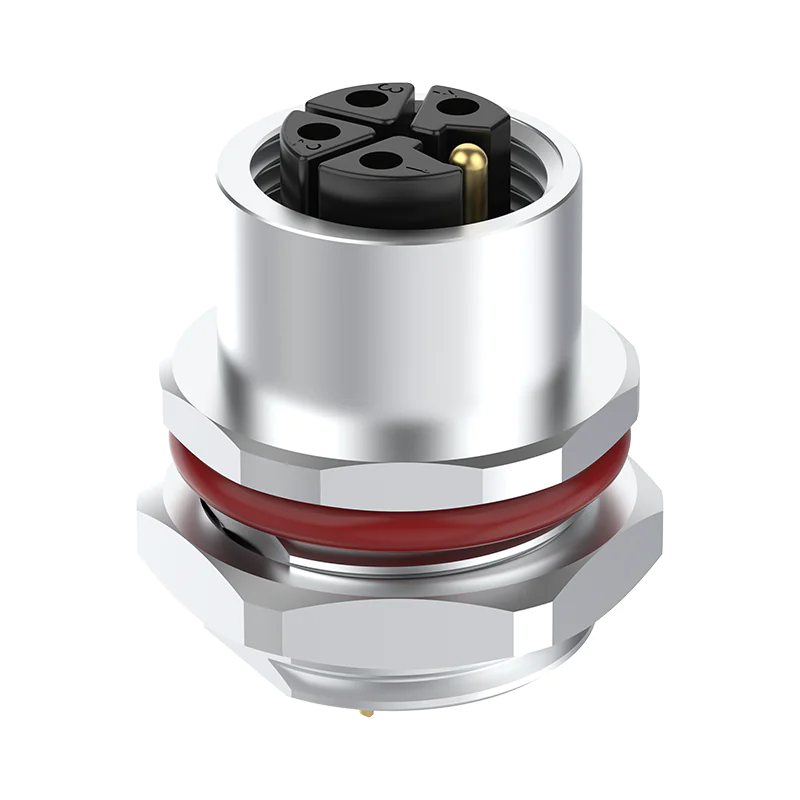

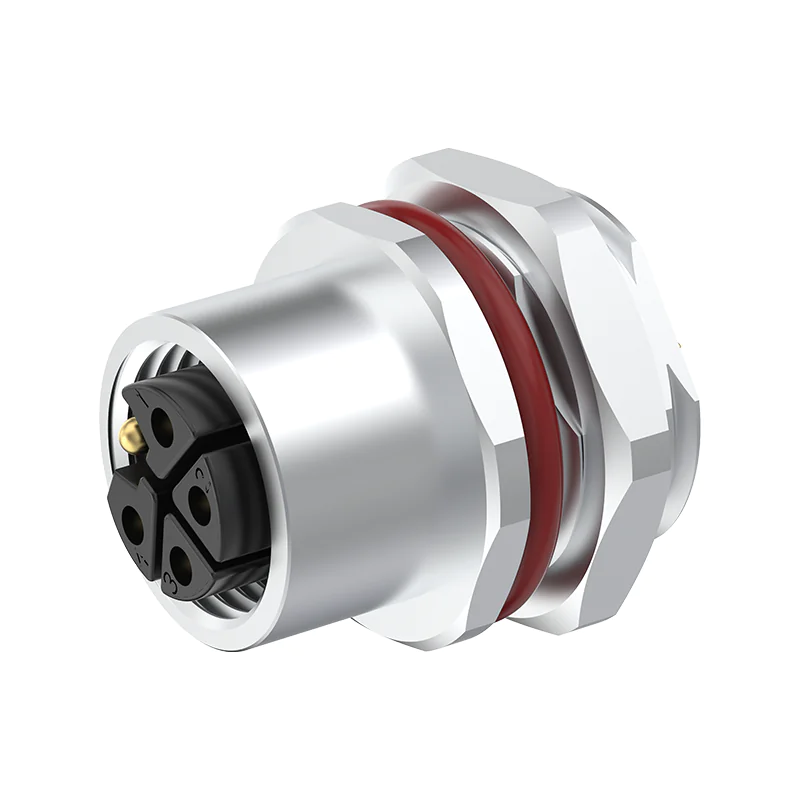

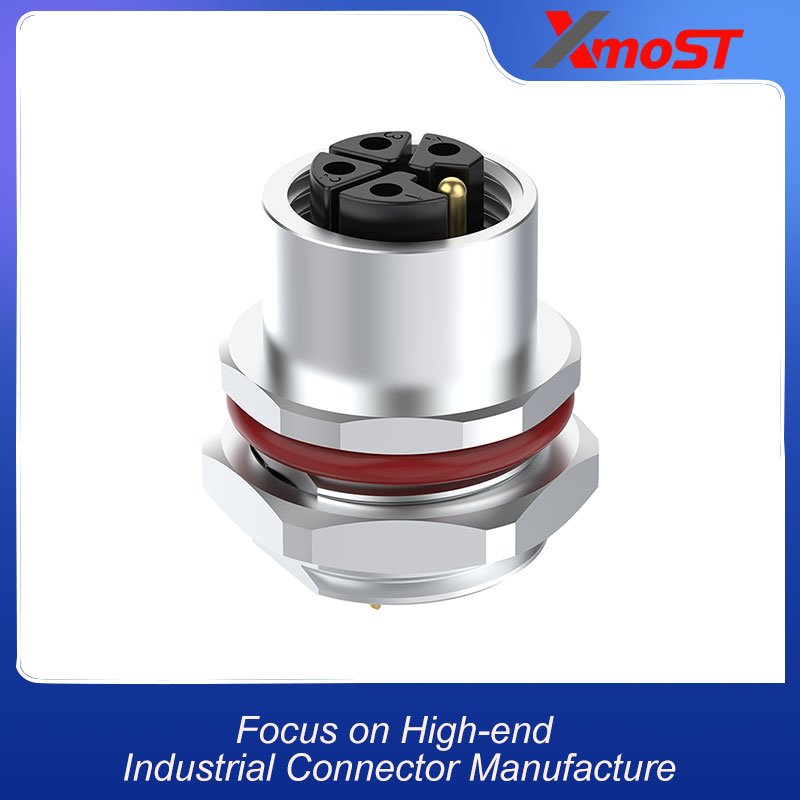

M12 L-coded female rear mount socket connects an external male power cable connector to the equipment’s internal DC wiring. Select the rear fastened version when the enclosure provides the required mounting access and clearance for the rear hardware.
The unwired solder socket can be terminated during harness assembly. Pre-wired versions provide 0.1 m, 0.3 m or 0.5 m leads for routing to an internal terminal or harness connection.
Choose the contact arrangement according to the circuit conductor count and whether functional earth is required. FE-equipped and non-FE versions must be matched to the equipment schematic and mating connector.
Key Features
- Rear fastened installation: For panels designed around a rear mount receptacle.
- 16 A / 63 V ratings: For DC power circuits within the listed electrical limits.
- Female L-coded connection: Accepts a compatible M12 L-coded male connector.
- Solder wiring interface: Supports connection to the internal equipment harness.
- With or without FE: Five contact arrangements for different circuit requirements.
- Pre-wired lead selection: Listed lengths of 0.1 m, 0.3 m and 0.5 m.
- Two panel threads: PG9 and M16 × 1.5 versions.
- Unshielded design: As specified in the catalogue.
Product Dimensions

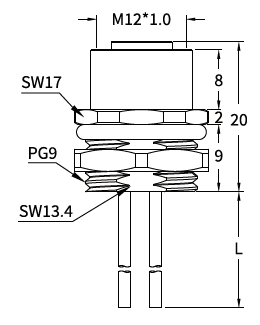

[Insert the rear mount female socket drawing and panel cut-out drawing here.]
Illustrated PG9 Version — Dimensions in mm
| Item to Check | Drawing Value |
|---|---|
| Mating thread | M12 × 1.0 |
| Panel mounting thread | PG9 |
| Overall body length shown, excluding leads | 20 |
| Upper axial section shown | 8 |
| Flange thickness shown | 2 |
| Lower axial section shown | 9 |
| Upper wrench size | SW17 |
| Lower wrench size | SW13.4 |
| Lead length | L; according to ordered version |
Check space for rear fastening hardware and lead routing. Use the panel cut-out corresponding to the ordered PG9 or M16 × 1.5 mounting thread.
Needle Arrangement (Front View)
[Insert the five L-coded female contact arrangements from page 17 here.]
| Option | Circuit Contacts | FE Contact | Total Contacts |
|---|---|---|---|
| 2+FE | 2 | 1 | 3 |
| 3-pin | 3 | 0 | 3 |
| 3+FE | 3 | 1 | 4 |
| 4-pin | 4 | 0 | 4 |
| 4+FE | 4 | 1 | 5 |
The diagrams show the mating-face view. For example, 3+FE and 4-pin both have four contacts, but their contact arrangements differ.
Product Specifications
| Parameter | Specification |
|---|---|
| Product type | M12 L-coded female rear mount DC power socket |
| Mounting | Rear fastened |
| Termination | Solder |
| Wiring options | Unwired / pre-wired leads |
| Standard listed | IEC 61076-2-111 |
| Rated current | 16 A |
| Rated voltage | 63 V |
| Wire size listed | 2.5 mm² / AWG14 |
| Shielding | Unshielded |
| Insulation resistance | ≥100 MΩ |
| Contact resistance | ≤5 mΩ |
| Recommended coupling torque | 0.4 N·m |
| Maximum coupling torque | 0.8 N·m |
| Temperature range, flexible use | −25°C to +80°C |
| Temperature range, static use | −40°C to +80°C |
| Protection ratings listed | IP67 / IP68 / IP69K |
| Pollution degree | 3 |
| Insulator materials listed | PA66+GF / TPU+GF |
Applications
This M12 L-coded rear mount female power socket can be considered for:
- DC-powered equipment housings: Connecting external cables to internal power wiring.
- Control enclosures with rear mounting access: Accommodating the fastening hardware behind the panel.
- Pre-wired machine assemblies: Routing supplied leads to an internal connection point.
- Modular automation equipment: Providing a detachable DC power interface.
- Functional earth connections: Using the dedicated FE contact where required by the equipment design.
Wiring and Lead Options
[Insert the wire colour and pin assignment screenshot here.]
| Contact Position | 2+FE | 3-pin | 3+FE | 4-pin | 4+FE |
|---|---|---|---|---|---|
| Pin 1 | — | Brown — BN | Brown — BN | Brown — BN | Brown — BN |
| Pin 2 | White — WH | White — WH | White — WH | White — WH | White — WH |
| Pin 3 | Blue — BU | Blue — BU | Blue — BU | Blue — BU | Blue — BU |
| Pin 4 | — | — | — | Black — BK | Black — BK |
| Pin 5 / FE | Grey — GY | — | Grey — GY | — | Grey — GY |
“—” means the position is not used. Follow the equipment schematic for DC polarity and circuit assignments. The grey conductor is the functional earth lead in FE-equipped versions.
Selection and Ordering
| Selection Item | Available Choices |
|---|---|
| Contact arrangement | 2+FE / 3-pin / 3+FE / 4-pin / 4+FE |
| Panel mounting thread | PG9 / M16 × 1.5 |
| Wiring | Unwired / pre-wired |
| Listed lead lengths | 0.1 m / 0.3 m / 0.5 m |
| Custom requirements | Specify wire type or lead length |
Example enquiry: M12 L-coded female rear mount socket, 4-pin without FE, solder termination, M16 × 1.5 mounting, unwired.
