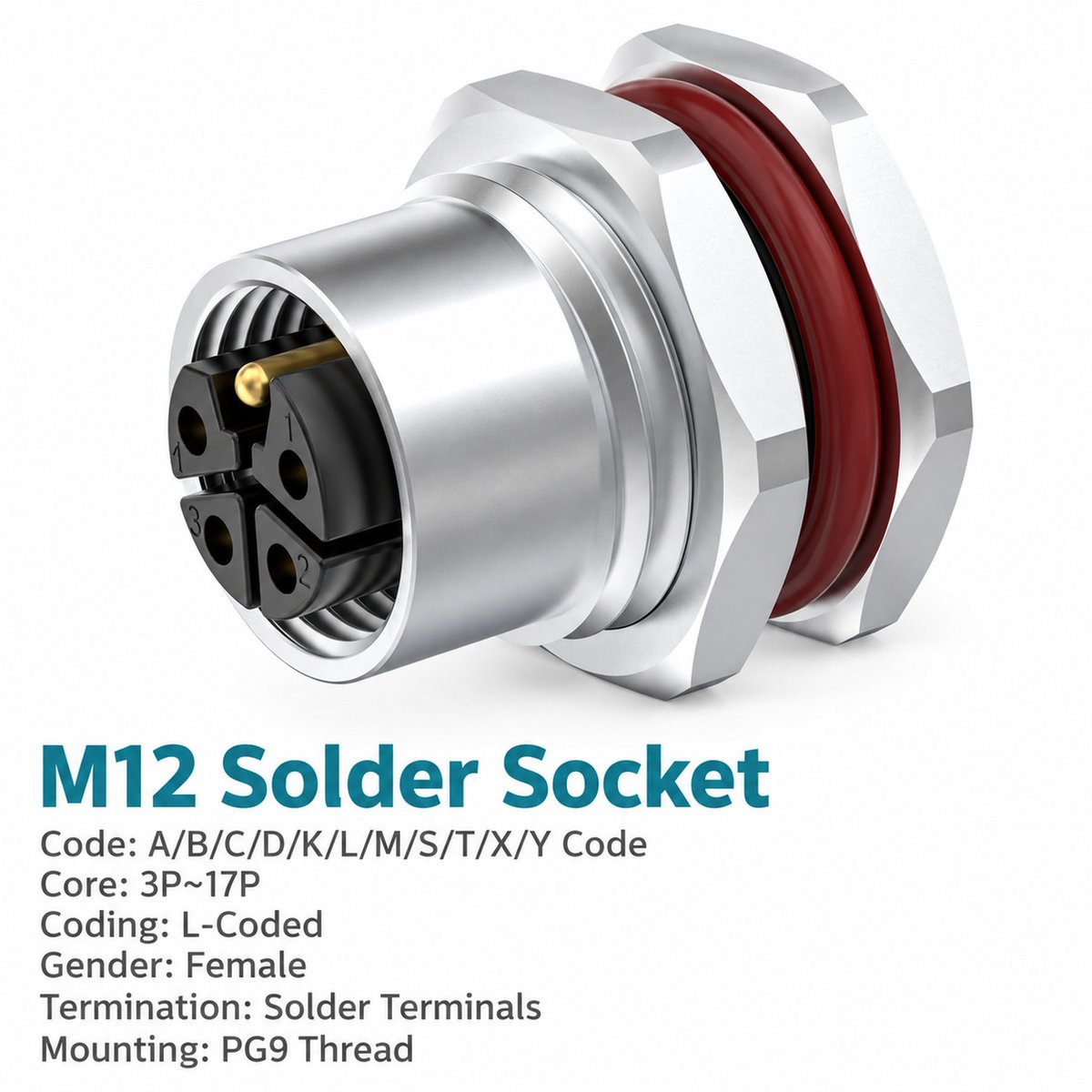

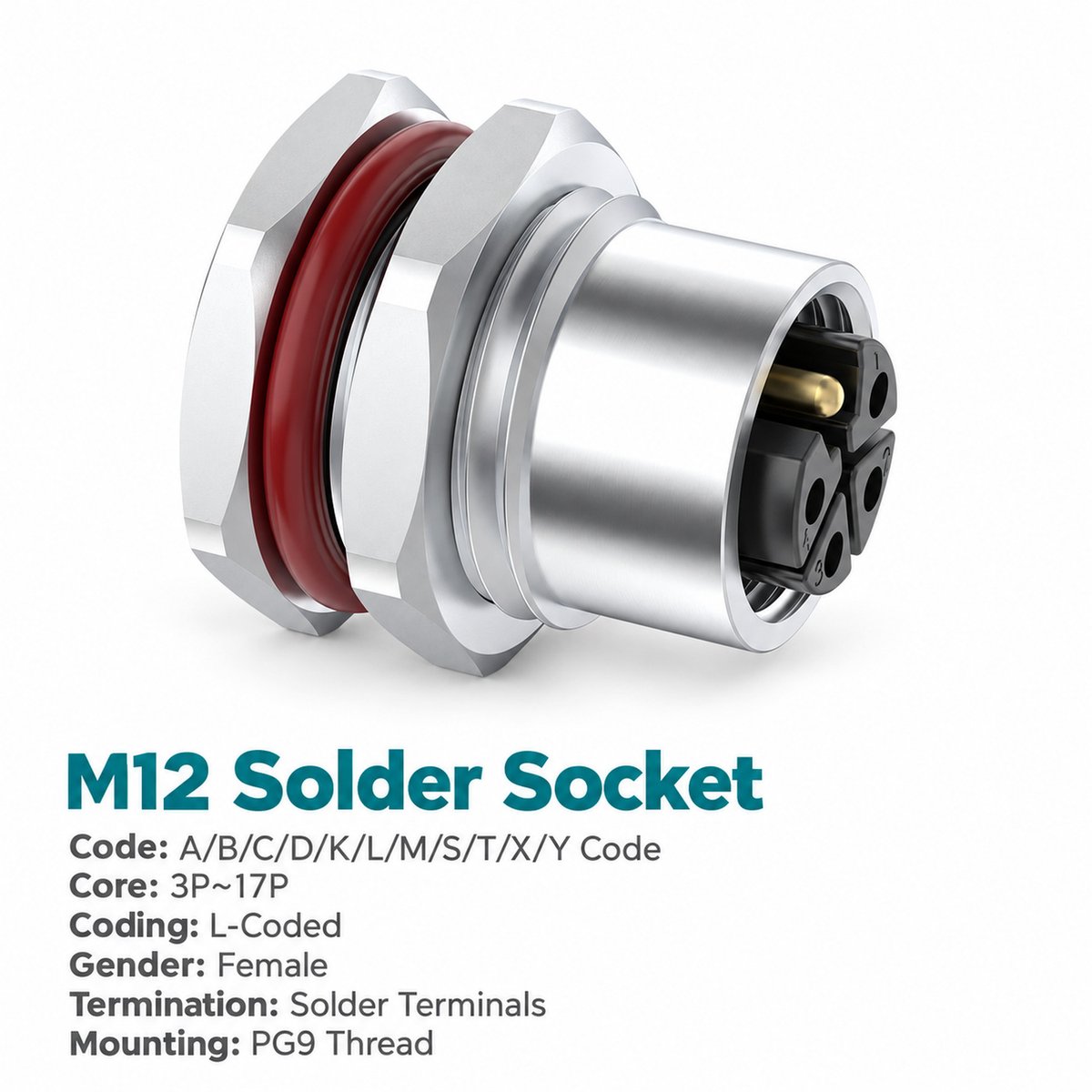

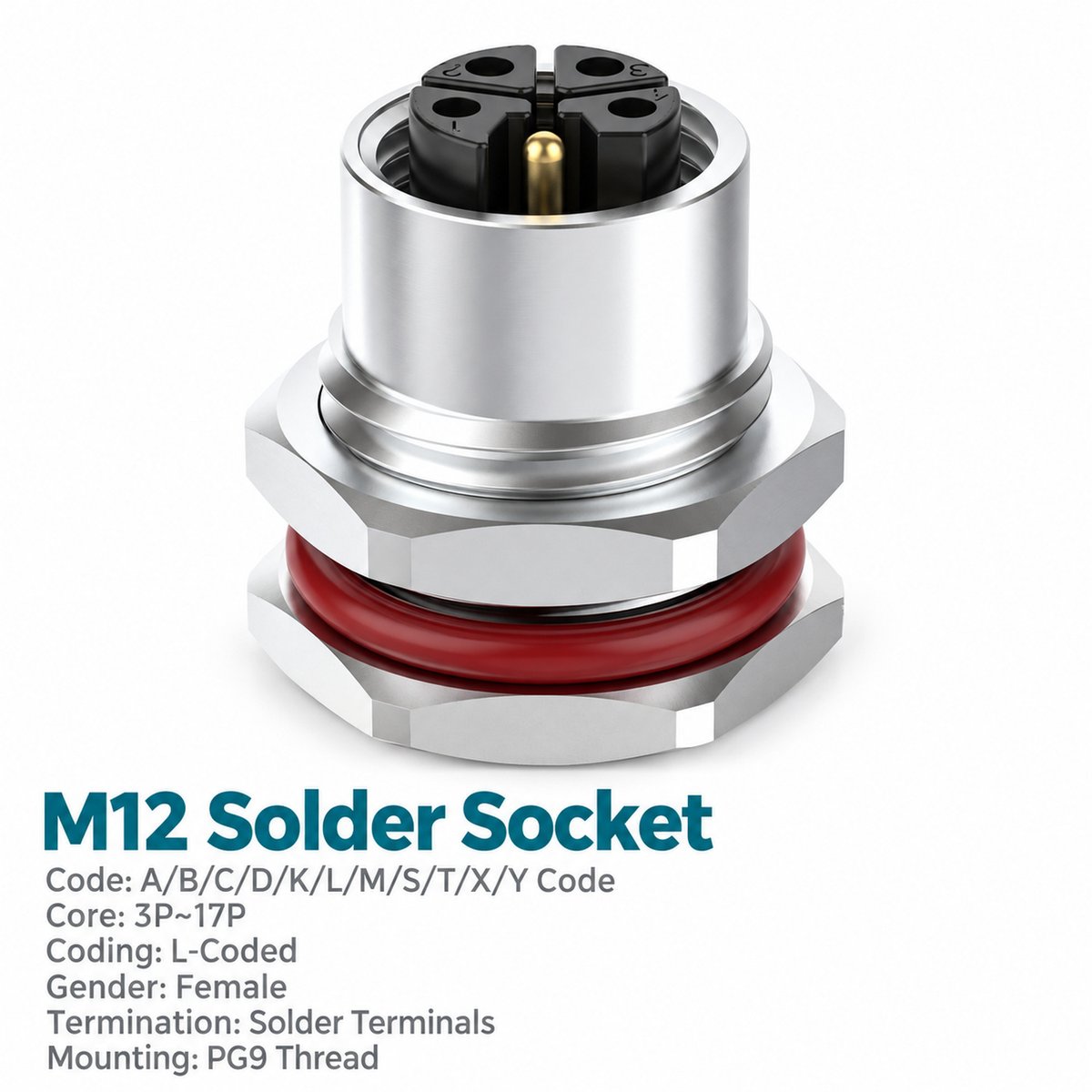

M12 L-coded female front mount socket provides the equipment-side connection for a compatible M12 L-coded male power cable connector. It mounts to the enclosure panel, with solder terminals or pre-wired leads connecting to the internal DC wiring.
Select the front fastened version when it matches the panel installation design. The unwired socket allows termination during equipment assembly, while pre-wired versions provide 0.1 m, 0.3 m or 0.5 m leads for routing to an internal terminal or harness connection.
Five contact arrangements are available. FE means functional earth. For example, 4+FE provides four circuit contacts plus one functional earth contact, giving five contacts in total. Select the arrangement according to the equipment schematic and mating connector.
2. Key Features
- 16 A / 63 V DC power connection: Match the electrical ratings to the equipment circuit.
- L-coded female interface: Connects to a compatible M12 L-coded male connector.
- Front fastened mounting: Select according to the panel installation drawing.
- Solder termination: Supports internal wire connection during assembly.
- Five contact arrangements: Choose versions with or without functional earth.
- Unwired or pre-wired: Terminate your own wires or use supplied leads.
- Three listed lead lengths: 0.1 m, 0.3 m and 0.5 m.
- PG9 or M16 × 1.5 mounting: Match the mounting thread to the panel opening.
Product Dimensions

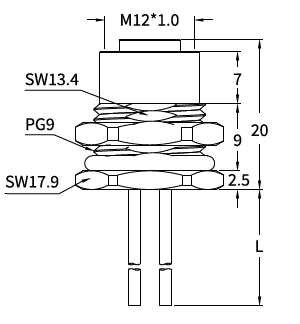

[Insert the front mount female socket drawing and panel cut-out drawing here.]
Illustrated PG9 Version — Dimensions in mm
| Item to Check | Drawing Value |
|---|---|
| Mating thread | M12 × 1.0 |
| Panel mounting thread | PG9 |
| Overall body length shown, excluding leads | 20 |
| Upper axial section shown | 7 |
| Middle axial section shown | 9 |
| Lower axial section shown | 2.5 |
| Upper wrench size | SW13.4 |
| Mounting nut wrench size | SW17.9 |
| Lead length | L; according to ordered version |
The mating thread connects to the external cable connector. The panel mounting thread secures the socket to the enclosure. Use the corresponding cut-out drawing for the selected mounting version.
Needle Arrangement (Front View)
[Insert the five L-coded female contact arrangements from page 17 here.]
| Configuration | Circuit Contacts | FE Contact | Total Contacts |
|---|---|---|---|
| 2+FE | 2 | 1 | 3 |
| 3-pin | 3 | 0 | 3 |
| 3+FE | 3 | 1 | 4 |
| 4-pin | 4 | 0 | 4 |
| 4+FE | 4 | 1 | 5 |
The diagrams show the mating-face view. Select by the complete arrangement, not total contact count alone: 2+FE and 3-pin both have three contacts but use different contact positions.
Product Specifications
| Parameter | Specification |
|---|---|
| Product type | M12 L-coded female front mount DC power socket |
| Mounting | Front fastened |
| Termination | Solder |
| Wiring options | Unwired / pre-wired leads |
| Standard listed | IEC 61076-2-111 |
| Rated current | 16 A |
| Rated voltage | 63 V |
| Wire size listed | 2.5 mm² / AWG14 |
| Shielding | Unshielded |
| Coupling thread | M12 × 1.0 |
| Panel mounting thread options | PG9 / M16 × 1.5 |
| Insulation resistance | ≥100 MΩ |
| Contact resistance | ≤5 mΩ |
| Recommended coupling torque | 0.4 N·m |
| Maximum coupling torque | 0.8 N·m |
| Temperature range, flexible use | −25°C to +80°C |
| Temperature range, static use | −40°C to +80°C |
| Protection ratings listed | IP67 / IP68 / IP69K |
Applications
This M12 L-coded front mount female power connector can be considered for:
- Machine DC power interfaces: Connecting an external power cable to the internal harness.
- Automation equipment housings: Providing a detachable panel power connection.
- Control enclosures: Routing DC circuits through a female receptacle.
- Modular machinery: Allowing the external power cable to disconnect at the housing.
- Equipment requiring functional earth: Using an FE-equipped arrangement where specified by the electrical design.
Select the connector according to the circuit ratings, contact assignment and panel design.
Wiring and Lead Options
[Insert the wire colour and pin assignment screenshot from page 17 here.]
| Contact Position | 2+FE | 3-pin | 3+FE | 4-pin | 4+FE |
|---|---|---|---|---|---|
| Pin 1 | — | Brown — BN | Brown — BN | Brown — BN | Brown — BN |
| Pin 2 | White — WH | White — WH | White — WH | White — WH | White — WH |
| Pin 3 | Blue — BU | Blue — BU | Blue — BU | Blue — BU | Blue — BU |
| Pin 4 | — | — | — | Black — BK | Black — BK |
| Pin 5 / FE | Grey — GY | — | Grey — GY | — | Grey — GY |
“—” means the position is not used. The grey lead is functional earth in FE-equipped versions. Assign DC polarity and circuit functions according to the equipment schematic.
Selection and Ordering
| Selection Item | Available Choices |
|---|---|
| Contact arrangement | 2+FE / 3-pin / 3+FE / 4-pin / 4+FE |
| Mounting style | Front mount |
| Panel mounting thread | PG9 / M16 × 1.5 |
| Termination | Solder |
| Wiring | Unwired / pre-wired |
| Listed lead lengths | 0.1 m / 0.3 m / 0.5 m |
| Custom requirements | Specify wire type or lead length |
Example enquiry: M12 L-coded female front mount socket, 4+FE, PG9 mounting, solder termination, 0.3 m pre-wired leads.
