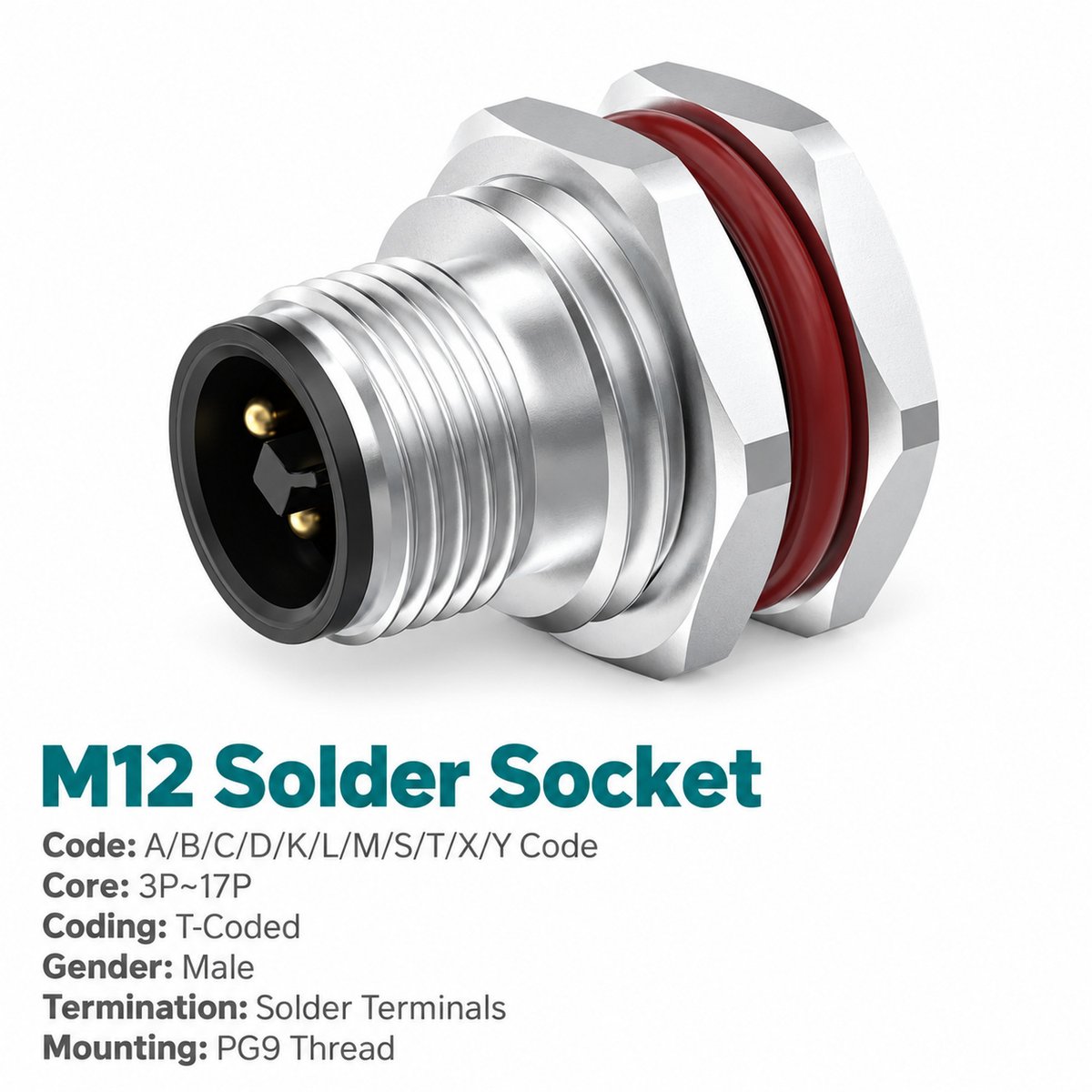

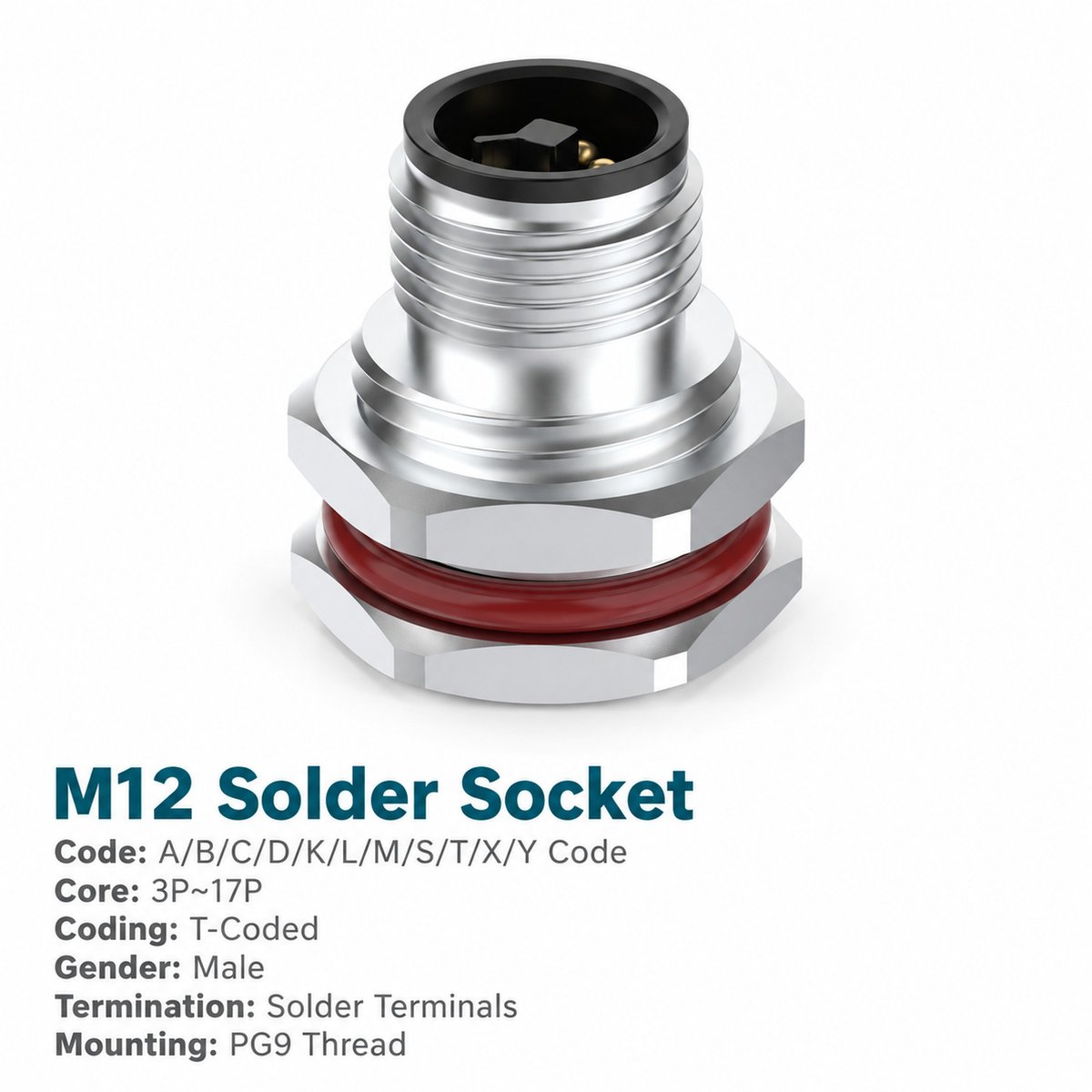

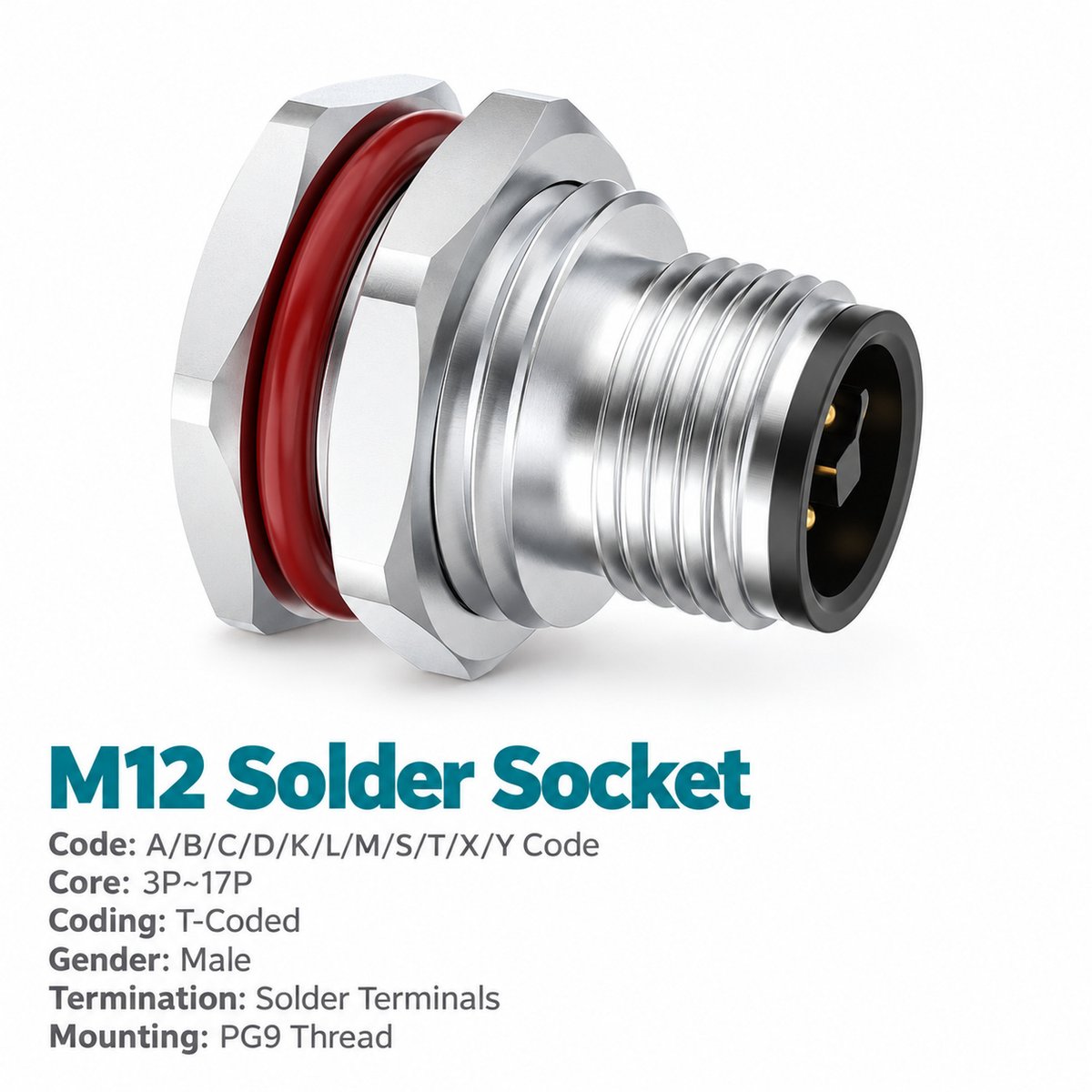

M12 T-coded male front mount socket provides the equipment-side connection for a compatible M12 T-coded female power cable connector. The external cable connects at the mating face, while solder or crimp termination connects the socket to the internal wiring.
Select the front fastened version when it matches the equipment panel design. Choose an unwired socket for termination during harness assembly, or select pre-wired leads in the listed lengths of 0.1 m, 0.3 m or 0.5 m.
This 4-pin M12 DC power socket is rated at 12 A and 60 V. Confirm the contact assignment, panel mounting thread and mating connector before ordering.
Key Features
- 12 A / 60 V DC power connection: Match the ratings to the equipment circuit requirements.
- 4-pin T-coded male interface: Connects to a compatible M12 T-coded female connector.
- Front fastened mounting: Select according to the panel installation drawing.
- Solder or crimp termination: Choose the version that matches the harness assembly process.
- Unwired or pre-wired: Terminate your own wires or use supplied leads.
- Three listed lead lengths: 0.1 m, 0.3 m and 0.5 m.
- Multiple mounting threads: M12 × 1.0, PG9 and M16 × 1.5.
- Unshielded construction: As specified for this catalogue version.
Product Dimensions
[Insert the front mount male socket drawing and panel cut-out drawing here.]

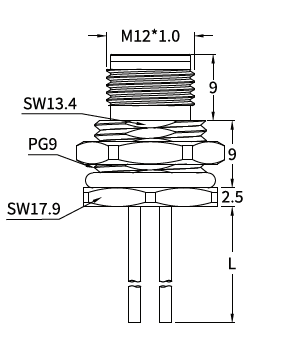

Illustrated PG9 Version — Dimensions in mm
| Item to Check | Drawing Value |
|---|---|
| Mating thread | M12 × 1.0 |
| Panel mounting thread | PG9 |
| Upper wrench size | SW13.4 |
| Mounting nut wrench size | SW17.9 |
| Upper axial section shown | 9 |
| Middle axial section shown | 9 |
| Lower axial section shown | 2.5 |
| Lead length | L; according to ordered version |
The mating thread connects to the external cable connector. The panel mounting thread secures the socket to the enclosure. Use the cut-out drawing for the selected mounting version.
Needle Arrangement (Front View)
[Insert the T-coded 4-pin male contact arrangement screenshot from page 11 here.]
The diagram shows the mating-face view. Identify contacts 1–4 from this view before terminating wires or checking the pre-wired assembly.
Use the equipment schematic to determine each contact’s circuit function.
Product Specifications
| Parameter | Specification |
|---|---|
| Product type | M12 T-coded male front mount DC power socket |
| Mounting | Front fastened |
| Contact count | 4 pins |
| Termination options | Solder / crimp |
| Wiring options | Unwired / pre-wired leads |
| Standard listed | IEC 61076-2-111 |
| Rated current | 12 A |
| Rated voltage | 60 V |
| Wire size listed | 1.5 mm² / AWG16 |
| Shielding | Unshielded |
| Insulation resistance | ≥100 MΩ |
| Contact resistance | ≤5 mΩ |
| Recommended coupling torque | 0.4 N·m |
| Maximum coupling torque | 0.8 N·m |
| Temperature range, flexible use | −25°C to +80°C |
| Temperature range, static use | −40°C to +80°C |
| Protection ratings listed | IP67 / IP68 |
| Pollution degree | 3 |
| Insulator materials listed | PA66+GF / TPU+GF |
Applications
This M12 T-coded front mount power connector can be considered for:
- Machine DC power interfaces: Connecting an external power cable to internal equipment wiring.
- Automation enclosures: Providing a detachable four-contact panel connection.
- Modular equipment: Allowing the external power cable to disconnect at the housing.
- Harness production: Selecting solder, crimp or pre-wired construction to match assembly requirements.
Select the version according to the circuit ratings, contact assignment and panel design.
Wiring and Lead Options
[Insert the wire colour and pin assignment screenshot from page 11 here.]
| Contact | Wire Colour |
|---|---|
| Pin 1 | Brown — BN |
| Pin 2 | White — WH |
| Pin 3 | Blue — BU |
| Pin 4 | Black — BK |
The table identifies wire colours by contact number. Assign DC polarity and circuit functions according to the equipment schematic; the catalogue colour table does not define them.
Selection and Ordering
| Selection Item | Available Choices |
|---|---|
| Mounting style | Front mount |
| Termination | Solder / crimp |
| Panel mounting thread | M12 × 1.0 / PG9 / M16 × 1.5 |
| Wiring | Unwired / pre-wired |
| Listed lead lengths | 0.1 m / 0.3 m / 0.5 m |
| Custom requirements | Specify wire type or lead length |
Example enquiry: M12 T-coded male front mount socket, 4-pin, solder termination, PG9 mounting, 0.3 m pre-wired leads.
