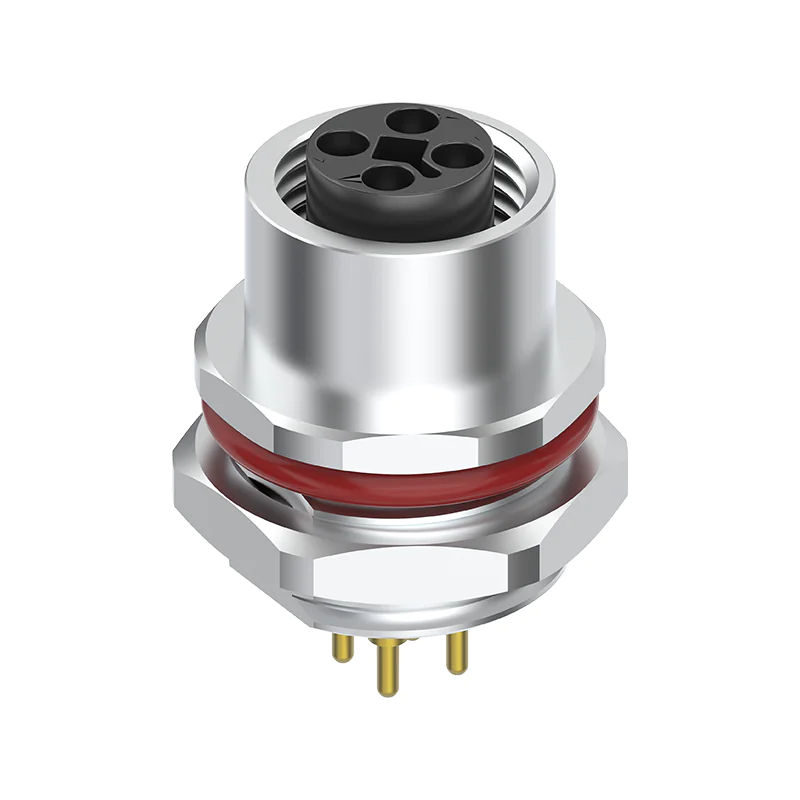

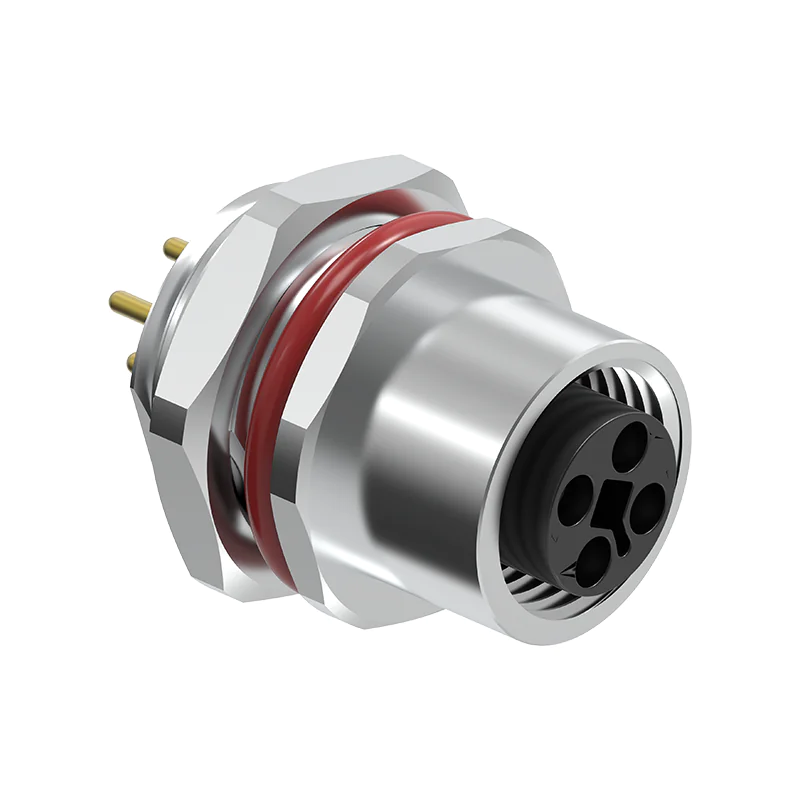

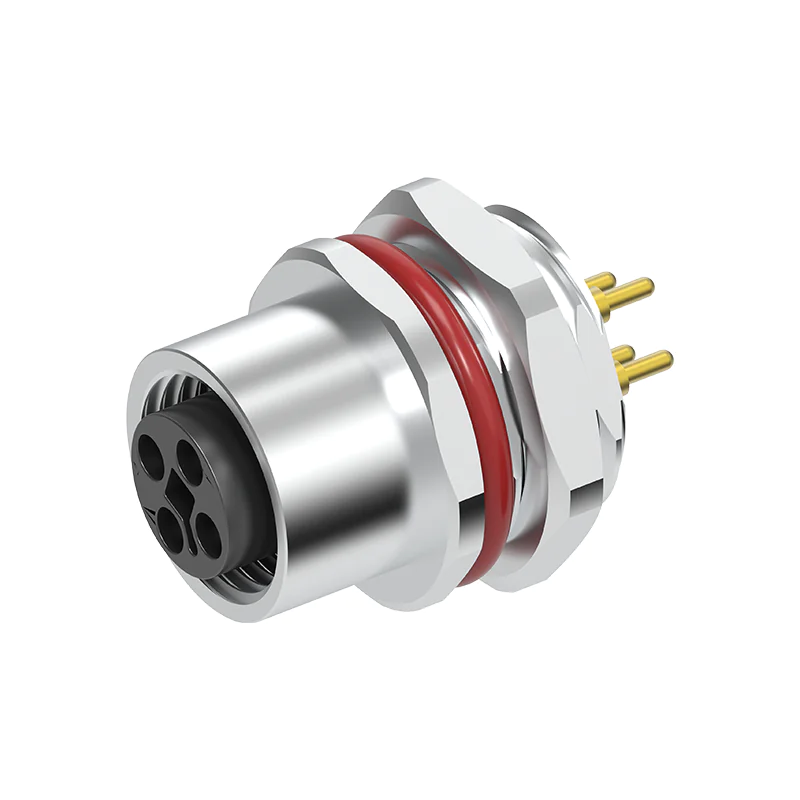

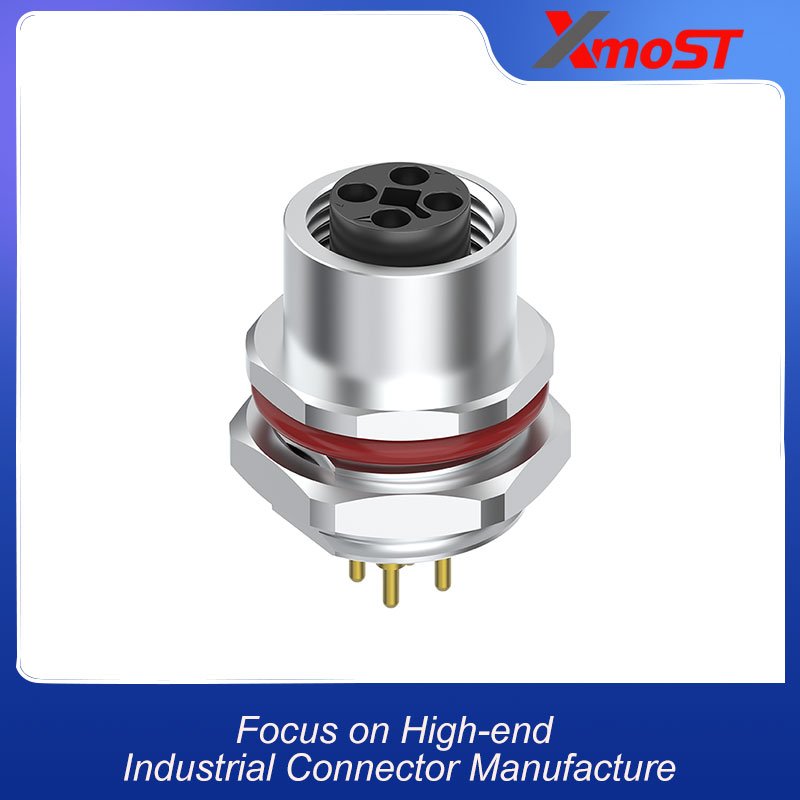

M12 T-Code 4Pin female rear panel mount socket with PCB dip soldering contacts, compliant with IEC 61076-2-111. Rated 63V / 12A DC for power transmission. Rear mounting for clean front panel appearance. M12x1.0mm screw locking (recommended torque 0.4Nm, max 0.8Nm), brass nickel-plated nut, phosphor bronze gold-plated pins. Insulation resistance ≥100MΩ, contact resistance ≤5mΩ. Insulator material: PA66+GF/TPU+GF. Sealing: FKM/Silicon/Epoxy. Operating temperature -25°C to +80°C (dynamic) / -40°C to +80°C (static). Ideal for DC power distribution, sensor power supply, actuator control, and industrial automation.
- Dynamic Operating Temperature: -25°C ~ +80°C
- Static Operating Temperature: -40°C ~ +80°C
- Ingress Protection: IP67, IP68
- Pollution Degree: 3
- Insulator Material: PA66+GF / TPU+GF
- Screw / Nut Material: Brass with Nickel Plating (Brass Ni) / Zinc Alloy with Nickel Plating
- Pin Material: Phosphor Bronze with Gold Plating / Brass with Gold Plating
- Sealing Material: FKM / Silicone / Epoxy
