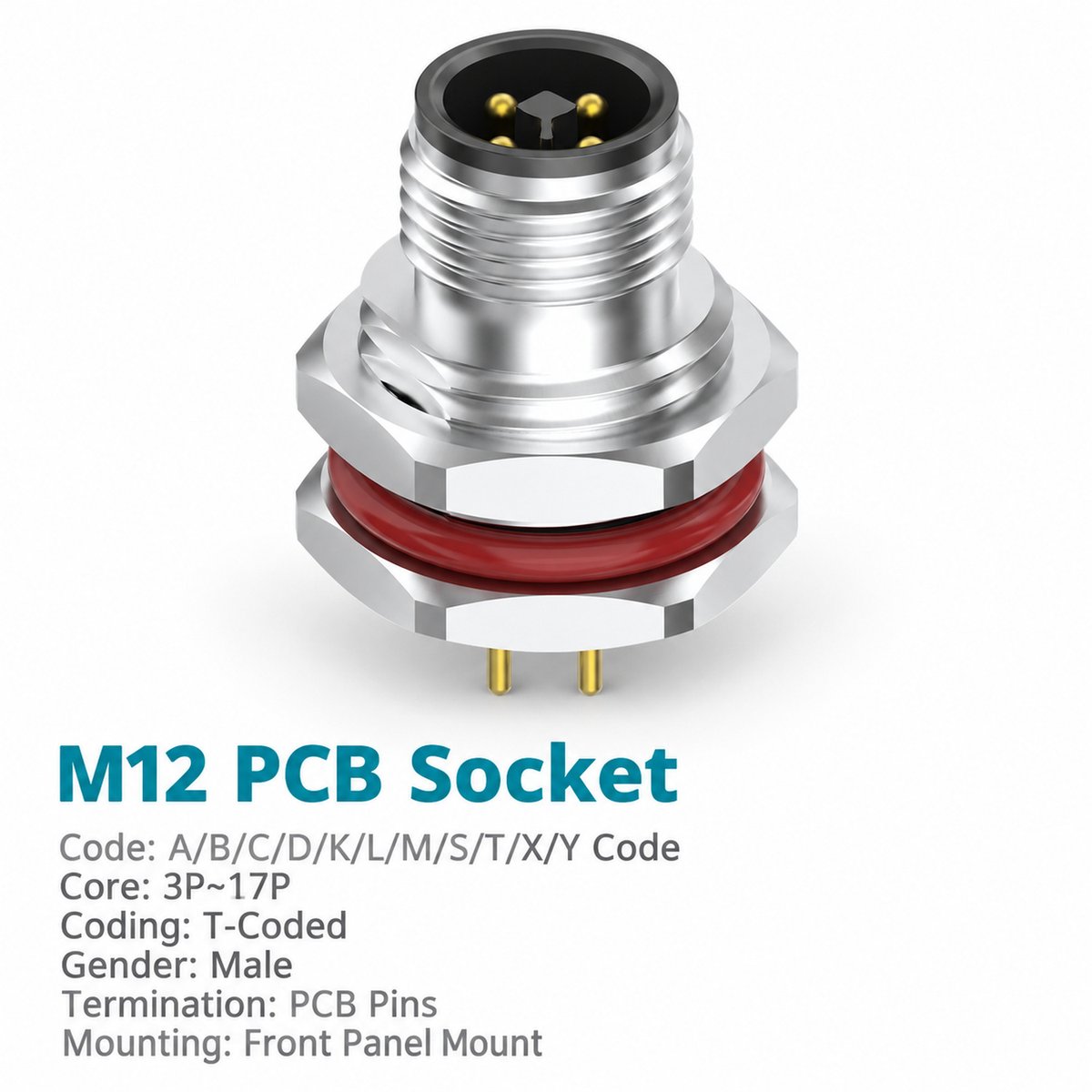

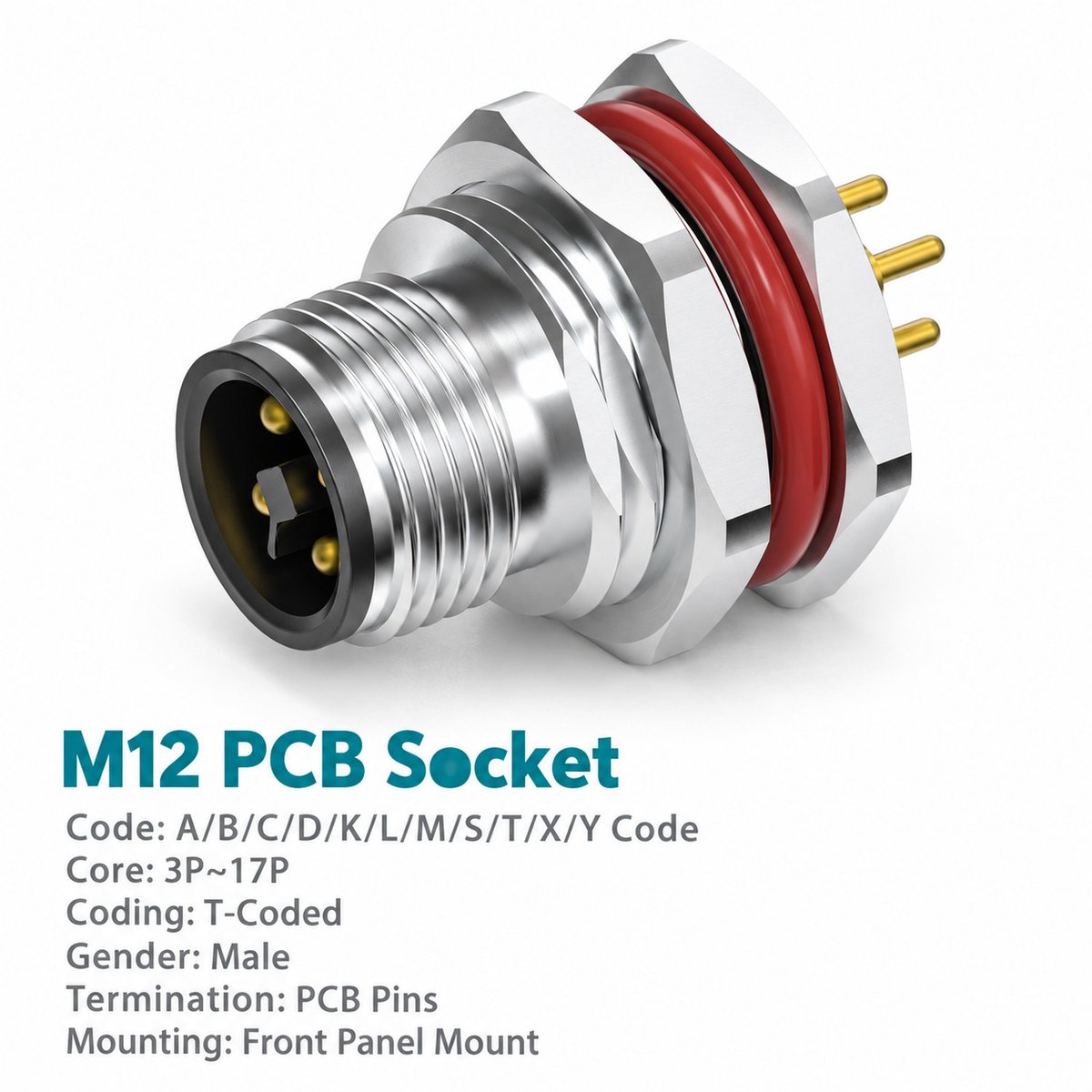

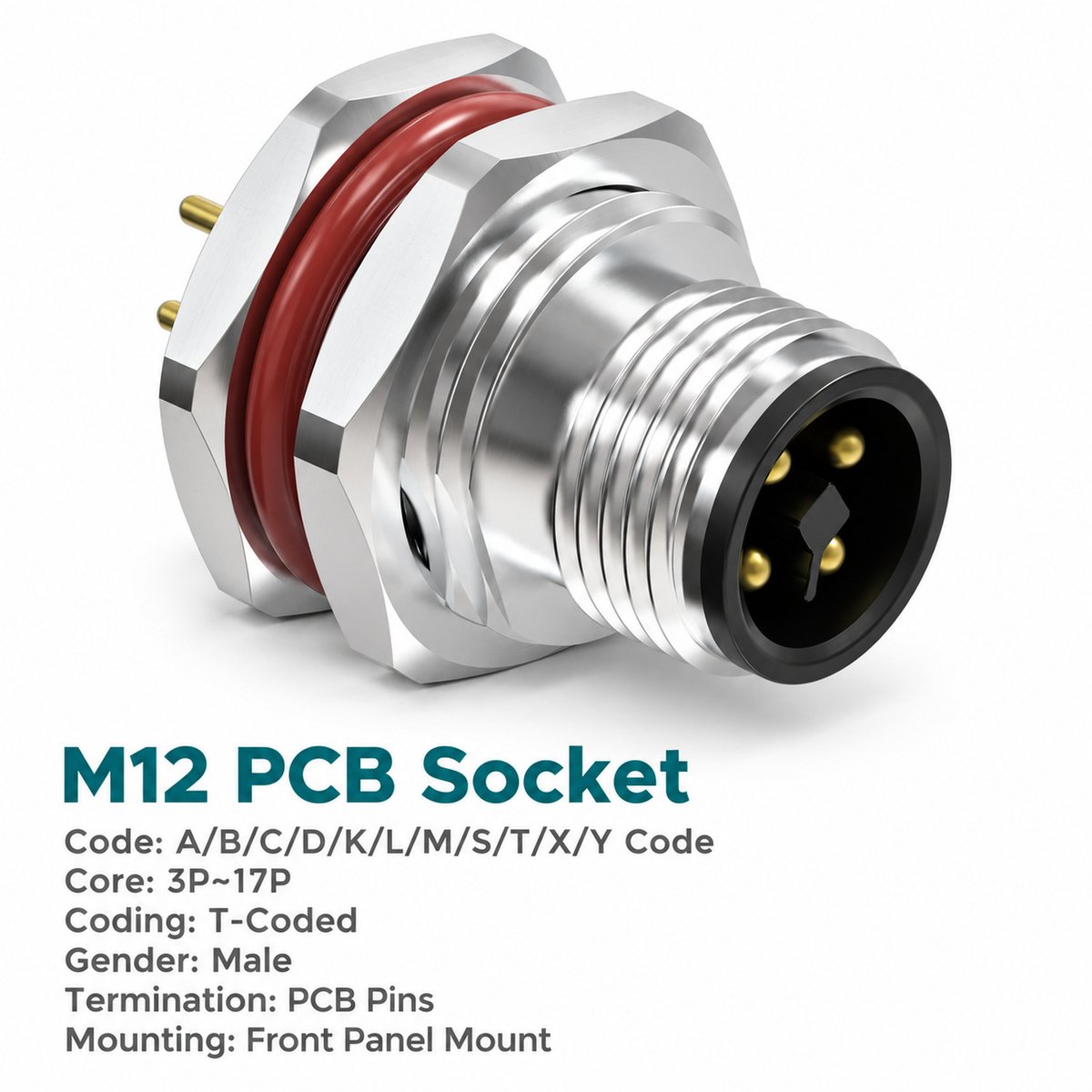

Xmost M12 T-coded male front mount PCB connector provides a detachable DC power interface between an external female cable connector and the equipment’s internal circuit board. Its four-contact T-coded interface mates with a compatible M12 power cable connector, while straight rear contacts support PCB insertion and dip soldering.
This front fastened M12 panel mount power connector combines an enclosure-mounted cable connection with direct board termination. PG9 and M16 × 1.5 mounting options allow the connector to be matched to the panel design.
Rated at 12 A and 63 V, this unshielded PCB power connector can be selected for compatible industrial DC power circuits. Use the numbered contact arrangement and equipment schematic to define circuit functions and polarity.
Key Features
- 12 A / 63 V DC power interface: Listed electrical ratings for the 4-pin configuration.
- Male T-coded connection: Mates with a compatible M12 T-coded female power cable connector.
- Front fastened installation: Integrates the power interface into the equipment panel.
- Straight PCB contacts: Supports board insertion and dip-solder termination.
- Two mounting thread options: PG9 or M16 × 1.5.
- Unshielded construction: As specified for this catalogue version.
Product Dimensions
[Insert the male front mount outline drawing and corresponding panel cut-out drawing from page 14.]

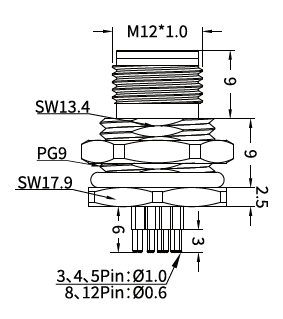

Illustrated PG9 Front Mount Version — Dimensions in mm
| Item | Drawing Value |
|---|---|
| Mating thread | M12 × 1.0 |
| Panel mounting thread shown | PG9 |
| Upper axial section | 9 |
| Middle axial section | 9 |
| Lower axial section | 2.5 |
| Upper wrench size | SW13.4 |
| Mounting nut wrench size | SW17.9 |
| Rear contact section | 6 |
| Contact tip section | 3 |
| PCB contact diameter indicated for 4-pin version | Ø1.0 |
Needle Arrangement (Front View)
[Insert the T-coded 4-pin male needle arrangement diagram from page 14.]
The diagram shows the male mating-face view with contacts numbered 1–4. Match the arrangement to the female cable connector and follow the equipment schematic for DC polarity and circuit assignments.
Product Specifications
| Parameter | Specification |
|---|---|
| Product type | M12 T-coded male front mount PCB power connector |
| Mounting | Front fastened |
| Contact count | 4 pins |
| Power application | DC power |
| PCB contact style | Straight |
| Termination | PCB dip soldering |
| Standard listed | IEC 61076-2-111 |
| Rated current | 12 A |
| Rated voltage | 63 V |
| Shielding | Unshielded |
| Mating thread | M12 × 1.0 |
| Panel mounting threads | PG9 / M16 × 1.5 |
| Insulation resistance | ≥100 MΩ |
| Contact resistance | ≤5 mΩ |
| Recommended coupling torque | 0.4 N·m |
| Maximum coupling torque | 0.8 N·m |
| Temperature range, flexible use | −25°C to +80°C |
| Temperature range, static use | −40°C to +80°C |
| Protection ratings listed | IP67 / IP68 |
| Pollution degree | 3 |
| Insulator materials listed | PA66+GF / TPU+GF |
Applications
- Industrial DC power modules: Connects external power cables to internal PCB circuits.
- Automation control equipment: Provides a four-contact panel power interface.
- Machine electronics housings: Integrates an M12 T-coded connection into the enclosure.
- Modular electrical assemblies: Combines detachable cable connection with PCB termination.
Selection and Ordering
| Panel Mounting Thread | Front Mount Part Number |
|---|---|
| PG9 | 1M1207TM04HP9P |
| M16 × 1.5 | 1M1207TM04H16P |
Example enquiry: M12 T-coded male front mount PCB power connector, 4-pin, 12 A, 63 V DC, PG9 mounting, part number 1M1207TM04HP9P.
