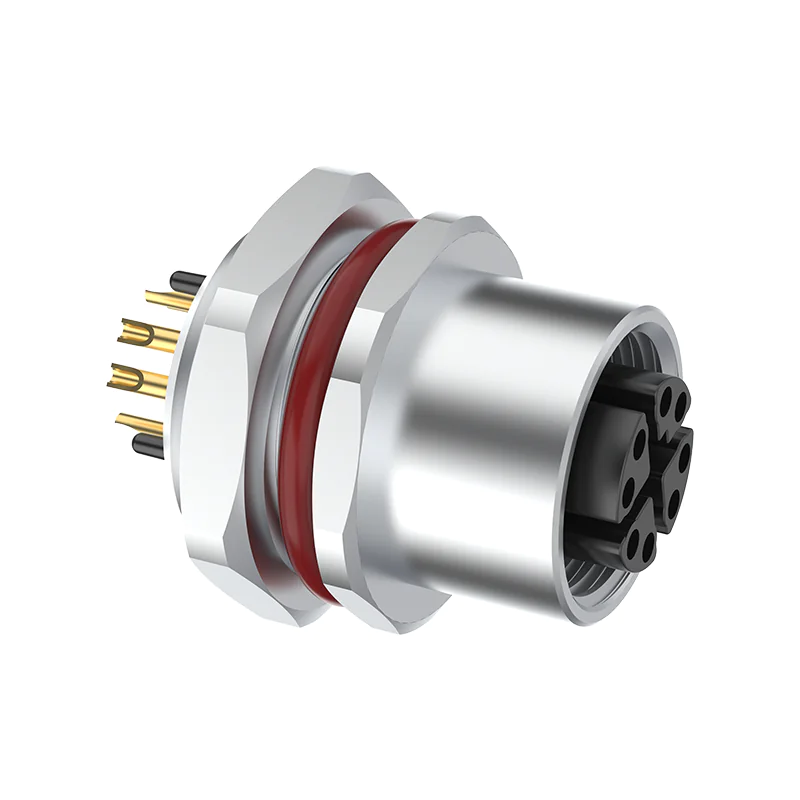

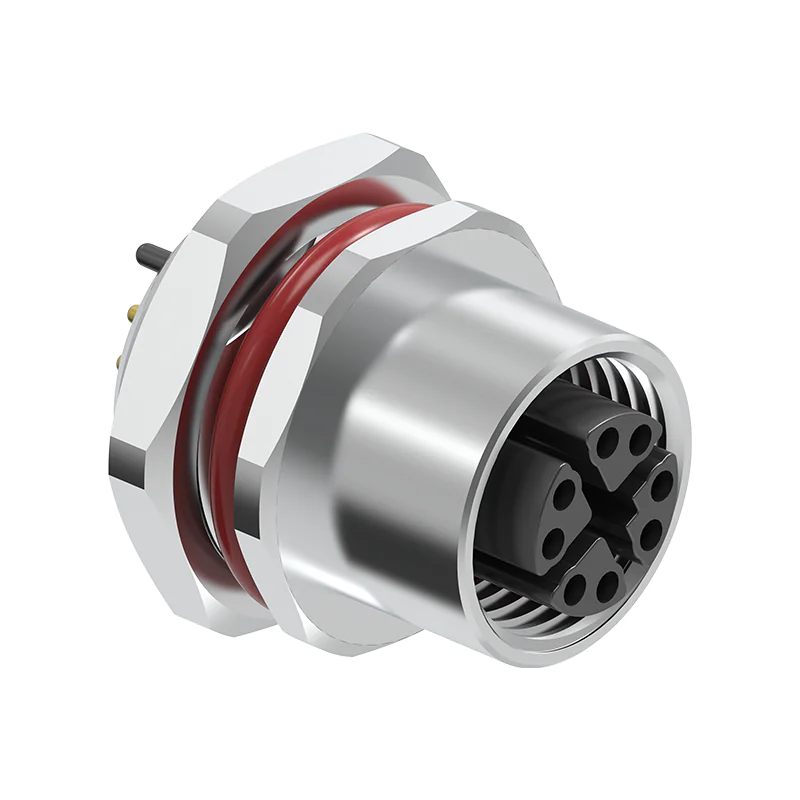

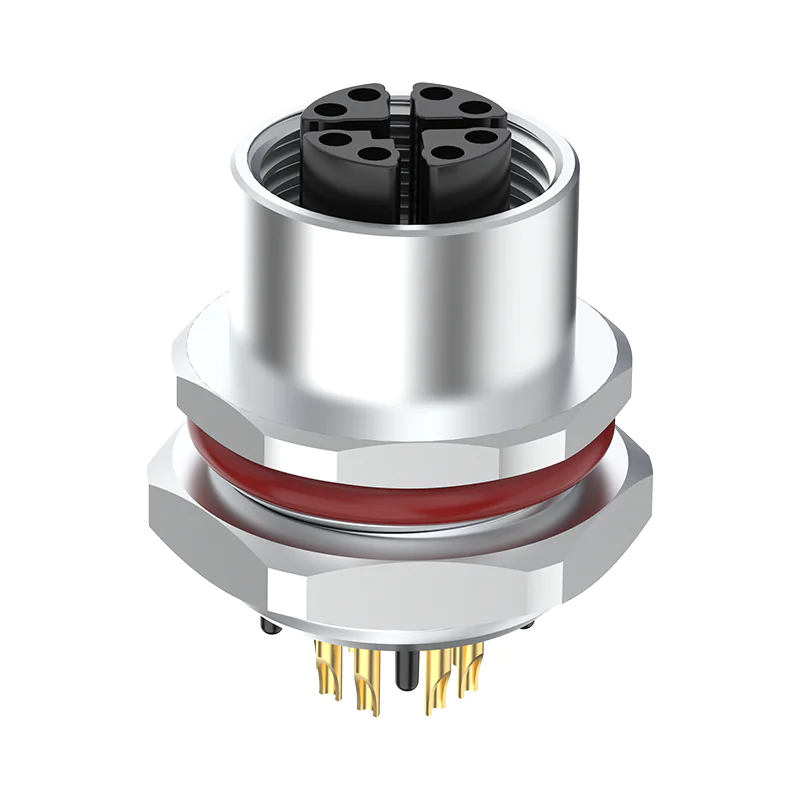

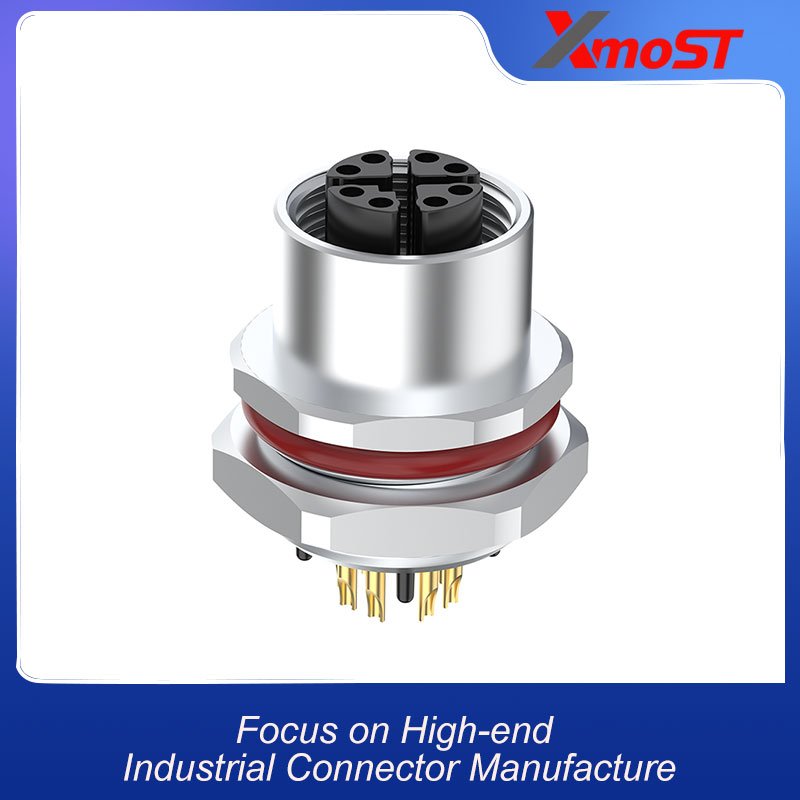

M12 X-Code 8Pin female rear panel mount socket with solder contacts, compliant with IEC 61076-2-109. Rated 0.5A / 60V DC. Wire range: 0.14mm² (AWG26). IP67/IP68 waterproof. Rear mounting for clean front panel appearance. Non-shielded (standard X-Code recommends shielded). M12x1.0mm screw locking (recommended torque 0.4Nm, max 0.8Nm), brass nickel-plated nut, phosphor bronze gold-plated pins. Insulation resistance ≥100MΩ, contact resistance ≤5mΩ. Operating temperature -25°C to +80°C (dynamic) / -40°C to +80°C (static). Ideal for industrial Ethernet, PLC communication, and factory automation networks requiring 8Pin data interface.
- Termination Method: Soldering
- Dynamic Operating Temperature: -25°C ~ +80°C
- Static Operating Temperature: -40°C ~ +80°C
- Wire Gauge Range: 0.14mm² (AWG26)
- Ingress Protection: IP67 / IP68
- Pollution Degree: 3
- Insulator Material: PA66+GF / TPU+GF
- Screw / Nut Material: Brass with Nickel Plating (Brass Ni) / Zinc Alloy with Nickel Plating
- Pin Material: Phosphor Bronze with Gold Plating / Brass with Gold Plating
- Sealing Material: FKM / Silicone / Epoxy
