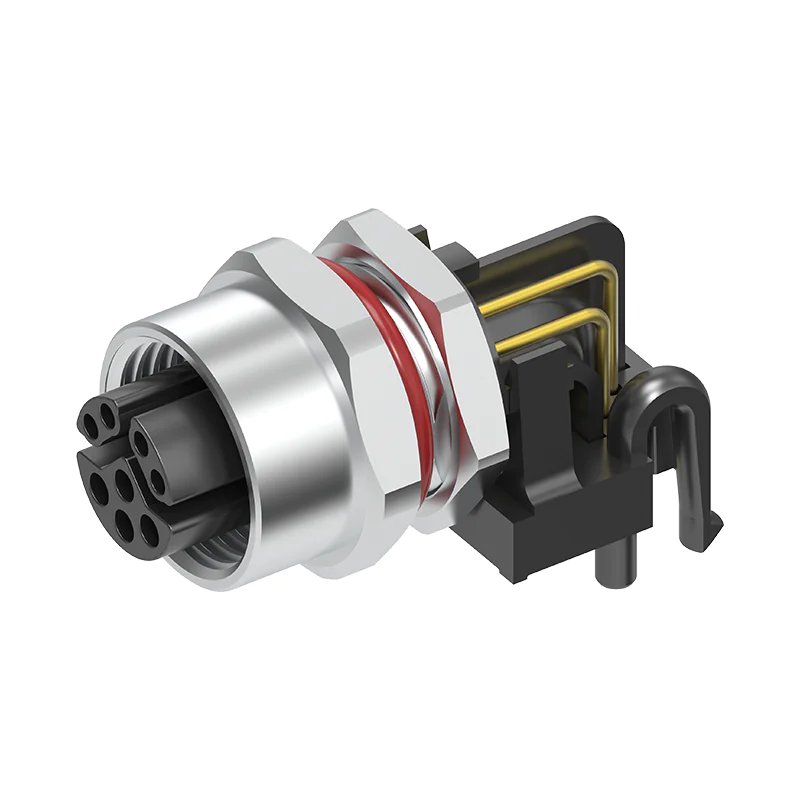

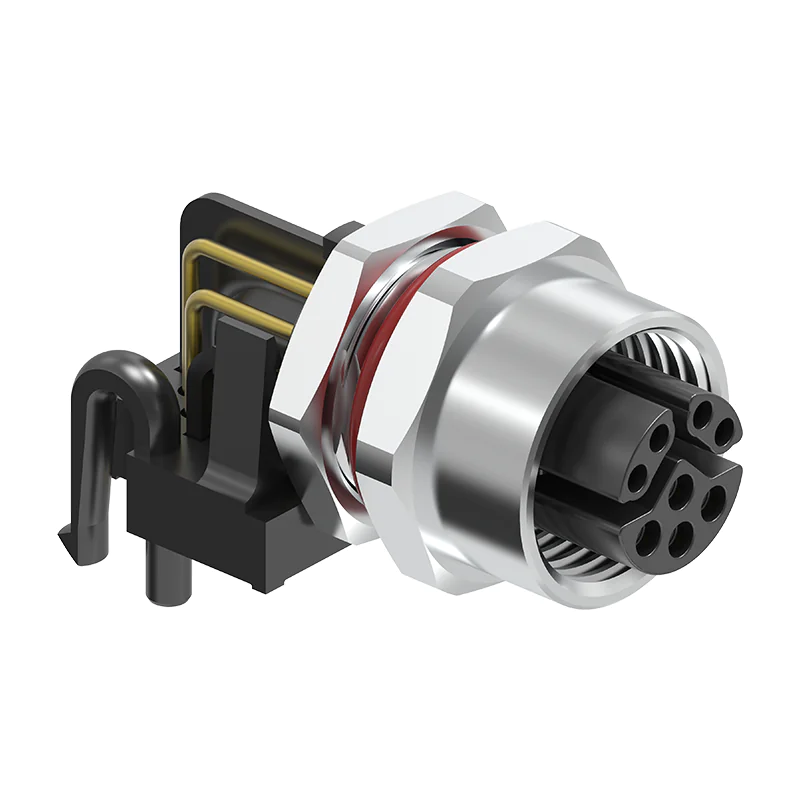

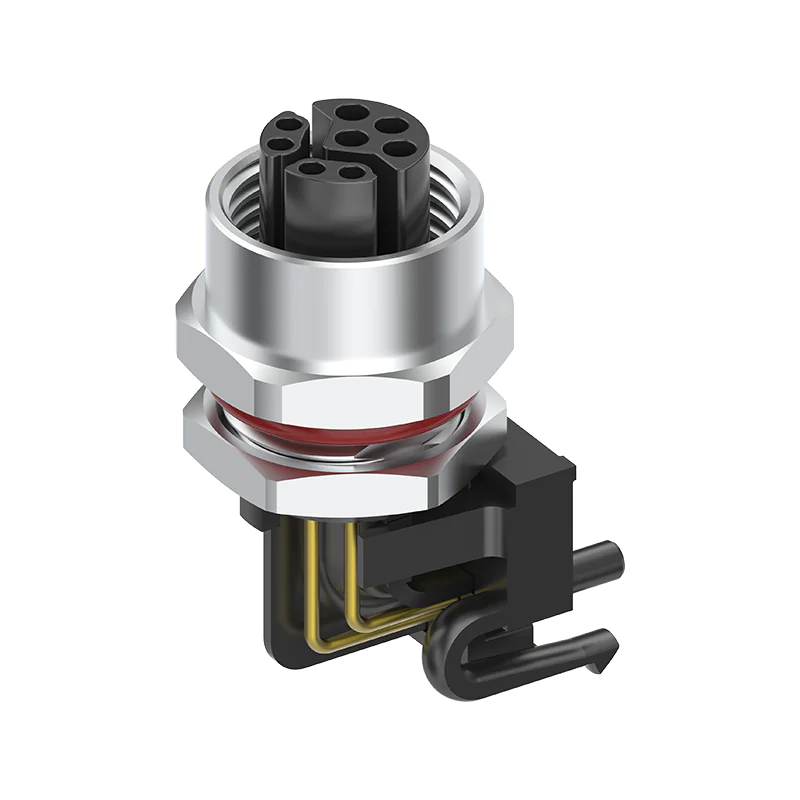

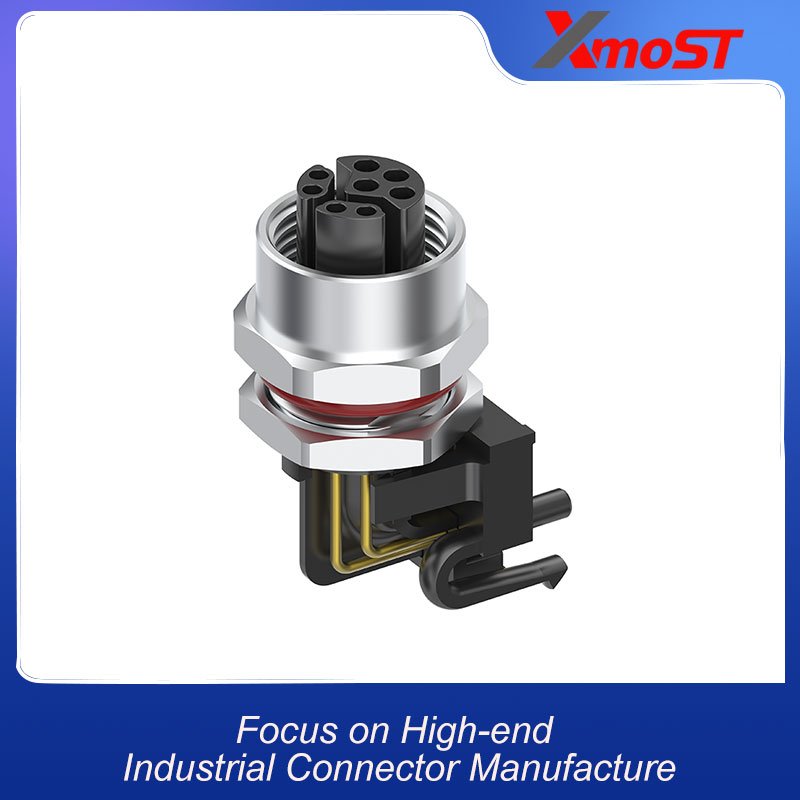

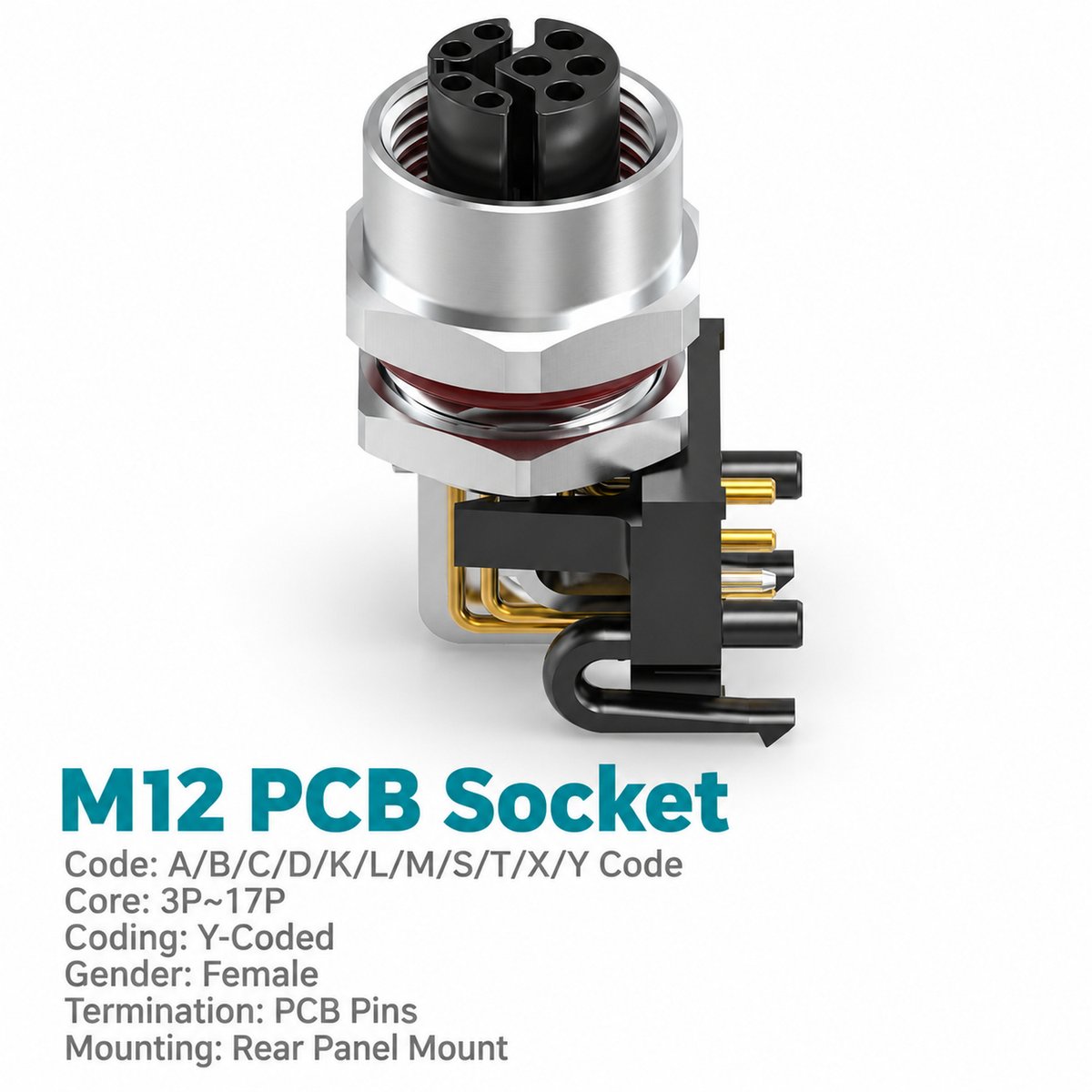

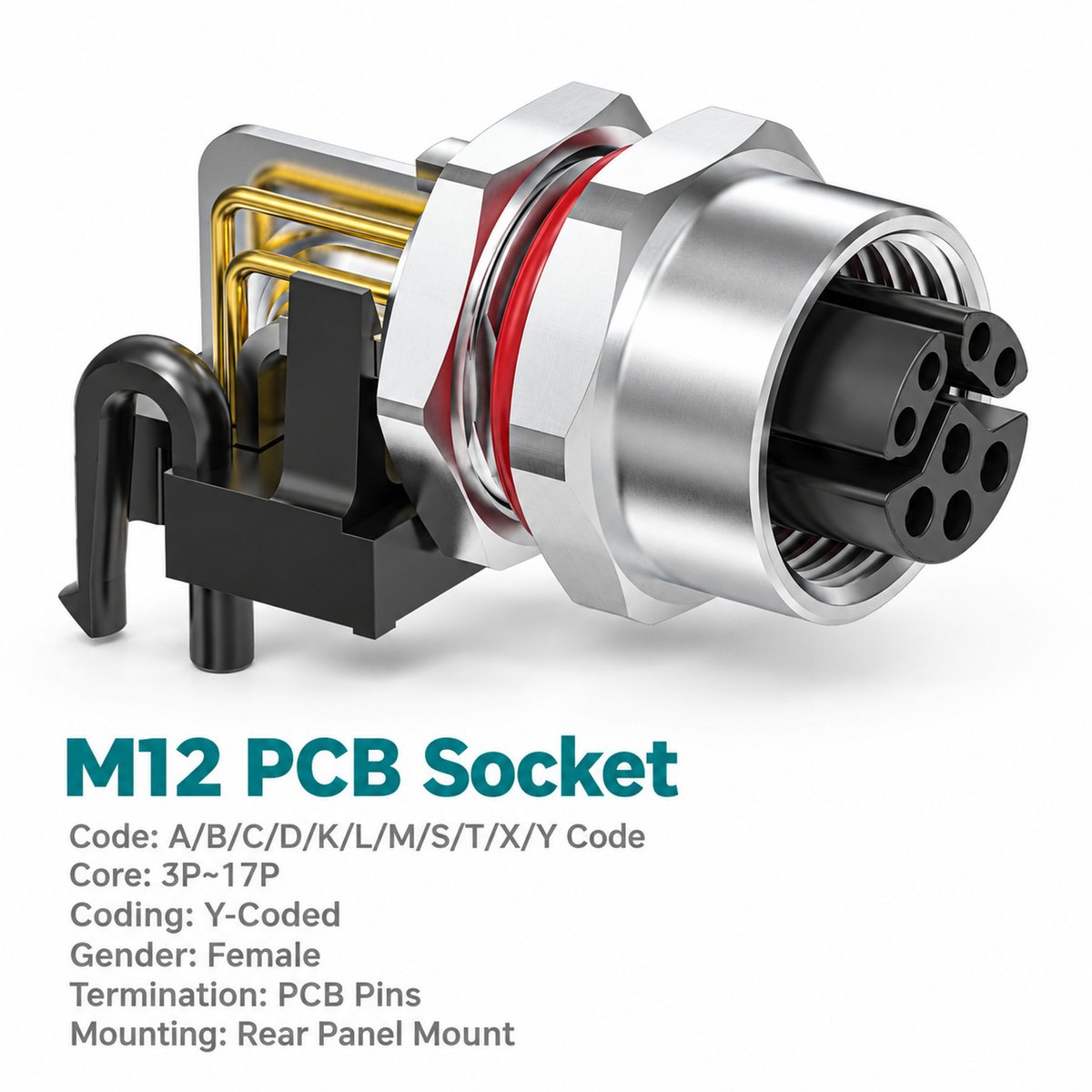

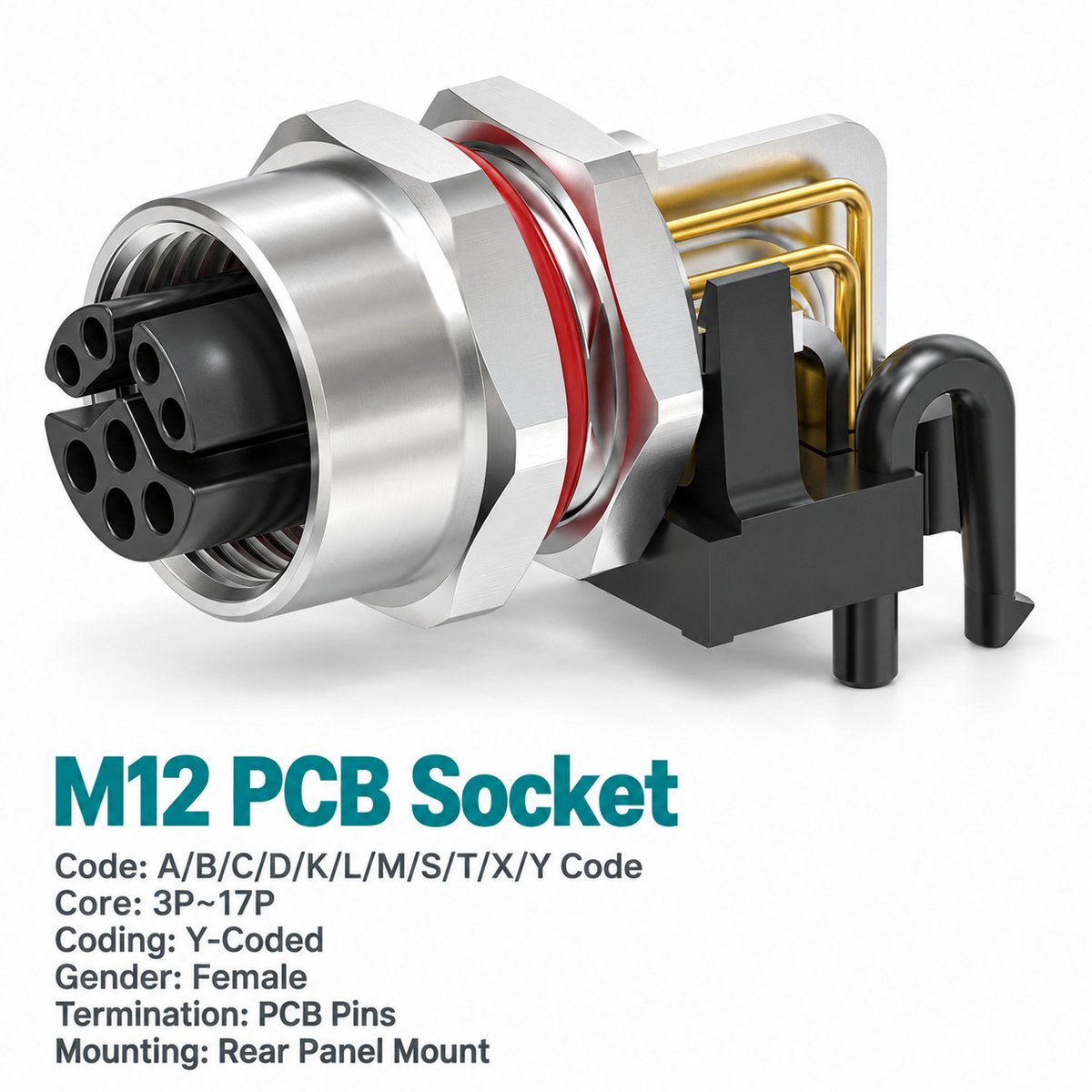

M12 Y-Coded Female Front Mount Right Angle PCB Socket

Xmost M12 Y-coded female front mount right angle PCB socket provides a combined Ethernet and power connection for industrial automation equipment. Its female hybrid interface accepts a compatible M12 Y-coded male cable connector, bringing separate communication and power circuits through one panel opening.

The 90-degree PCB contacts turn the internal connection behind the enclosure panel. This right angle M12 hybrid connector suits assemblies where the board position requires bent contacts rather than straight rear termination.

Choose Y3 for four signal and two power contacts, or Y4 for four signal and four power contacts. The shielded construction integrates into the equipment’s hybrid cable shielding arrangement, while front fastened mounting secures the socket at the panel.

Key Features

Ethernet and power in one interface: Combines separate signal and power contacts in one M12 Y-coded panel socket.
Right angle PCB termination: Bent contacts provide a 90-degree connection to the internal circuit board.
Y3 or Y4 selection: Six or eight total contacts for different circuit requirements.
Front fastened construction: For equipment designed around a front mount hybrid connector.
Shielded interface: Supports integration with the equipment’s cable shielding arrangement.
Separate current ratings: Y3 power contacts: 12 A; Y4 power contacts: 6 A; signal contacts: 0.5 A.

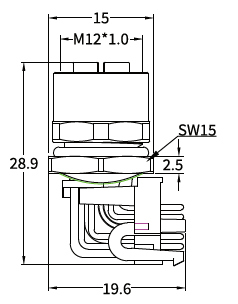

Product Dimensions

[Insert the female right angle front mount outline drawing and corresponding panel cut-out drawing from page 26.]

Dimensions in mm

Item	Drawing Value
Thread shown	M12 × 1.0
Overall vertical dimension shown	28.9
Horizontal dimension shown	19.6
Upper body width shown	15
Mounting nut wrench size	SW15
Lower flange section shown	2.5
Recommended panel dimension A	10.5, +0.1/−0
Recommended panel dimension B	12, +0.1/−0
Maximum panel thickness indicated	2.0
Panel edge chamfer shown	C0.5

Needle Arrangement (Front View)

[Insert the Y3 and Y4 female needle arrangement diagrams from page 26.]

Configuration	Signal Contacts	Power Contacts	Total Contacts
Y3	4	2	6
Y4	4	4	8

The diagrams show the female mating-face view. Match the selected arrangement to the male hybrid cable connector and follow the equipment schematic for signal assignments and power polarity.

Product Specifications

Parameter	Specification
Product type	M12 Y-coded female front mount right angle PCB hybrid socket
Mounting	Front fastened
Function	Ethernet signal and power
PCB contact style	Right angle / 90-degree
Termination	PCB dip soldering
Standard listed	IEC 61076-2-113
Rated voltage	50 V AC / 60 V DC
Shielding	Shielded
Mating thread	M12 × 1.0
Insulation resistance	≥100 MΩ
Contact resistance	≤5 mΩ
Recommended coupling torque	0.4 N·m
Maximum coupling torque	0.8 N·m
Temperature range, flexible use	−25°C to +80°C
Temperature range, static use	−40°C to +80°C
Protection ratings listed	IP67 / IP68 / IP69K
Pollution degree	3
Insulator materials listed	PA66+GF / TPU+GF

Electrical Ratings by Configuration

Configuration	Contact Arrangement	Power-Contact Current	Signal-Contact Current
Y3	4 signal + 2 power	12 A	0.5 A
Y4	4 signal + 4 power	6 A	0.5 A

The power-contact current rating does not apply to the signal contacts.

Applications

Ethernet-enabled automation modules: Connects network signals and power to internal PCB circuits.
Industrial communication devices: Provides a shielded hybrid cable interface with right angle board termination.
Modular machine electronics: Combines communication and power connections at one panel socket.
Equipment with limited panel space: Routes the specified circuits through one M12 interface.
