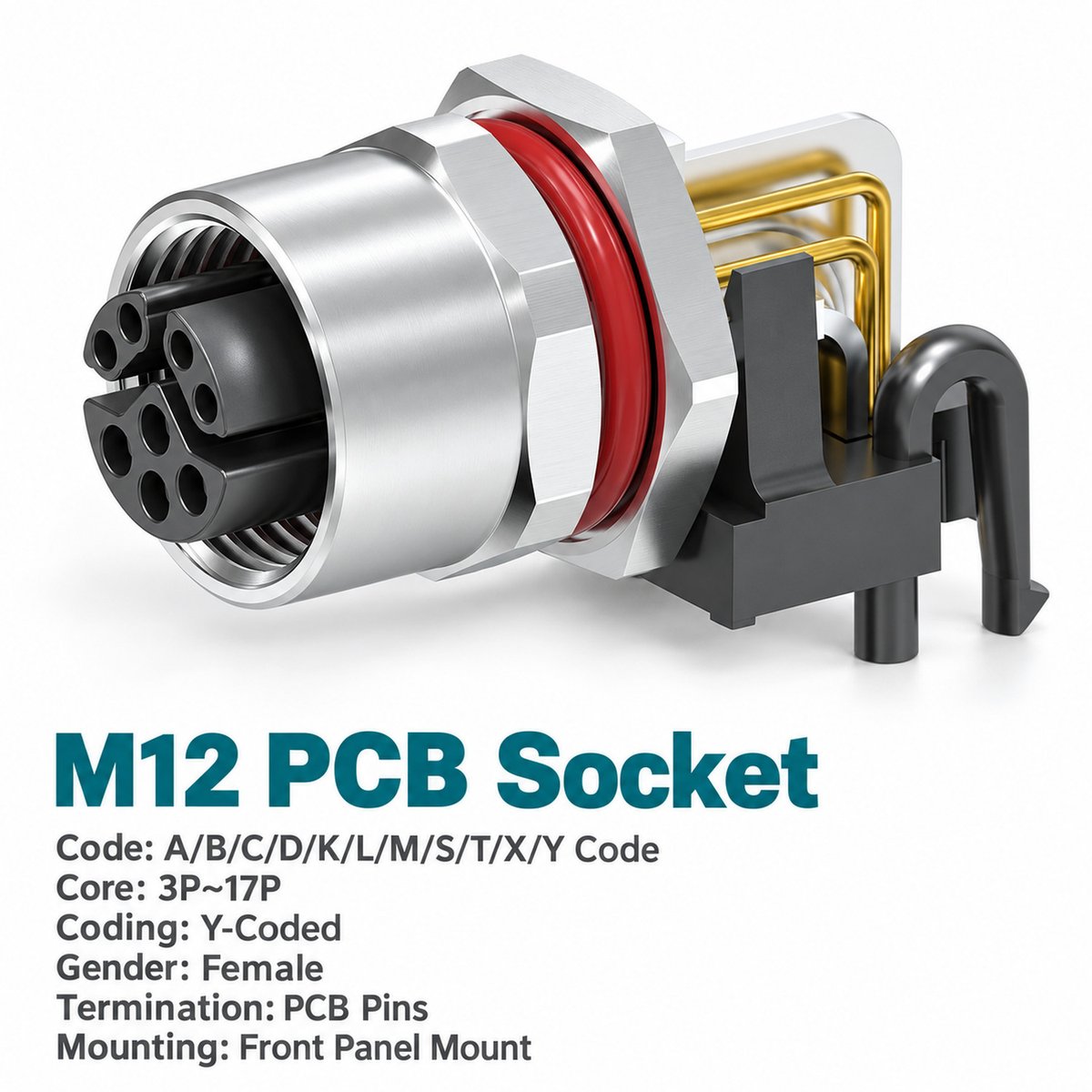

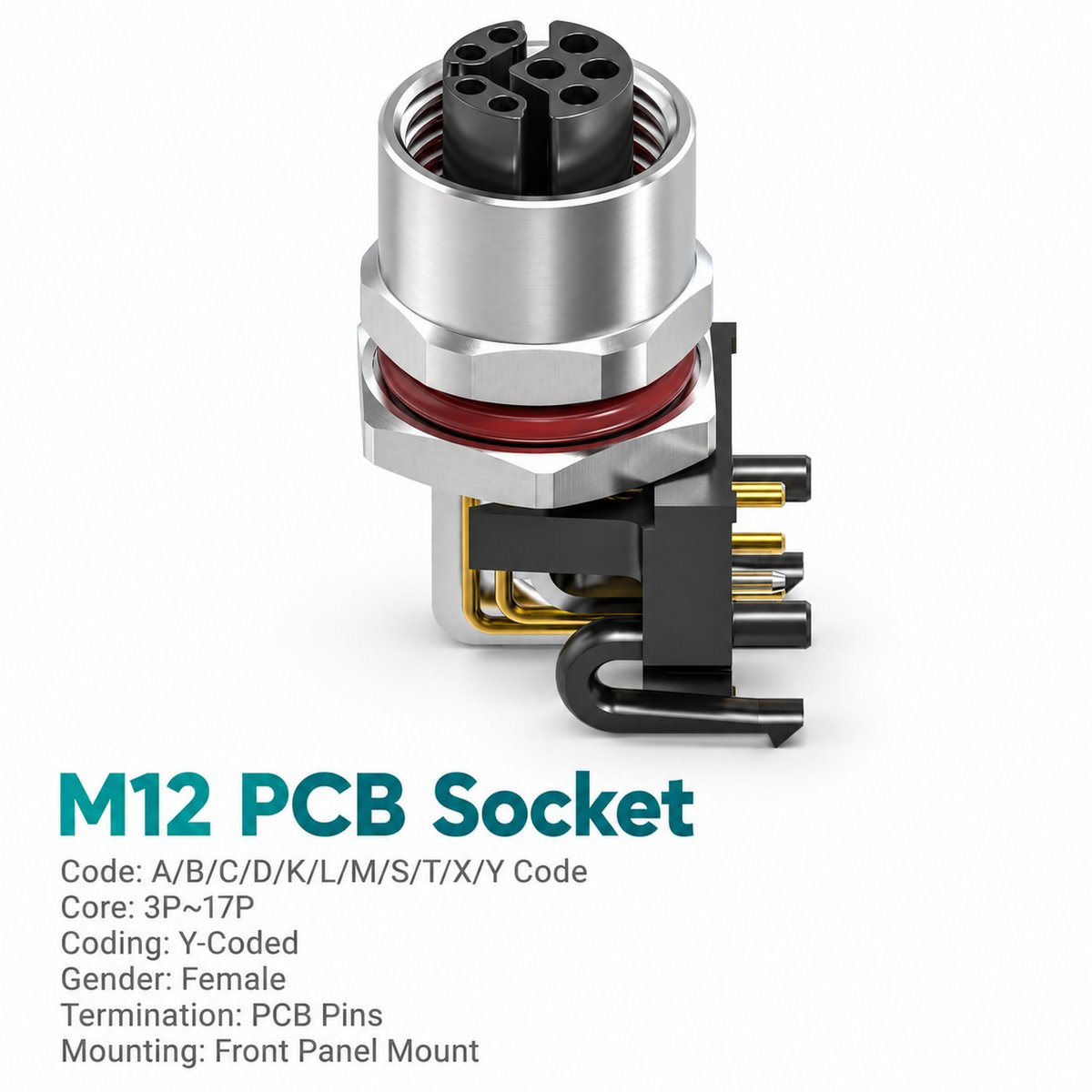

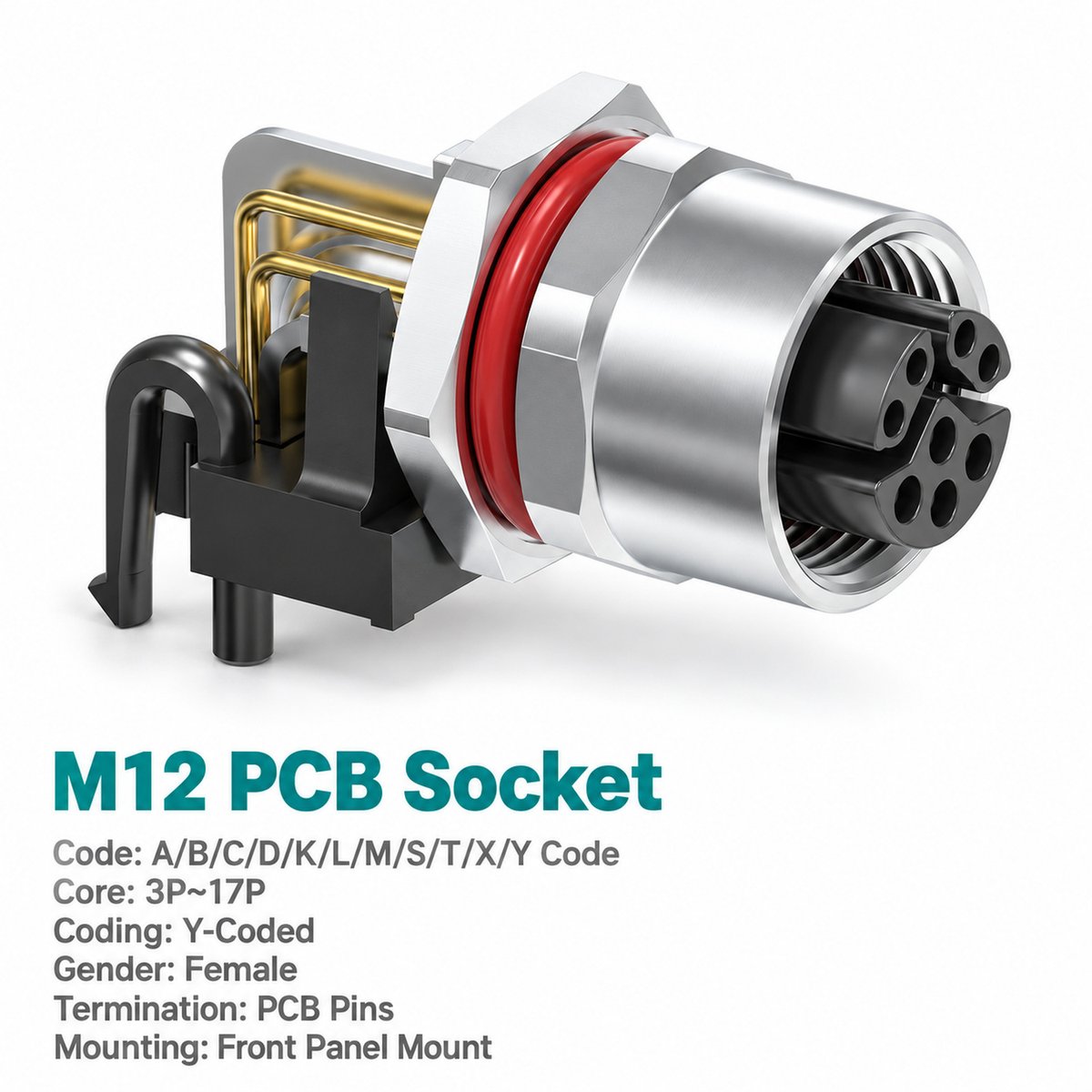

Xmost M12 Y-coded female rear mount right angle PCB socket links an external hybrid cable assembly to the circuit board inside industrial equipment. The female Y-coded interface accepts a matching male connector and combines separate Ethernet signal and power contacts in one detachable connection.
Its rear fastened construction suits housings designed around a rear mount panel interface. Bent PCB contacts provide a 90-degree termination behind the panel, with the rear mount outline defining the dimensions needed for enclosure clearance and board placement.
Y3 offers four signal contacts and two power contacts rated at 12 A. Y4 offers four signal contacts and four power contacts rated at 6 A. Both configurations have a 0.5 A signal-contact rating and shielded construction.
Key Features
- Combined signal and power connection: One M12 hybrid socket for Ethernet and separate power circuits.
- Rear fastened installation: For equipment requiring a rear mount panel connector.
- 90-degree PCB contacts: Supports angled board connections through dip soldering.
- Two contact arrangements: Y3 with 4+2 contacts or Y4 with 4+4 contacts.
- Shielded construction: Provides a shielded interface for the equipment’s hybrid cable assembly.
- Configuration-specific ratings: Separate current limits for signal and power contacts.

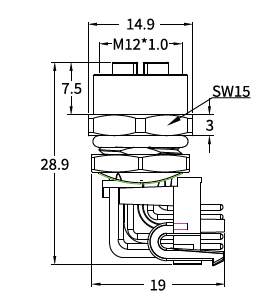

Product Dimensions
[Insert the female right angle rear mount outline drawing and corresponding panel cut-out drawing from page 26.]
Dimensions in mm
| Item | Drawing Value |
|---|---|
| Thread shown | M12 × 1.0 |
| Overall vertical dimension shown | 28.9 |
| Horizontal dimension shown | 19 |
| Upper body width shown | 14.9 |
| Upper axial section shown | 7.5 |
| Mounting nut wrench size | SW15 |
| Flange section shown | 3 |
| Recommended panel dimension A | 10.5, +0.1/−0 |
| Recommended panel dimension B | 12, +0.1/−0 |
| Maximum panel thickness indicated | 2.0 |
| Panel edge chamfer shown | C0.5 |
Needle Arrangement (Front View)
[Insert the Y3 and Y4 female needle arrangement diagrams from page 26.]
| Configuration | Signal Contacts | Power Contacts | Total Contacts |
|---|---|---|---|
| Y3 | 4 | 2 | 6 |
| Y4 | 4 | 4 | 8 |
The diagrams show the female connector from the mating face. Use the selected arrangement to identify contacts and verify compatibility with the male cable connector of the same configuration.
Product Specifications
| Parameter | Specification |
|---|---|
| Product type | M12 Y-coded female rear mount right angle PCB hybrid socket |
| Mounting | Rear fastened |
| Function | Ethernet signal and power |
| PCB contact style | Right angle / 90-degree |
| Termination | PCB dip soldering |
| Standard listed | IEC 61076-2-113 |
| Rated voltage | 50 V AC / 60 V DC |
| Shielding | Shielded |
| Mating thread | M12 × 1.0 |
| Insulation resistance | ≥100 MΩ |
| Contact resistance | ≤5 mΩ |
| Recommended coupling torque | 0.4 N·m |
| Maximum coupling torque | 0.8 N·m |
| Temperature range, flexible use | −25°C to +80°C |
| Temperature range, static use | −40°C to +80°C |
| Protection ratings listed | IP67 / IP68 / IP69K |
| Pollution degree | 3 |
| Insulator materials listed | PA66+GF / TPU+GF |
Electrical Ratings by Configuration
| Configuration | Contact Arrangement | Power-Contact Current | Signal-Contact Current |
|---|---|---|---|
| Y3 | 4 signal + 2 power | 12 A | 0.5 A |
| Y4 | 4 signal + 4 power | 6 A | 0.5 A |
The power-contact current rating does not apply to the signal contacts.
Applications
- Distributed automation devices: Brings Ethernet signals and power into internal board circuits.
- Industrial communication modules: Provides a shielded hybrid interface with right angle PCB termination.
- Machine control housings: Suits rear fastened panels with an angled internal connection.
- Modular industrial equipment: Allows the external signal-and-power cable to disconnect at one M12 socket.
Selection and Ordering
| Configuration | Rear Mount Part Number Listed |
|---|---|
| Y3 — 4 signal + 2 power | 1M1208YF06R12PS |
| Y4 — 4 signal + 4 power | 1M1208YF08R12PS |
Example enquiry: M12 Y-coded female rear mount right angle PCB hybrid socket, Y4, shielded, part number 1M1208YF08R12PS.
