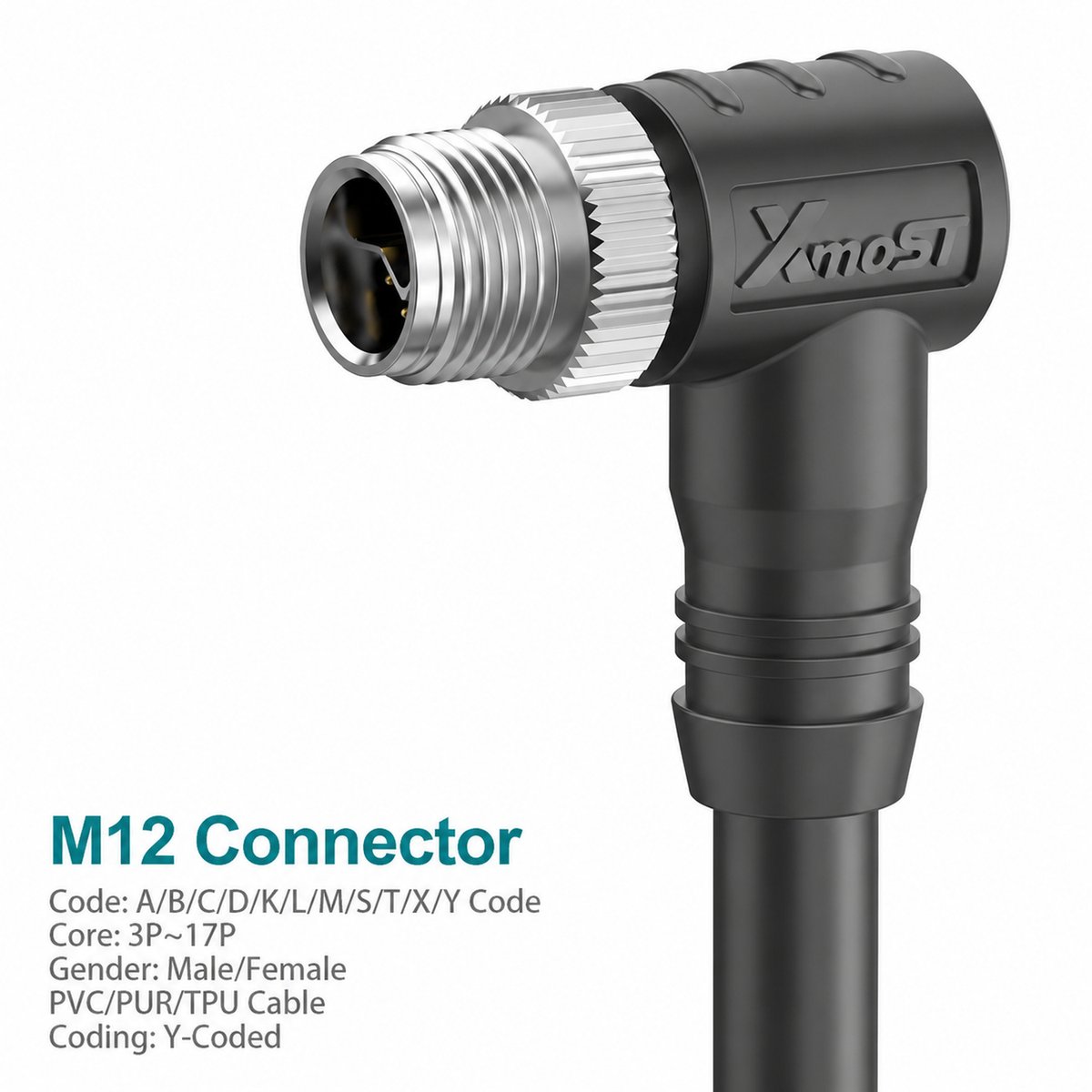

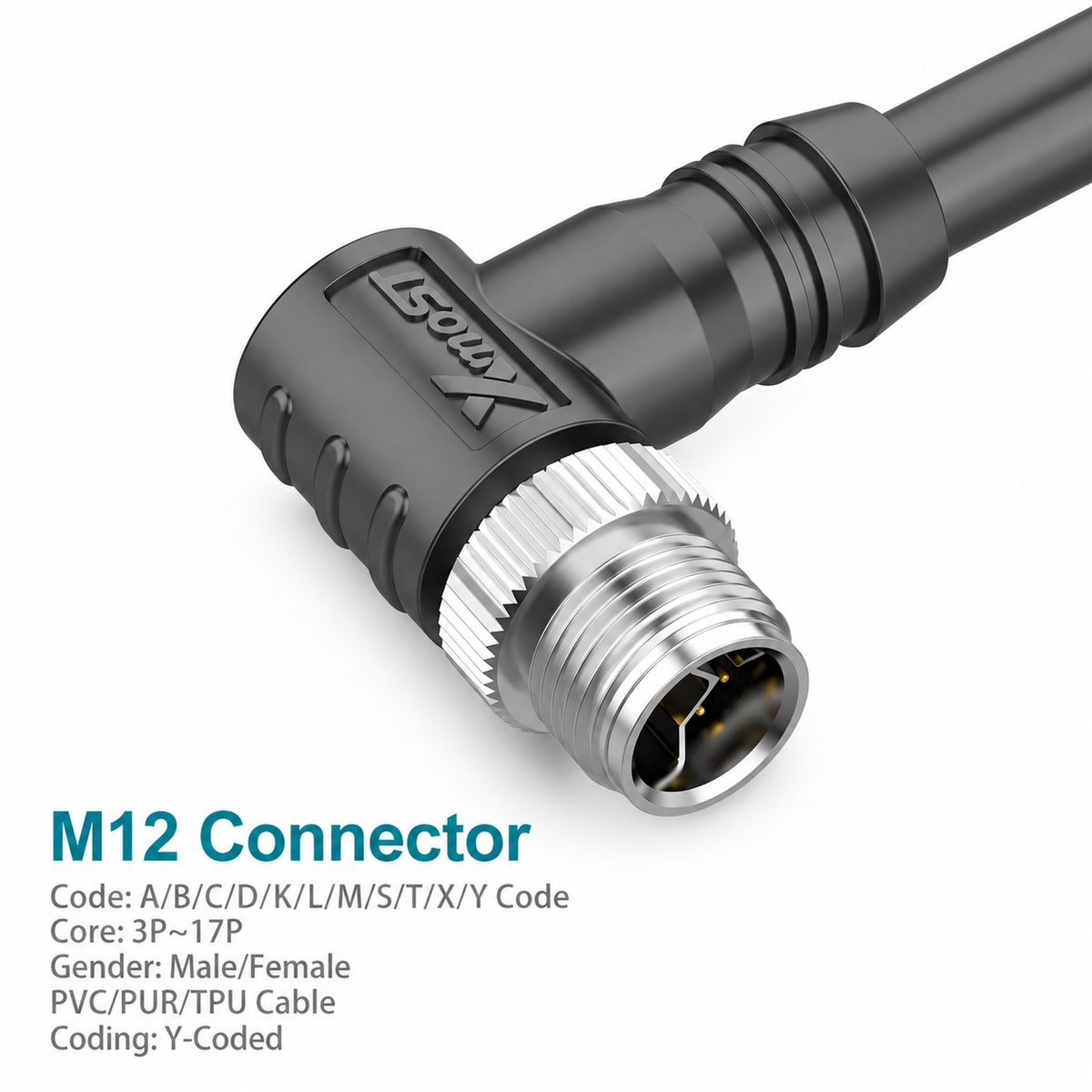

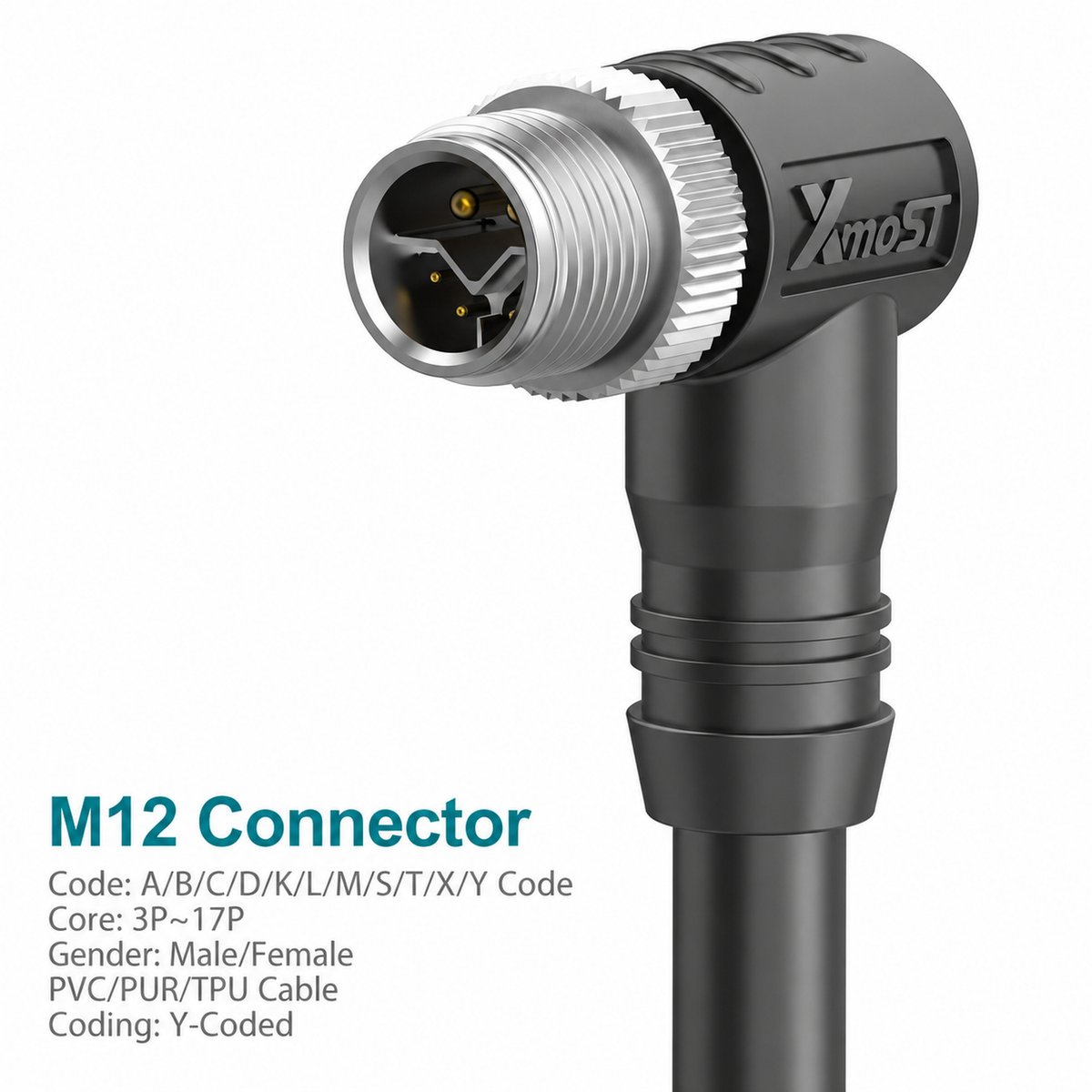

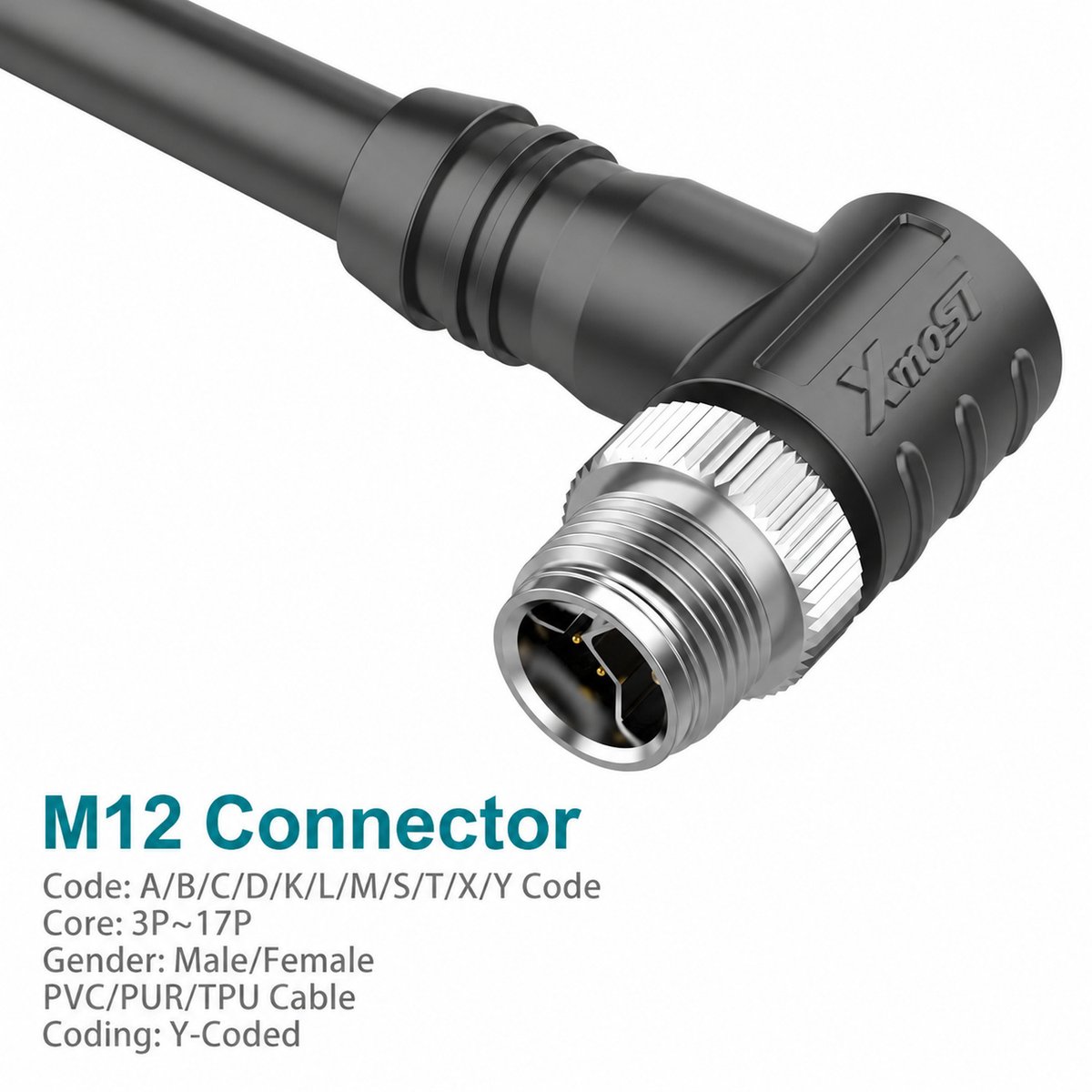

Xmost M12 Y-coded male 90° CAT5e connector provides a shielded hybrid cable connection for compatible industrial Ethernet equipment. Its right-angle molded design directs the cable perpendicular to the mating axis, accommodating layouts where a straight cable exit is impractical.
This single-ended M12 hybrid Ethernet cable assembly combines four signal contacts with either two or four power contacts. The catalog identifies CAT5e, 100 Mbps Ethernet applications and specifies separate current ratings for the power and signal circuits.
M12 × 1.0 screw locking secures the connection to a matching Y-coded female interface. PVC and PUR cable options are listed in 1 m, 3 m, 5 m and 10 m lengths.
Key Features
- 90° right-angle cable exit for routing close to equipment.
- M12 Y-coded male interface combining power and signal contacts.
- Shielded CAT5e cable assembly for the catalog-listed 100 Mbps Ethernet application.
- Two hybrid configurations: 4 signal + 2 power or 4 signal + 4 power.
- 50 V rated voltage.
- 12 A or 6 A power-contact rating, depending on configuration.
- 0.5 A signal-contact rating.
- Single-ended molded cable construction.
- M12 × 1.0 screw locking.
- PVC or PUR cable options in 1 m, 3 m, 5 m and 10 m catalog lengths.

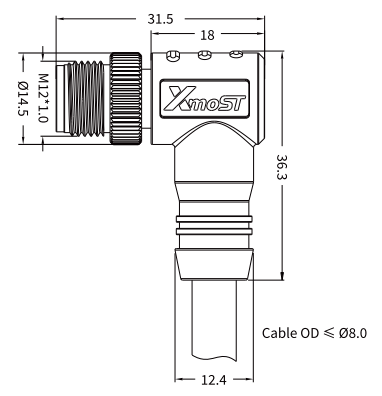

Product Dimensions
Dimensions (mm)
| Dimension | Value |
|---|---|
| Horizontal span shown | 31.5 |
| Horizontal molded section | 18 |
| Vertical span shown | 36.3 |
| Coupling outside diameter | Ø14.5 |
| Cable-exit width shown | 12.4 |
| Maximum cable outside diameter | ≤ Ø8.0 |
| Mating thread | M12 × 1.0 |
Dimensions correspond to the marked spans in the right-angle male connector drawing. Cable length is specified separately.
Product Specifications
Hybrid Contact Configurations
| Parameter | 4 Signal + 2 Power | 4 Signal + 4 Power |
|---|---|---|
| Total Contact Count | 6 | 8 |
| Power-Contact Rated Current | 12 A | 6 A |
| Signal-Contact Rated Current | 0.5 A | 0.5 A |
| Rated Voltage | 50 V | 50 V |
| Power Wire Size | 1.5 mm² / AWG16 | 0.5 mm² / AWG20 |
| Signal Wire Size | 0.14 mm² / AWG26 | 0.14 mm² / AWG26 |
General Specifications
| Parameter | Specification |
|---|---|
| Brand | Xmost |
| Connector Size | M12 |
| Coding | Y-coded |
| Contact Gender | Male |
| Connector Orientation | 90° Right-angle |
| Assembly Type | Single-ended molded cable assembly |
| Cable Category | CAT5e |
| Application Listed | Industrial Ethernet |
| Interface Type | Hybrid power and signal |
| Data Rate Listed | 100 Mbps |
| Shielding | Shielded |
| Standard Listed | IEC 61076-2-113 |
| Locking Method | M12 × 1.0 screw locking |
| Contact Termination | Crimping |
| Insulation Resistance | ≥ 100 MΩ |
| Contact Resistance | ≤ 5 mΩ |
| Recommended Tightening Torque | 0.4 N·m |
| Maximum Tightening Torque | 0.8 N·m |
| Dynamic Operating Temperature | −25 °C to +80 °C |
| Static Operating Temperature | −40 °C to +80 °C |
| Protection Ratings Listed | IP67 / IP68 / IP69K |
| Pollution Degree | 3 |
| Insulator Material Options | PA66 + GF / TPU + GF |
Applications
Suggested applications for this M12 Y-coded male right-angle Ethernet connector include:
- Hybrid automation interfaces: Combined power and communication connections to compatible Y-coded female ports.
- Industrial Ethernet equipment: Shielded CAT5e cable connections using the specified hybrid contact arrangement.
- Compact machine layouts: Installations where adjacent components restrict a straight cable exit.
- Equipment panel interfaces: Cable routing alongside the panel through a 90° connection.
Match the power-contact configuration, electrical ratings and signal assignment to the equipment. Ethernet performance depends on the complete network link and connected devices.
Selection and Ordering
Specify the hybrid contact configuration, cable jacket and cable length. Select the corresponding right-angle male part number from the catalog ordering table.
Check the Y-coded mating interface and cable-routing clearance. Follow the male connector’s front-view pin diagram and wire-color assignment, keeping power and signal circuits correctly assigned and maintaining the specified shield connection.
