M12 C-Coded Female Right-Angle Power Cable Connector, Unshielded

M12 C-Coded Female Right-Angle Connector Overview

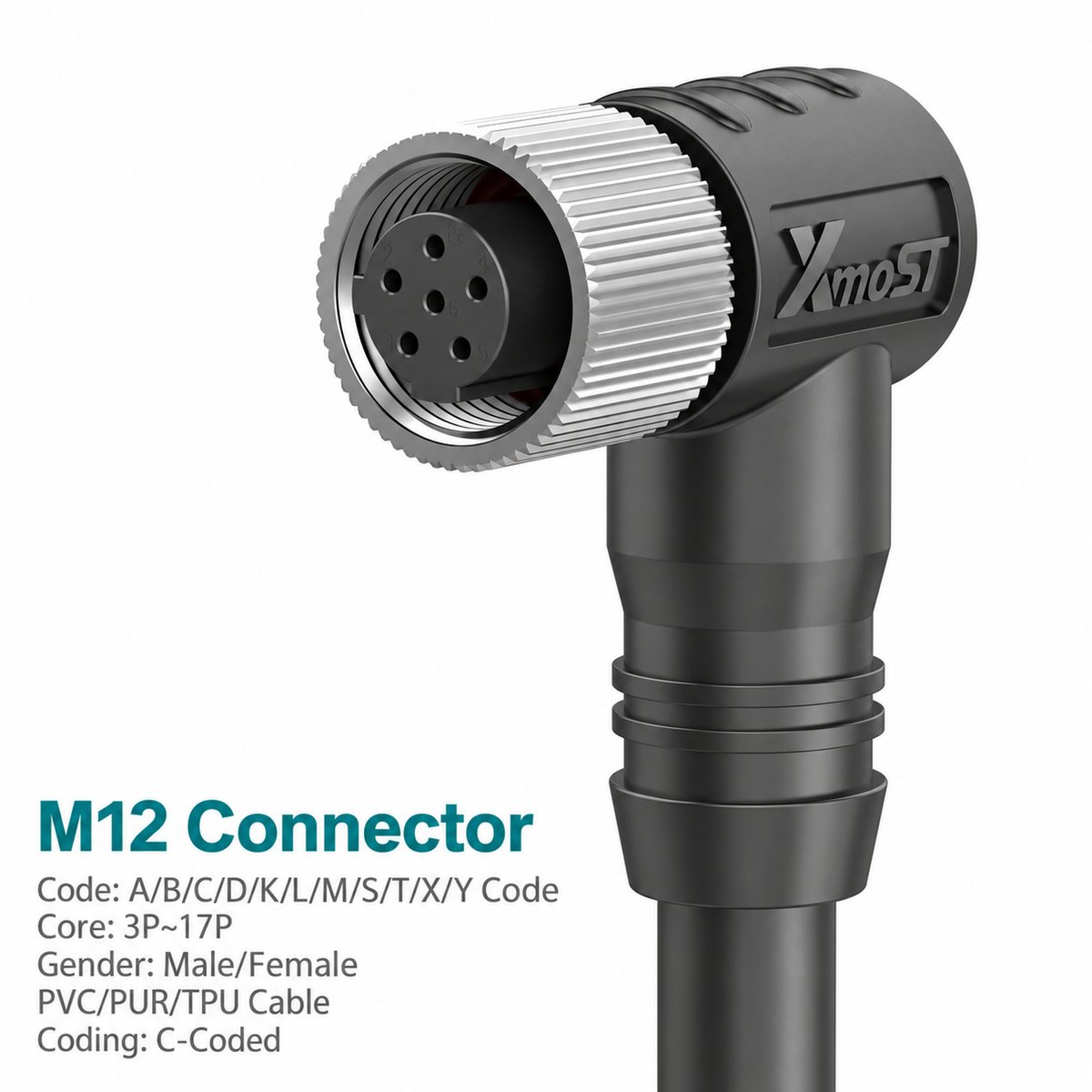

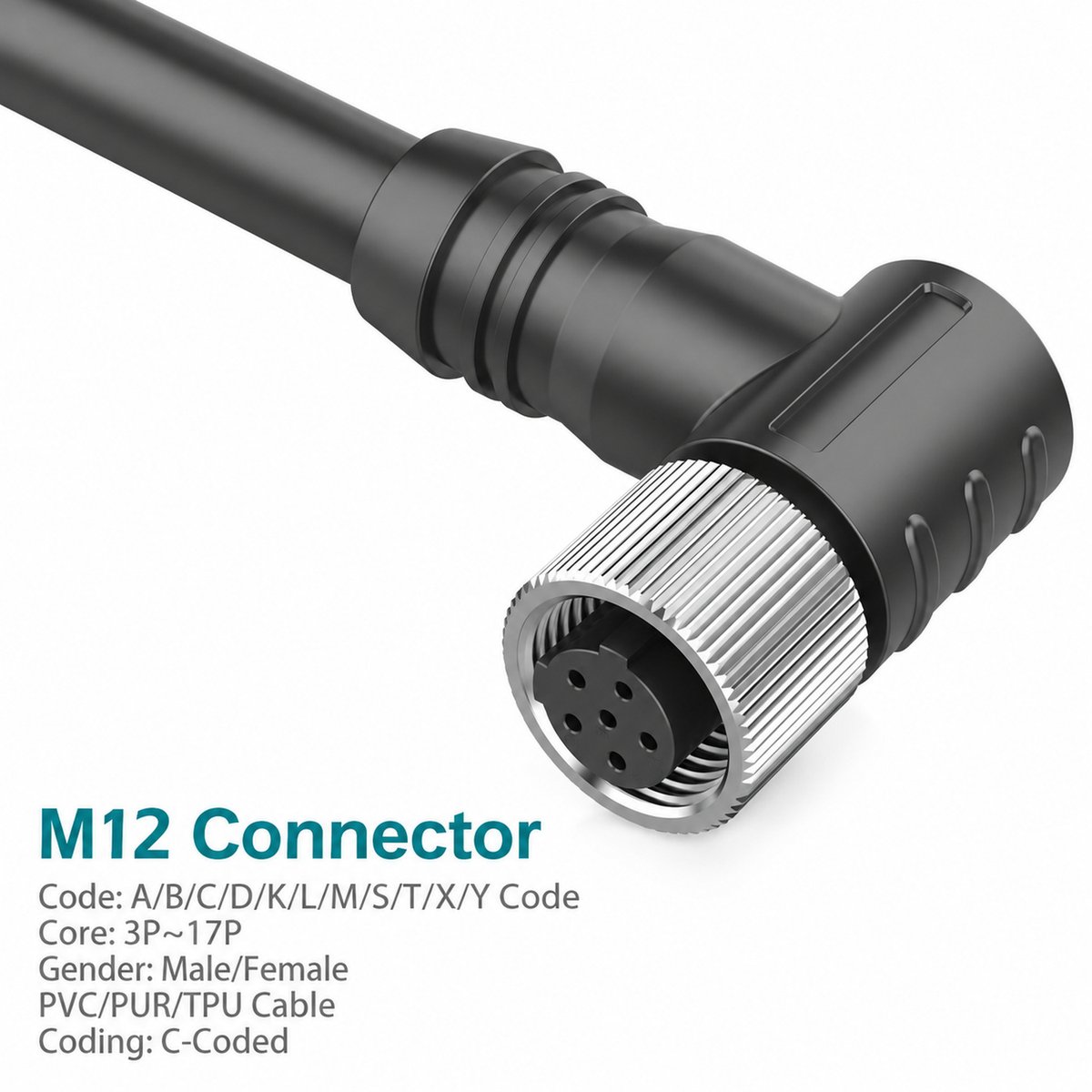

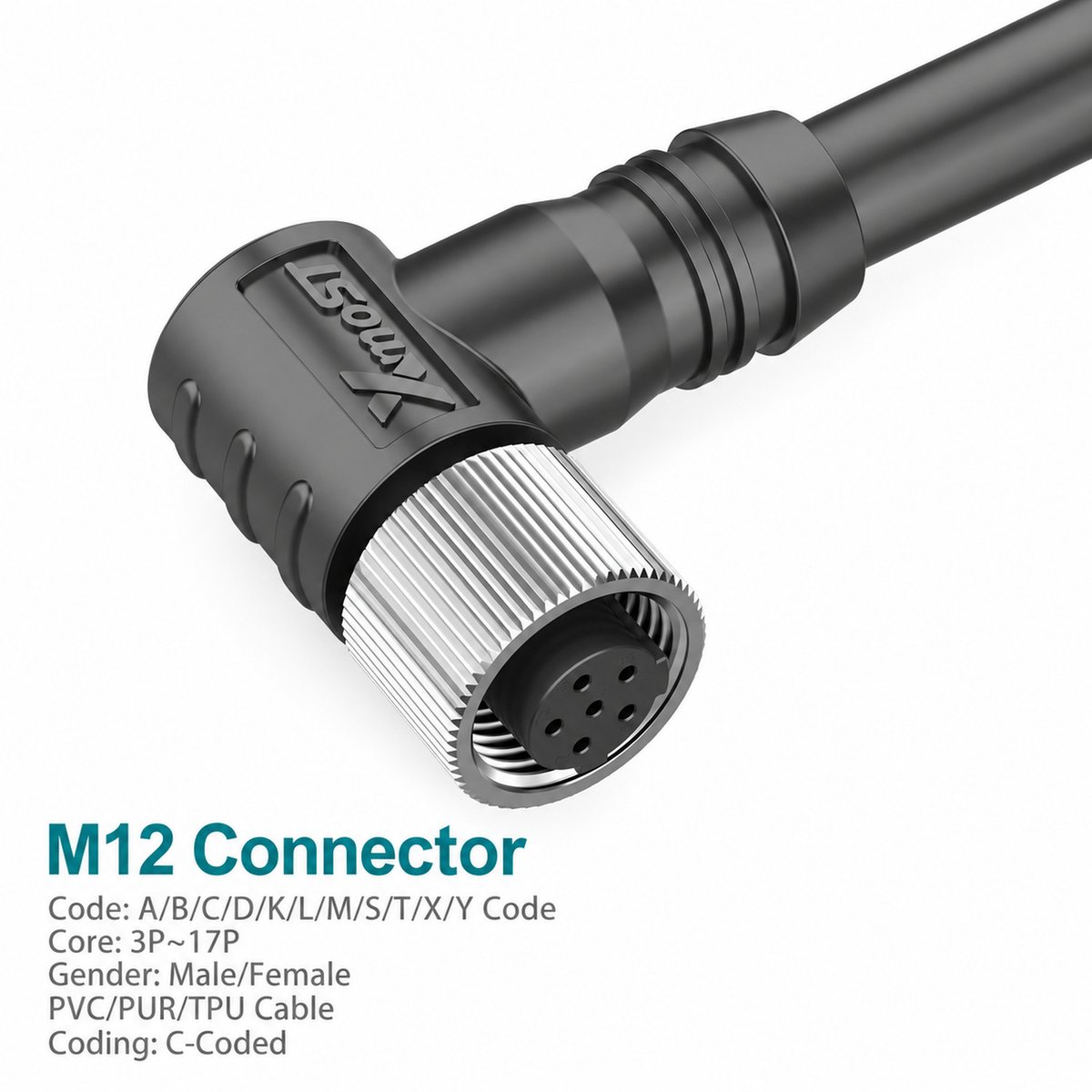

The Xmost M12 C-coded female right-angle power cable connector connects to equipment fitted with a matching C-coded male interface. Its single-ended molded construction integrates the connector and cable into a preassembled cable assembly.

The 90° connector directs the cable perpendicular to the mating axis, providing a routing option where nearby components limit space behind the connection. M12 × 1.0 screw locking secures the mating interface.

This unshielded M12 C-coded cable connector is available in four contact configurations: 3-pin (2 + PE), 4-pin (3 + PE), 5-pin (4 + PE) and 6-pin (5 + PE). Select the configuration according to the equipment’s electrical requirements and mating pin arrangement.

Key Features

• M12 C-coded female interface for compatible AC power connections.
• 90° right-angle cable exit for routing alongside equipment.
• Single-ended molded power cable assembly with an integrated cable exit.
• Unshielded connector construction.
• 3-, 4-, 5- and 6-pin options with protective earth contacts.
• M12 × 1.0 screw locking, with a recommended tightening torque of 0.4 N·m.
• PVC and PUR cable options, with 1 m and 3 m lengths listed in the catalog.

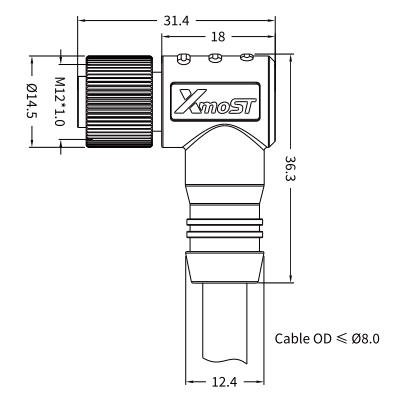

M12 Female 90° Connector Dimensions

Dimensions (mm)

Dimension	Value
Horizontal span shown	31.4
Horizontal molded section	18
Vertical span shown	36.3
Coupling outside diameter	Ø14.5
Cable-exit width shown	12.4
Maximum cable outside diameter	≤ Ø8.0
Mating thread	M12 × 1.0

Dimensions correspond to the marked spans in the right-angle female connector drawing. Cable length is specified separately.

Product Specifications

Contact Configurations and Electrical Ratings

Contact Configuration	Rated Current	Rated Voltage	Wire Size
3-pin (2 + PE)	4 A	250 V	0.34 mm² / AWG22
4-pin (3 + PE)	4 A	250 V	0.34 mm² / AWG22
5-pin (4 + PE)	2 A	60 V	0.14 mm² / AWG26
6-pin (5 + PE)	2 A	30 V	0.14 mm² / AWG26

PE = Protective Earth. Electrical ratings depend on the selected contact configuration.

General Specifications

Parameter	Specification
Brand	Xmost
Connector Size	M12
Coding	C-coded
Contact Gender	Female
Connector Orientation	90° Right-angle
Assembly Type	Single-ended molded cable assembly
Shielding	Unshielded
Standard Listed	IEC 61076-2-101
Locking Method	M12 × 1.0 screw locking
Contact Termination	Soldering
Insulation Resistance	≥ 100 MΩ
Contact Resistance	≤ 5 mΩ
Recommended Tightening Torque	0.4 N·m
Maximum Tightening Torque	0.8 N·m
Dynamic Operating Temperature	−25 °C to +80 °C
Static Operating Temperature	−40 °C to +80 °C
Protection Ratings Listed	IP67 / IP68
Pollution Degree	3
Insulator Material Options	PA66 + GF / TPU + GF
Screw / Nut Material Options	Nickel-plated brass / nickel-plated zinc alloy
Contact Material Options	Gold-plated phosphor bronze / gold-plated brass
Sealing Material Options	FKM / silicone / epoxy
Outer Housing Material Options	TPU / PVC
Cable Jacket Options	PVC / PUR
Catalog Cable Lengths	1 m / 3 m

Applications

The M12 C-coded female 90° power connector can be considered for the following applications when the equipment interface and electrical ratings match:
Industrial machinery: AC power connections to compatible C-coded male interfaces.
Automation equipment: Power wiring between compatible machine modules.
Compact machine layouts: Installations where a straight cable exit would interfere with adjacent components.
Equipment panel connections: Cable routing alongside the panel using a right-angle connector.

Selection and Ordering

To select the appropriate M12 C-coded female power cable connector, specify:
Contact configuration: 3-, 4-, 5- or 6-pin.
Connector orientation: 90° right-angle.
Cable jacket: PVC or PUR.
Cable length: 1 m or 3 m.

Part number: The corresponding right-angle female model in the catalog.
Match the connector coding, contact arrangement and electrical ratings to the equipment. Use the female connector’s front-view pin diagram and corresponding wire-color assignment when wiring.
