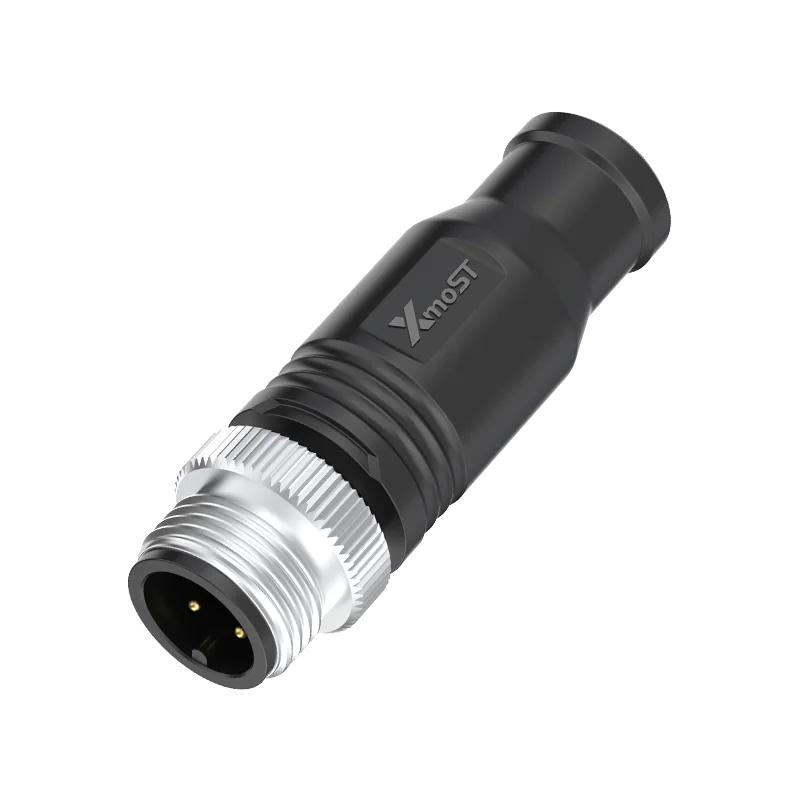

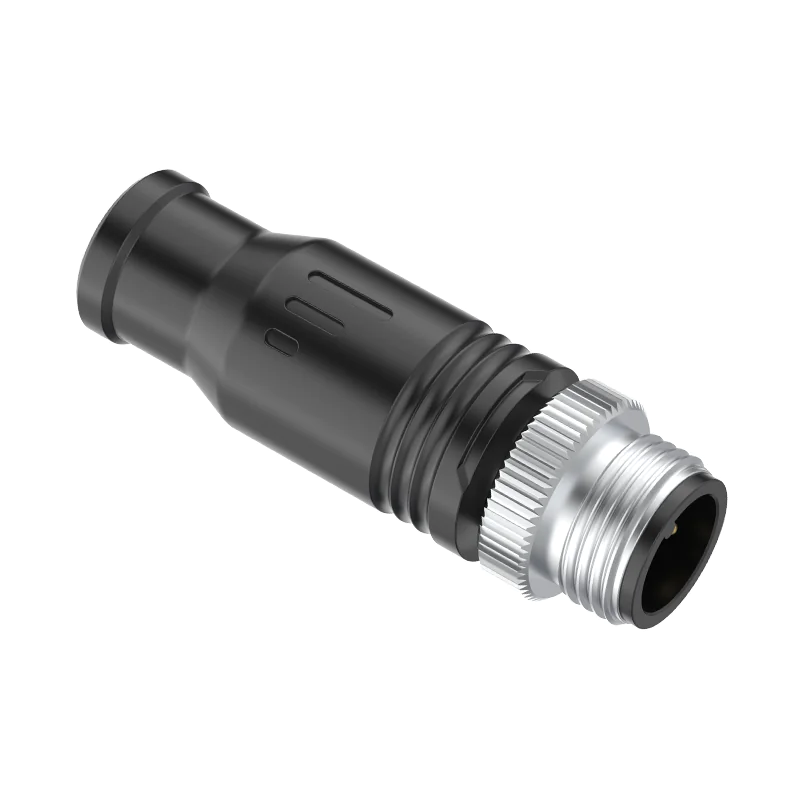

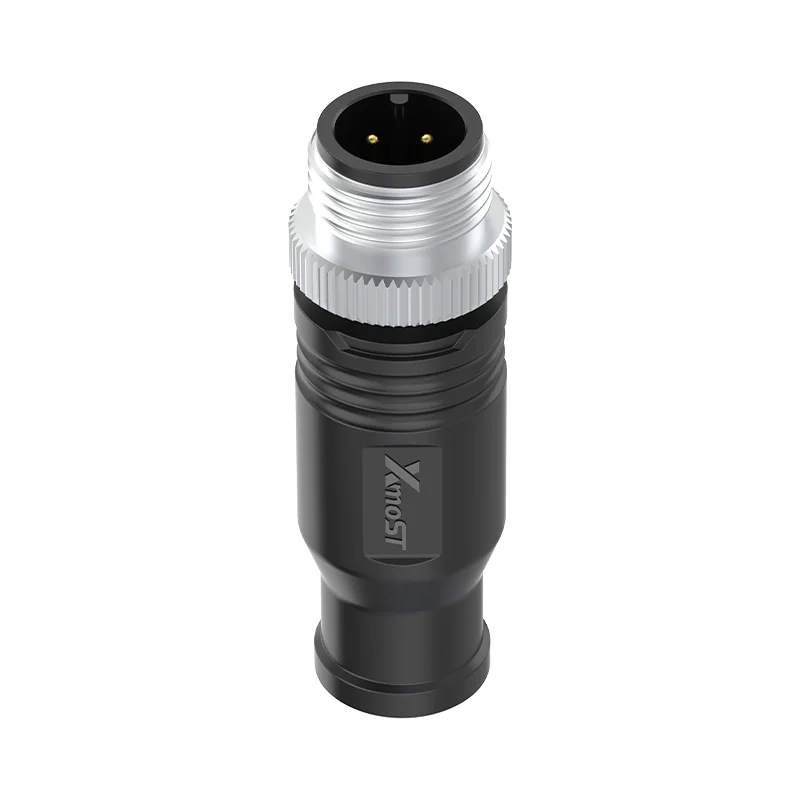

M12 C-Code 4Pin male terminating resistor with 120Ω resistance, compliant with IEC 61076-2-101. Rated 250V / 4A. IP67/IP68 waterproof. Designed for CANopen, DeviceNet fieldbus end termination to prevent signal reflection. M12x1.0mm screw locking, brass nickel-plated nut, phosphor bronze gold-plated pins. Outer housing: PVC/TPU. Operating temperature -40°C to +80°C.
| Pin count | 3Pin | 4Pin | 5Pin | 6Pin | 8Pin | 12Pin | 17Pin |
| Operating standard | IEC 61076-2-101 | ||||||
| Rated current | 4A | 4A/2A(C-Code) | 2A | 1.5A | |||
| Rated voltage | 250V | 60V | 30V | 30V | |||
| Insulation resistance | ≥100MΩ | ||||||
| Contact resistance | ≤5mΩ | ||||||
| Shielding performance | No-Shielded | ||||||
| Locking method | M12x1.0mm screw | ||||||
| Screw torque | Recommend：0.4Nm；Max：0.8Nm | ||||||
| Resistor | 120Ω | ||||||
| Operating temperature | -25℃ ~ +80℃ Dynamic -40℃ ~ +80℃ Static | ||||||
| Ip rating | IP67,IP68 | ||||||
| Pollution degree | 3 | ||||||
| Insulator material | PA66/TPU+GF | ||||||
| Screw/nut material | Brass Ni/Zinc Alloy Ni | ||||||
| Pin material | Phosphor Bronze Au/Brass Au | ||||||
| Sealing material | FKM/Silicon/epoxy | ||||||
| Outer housing material | PVC/TPU | ||||||
