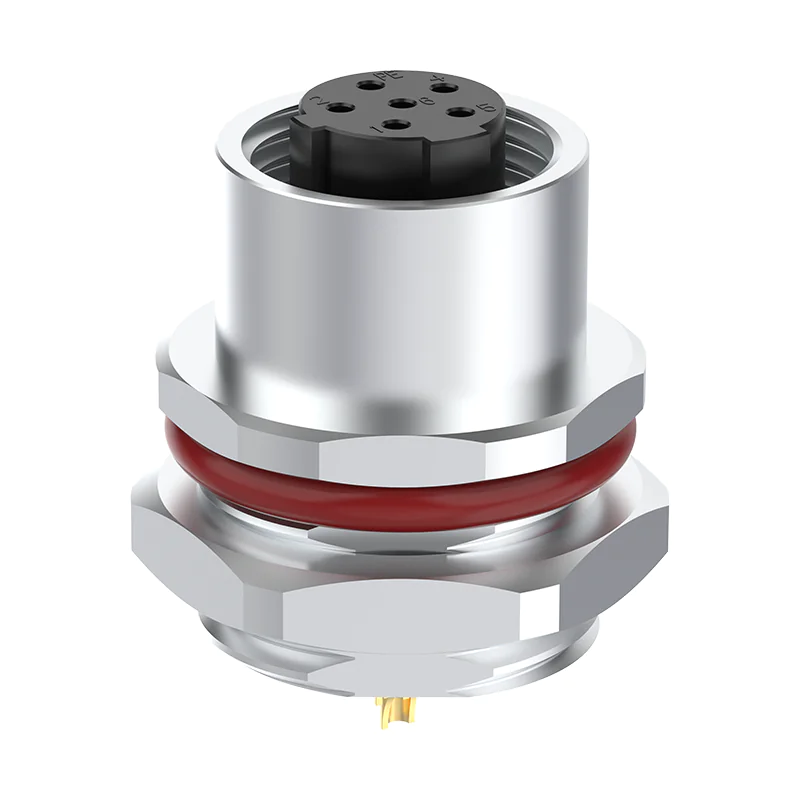

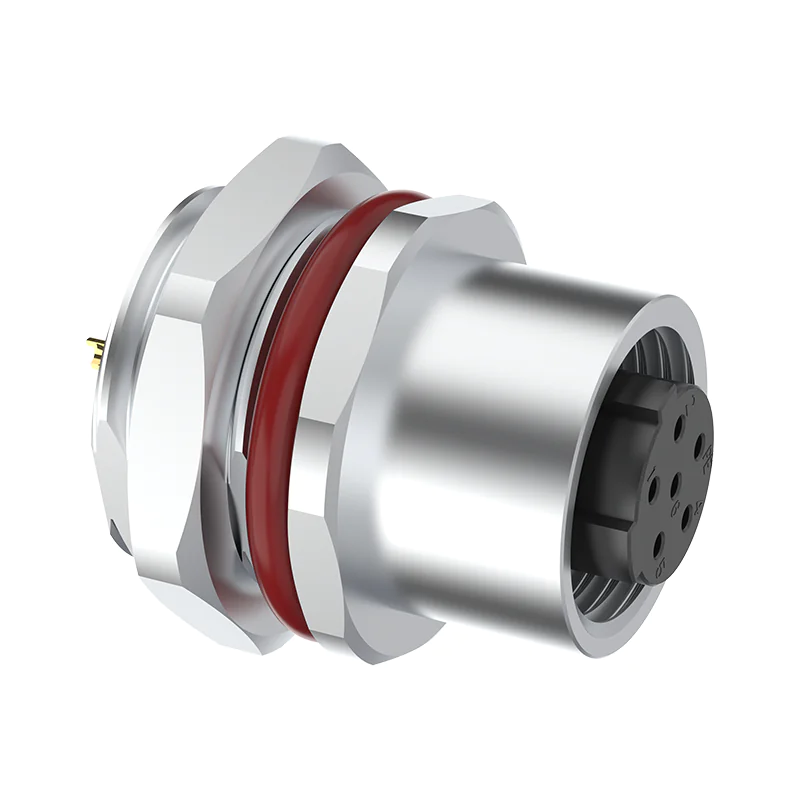

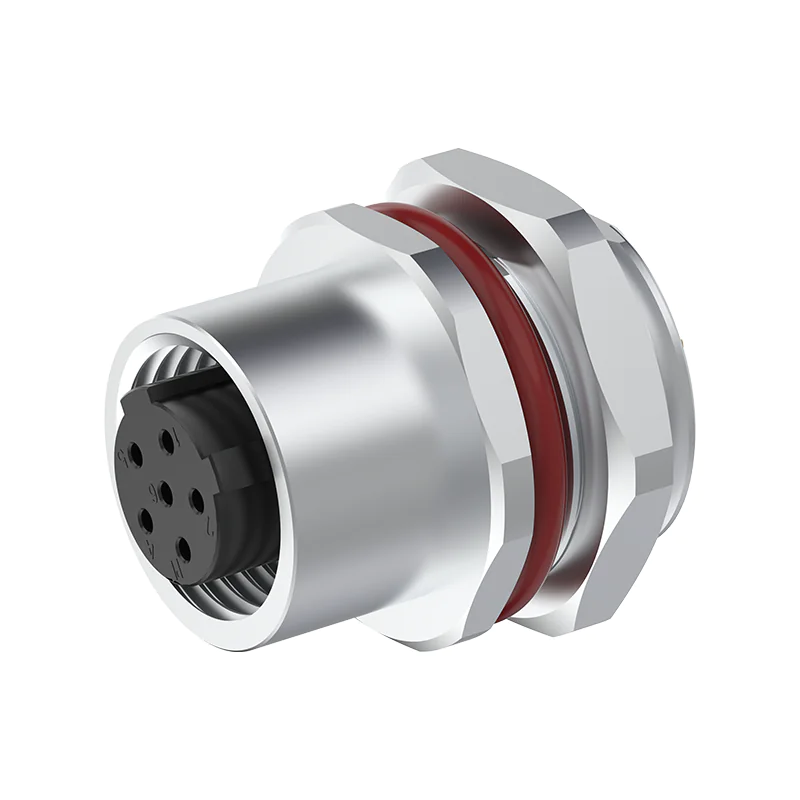

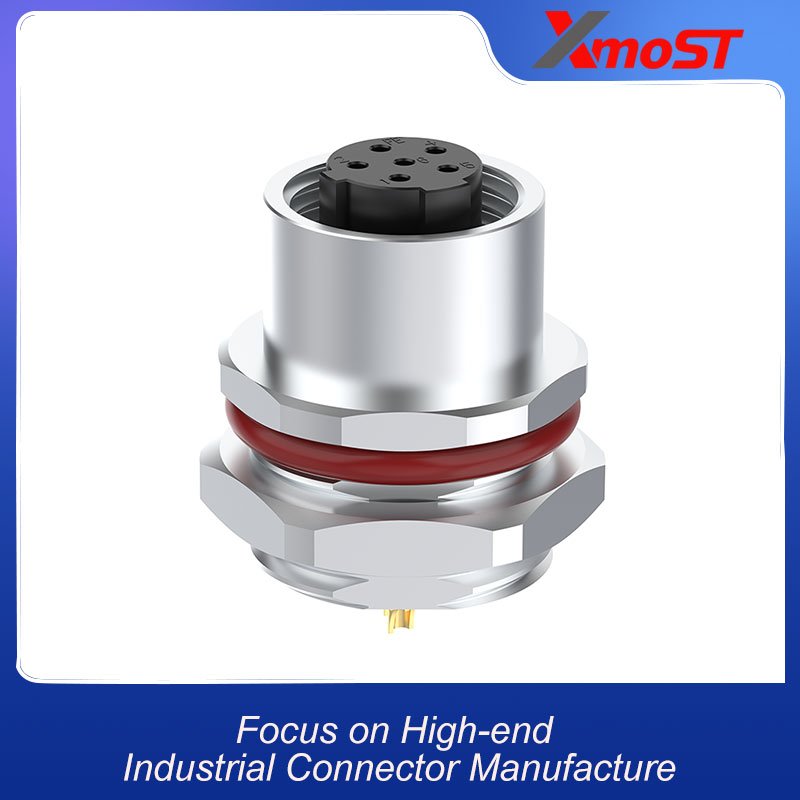

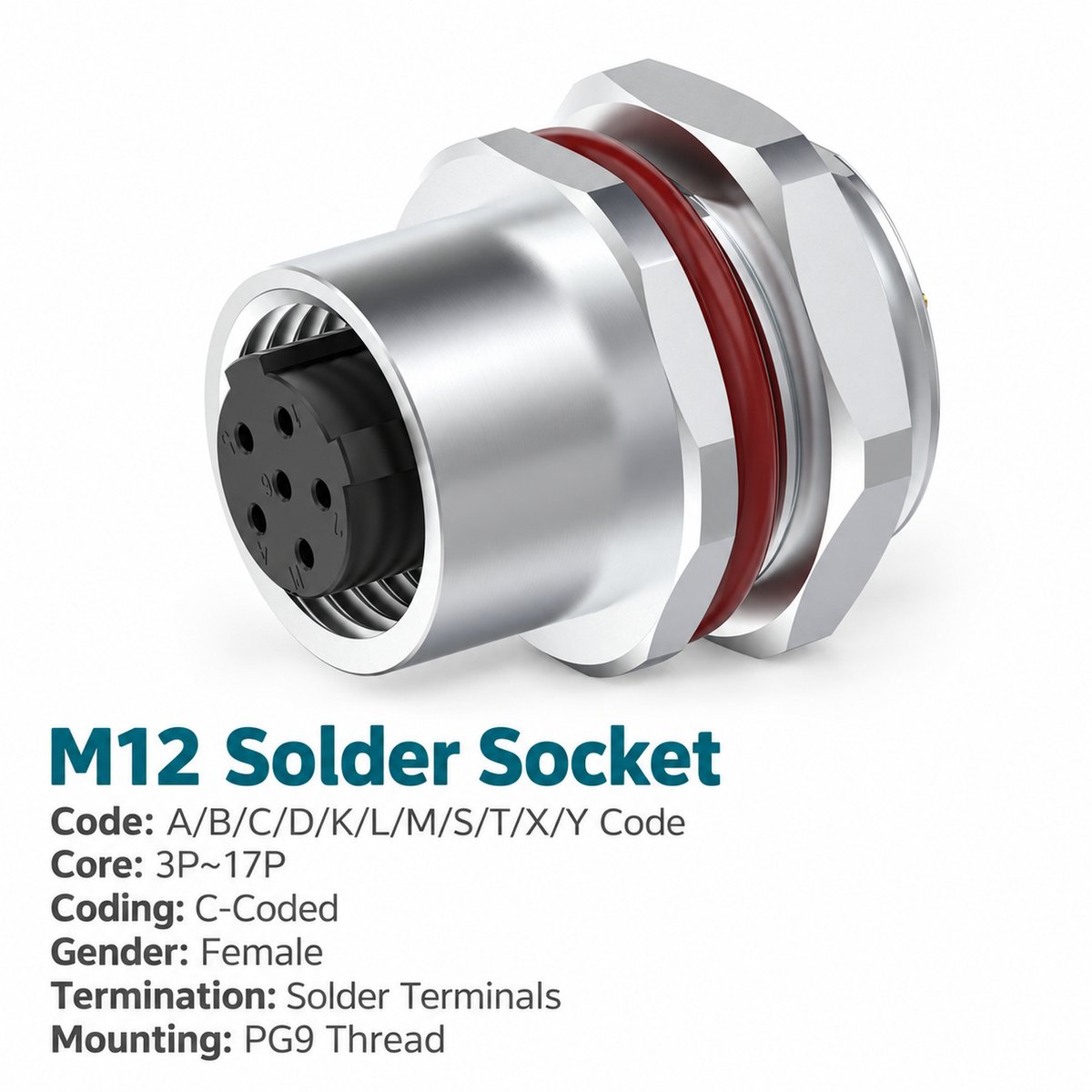

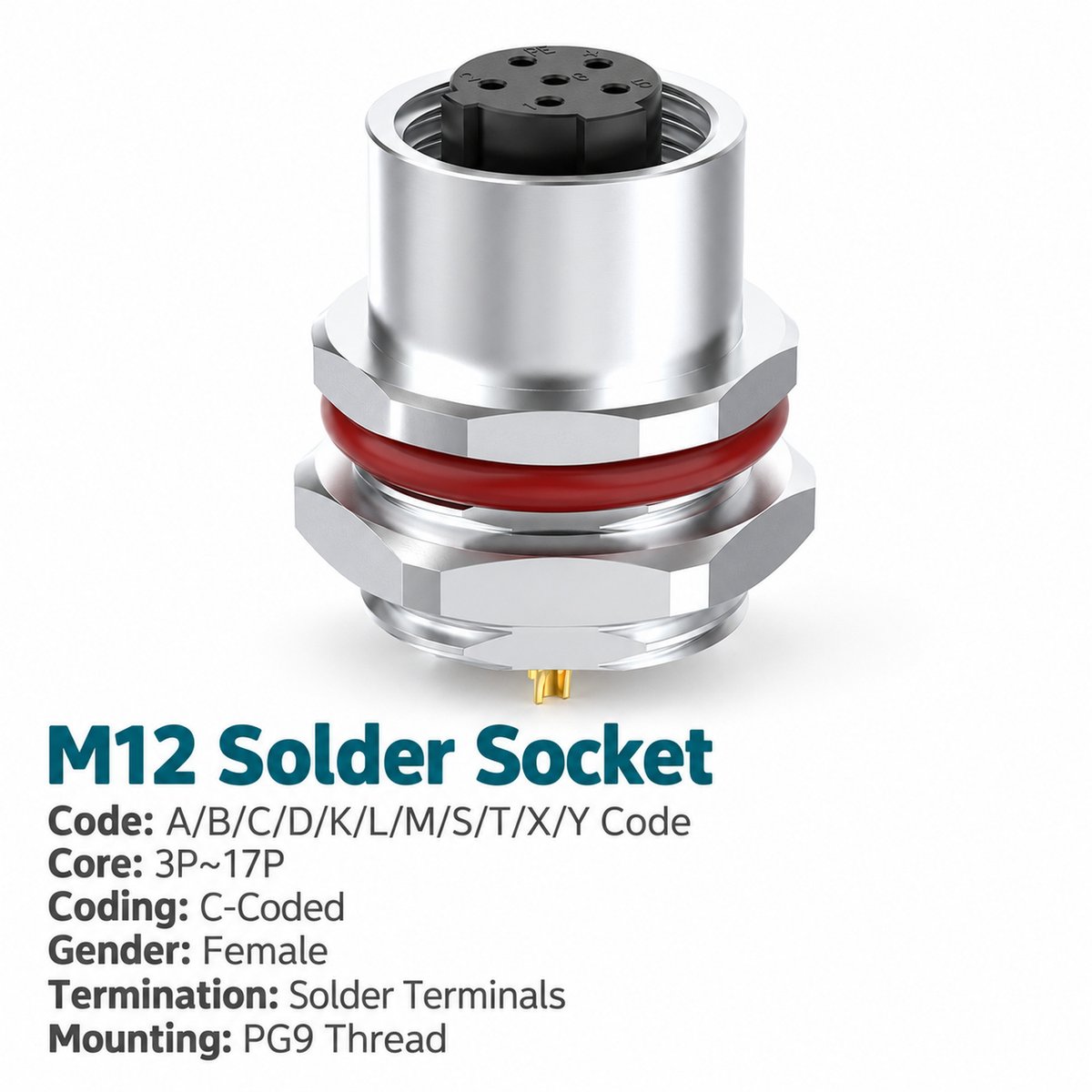

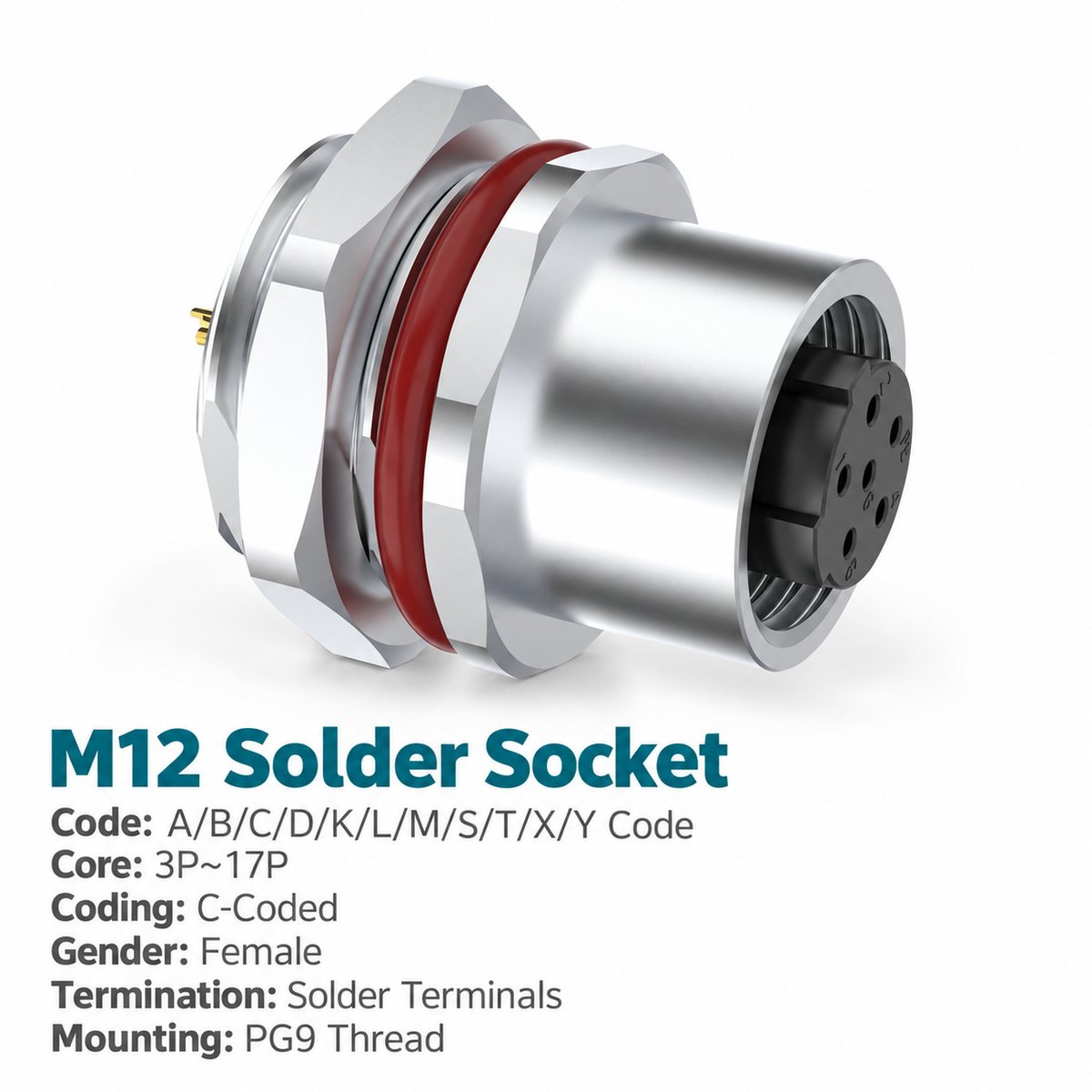

Xmost M12 C-coded female rear mount socket provides an external cable interface with solder connections inside the equipment housing. Its rear fastened construction suits panels designed to accommodate rear mounting hardware and internal wiring access.
This M12 C-coded panel mount connector is available in four contact configurations. Current and voltage ratings vary by configuration, allowing selection against the requirements of the connected circuit.
Choose an unwired version for customer termination or pre-wired leads to reach the internal harness connection. Confirm the female contact arrangement, mounting thread and installation clearance before ordering.
Key Features
- Rear fastened construction: For equipment panels designed around a rear mount receptacle.
- Female C-coded interface: Mates with a compatible M12 C-coded male connector.
- Four contact arrangements: 2+PE, 3+PE, 4+PE and 5+PE options.
- Solder wiring connection: For termination to the internal equipment harness.
- Lead length selection: Unwired, 0.1 m, 0.3 m and 0.5 m versions listed.
- PG9 or M16 mounting: Two panel thread options.
- M12 threaded coupling: M12 × 1.0 mating interface.
- Unshielded construction: Matches the specification for this product version.
Product Dimensions
[Insert the rear mount female socket dimension drawing and corresponding panel cut-out here.]

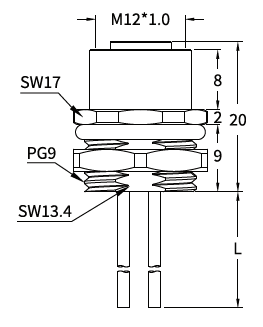

Dimensions for the Illustrated PG9 Version
| Drawing Item | Dimension / Specification |
|---|---|
| Mating thread | M12 × 1.0 |
| Panel mounting thread | PG9 |
| Upper wrench size | SW17 |
| Lower wrench size | SW13.4 |
| Upper axial section shown | 8 |
| Flange thickness shown | 2 |
| Lower axial section shown | 9 |
| Overall body length shown, excluding leads | 20 |
| Lead length | L, according to ordered version |
| Unit | mm |
Allow space for the rear fastening hardware and lead routing. Prepare the panel opening using the drawing for the selected mounting thread.
Needle Arrangement (Front View)
[Insert the C-coded female needle arrangement screenshot from page 6, showing all four configurations.]
| Catalogue Configuration | Contact Composition |
|---|---|
| 3-pin (2+PE) | 2 circuit contacts + PE |
| 4-pin (3+PE) | 3 circuit contacts + PE |
| 5-pin (4+PE) | 4 circuit contacts + PE |
| 6-pin (5+PE) | 5 circuit contacts + PE |
Identify contacts from the female mating-face diagram. Check the complete arrangement against the external male connector and equipment schematic.
Product Specifications
| Parameter | Specification |
|---|---|
| Brand | Xmost |
| Product type | M12 C-coded female rear mount socket |
| Mounting method | Rear fastened |
| Application type | AC power |
| Contact configurations | 2+PE / 3+PE / 4+PE / 5+PE |
| Termination | Solder |
| Wiring options | Unwired / pre-wired leads |
| Standard listed | IEC 61076-2-101 |
| Shielding | Unshielded |
| Coupling thread | M12 × 1.0 |
| Panel mounting thread options | PG9 / M16 × 1.5 |
| Insulation resistance | ≥100 MΩ |
| Contact resistance | ≤5 mΩ |
| Recommended coupling torque | 0.4 N·m |
| Maximum coupling torque | 0.8 N·m |
| Temperature range, flexible use | −25°C to +80°C |
| Temperature range, static use | −40°C to +80°C |
| Protection ratings listed | IP67 / IP68 |
| Pollution degree | 3 |
| Insulator materials listed | PA66+GF / TPU+GF |
Electrical Ratings by Configuration
| Contact Configuration | Rated Current | Rated Voltage | Wire Size Listed |
|---|---|---|---|
| 3-pin (2+PE) | 4 A | 250 V | 0.34 mm² / AWG22 |
| 4-pin (3+PE) | 4 A | 250 V | 0.34 mm² / AWG22 |
| 5-pin (4+PE) | 2 A | 60 V | 0.14 mm² / AWG26 |
| 6-pin (5+PE) | 2 A | 30 V | 0.14 mm² / AWG26 |
Applications
This M12 C-coded rear mount female socket can be considered for:
- Power interfaces on equipment housings: Connecting an external C-coded male cable to internal wiring.
- Control enclosures with rear mounting access: Accommodating the fastening hardware behind the panel.
- Machine harness assemblies: Using soldered wires or supplied pre-wired leads.
- Modular equipment connections: Providing a detachable interface at the housing.
- Multi-contact power wiring: Selecting the appropriate configuration within its listed electrical ratings.
Wiring and Lead Options
The rear mount M12 female socket is available without wires or with 0.1 m, 0.3 m or 0.5 m pre-wired leads. Select the lead length according to the internal routing distance and connection location.
Follow the confirmed wiring specification for the selected configuration. Verify the PE assignment before using the catalogue colour table as an installation guide.
[Insert the verified wiring diagram here after confirming the PE assignment.]
Selection and Ordering
Specify:
- C-coded female, rear mount.
- Required contact configuration.
- PG9 or M16 × 1.5 panel mounting thread.
- Unwired or pre-wired construction.
- Required lead length.
- Confirmed contact and PE assignment.
Check rear installation clearance and compatibility with the external cable connector.
