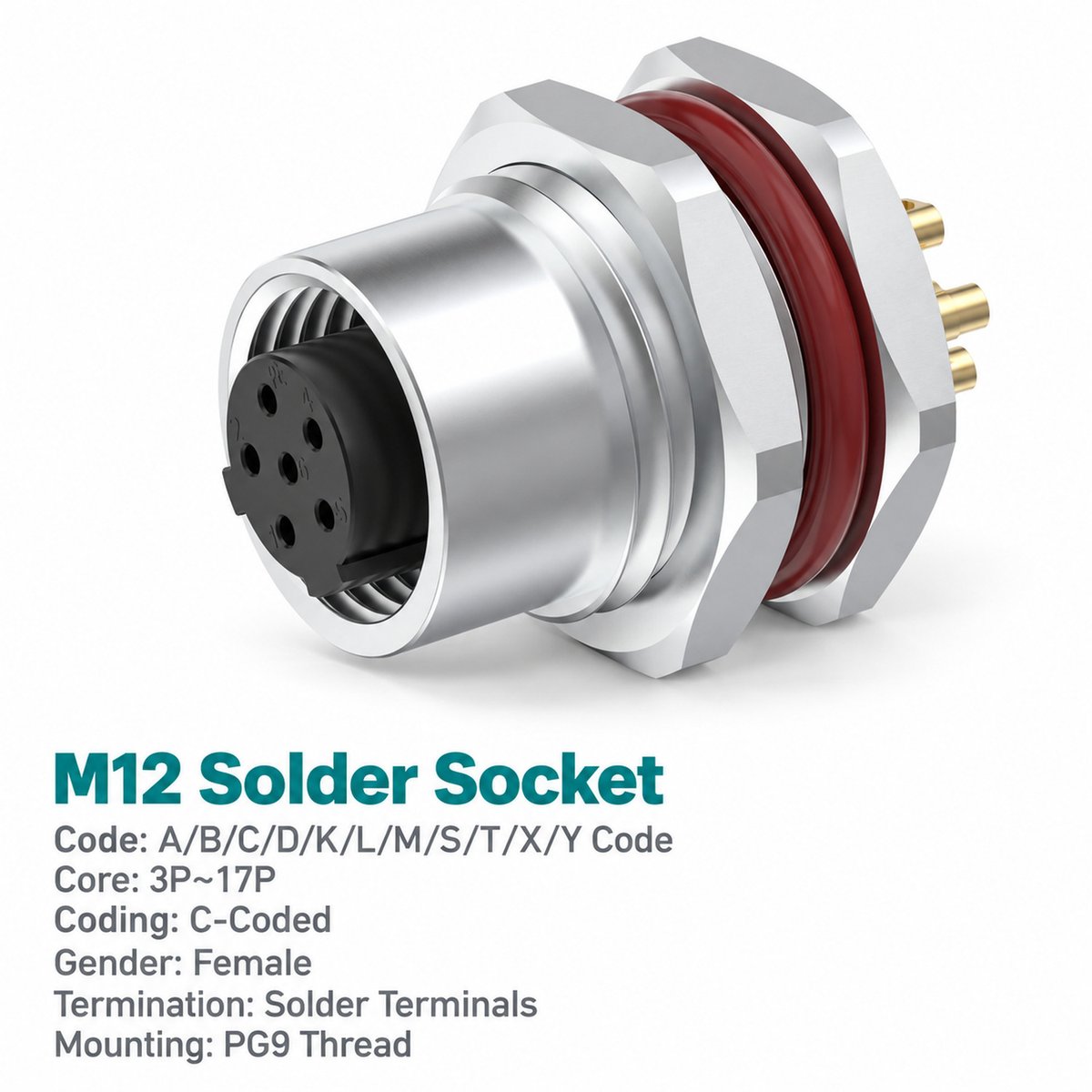

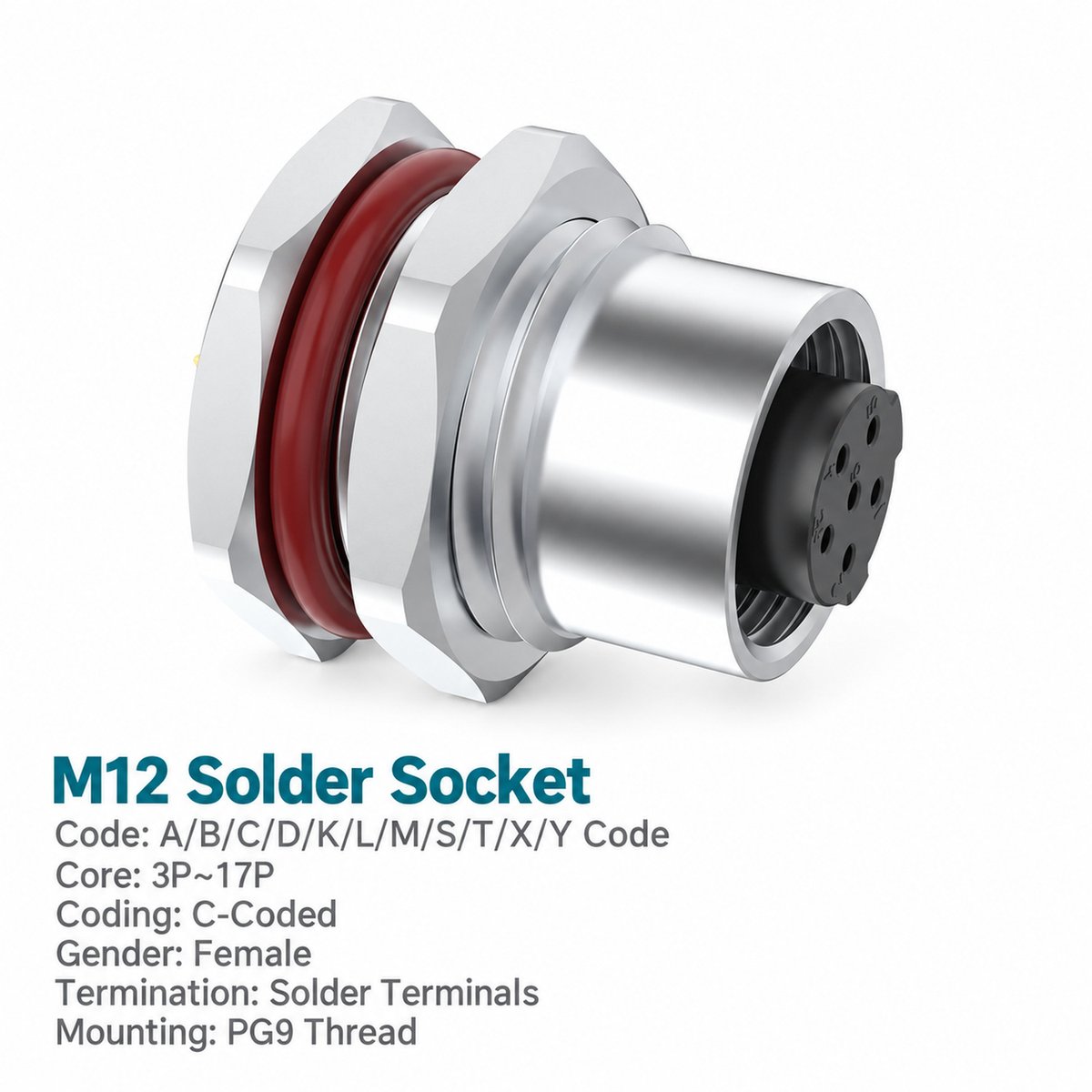

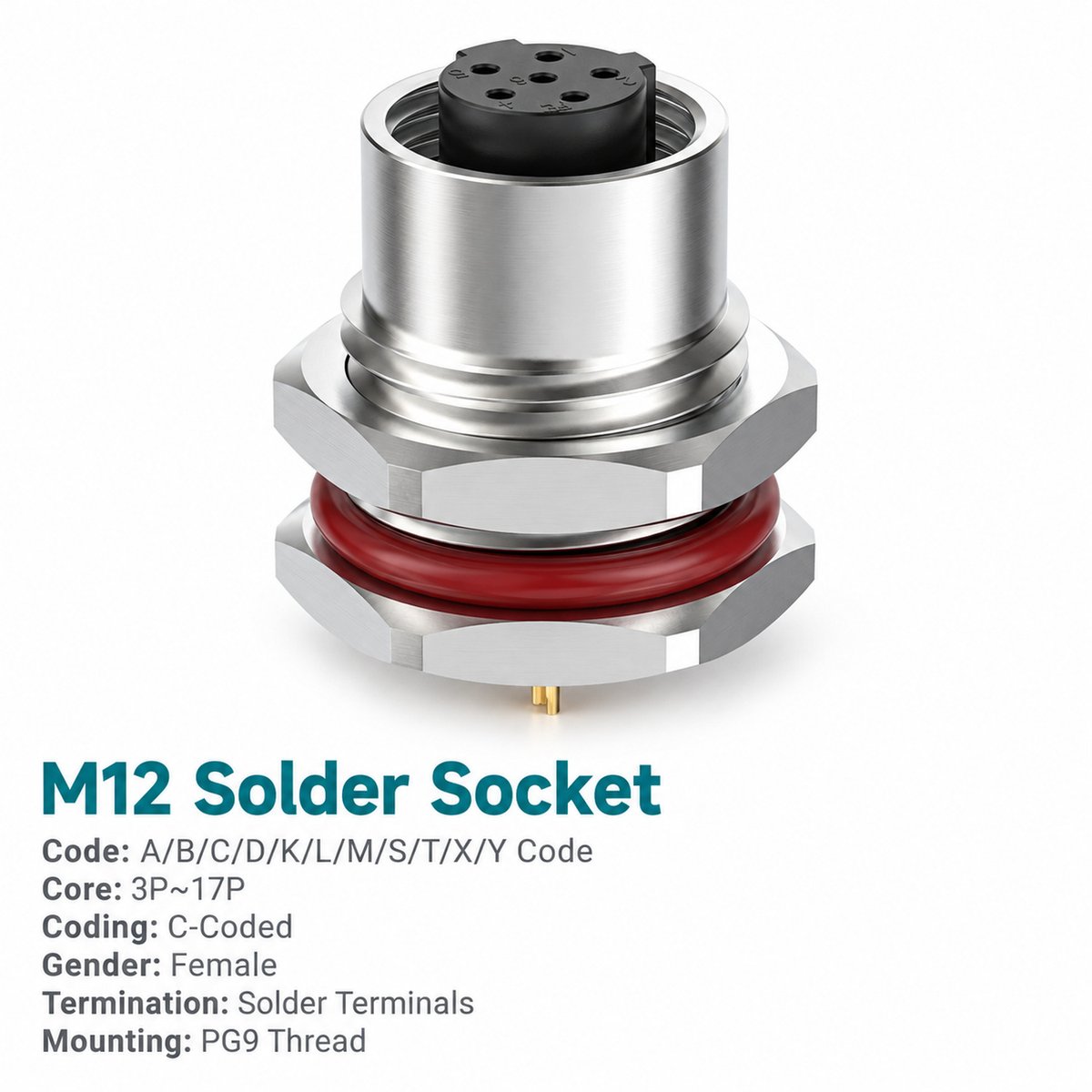

M12 C-coded female front mount socket provides the equipment-side connection for a compatible M12 C-coded male cable connector. It mounts to the panel, with solder connections or pre-wired leads routed to the internal harness.
Choose the front fastened version when it matches the enclosure’s mounting design. The unwired socket allows wires to be soldered during equipment assembly; pre-wired versions provide 0.1 m, 0.3 m or 0.5 m leads for routing to an internal connection point.
Four contact configurations are available. Current, voltage and wire size vary by configuration, so select the M12 female solder socket according to the circuit requirements as well as the number of contacts.
Key Features
- C-coded female interface: Connects to a compatible M12 C-coded male connector.
- Front fastened mounting: Select according to the equipment panel drawing.
- Four contact configurations: 3-pin (2+PE), 4-pin (3+PE), 5-pin (4+PE) and 6-pin (5+PE).
- Solder termination: Supports internal wire connection during assembly.
- Unwired or pre-wired: Choose customer termination or supplied leads.
- Three listed lead lengths: 0.1 m, 0.3 m and 0.5 m.
- Two panel mounting threads: PG9 and M16 × 1.5.
- Unshielded construction: As specified for this catalogue version.
Product Dimensions

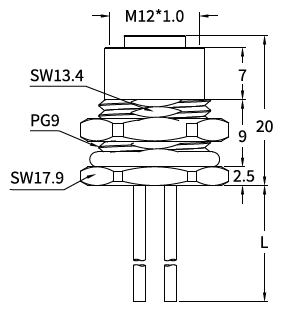

[Insert the front mount female socket drawing and panel cut-out drawing here.]
Illustrated PG9 Version — Dimensions in mm
| Item to Check | Drawing Value |
|---|---|
| Mating thread | M12 × 1.0 |
| Panel mounting thread | PG9 |
| Overall body length shown, excluding leads | 20 |
| Upper axial section shown | 7 |
| Middle axial section shown | 9 |
| Lower axial section shown | 2.5 |
| Upper wrench size | SW13.4 |
| Mounting nut wrench size | SW17.9 |
| Lead length | L; according to ordered version |
The mating thread connects to the external cable connector. The panel mounting thread secures the socket to the enclosure. Use the cut-out drawing for the selected mounting version.
Needle Arrangement (Front View)
[Insert the four C-coded female contact arrangements from page 6 here.]
| Configuration | Circuit Contacts | PE Contact | Total Contacts |
|---|---|---|---|
| 2+PE | 2 | 1 | 3 |
| 3+PE | 3 | 1 | 4 |
| 4+PE | 4 | 1 | 5 |
| 5+PE | 5 | 1 | 6 |
PE means protective earth. For example, 3+PE means three circuit contacts plus one protective earth contact, giving four contacts in total.
The diagrams show the mating-face view. Check the selected female contact arrangement against the mating male connector and equipment schematic.
Product Specifications
| Parameter | Specification |
|---|---|
| Product type | M12 C-coded female front mount socket |
| Mounting | Front fastened |
| Termination | Solder |
| Wiring options | Unwired / pre-wired leads |
| Standard listed | IEC 61076-2-101 |
| Shielding | Unshielded |
| Coupling thread | M12 × 1.0 |
| Panel mounting thread options | PG9 / M16 × 1.5 |
| Insulation resistance | ≥100 MΩ |
| Contact resistance | ≤5 mΩ |
| Recommended coupling torque | 0.4 N·m |
| Maximum coupling torque | 0.8 N·m |
| Temperature range, flexible use | −25°C to +80°C |
| Temperature range, static use | −40°C to +80°C |
| Protection ratings listed | IP67 / IP68 |
| Pollution degree | 3 |
| Insulator materials listed | PA66+GF / TPU+GF |
Electrical Ratings by Configuration
| Contact Configuration | Rated Current | Rated Voltage | Wire Size Listed |
|---|---|---|---|
| 3-pin (2+PE) | 4 A | 250 V | 0.34 mm² / AWG22 |
| 4-pin (3+PE) | 4 A | 250 V | 0.34 mm² / AWG22 |
| 5-pin (4+PE) | 2 A | 60 V | 0.14 mm² / AWG26 |
| 6-pin (5+PE) | 2 A | 30 V | 0.14 mm² / AWG26 |
Applications
This M12 C-coded front mount female connector can be considered for:
- Equipment power panels: Receiving a compatible C-coded male cable connection.
- Industrial control enclosures: Connecting external wiring to the internal harness.
- Modular machinery: Providing a detachable connection at the equipment housing.
- Pre-wired equipment assemblies: Routing supplied leads to an internal terminal or circuit connection.
Select the configuration according to the circuit voltage, current, conductor count and panel design.
Wiring and Lead Options
The unwired M12 female panel socket allows solder termination during assembly. Pre-wired versions are listed with 0.1 m, 0.3 m and 0.5 m leads. Other wire types or lengths can be discussed when ordering.
Follow the confirmed contact assignment for the supplied configuration. The circuit functions and PE connection must match the equipment wiring specification.
[Insert the verified wiring diagram here after confirming the PE assignment.]
Selection and Ordering
| Selection Item | Available Choices |
|---|---|
| Contact configuration | 2+PE / 3+PE / 4+PE / 5+PE |
| Mounting style | Front mount |
| Panel mounting thread | PG9 / M16 × 1.5 |
| Termination | Solder |
| Wiring | Unwired / pre-wired |
| Listed lead lengths | 0.1 m / 0.3 m / 0.5 m |
| Wiring confirmation | Contact functions and PE assignment |
Example enquiry: M12 C-coded female front mount socket, 3+PE, PG9 mounting, solder termination, 0.3 m pre-wired leads.
