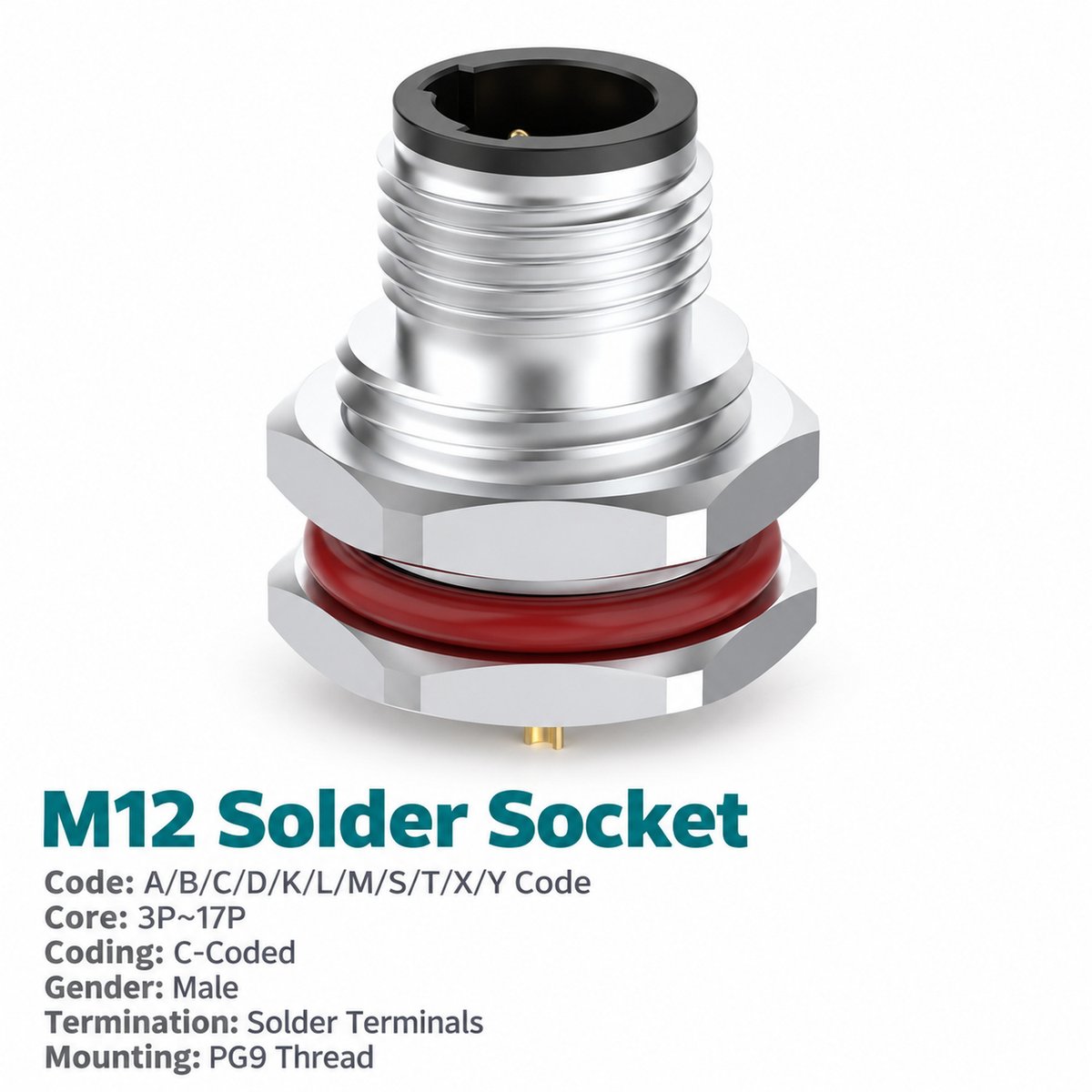

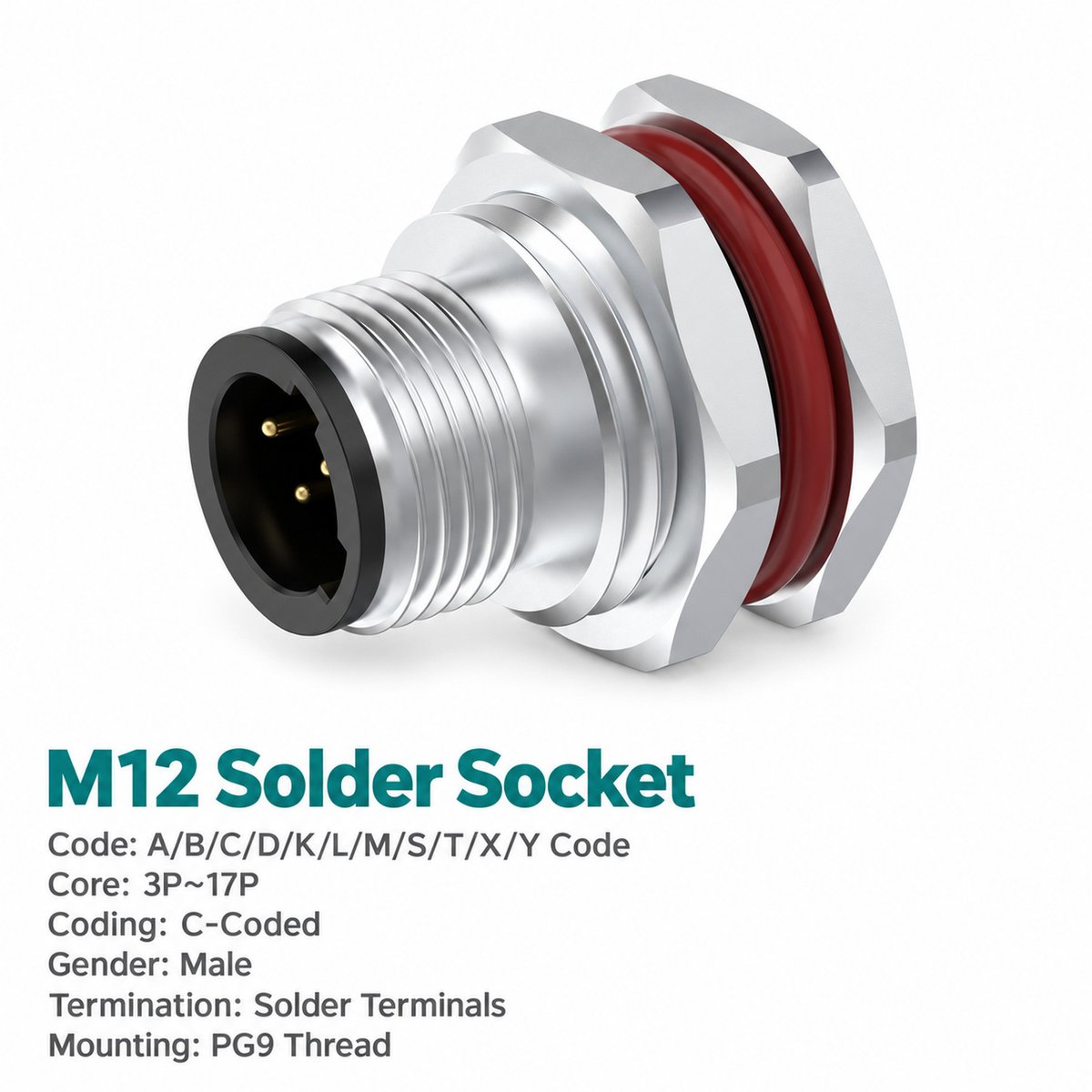

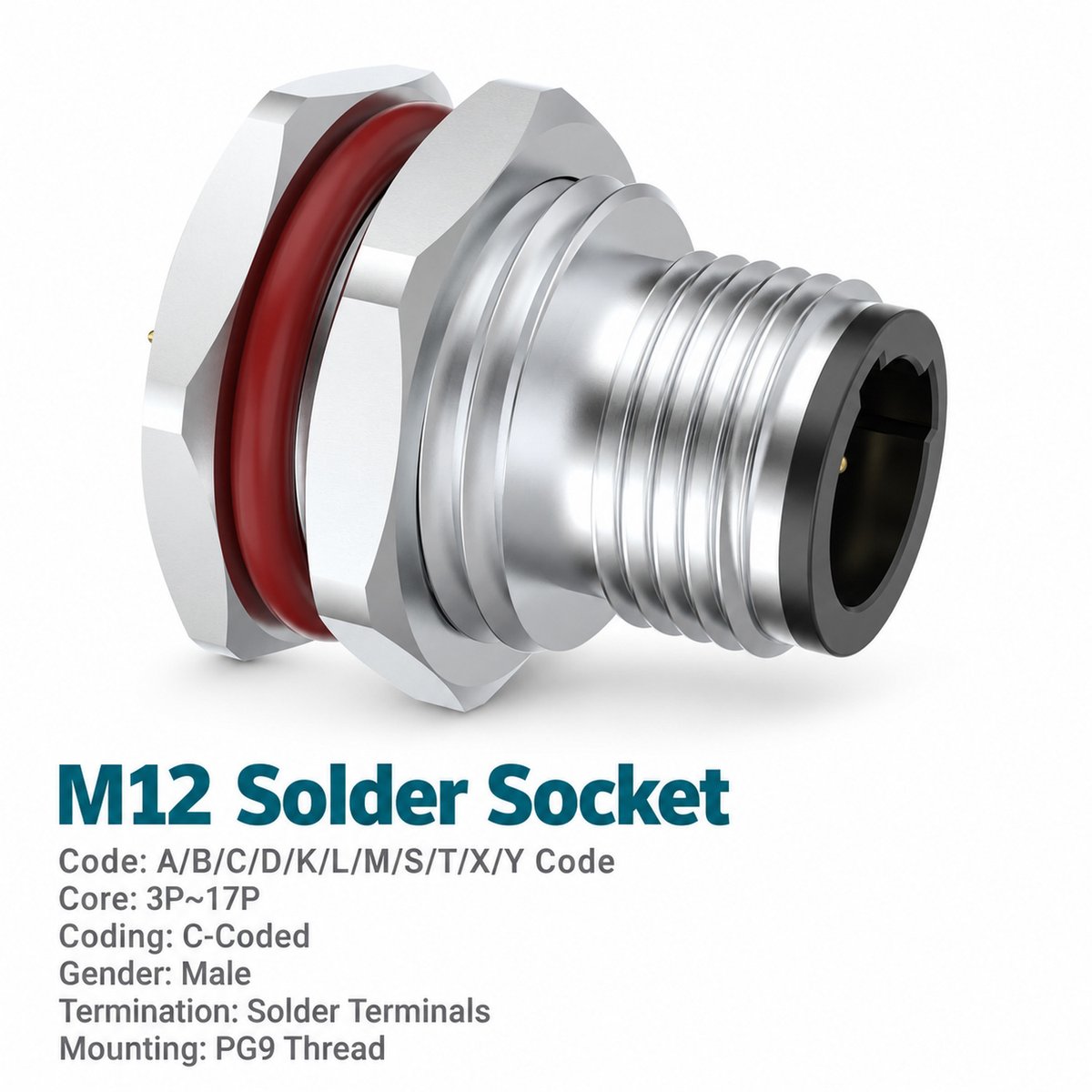

M12 C-Coded Male Front Mount Socket, Solder, Unwired or Pre-Wired

Xmost M12 C-coded male front mount socket provides a panel connection for AC power wiring, with solder termination and an unshielded design. Available unwired or with pre-wired leads, this M12 C-coded panel mount connector offers four contact configurations to suit different circuit requirements.

  • Brand: Xmost
  • Connector Size: M12
  • Coding: C-coded
  • Contact Gender: Male
  • Mounting Type: Front mount / front fastened
  • Termination: Solder
  • Wiring Options: Unwired / pre-wired leads
  • Contact Options: 3-pin (2+PE) / 4-pin (3+PE) / 5-pin (4+PE) / 6-pin (5+PE)
  • Shielding: Unshielded
  • Application Type: AC power
  • Panel Mounting Threads: M12 × 1.0 / PG9 / M16 × 1.5
  • Standard Listed: IEC 61076-2-101
Category: Tag: Brand:

Xmost M12 C-coded male front mount socket connects external cables to internal equipment wiring through a front fastened panel interface. Its solder termination allows wires to be connected during assembly, while pre-wired versions provide leads for connection to the internal harness.

This M12 male power socket is available in 2+PE, 3+PE, 4+PE and 5+PE configurations. Select the contact arrangement according to the required circuit count, current and voltage. The available panel mounting threads accommodate different equipment mounting designs.

Key Features

  • C-coded male interface: For connection to a compatible M12 C-coded female connector.
  • Front fastened mounting: For equipment panels designed around a front mount receptacle.
  • Four contact configurations: 2+PE, 3+PE, 4+PE and 5+PE.
  • Solder termination: Available without wires for customer assembly.
  • Pre-wired options: Listed lead lengths of 0.1 m, 0.3 m and 0.5 m.
  • Panel thread selection: M12 × 1.0, PG9 and M16 × 1.5.
  • Unshielded construction: As specified for this catalogue version.

Product Dimensions

M12 C-Coded Male Front Mount Socket, Solder, Unwired or Pre-Wired

[Insert the front mount male socket dimension drawing and panel cut-out drawing here.]

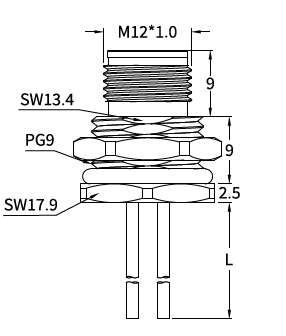

Illustrated PG9 Version

Drawing Item Dimension / Specification
Mating thread M12 × 1.0
Panel mounting thread PG9
Upper wrench size SW13.4
Mounting nut wrench size SW17.9
Upper axial section shown 9
Middle axial section shown 9
Lower axial section shown 2.5
Lead length L, according to ordered version
Unit mm

Use the panel cut-out corresponding to the selected mounting thread. Other mounting versions must follow their applicable dimension drawings.

Needle Arrangement (Front View)

M12 C-Coded Male Front Mount Socket, Solder, Unwired or Pre-Wired 1

[Insert the C-coded male needle arrangement screenshot: 3-pin (2+PE), 4-pin (3+PE), 5-pin (4+PE) and 6-pin (5+PE).]

The contact arrangement is shown from the mating face. Follow the selected configuration when identifying terminals and preparing the wiring.

Product Specifications

Parameter Specification
Brand Xmost
Product type M12 C-coded male front mount socket
Mounting Front fastened
Termination Solder
Wiring options Unwired / pre-wired leads
Standard listed IEC 61076-2-101
Shielding Unshielded
Coupling thread M12 × 1.0
Panel mounting thread options M12 × 1.0 / PG9 / M16 × 1.5
Insulation resistance ≥100 MΩ
Contact resistance ≤5 mΩ
Recommended coupling torque 0.4 N·m
Maximum coupling torque 0.8 N·m
Temperature range, flexible use −25°C to +80°C
Temperature range, static use −40°C to +80°C
Wire size, 3-pin / 4-pin 0.34 mm² / AWG22
Wire size, 5-pin / 6-pin 0.14 mm² / AWG26
Protection ratings listed IP67 / IP68
Pollution degree 3
Insulator materials listed PA66+GF / TPU+GF

Electrical Ratings by Configuration

Contact Configuration Rated Current Rated Voltage
3-pin (2+PE) 4 A 250 V
4-pin (3+PE) 4 A 250 V
5-pin (4+PE) 2 A 60 V
6-pin (5+PE) 2 A 30 V

Applications

This M12 C-coded front mount power connector can be selected for:

  • AC power interfaces on industrial equipment.
  • Machine panels requiring a C-coded male receptacle.
  • Control enclosures with soldered internal wiring.
  • Equipment harnesses requiring a contact configuration with PE.
  • Modular assemblies connected through compatible C-coded cables.

Select the configuration according to the actual circuit ratings and installation requirements.

Wiring and Lead Options

[Insert the wire colour and pin assignment screenshot from page 5 here.]

Pin 3-pin (2+PE) 4-pin (3+PE) 5-pin (4+PE) 6-pin (5+PE)
1 Brown — BN Brown — BN Brown — BN Brown — BN
2 Blue — BU White — WH White — WH White — WH
3 Black — BK Blue — BU Blue — BU Blue — BU
4 — Black — BK Black — BK Black — BK
5 — — Grey — GY Grey — GY
6 — — — Pink — PK

Wire colours above reproduce the catalogue table. Identify the PE position from the corresponding contact drawing and verified wiring specification.

Selection and Ordering

Specify:

  • C-coded male, front mount.
  • Contact configuration: 2+PE / 3+PE / 4+PE / 5+PE.
  • Mounting thread: M12 × 1.0 / PG9 / M16 × 1.5.
  • Unwired or pre-wired version.
  • Lead length: 0.1 m / 0.3 m / 0.5 m, or a custom requirement.
