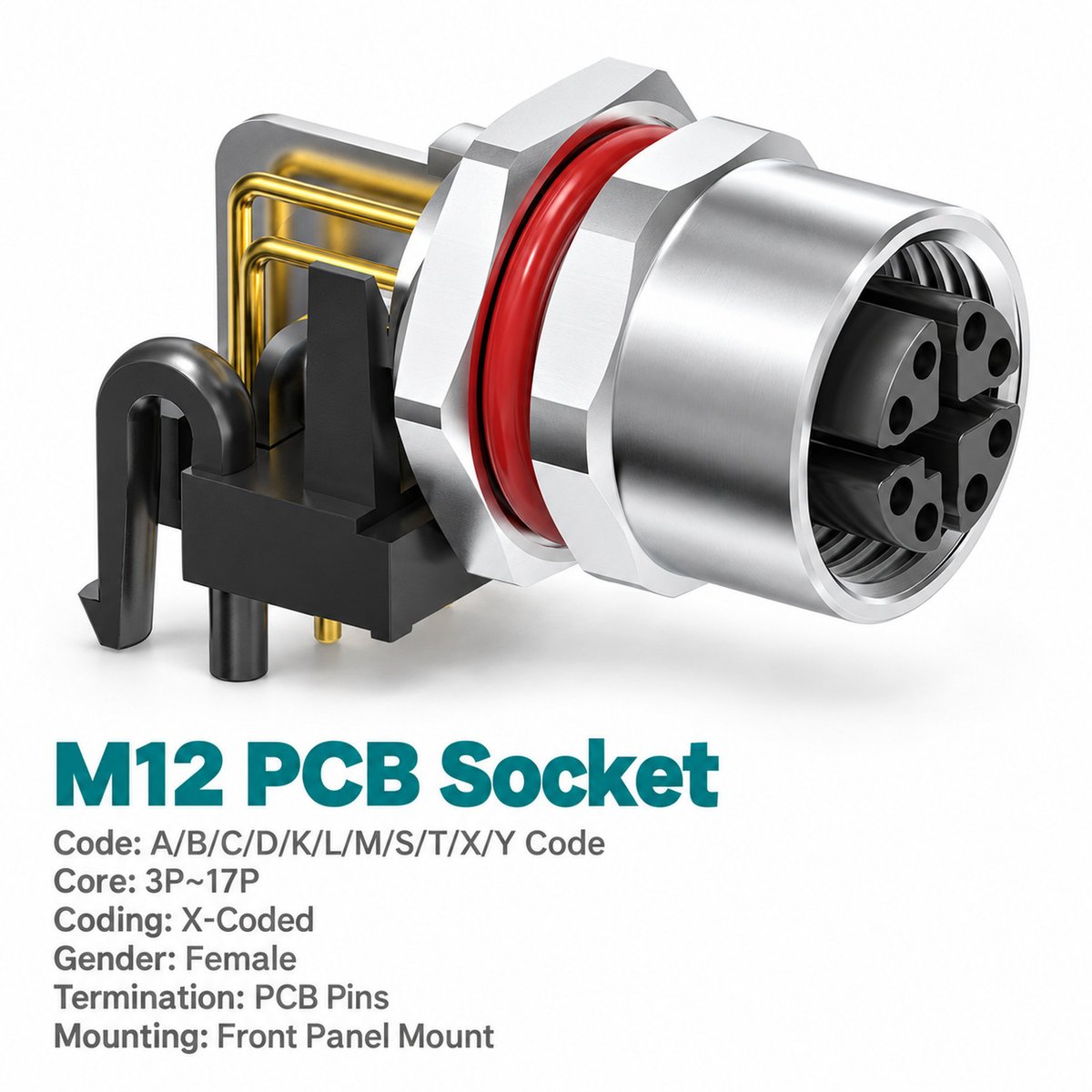

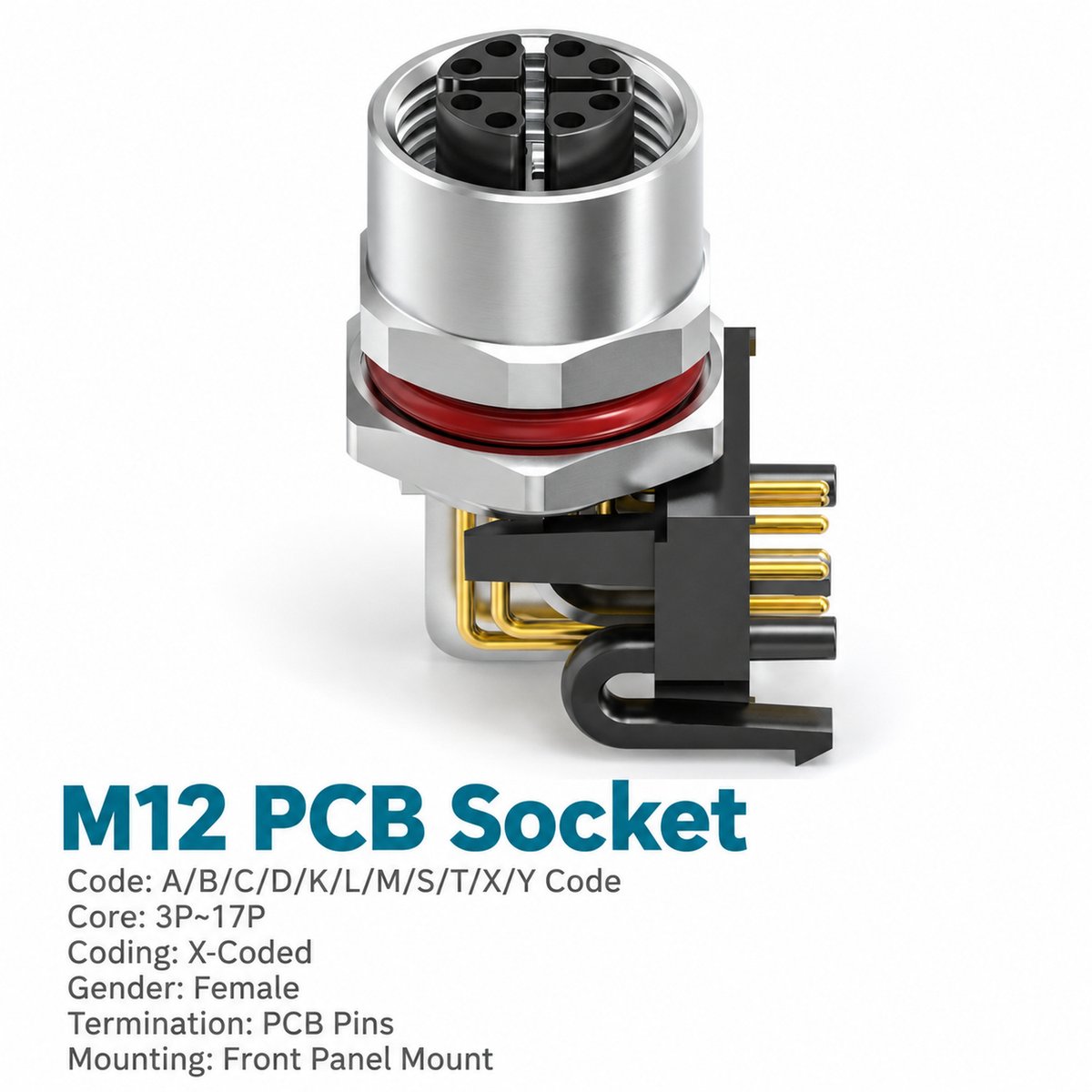

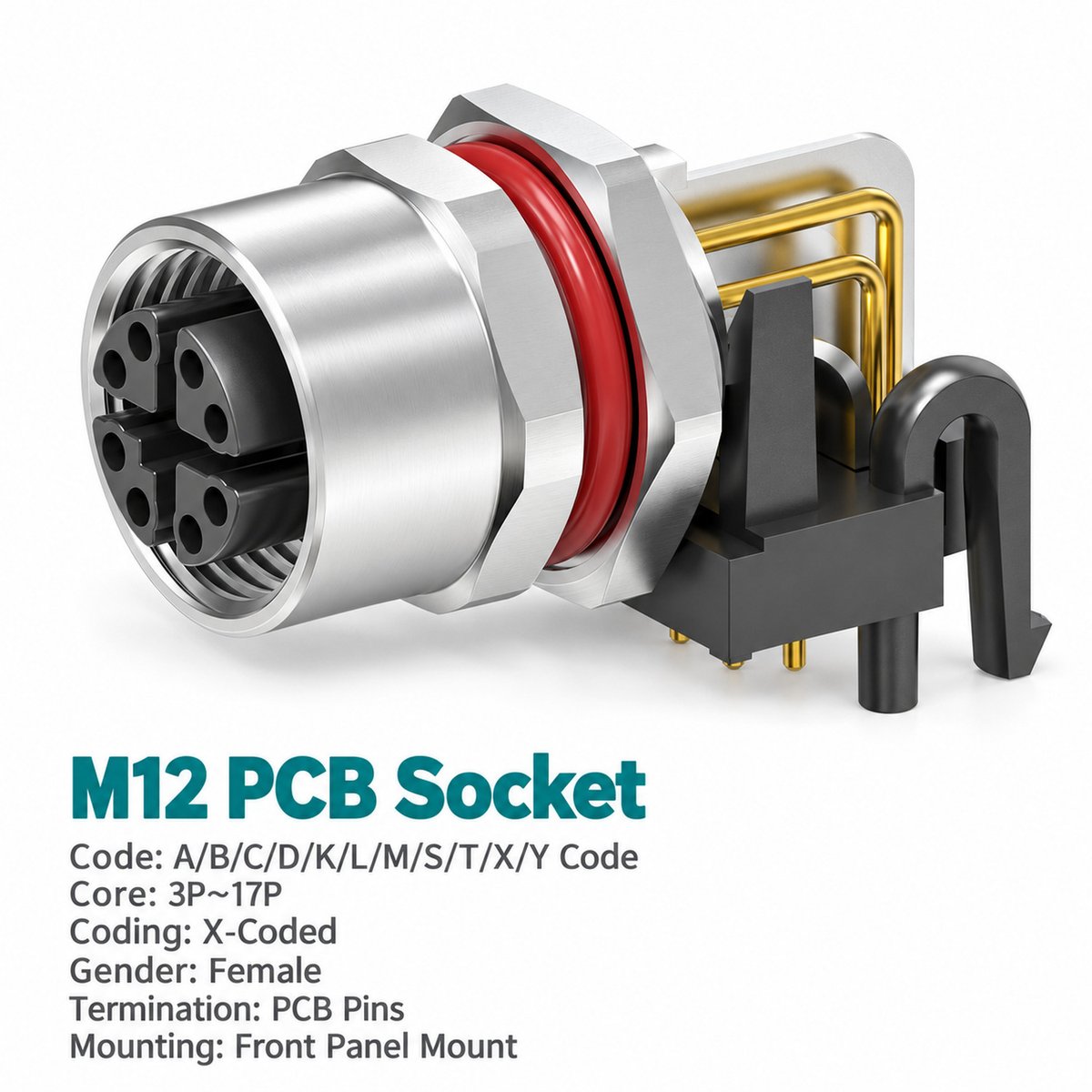

M12 X-Coded Female Front Mount Right Angle PCB Socket

Xmost M12 X-coded female front mount right angle PCB socket provides a detachable Ethernet cable connection for industrial network equipment. Its 8-pin female interface accepts a compatible M12 X-coded male cable connector, while bent rear contacts connect to the internal circuit board through dip soldering.

The 90-degree PCB contact arrangement turns the board connection behind the equipment panel. This right angle M12 Ethernet socket suits assemblies where the circuit-board position requires bent contacts rather than a straight rear termination.

Shielded construction provides the connector interface for the equipment’s network shielding arrangement. Select the socket together with the mating cable, PCB design and shield connection to meet the complete assembly’s transmission requirements.

Key Features

8-pin X-coded female interface: Mates with compatible M12 X-coded male Ethernet cable connectors.
Right angle PCB contacts: Provides a 90-degree termination behind the panel.
Front fastened construction: For enclosures designed around a front mount network socket.
Shielded interface: Supports integration into the equipment’s Ethernet shielding arrangement.
PCB dip-solder termination: Bent insertion contacts provide the internal board connection.
Defined electrical ratings: 0.5 A and 50 V AC / 60 V DC.

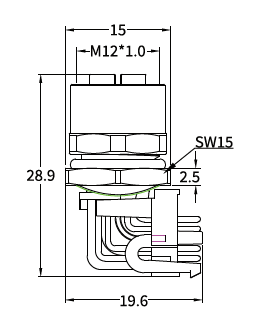

Product Dimensions

[Insert the female right angle front mount outline drawing and corresponding panel cut-out drawing from page 23.]

Dimensions in mm

Item	Drawing Value
Mating thread	M12 × 1.0
Panel mounting thread shown	M12 × 1.0
Overall vertical dimension shown	28.9
Horizontal dimension shown	19.6
Upper body width shown	15
Mounting nut wrench size	SW15
Lower flange section shown	2.5
Recommended panel dimension A	10.5, +0.1/−0
Recommended panel dimension B	12, +0.1/−0
Maximum panel thickness indicated	2.0
Panel edge chamfer shown	C0.5

Needle Arrangement (Front View)

[Insert the X-coded 8-pin female needle arrangement diagram from page 23.]

The diagram shows the female mating-face view with contacts numbered 1–8. Use this arrangement to identify the mating contacts; follow the equipment specification for Ethernet signal assignments.

Product Specifications

Parameter	Specification
Product type	M12 X-coded female front mount right angle PCB Ethernet socket
Mounting	Front fastened
Contact count	8 pins
PCB contact style	Right angle / 90-degree
Termination	PCB dip soldering
Standard listed	IEC 61076-2-109
Rated current	0.5 A
Rated voltage	50 V AC / 60 V DC
Shielding	Shielded
Mating thread	M12 × 1.0
Panel mounting thread shown	M12 × 1.0
Insulation resistance	≥100 MΩ
Contact resistance	≤5 mΩ
Recommended coupling torque	0.4 N·m
Maximum coupling torque	0.8 N·m
Temperature range, flexible use	−25°C to +80°C
Temperature range, static use	−40°C to +80°C
Protection ratings listed	IP67 / IP68
Pollution degree	3
Insulator materials listed	PA66+GF / TPU+GF

Applications

Industrial Ethernet communication modules: Connects external network cables to internal PCB electronics.
Industrial switches and gateways: Provides a shielded X-coded panel interface for compatible equipment designs.
PCB-based automation devices: Suits assemblies requiring a 90-degree connector termination.
Machine network housings: Integrates a front fastened Ethernet socket into the enclosure.
