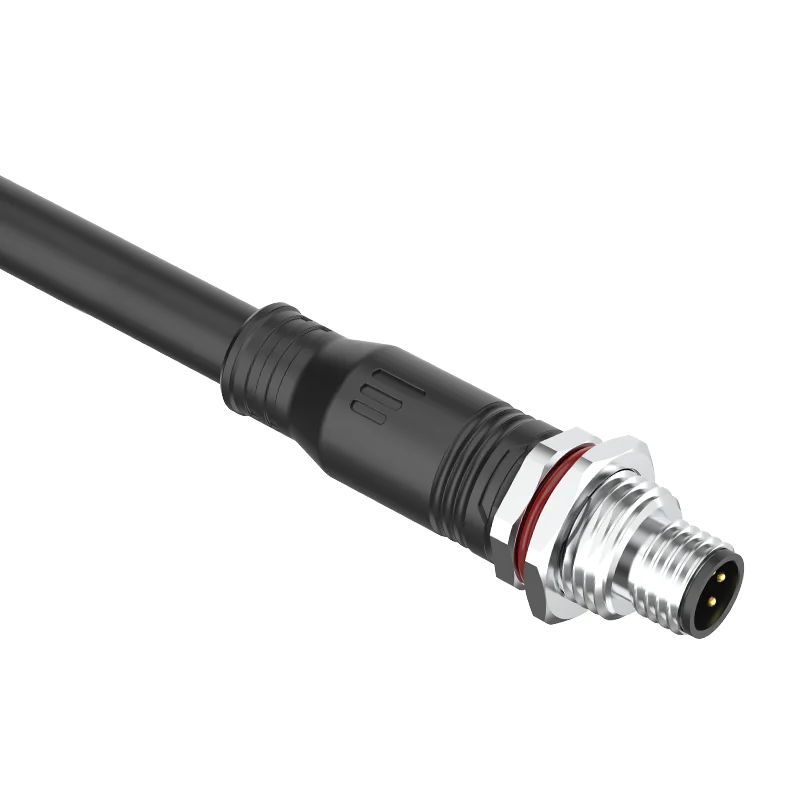

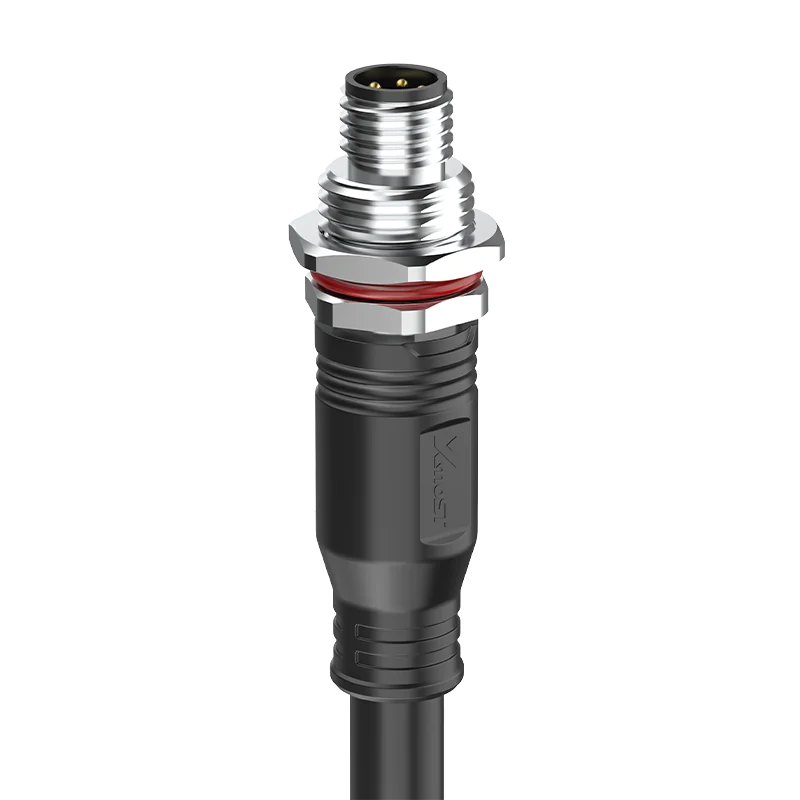

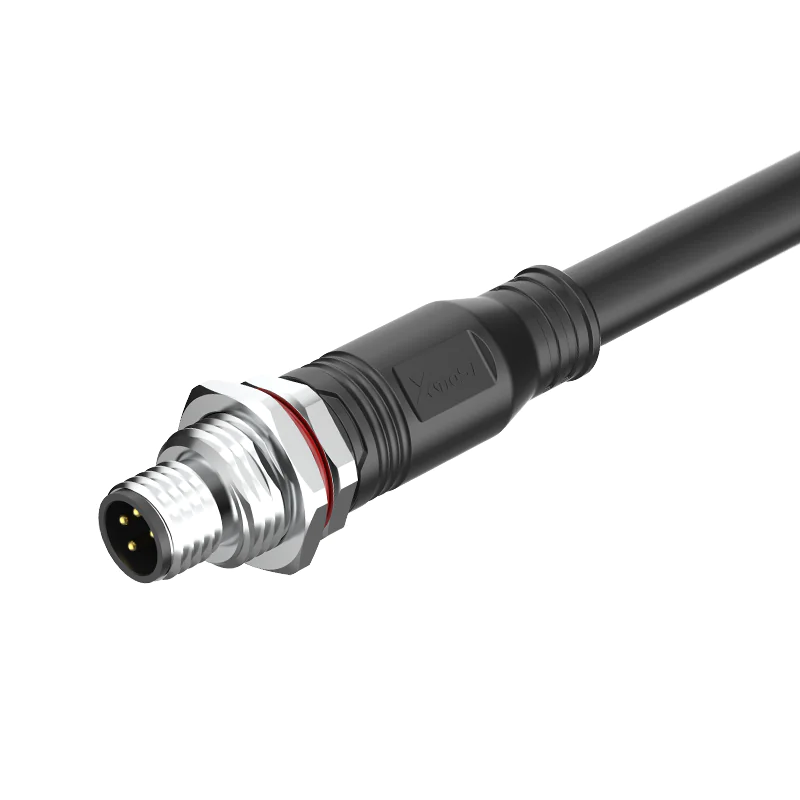

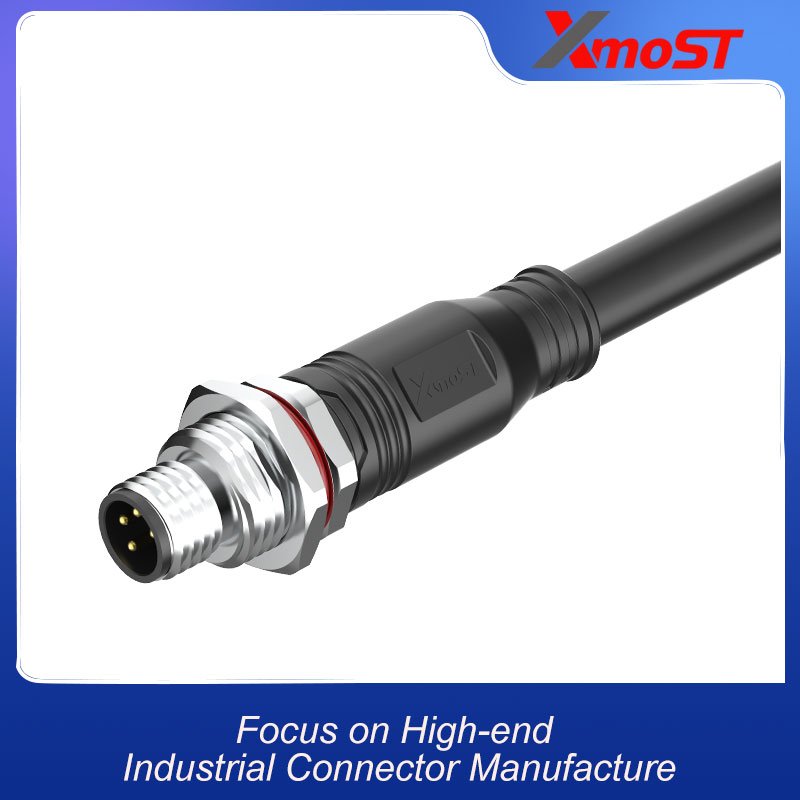

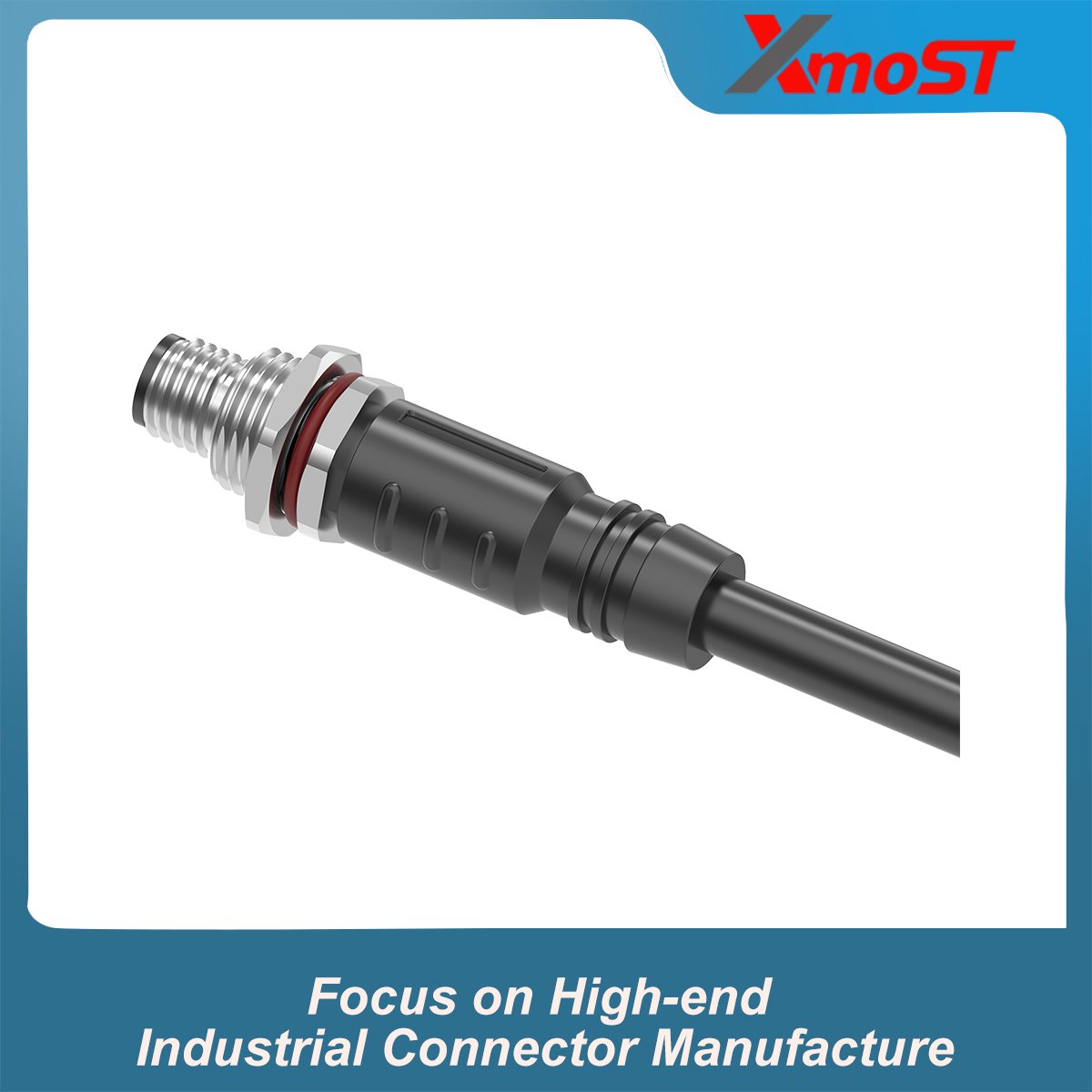

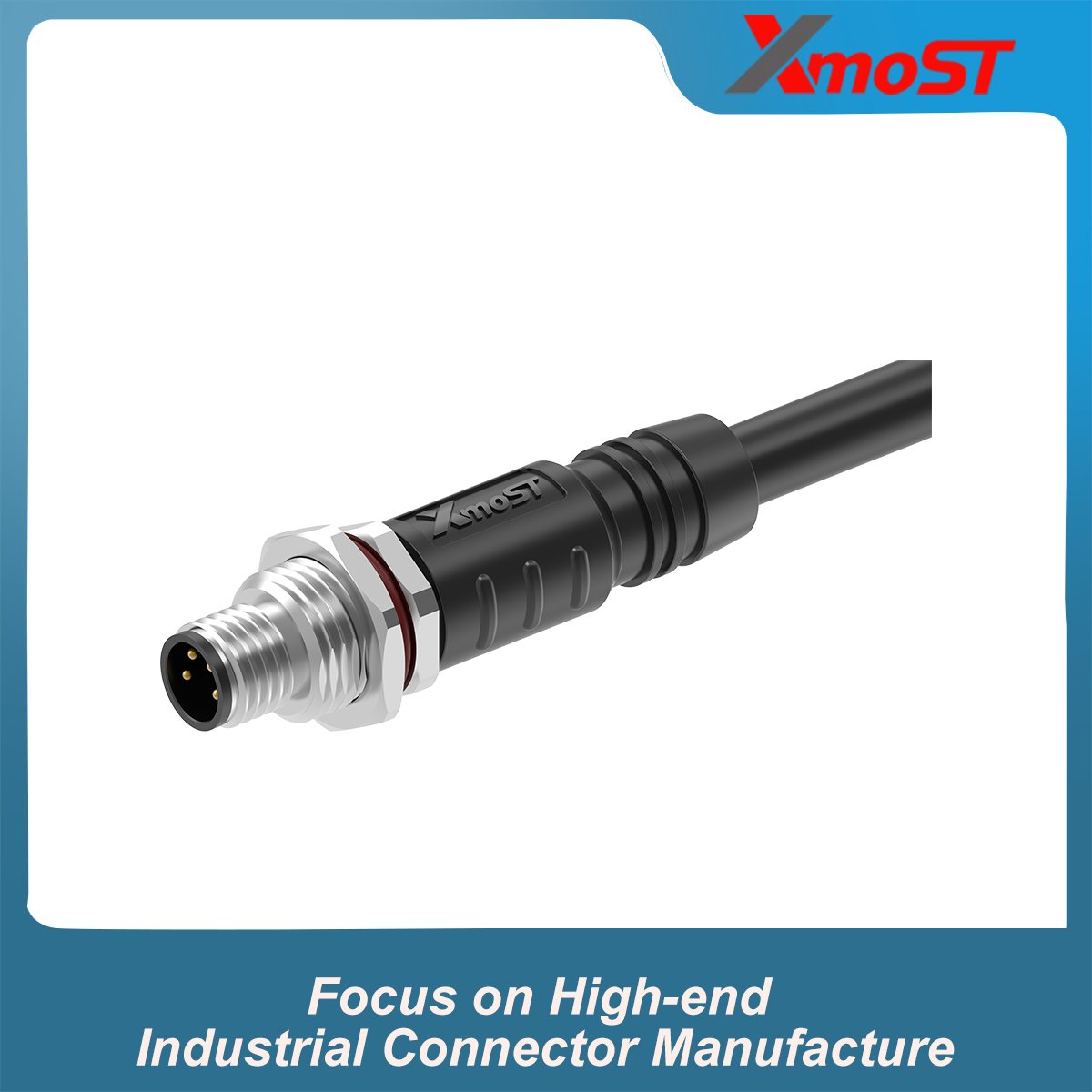

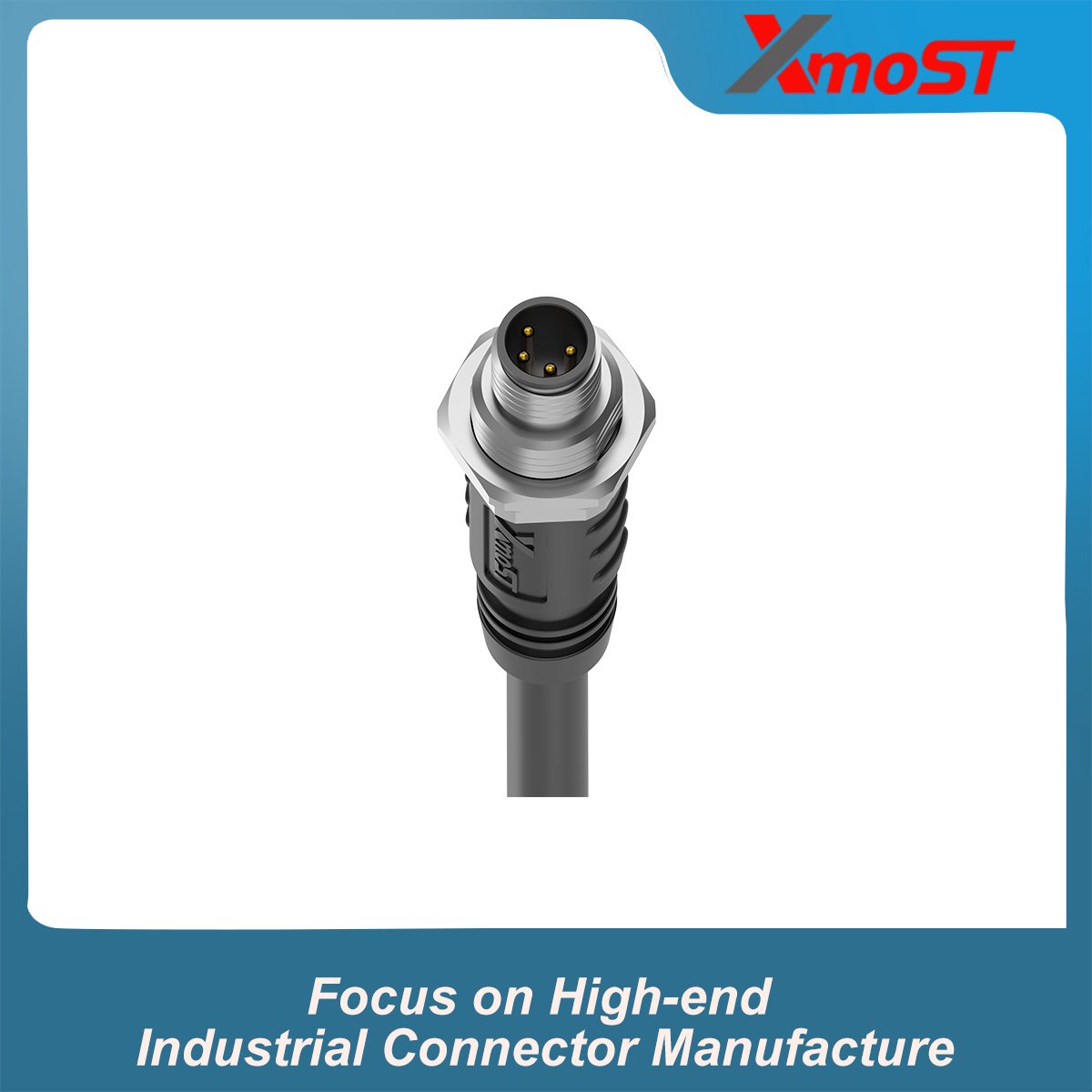

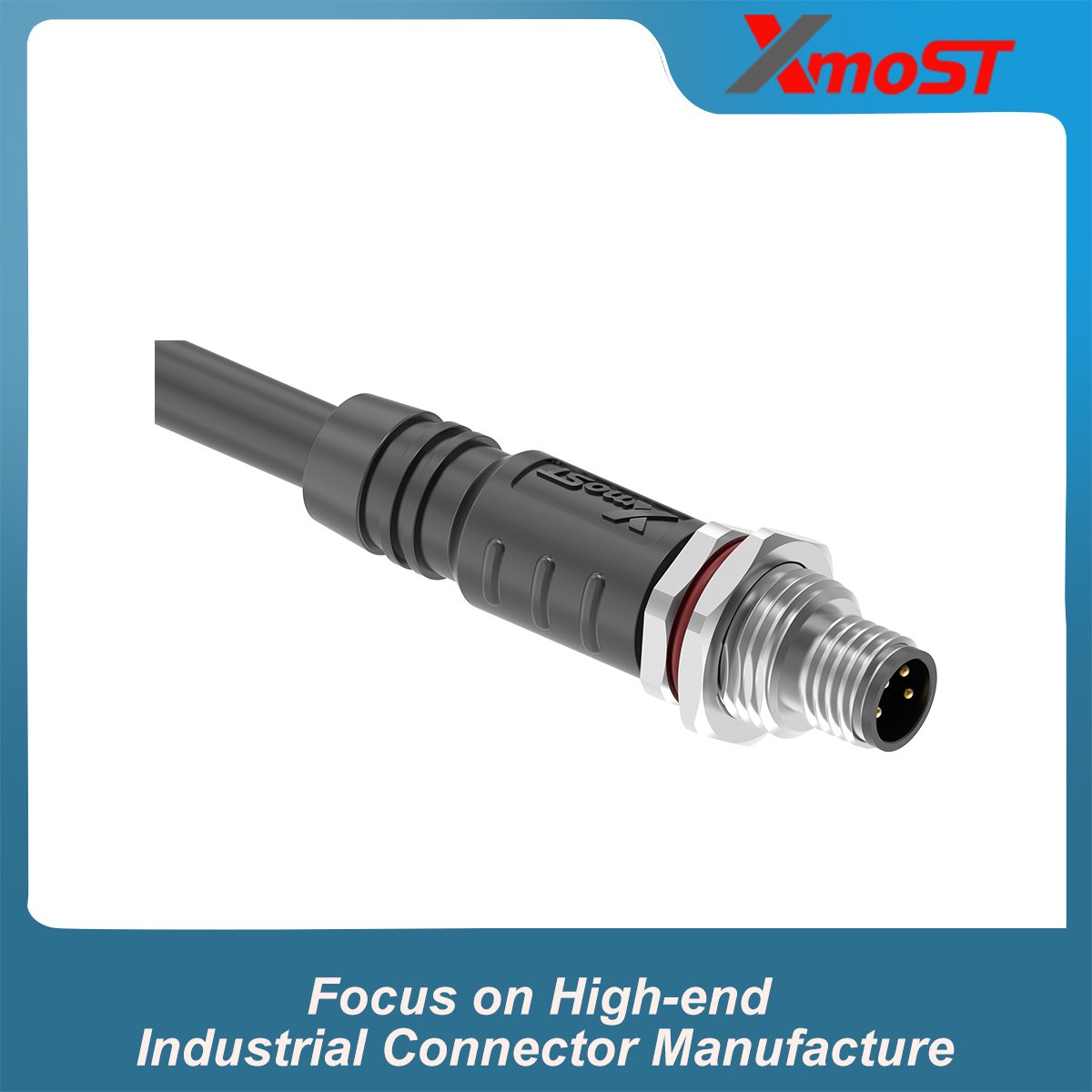

M8 A-Code 4-Pin Male Straight Molded Connector is an injection-molded M8 plug with a single-ended pre-molded cable. Its straight cable configuration provides a compact connection layout for industrial equipment, while the M8 × 1.0 screw locking system secures the mating connection.
Built around a 4-pin A-Code male interface, this M8 male connector is rated at 3 A and 60 V and provides IP67 protection. The shielded design and integrated molded cable make it suitable for signal and control connections in industrial automation and machine equipment.
Key Features
- M8 A-Code 4-Pin Male Connector
- Straight injection-molded plug
- Single-ended pre-molded cable
- Shielded construction
- M8 × 1.0 screw locking
- Solder termination
- 3 A rated current
- 60 V rated voltage
- IP67 protection
Dimensions

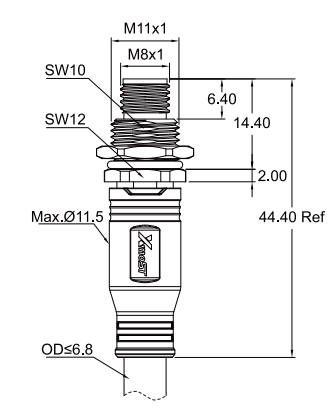

Connector features a straight injection-molded housing with an M8 × 1.0 screw locking interface and a single-ended pre-molded cable extending from the rear of the connector.
The integrated molded construction keeps the cable and connector assembly compact. Refer to the product drawing for detailed housing and cable dimensions.
Configuration
Connector uses a 4-pin A-Code male contact configuration in a straight molded housing. The plug-side interface is designed to mate with a compatible A-Code female M8 connector for industrial signal and control connections.
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Series | M8 |
| Coding | A-Code |
| Contact Configuration | 4 Pin |
| Connector Type | Male Straight Molded Connector |
| Operating Standard | IEC 61076-2-104 |
| Rated Current | 3 A |
| Rated Voltage | 60 V |
| Insulation Resistance | ≥100 MΩ |
| Contact Resistance | ≤5 mΩ |
| Shielding Performance | Shielded |
| Locking Method | M8 × 1.0 Screw |
| Screw Torque | Recommended: 0.2 Nm / Max.: 0.4 Nm |
| Wiring Method | Soldering |
| Operating Temperature | -25°C to +80°C Dynamic / -40°C to +80°C Static |
| Wire Gauge | 0.25 mm² (AWG24) |
| IP Rating | IP67 |
| Pollution Degree | 3 |
| Insulator Material | PA + GF / TPU + GF |
| Screw / Nut Material | Brass Ni / Zinc Alloy Ni |
| Pin Material | Phosphor Bronze Au / Brass Au |
| Sealing Material | FKM / Silicone / Epoxy |
| Outer Housing Material | TPU / PVC |
- Industrial Automation
- Industrial Sensors
- Control Systems
- Factory Equipment
- Measurement Equipment
- Industrial Machinery
- Machine Wiring
Straight M8 plug configuration is suitable for industrial equipment and wiring assemblies where a compact 4-pin male connector is required.
