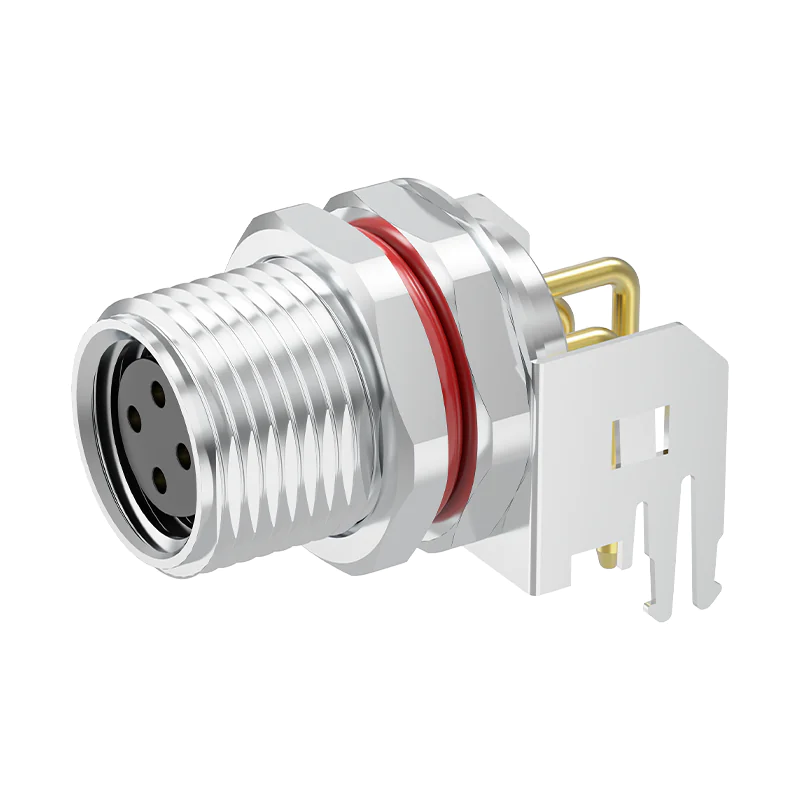

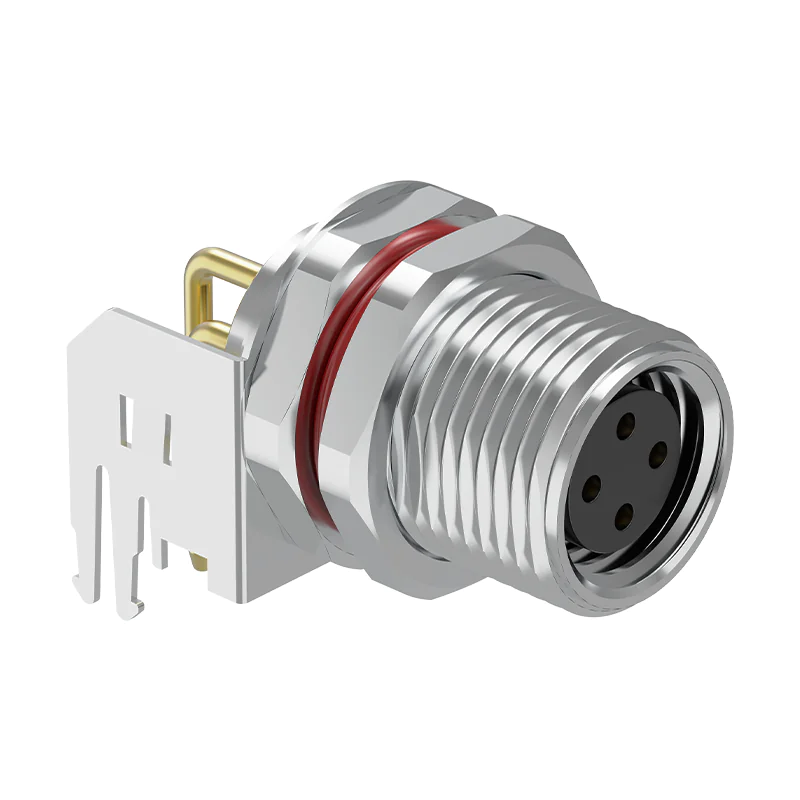

M8 A-Code 4Pin Female PCB Socket, Front Lock

M8 Connector A-Code 4Pin Female Front Lock PCB Socket, Grounded

Model	Category	Coding	Connector Type	Pin	Shape	Protection Rating	Rated Current	Rated Voltage	Insulation Resistance	Contact Resistance
Front-locking socket	M8 Connector Front Panel Connector	A/B Coding	Male Pin	3	Straight end	IP67	3A	60V	≥100MΩ	≤5mΩ
Front-locking socket	M8 Connector Front Lock Straight Socket	A Coding	Male Pin/Female pin	3	90° right angle end	IP67	3A	60V	≥100MΩ	≤5mΩ
Front-locking socket	M8 Connector Front Lock Right Angle PCB Socket	A/B Coding	Male Pin/Female pin	4	90° right angle end	IP67	3A	30V	≥100MΩ	≤5mΩ
Front-locking socket	M8 Connector Front Lock Right Angle PCB Socket	A/B Coding	Male Pin/Female pin	4	Straight end	IP67	3A	60V	≥100MΩ	≤5mΩ
Rear-Lock Socket	M8 Rear Panel Mount with PCB Contacts	A Coding/B Coding	Male Pin	3	Straight end	IP67	3A	60V	≥100MΩ	≤5mΩ
Rear-Lock Socket	M8 Rear Panel Mount with PCB Contacts	A Coding/B Coding	Male Pin	3	Straight end	IP67	3A	60V	≥100MΩ	≤5mΩ
Rear-Lock Socket	M8 Rear Panel Mount with PCB Contacts	A Coding/B Coding	Female Pin	4	Straight end	IP67	3A	60V	≥100MΩ	≤5mΩ
