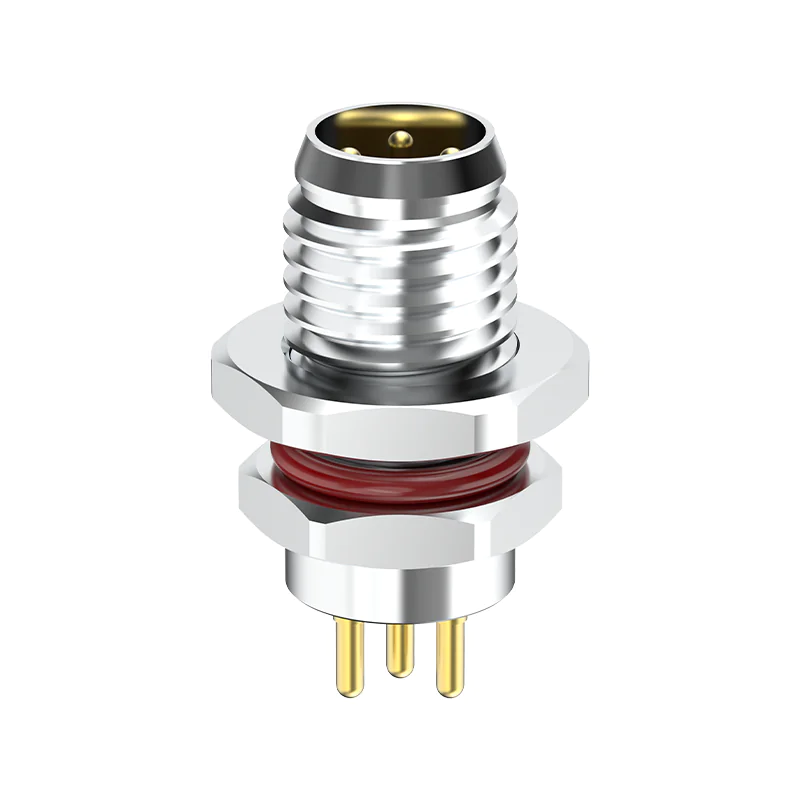

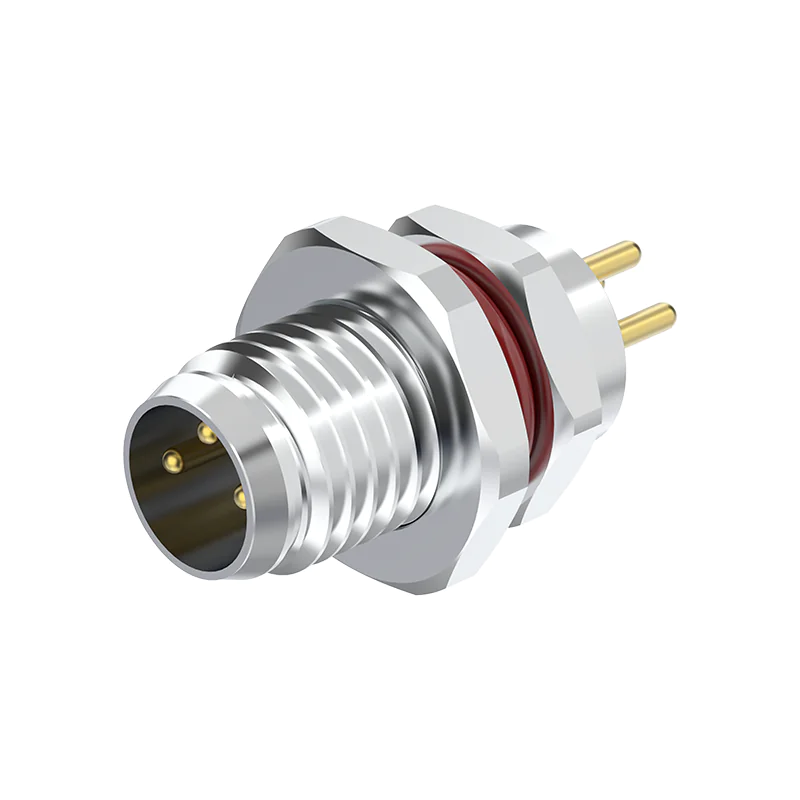

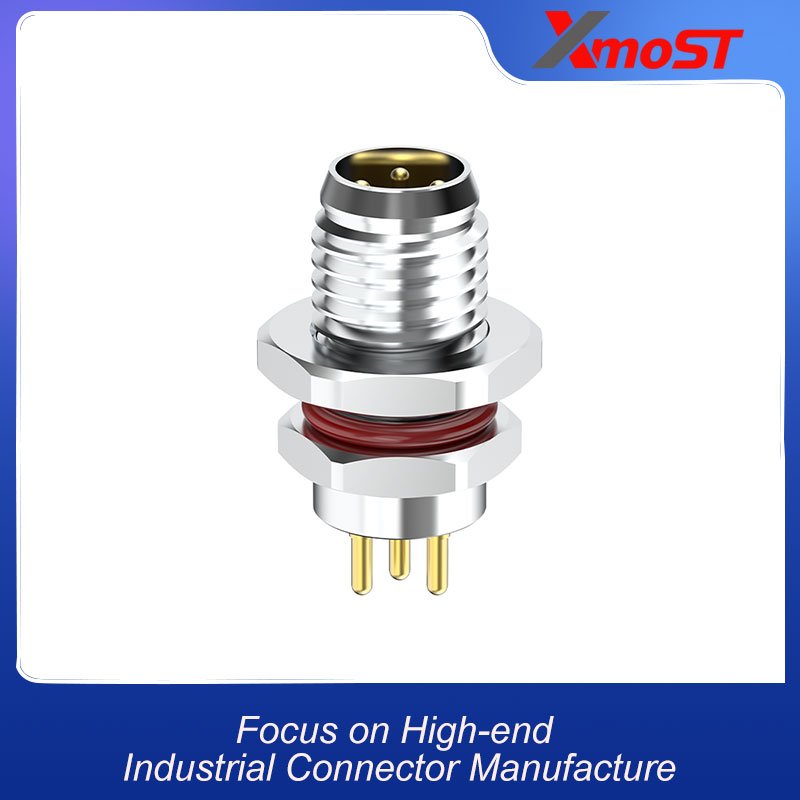

M8 front panel male PCB connector is a panel mount connector with PCB dip soldering contacts designed for reliable signal transmission in industrial automation. This 3Pin male M8 socket features A/B-code coding and front mount design, making it an ideal sensor actuator PCB connector for factory automation, PLC I/O, and control systems. The PCB dip soldering contacts (through hole) allow direct soldering to printed circuit boards for secure and permanent connections. Non-shielded. Rated 60V / 3A. Gold-plated phosphor bronze contacts. Brass nickel housing. Compliant with IEC 61076-2-104. IP67 waterproof. Operating temperature -40°C to +80°C.
| Pin count | 3Pin | 4Pin | 5Pin(B-Code) |
| Operating standard | IEC 61076-2-104 | ||
| Rated current | 3A | ||
| Rated voltage | 60V | ||
| Insulation resistance | ≥100MΩ | ||
| Contact resistance | ≤5mΩ | ||
| Shielding performance | Non-Shielded | ||
| Locking method | M8×1.0 screw | ||
| Screw torque | Recommend：0.3Nm,Max：0.6Nm | ||
| Wiring method | PCB Dip Soldering | ||
| Operating temperature | -25℃ ~ +80℃ Dynamic , -40℃ ~ +80℃ Static | ||
| Ip rating | IP67 | ||
| Pollution degree | 3 | ||
| Insulator material | PA+GF/TPU+GF | ||
| Screw/nut material | Brass Ni | ||
| Pin material | Phosphor Bronze Au/Brass Au | ||
| Sealing material | FKM/Silicon/epoxy | ||
| Outer housing material | Brass Ni | ||
