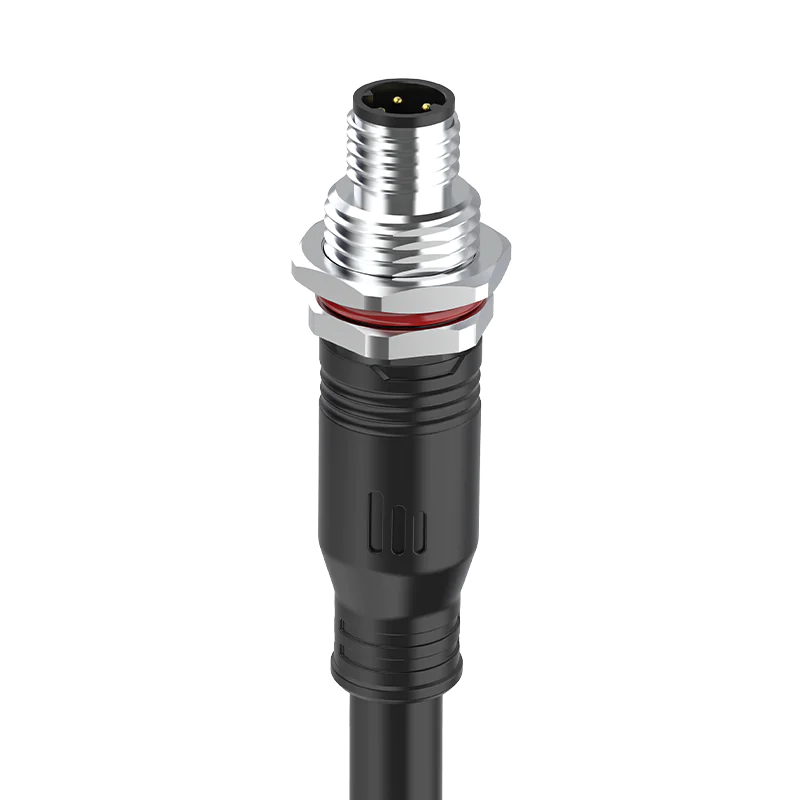

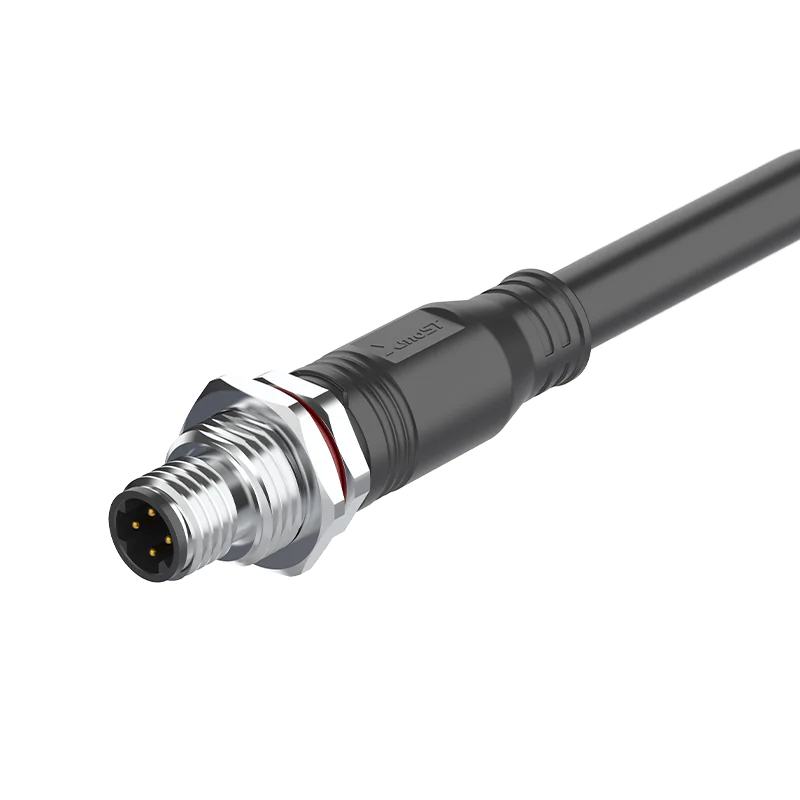

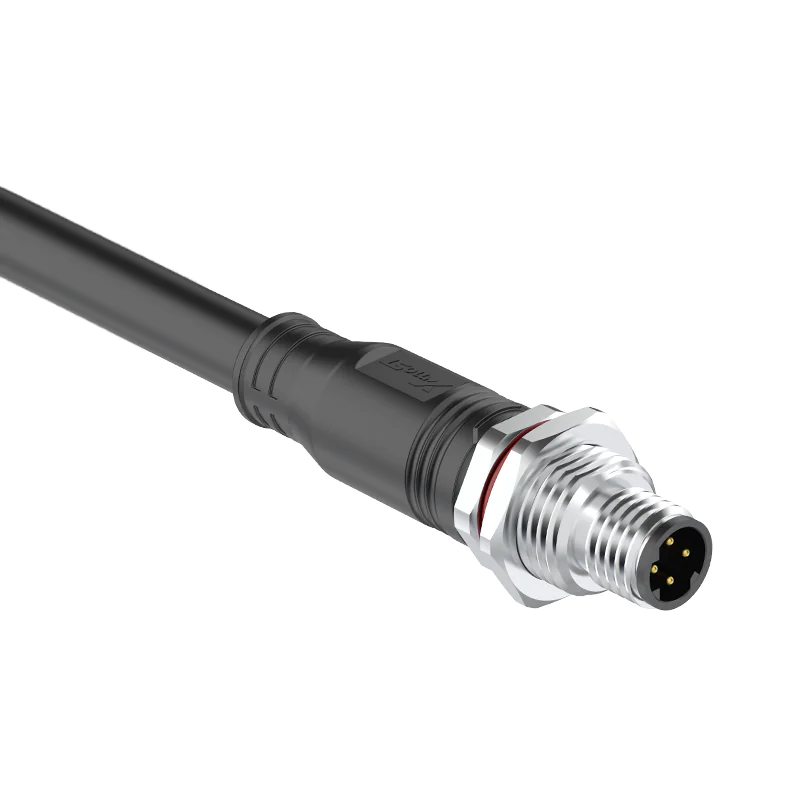

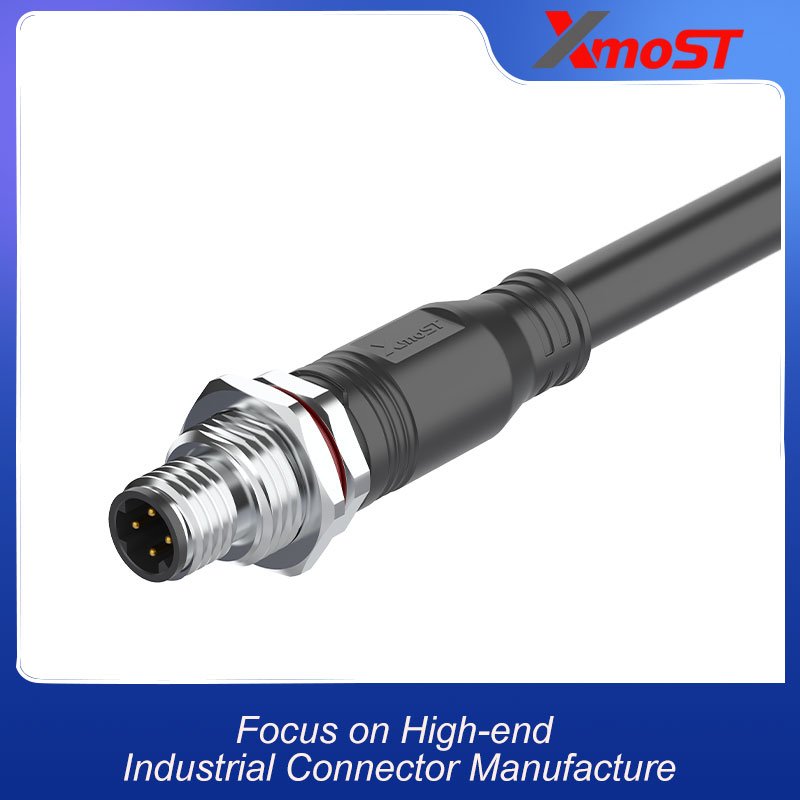

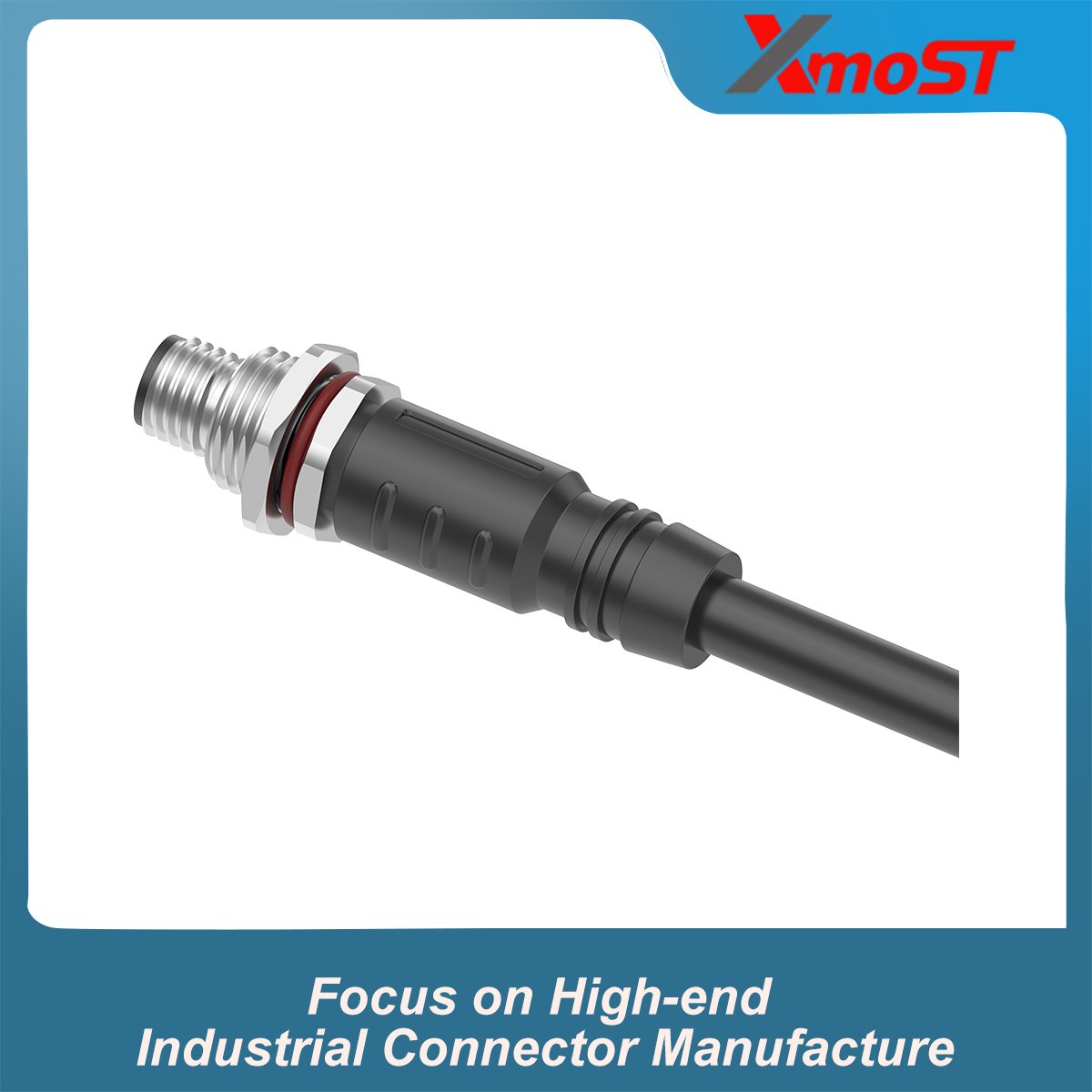

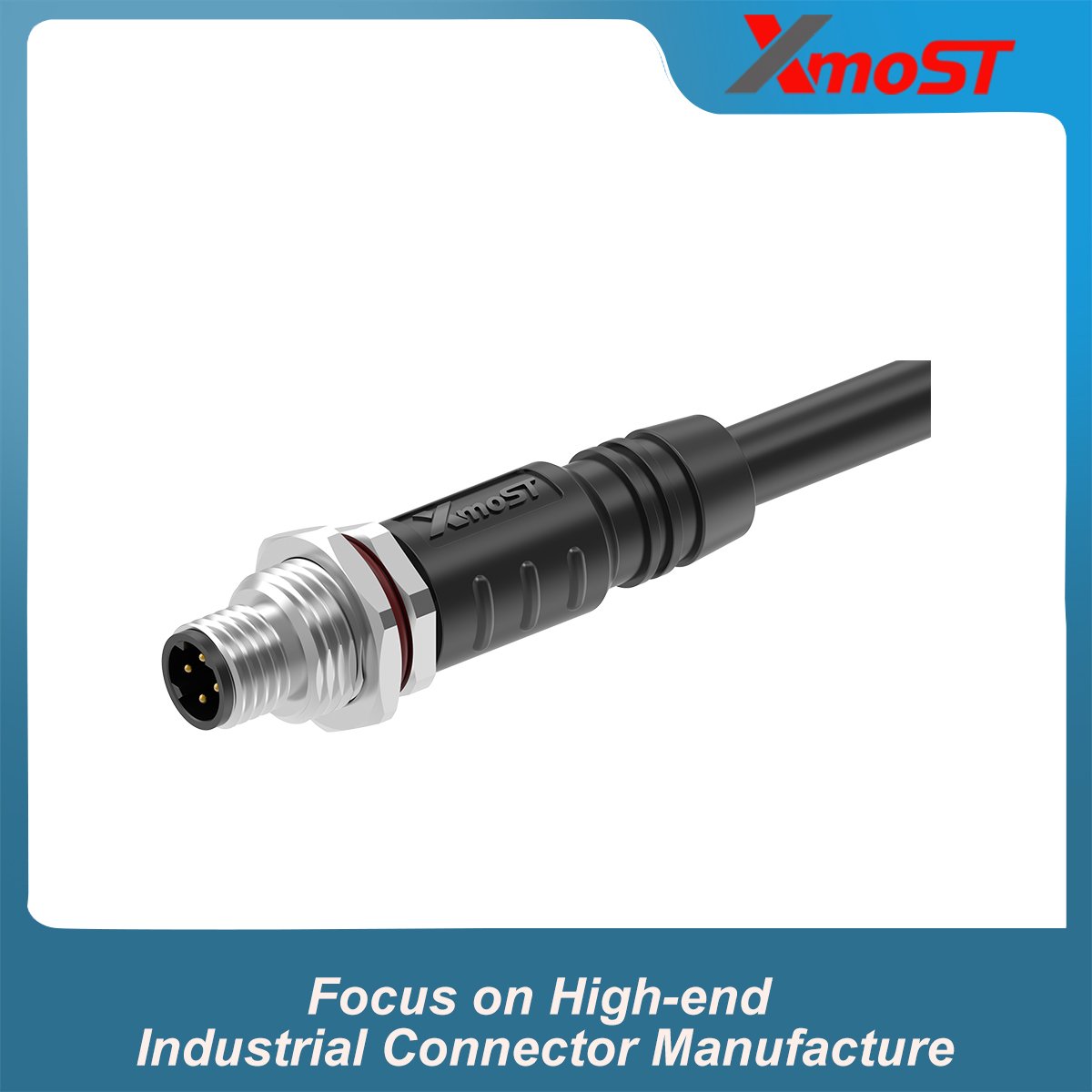

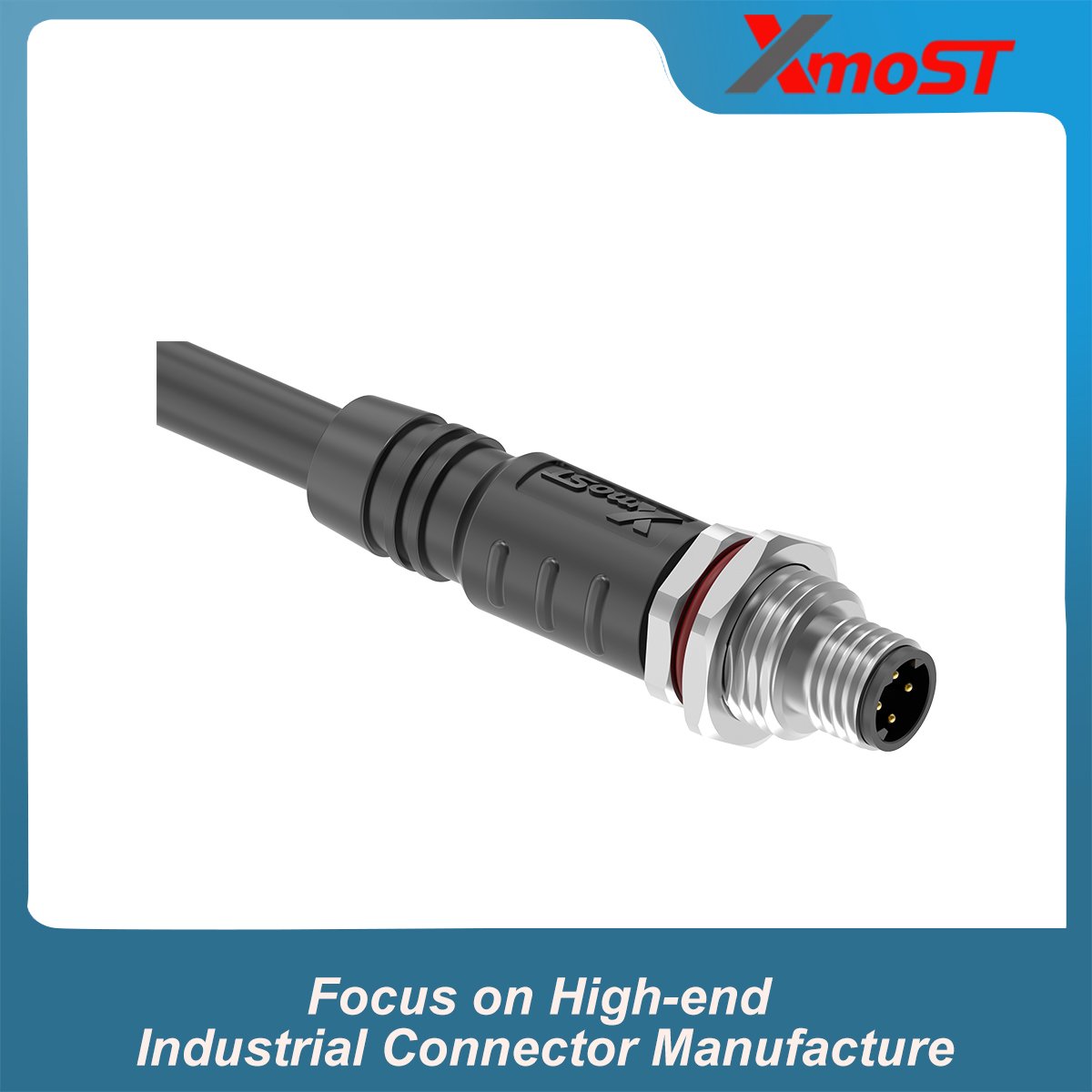

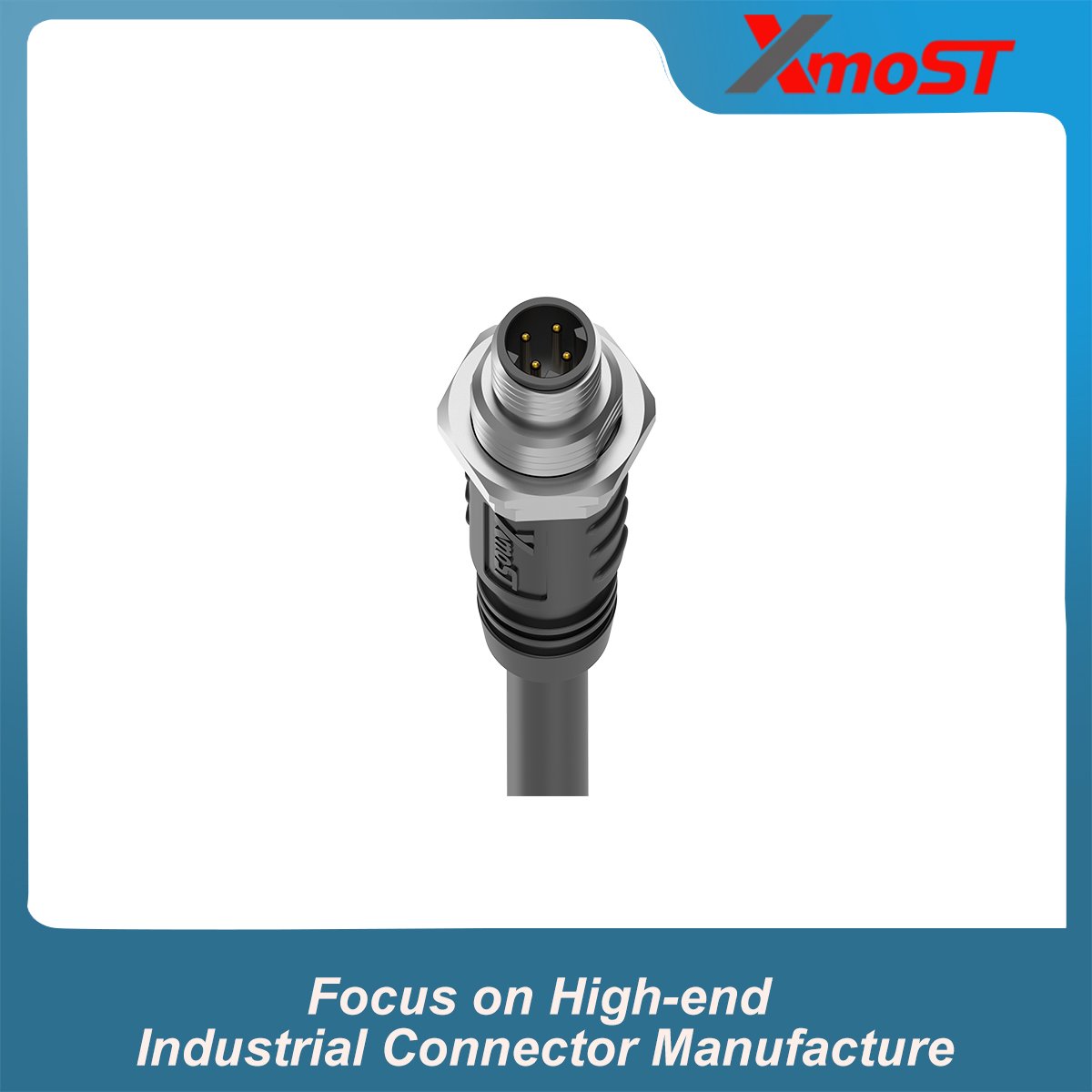

M8 D-Code 4-Pin Male Straight Molded Connector is an injection-molded M8 connector with a single-ended pre-molded cable and shielded construction. It features a compact straight design and an M8 × 1.0 threaded coupling system for secure connection in industrial applications.
This M8 D-Code connector uses a 4-pin male configuration with a rated current of 4 A and rated voltage of 60 V. The shielded construction helps maintain signal integrity in industrial environments, while the IP67 rating provides protection for applications where dust and water resistance are required.
Key Features
- M8 D-Code 4-Pin Male Connector
- Straight injection-molded design
- Single-ended pre-molded cable
- Shielded / EMI-Shielded construction
- M8 × 1.0 threaded coupling
- Solder termination
- Rated current: 4 A
- Rated voltage: 60 V
- IP67 protection

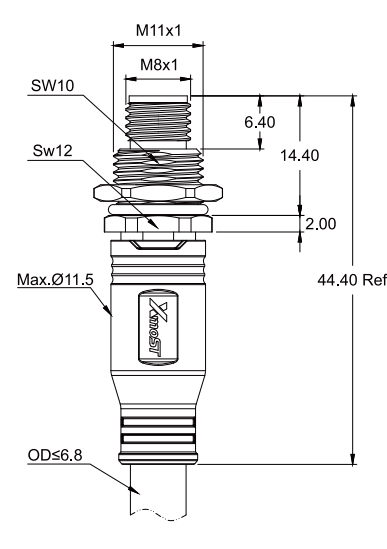

Dimensions
The M8 straight molded connector features a compact housing with an M8 × 1.0 threaded coupling and an integrated single-ended pre-molded cable.
The cable connection is integrated into the injection-molded connector body. Please refer to the product drawing for detailed dimensions and cable configuration.
Contact Configuration
Connector uses a 4-pin D-Code male contact configuration in a straight molded housing. The compact M8 interface is suitable for signal and power connections in industrial equipment and control systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Series | M8 |
| Coding | D-Code |
| Contact Configuration | 4 Pin |
| Connector Type | Male Straight Molded Connector |
| Operating Standard | IEC 61076-2-114 |
| Rated Current | 4 A |
| Rated Voltage | 60 V |
| Insulation Resistance | ≥100 MΩ |
| Contact Resistance | ≤5 mΩ |
| Shielding Performance | Shielded / EMI-Shielded |
| Locking Method | M8 × 1.0 Screw |
| Screw Torque | Recommended: 0.2 Nm / Max.: 0.4 Nm |
| Wiring Method | Soldering |
| Operating Temperature | -25°C to +80°C Dynamic / -40°C to +80°C Static |
| Wire Gauge | 0.34 mm² (AWG22) |
| IP Rating | IP67 |
| Pollution Degree | 3 |
| Insulator Material | PA + GF / TPU + GF |
| Screw / Nut Material | Brass Ni / Zinc Alloy Ni |
| Pin Material | Phosphor Bronze Au / Brass Au |
| Sealing Material | FKM / Silicone / Epoxy |
| Outer Housing Material | TPU / PVC |
Applications
- Industrial Automation
- Industrial Sensors
- Control Systems
- Factory Equipment
- Measurement Equipment
- Industrial Machinery
- Industrial Wiring
M8 D-Code 4-pin male connector is suitable for compact industrial wiring where a shielded, molded cable connection and IP67 protection are required.
