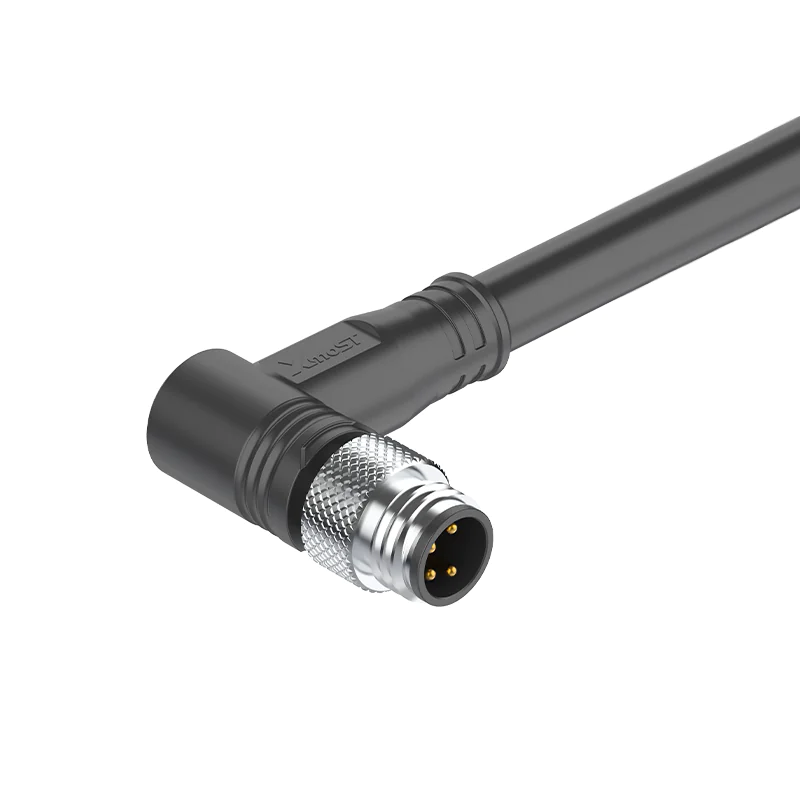

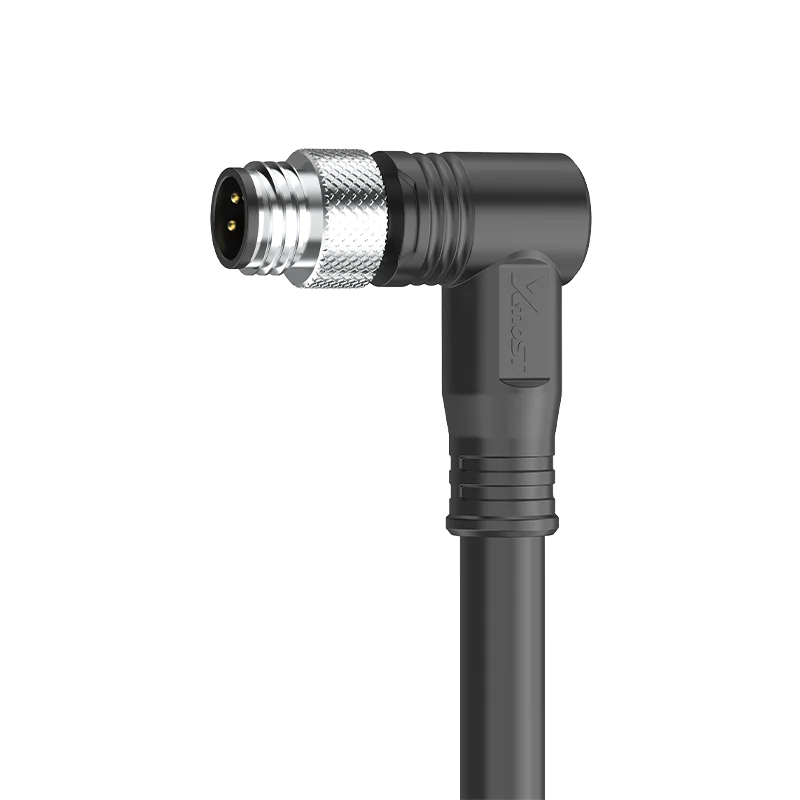

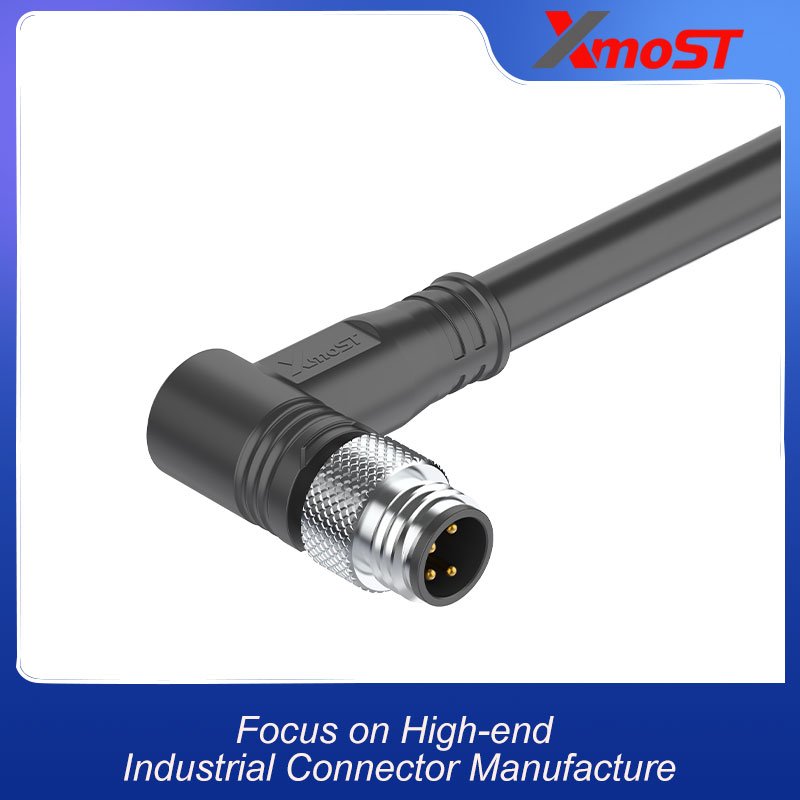

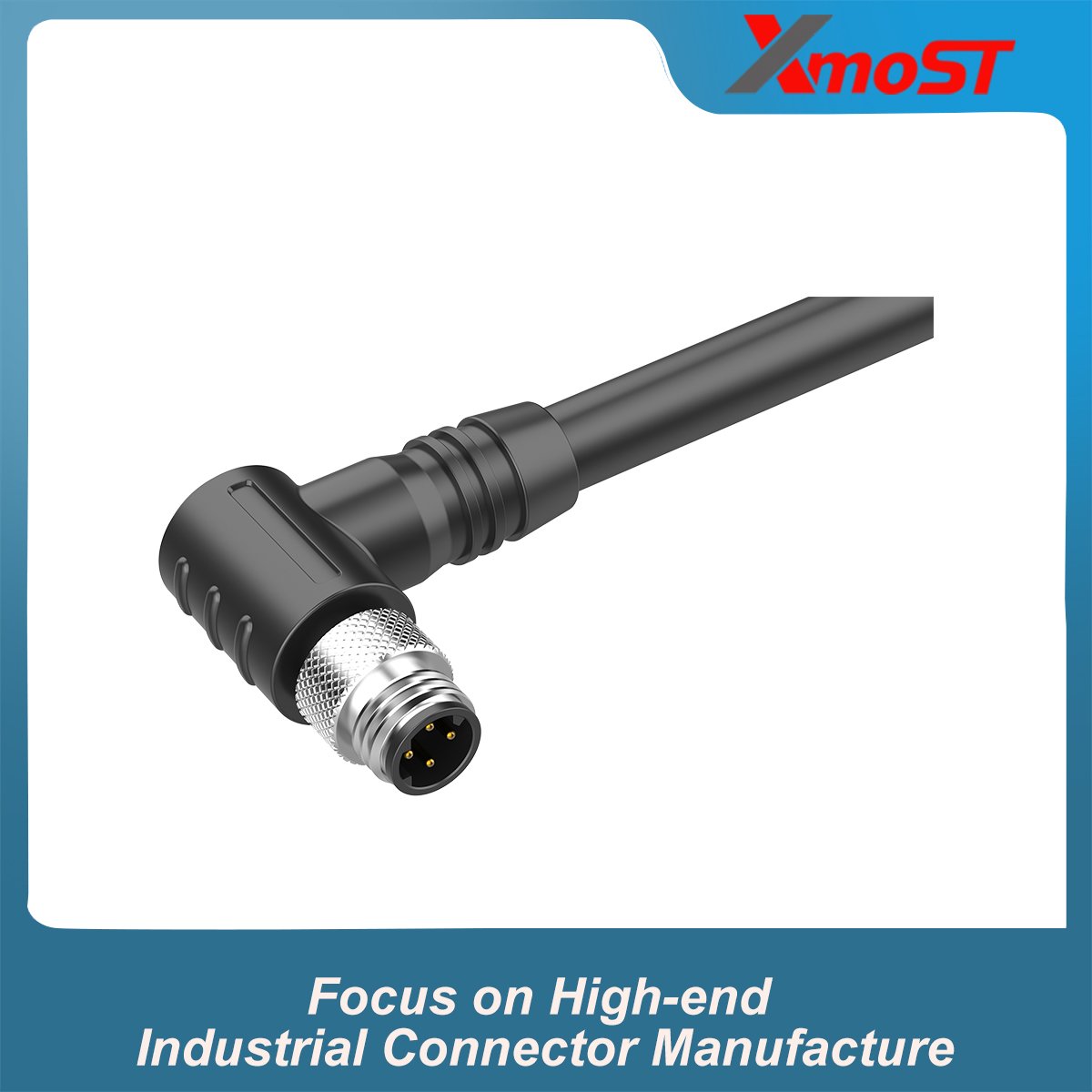

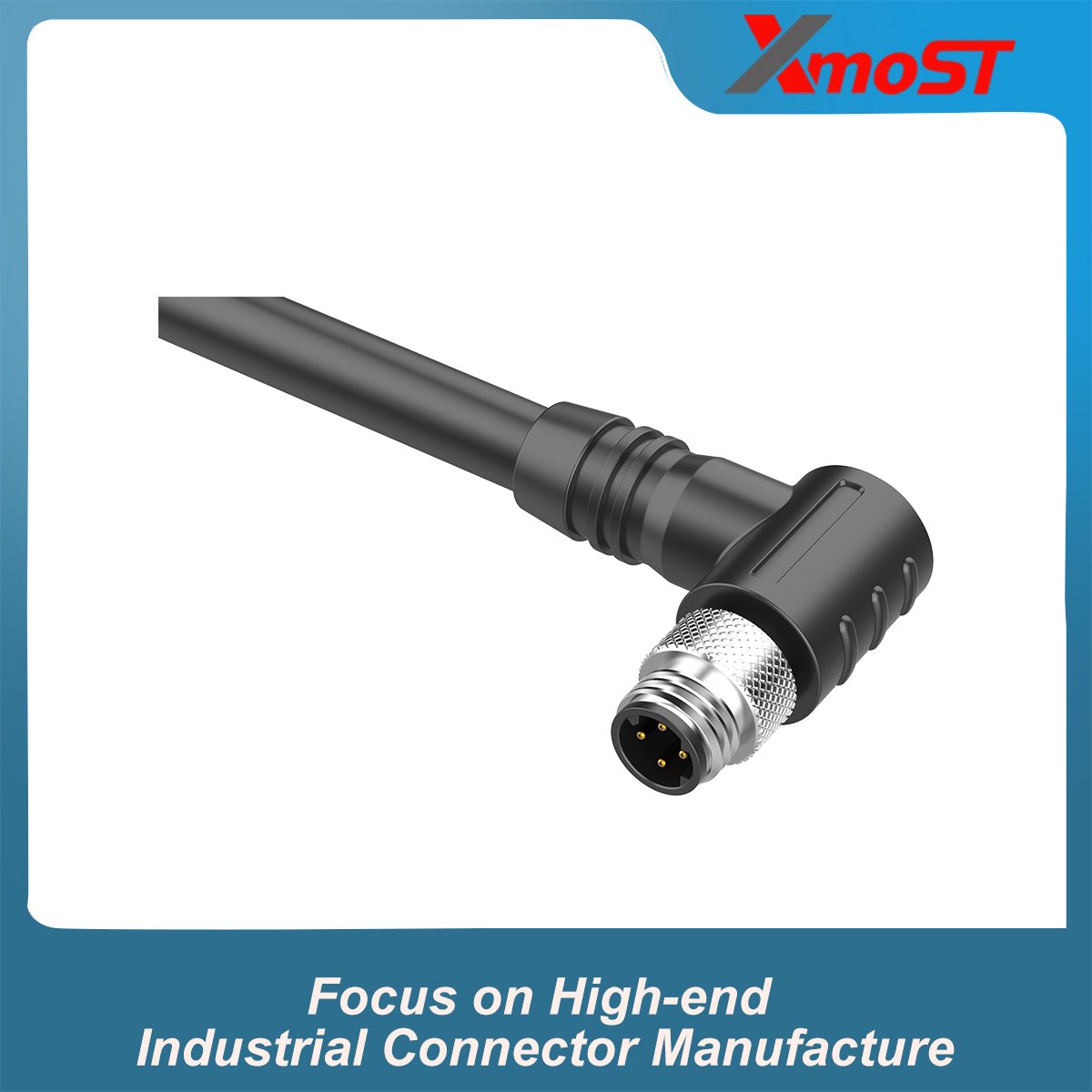

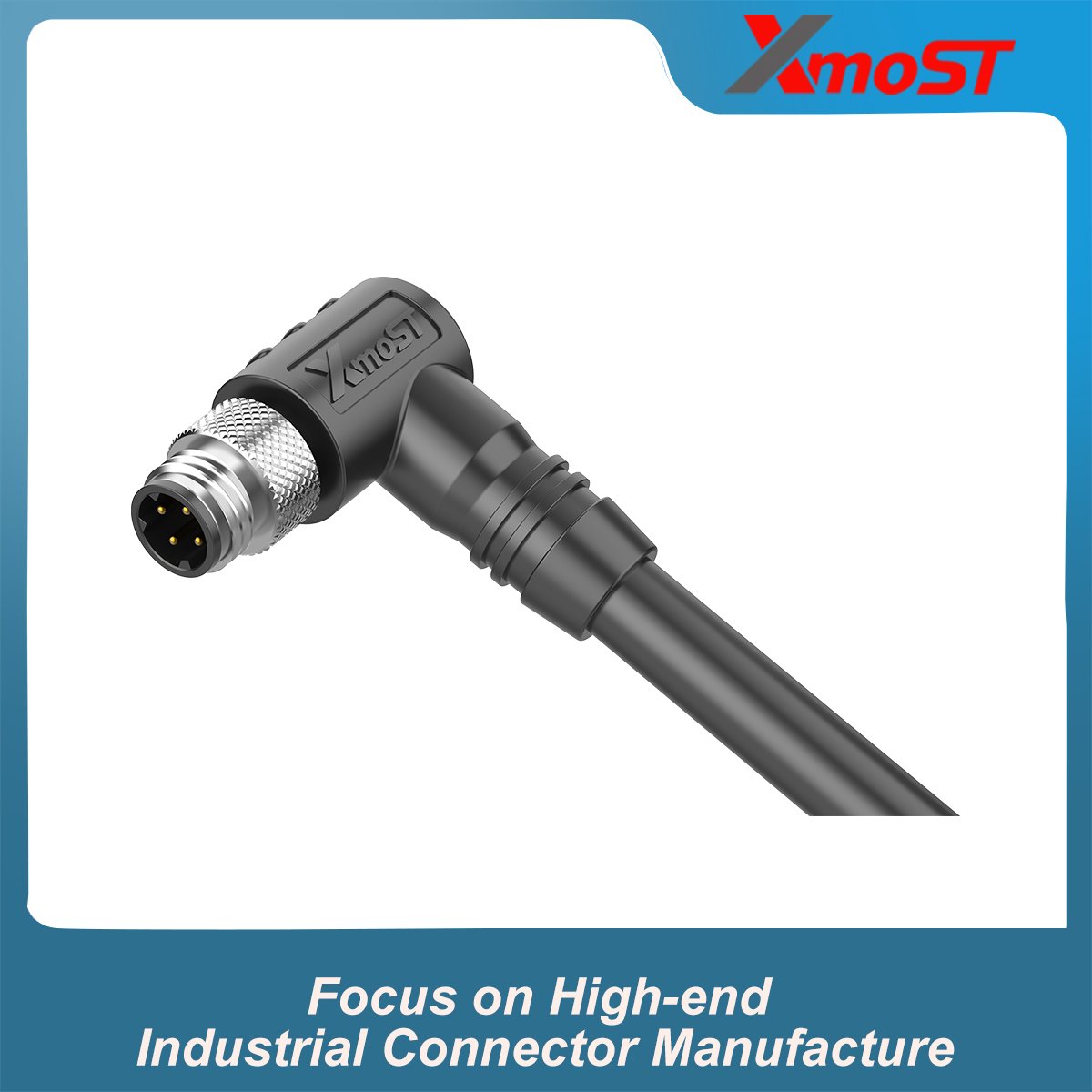

M8 D-Code 4-Pin Male Right-Angle Molded Connector

M8 D-Code 4-Pin Male Right-Angle Molded Connector is designed for compact connections in industrial automation, control equipment, and sensor systems. It features a 4-pin D-Code male configuration, a 90° right-angle body, an integrated overmolded cable, and EMI shielding.

The connector uses an M8 × 1.0 threaded coupling and solder termination. With a 4 A / 60 V rating and IP67 protection, it is suited for industrial environments where reliable connections and protection from dust and water are required.

The right-angle housing keeps the cable exit close to the equipment, which makes the connector easier to install in tight spaces. The molded cable assembly provides a ready-to-use connection for industrial equipment and field wiring.

Key Features

• 4-Pin D-Code Male
• 90° Right-Angle Design
• Molded Cable Assembly
• EMI-Shielded
• M8 × 1.0 Threaded Coupling
• Solder Termination
• 4 A / 60 V Rating
• IP67 Protection

Dimensions

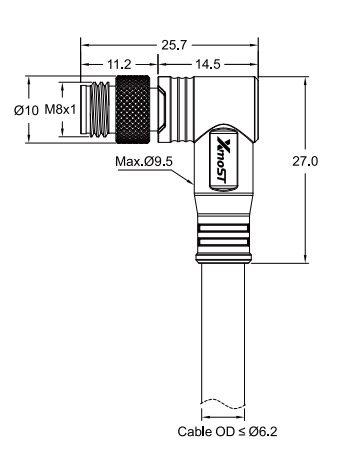

M8 D-Code 4-Pin Male Right-Angle Molded Connector features a compact M8 housing, 90° cable exit, integrated pre-molded cable, and M8 × 1.0 threaded coupling. The cable connection is overmolded at the rear of the connector. Refer to the product drawing for detailed dimensions.

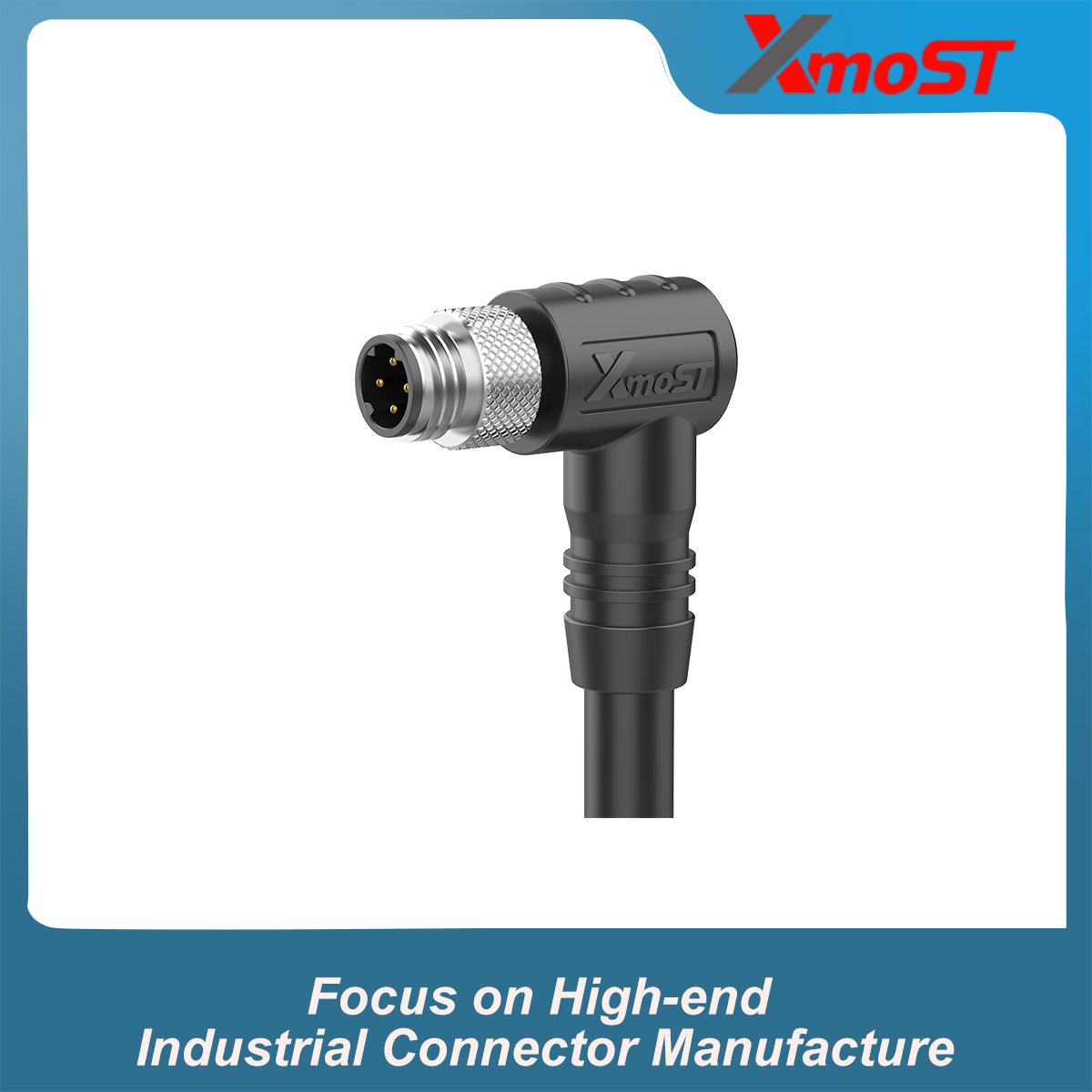

4-Pin D-Code Male

Connector features a 4-pin D-Code male interface with a 90° cable exit. Its compact M8 form factor is suitable for applications that require a space-efficient connection between industrial equipment and field wiring.

Technical Specifications

Applications

• • • Industrial Automation
    • Control Systems
    • Industrial Sensors
    • Factory Equipment
    • Measurement Equipment
    • Industrial Machinery
