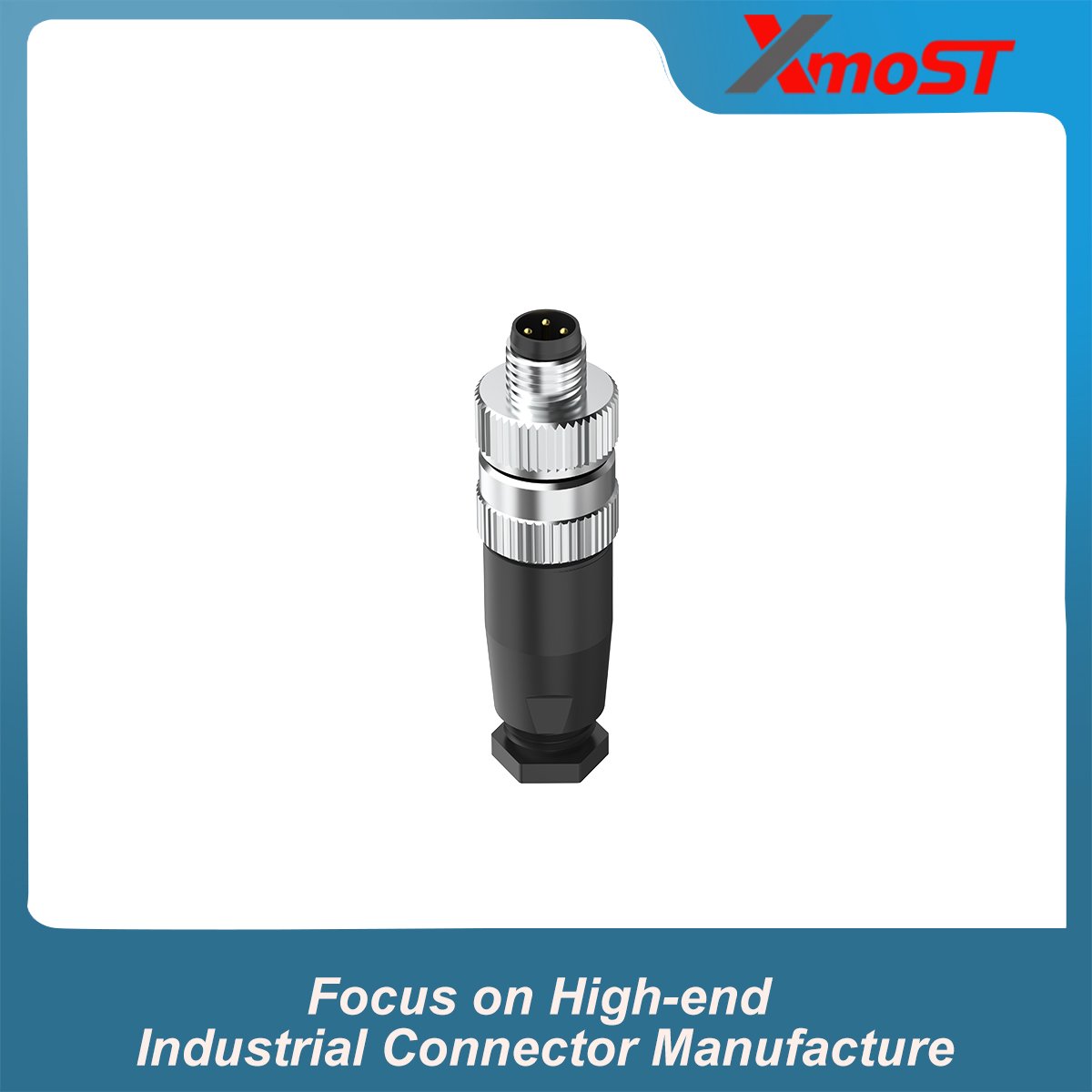

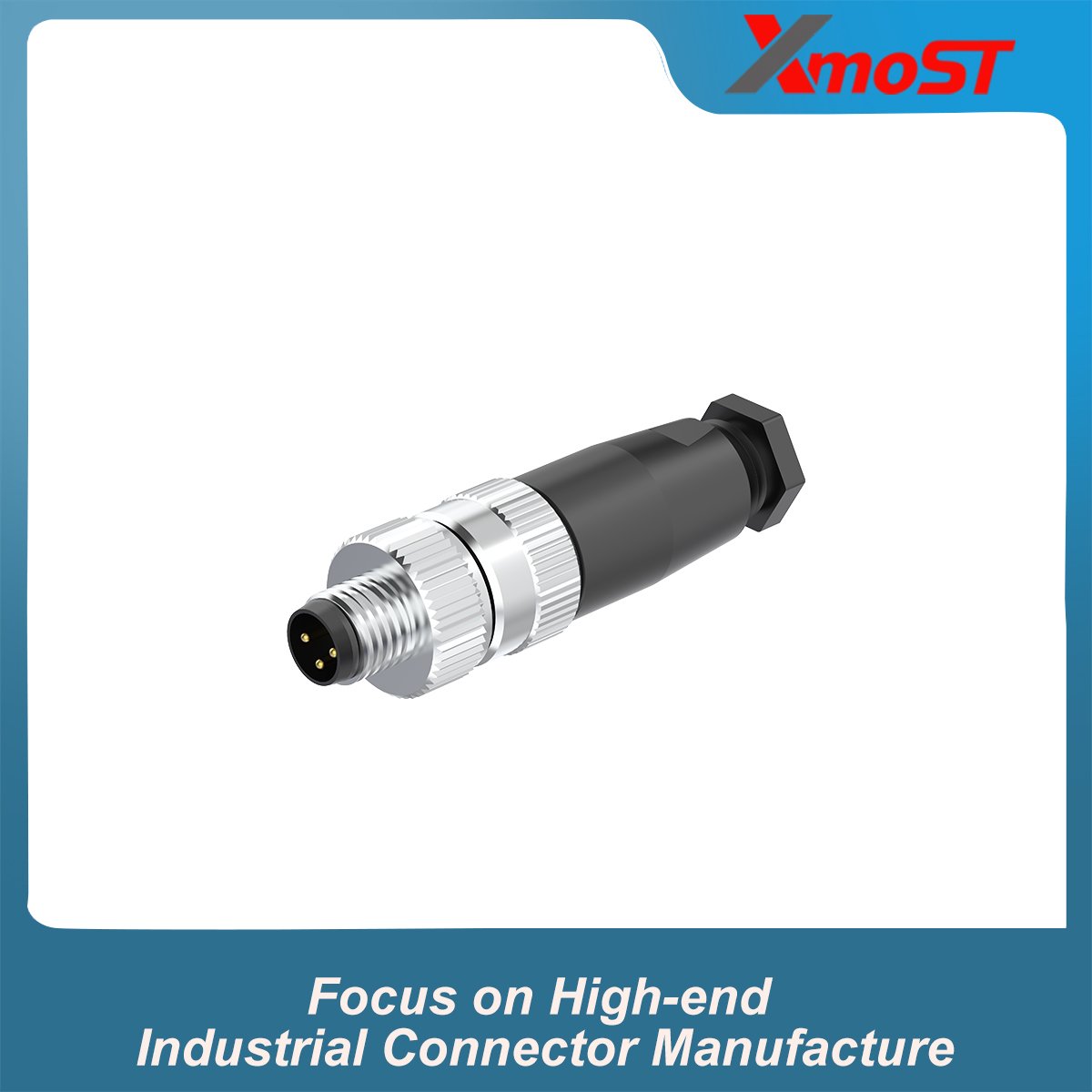

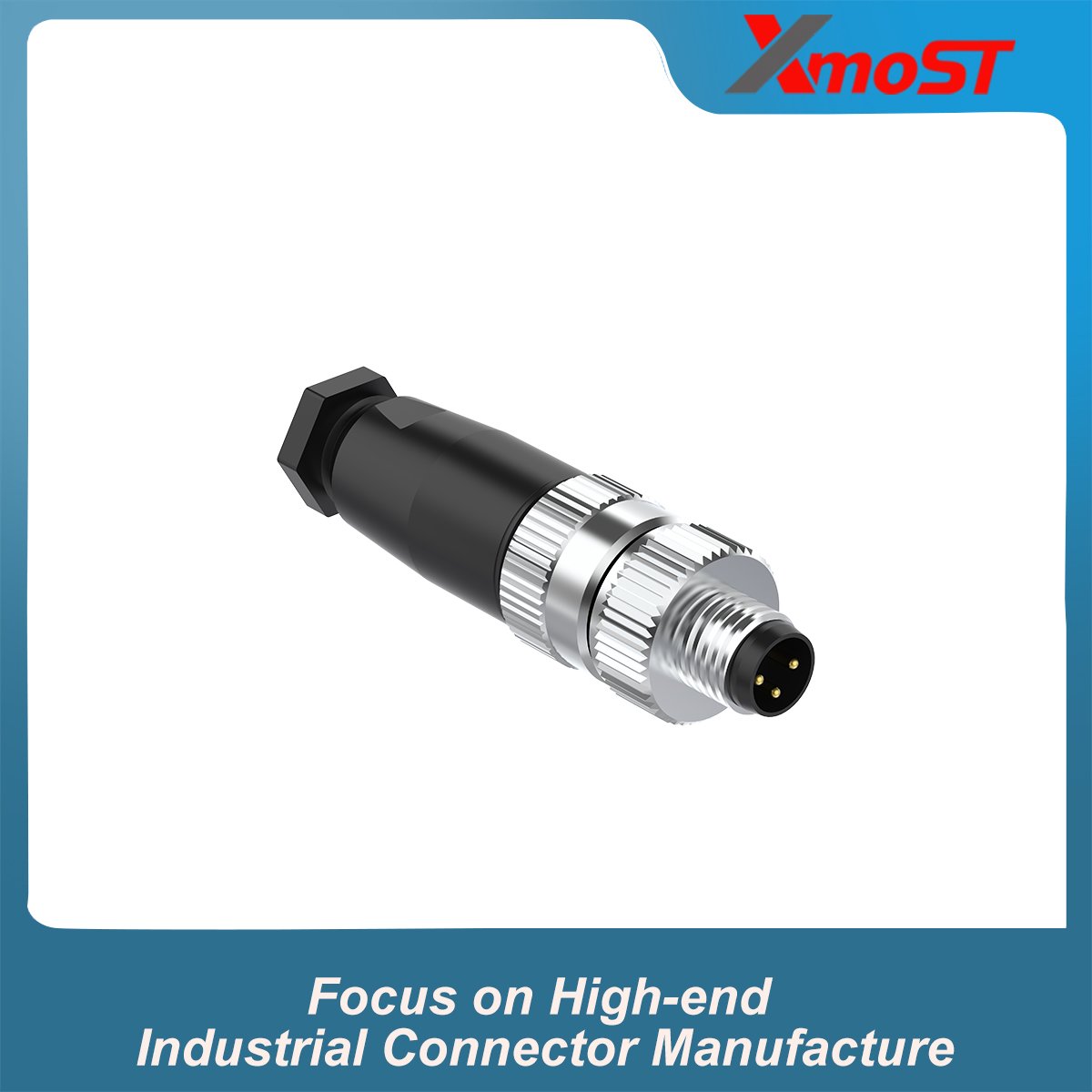

M8 A-Code 3-Pin Male Straight Screw-Type Assembled Connector is designed for industrial applications requiring a 3-pin A-coded male interface and field-assembled screw termination. Its straight configuration provides a conventional cable entry, while the M8 × 1.0 screw locking system provides a secure connection.
The connector is rated for 3 A at 60 V and supports 0.25–0.34 mm² (AWG24–AWG22) wire with a 3.5–5 mm cable diameter. With IP67 protection and a non-shielded configuration, it is suitable for industrial automation, sensors, control equipment, and machine wiring.
Key Features
- M8 A-Code 3-pin male interface
- Straight cable entry
- Screw-type field assembly
- M8 × 1.0 screw locking
- Rated current: 3 A
- Rated voltage: 60 V
- Non-shielded design
- IP67 protection
- Supports AWG24–AWG22 wire

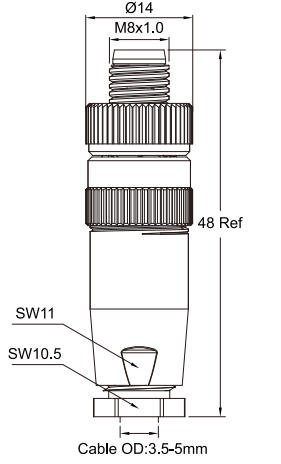

Dimensions
Refer to the product dimensional drawing for detailed dimensions.All dimensions are in mm.
Contact Configuration
Connector features an A-Code 3-pin male interface with a straight housing and screw-type wire termination. The straight configuration provides a direct cable entry for conventional equipment layouts and general-purpose M8 connection applications.
Assembly Diagram
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Series | M8 |
| Coding | A-Code |
| Contact Configuration | 3 Pin |
| Connector Type | Male Straight Assembled Connector |
| Operating Standard | IEC 61076-2-104 |
| Rated Current | 3 A |
| Rated Voltage | 60 V |
| Insulation Resistance | ≥100 MΩ |
| Contact Resistance | ≤5 mΩ |
| Shielding Performance | Non-Shielded |
| Locking Method | M8 × 1.0 Screw |
| Screw Torque | Recommended: 0.2 Nm / Max.: 0.4 Nm |
| Wire Screw Torque | 0.1 Nm |
| Cable Gland Torque | 0.4–0.8 Nm |
| Wiring Method | Screw Fixing |
| Operating Temperature | -25°C to +80°C Dynamic / -40°C to +80°C Static |
| Wire Gauge Range | 0.25–0.34 mm² (AWG24–AWG22) |
| Wire Size | Ø3.5–5 mm |
| IP Rating | IP67 |
| Pollution Degree | 3 |
Applications
- Industrial automation
- Sensors and control systems
- Factory equipment
- Measurement and instrumentation
- Industrial control equipment
- Machine wiring
