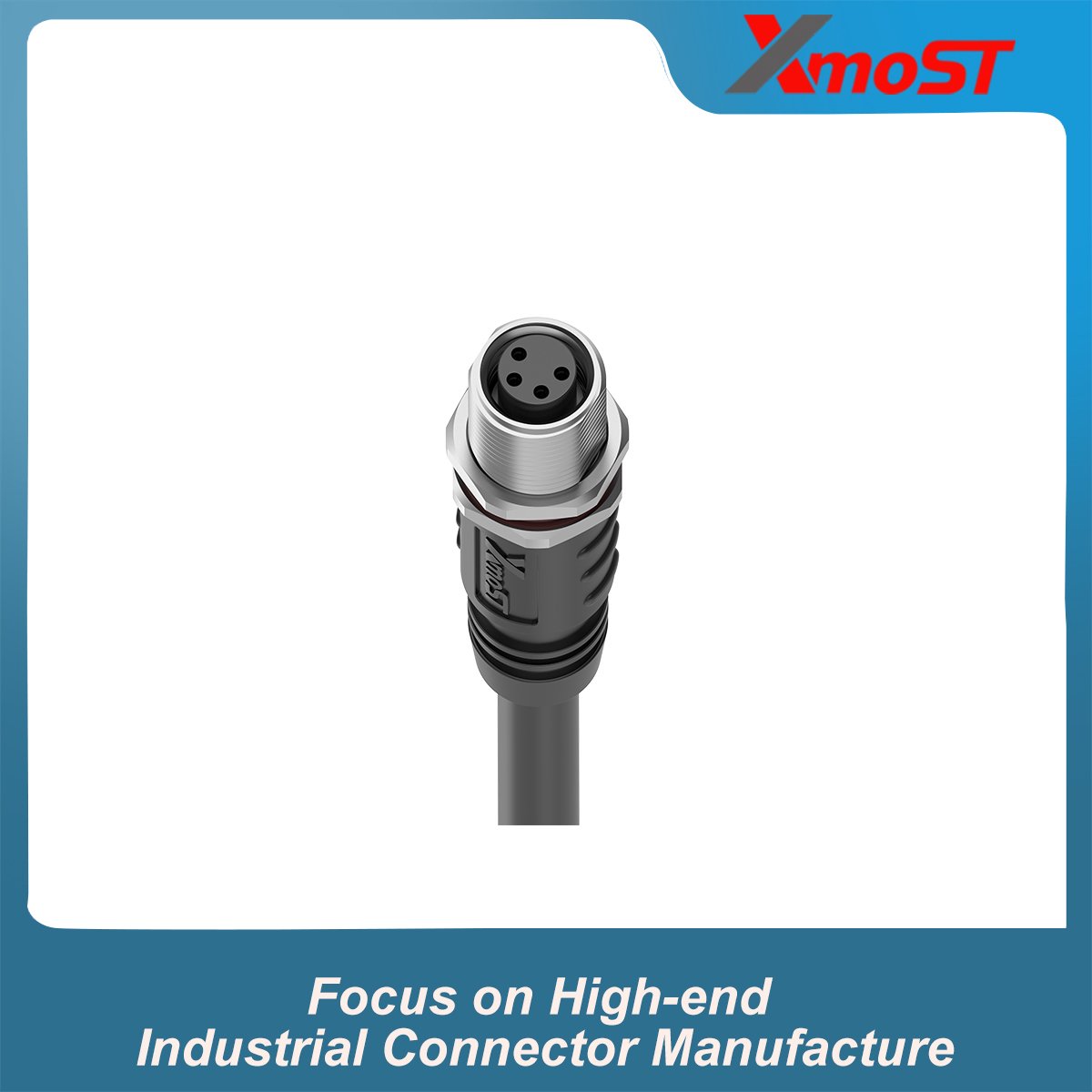

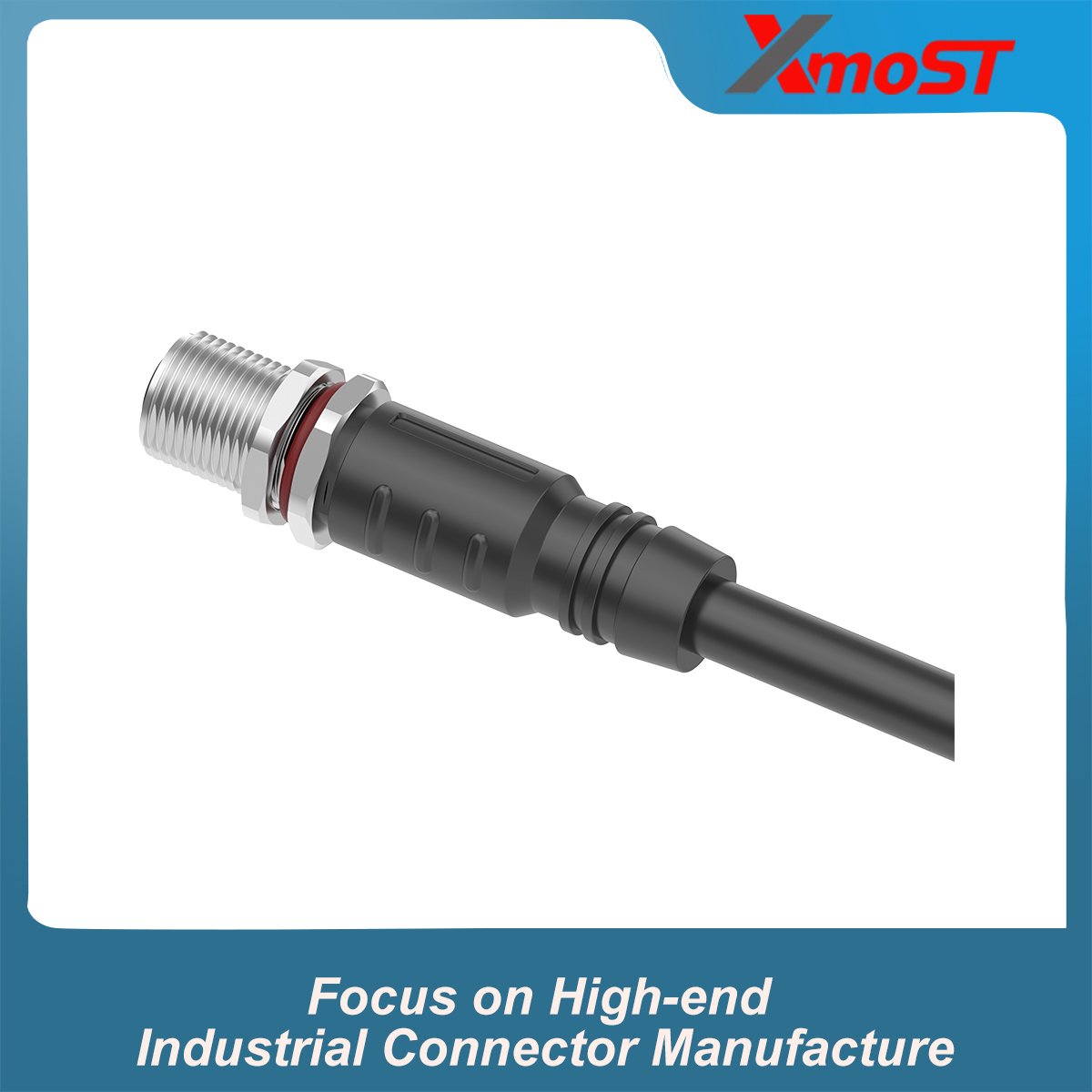

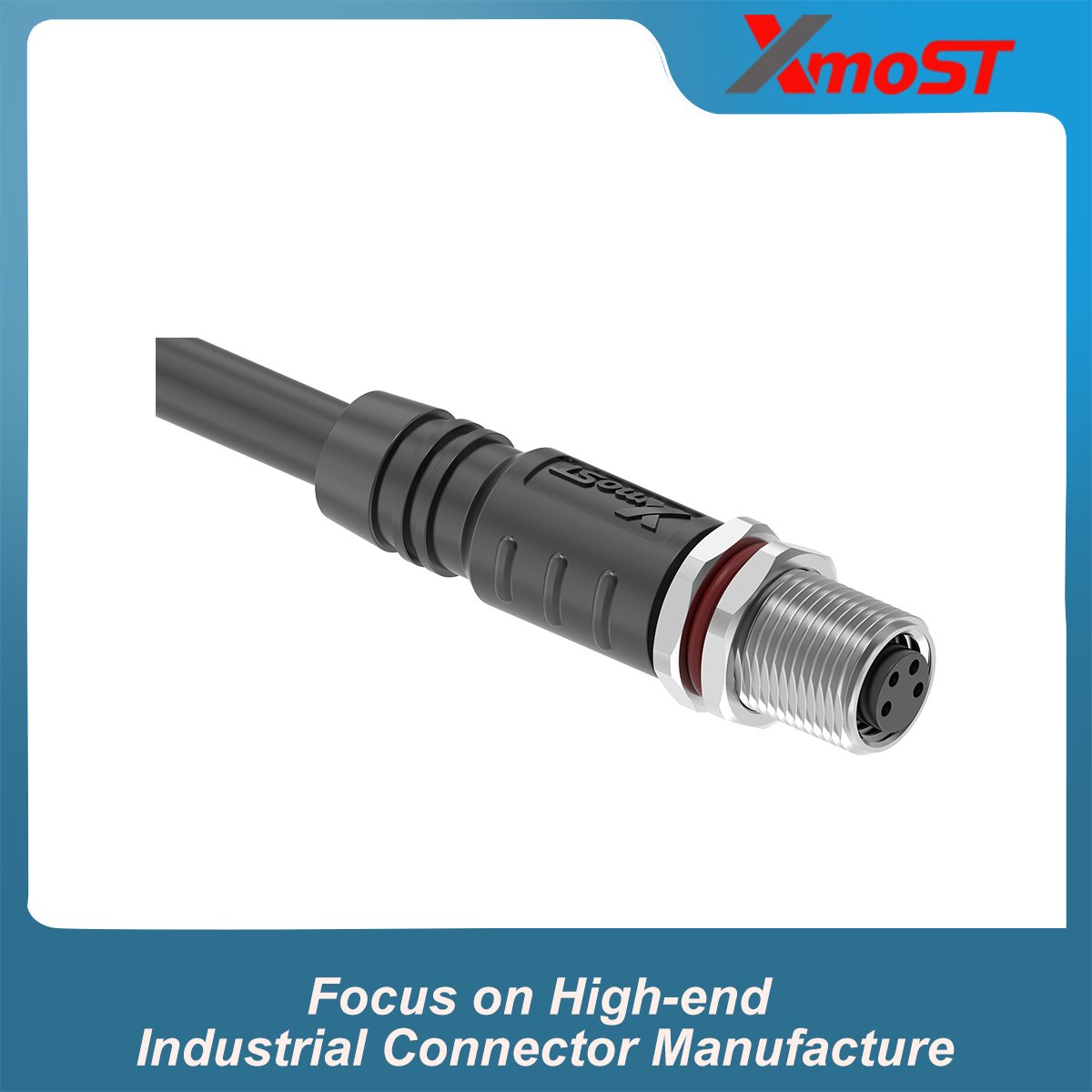

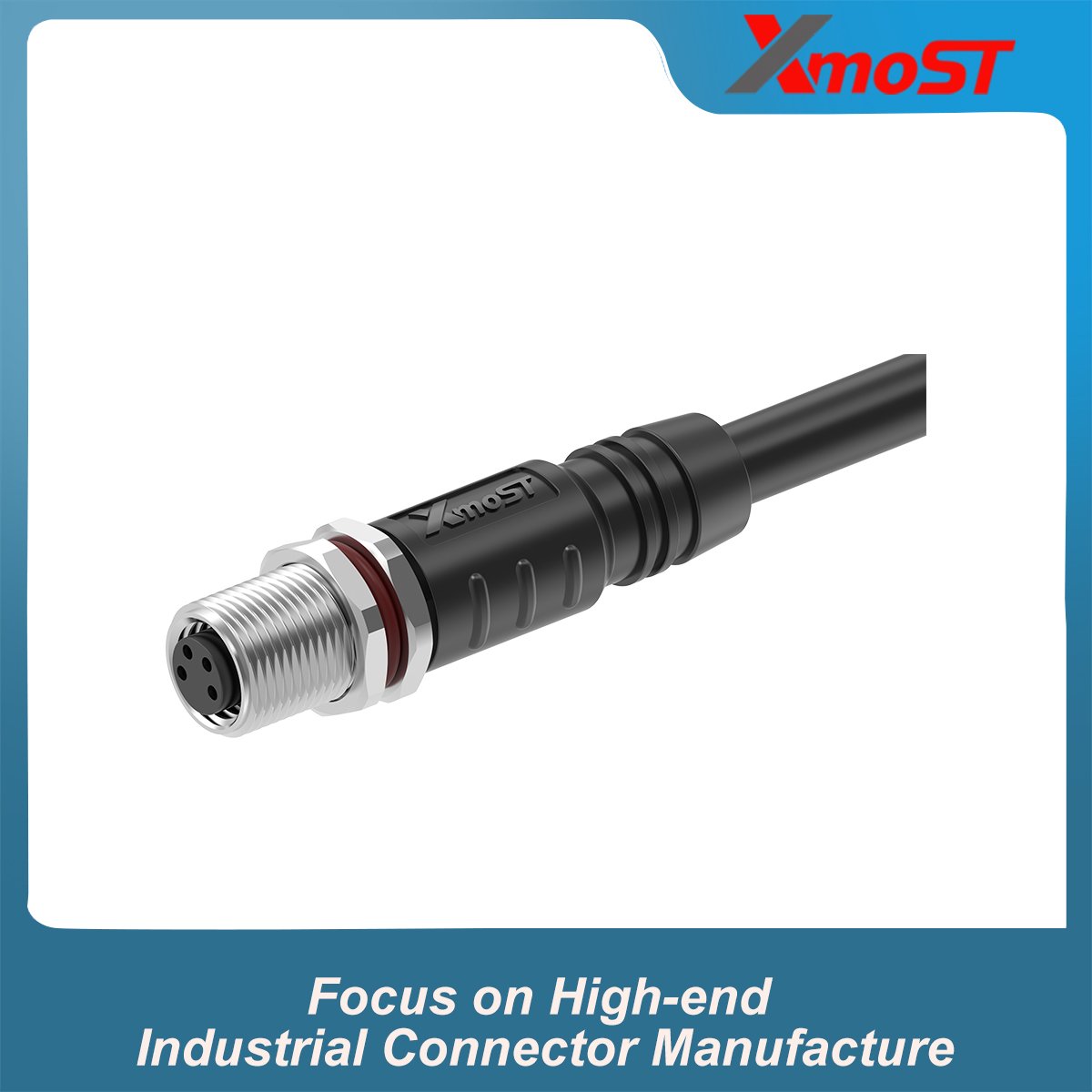

M8 A-Code 4-Pin Female Straight Molded Connector is an injection-molded M8 socket with a single-ended pre-molded cable. Its straight configuration provides a compact cable exit, while the M8 × 1.0 screw locking system provides a secure connection for industrial equipment.
Featuring a 4-pin A-Code female interface, this M8 female connector is rated for 3 A at 60 V and provides IP67 protection. The shielded construction and molded cable assembly make it suitable for industrial signal and control connections where a compact, protected M8 connection is required.
Key Features
- M8 A-Code 4-Pin Female Connector
- Straight injection-molded socket design
- Single-ended pre-molded cable
- Shielded construction
- M8 × 1.0 screw locking
- Solder termination
- Rated current: 3 A
- Rated voltage: 60 V
- IP67 protection
Dimensions

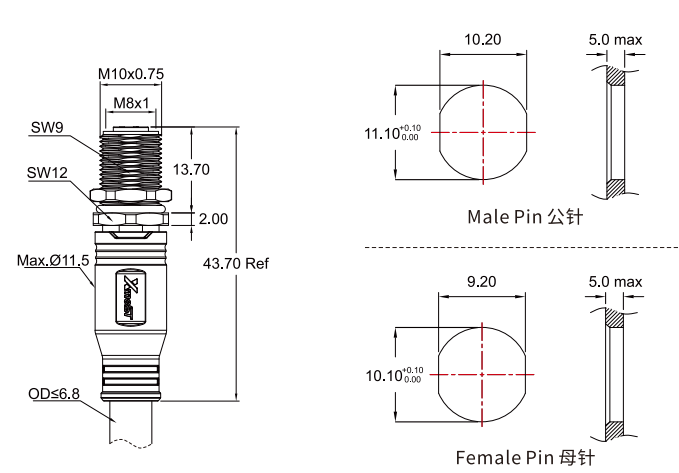

M8 A-Code 4-Pin female connector uses a straight molded housing with an M8 × 1.0 screw locking interface. The single-ended pre-molded cable exits directly from the rear of the connector body.
Contact Configuration
Connector uses a 4-pin A-Code female socket configuration with a straight cable exit. The female M8 interface is designed to mate with a compatible A-Code male connector, providing a compact connection point for industrial equipment and wiring assemblies.
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Series | M8 |
| Coding | A-Code |
| Contact Configuration | 4 Pin |
| Connector Type | Female Straight Molded Connector |
| Operating Standard | IEC 61076-2-104 |
| Rated Current | 3 A |
| Rated Voltage | 60 V |
| Insulation Resistance | ≥100 MΩ |
| Contact Resistance | ≤5 mΩ |
| Shielding Performance | Shielded |
| Locking Method | M8 × 1.0 Screw |
| Screw Torque | Recommended: 0.2 Nm / Max.: 0.4 Nm |
| Wiring Method | Soldering |
| Operating Temperature | -25°C to +80°C Dynamic / -40°C to +80°C Static |
| Wire Gauge | 0.25 mm² (AWG24) |
| IP Rating | IP67 |
| Pollution Degree | 3 |
| Insulator Material | PA + GF / TPU + GF |
| Screw / Nut Material | Brass Ni / Zinc Alloy Ni |
| Pin Material | Phosphor Bronze Au / Brass Au |
| Sealing Material | FKM / Silicone / Epoxy |
| Outer Housing Material | TPU / PVC |
Applications
- Industrial Automation
- Sensors and Instrumentation
- Control Systems
- Factory Equipment
- Measurement Equipment
- Industrial Machinery
- Electrical Control Panels
Straight M8 socket configuration is suitable for equipment and wiring assemblies where a compact female connection is required.
