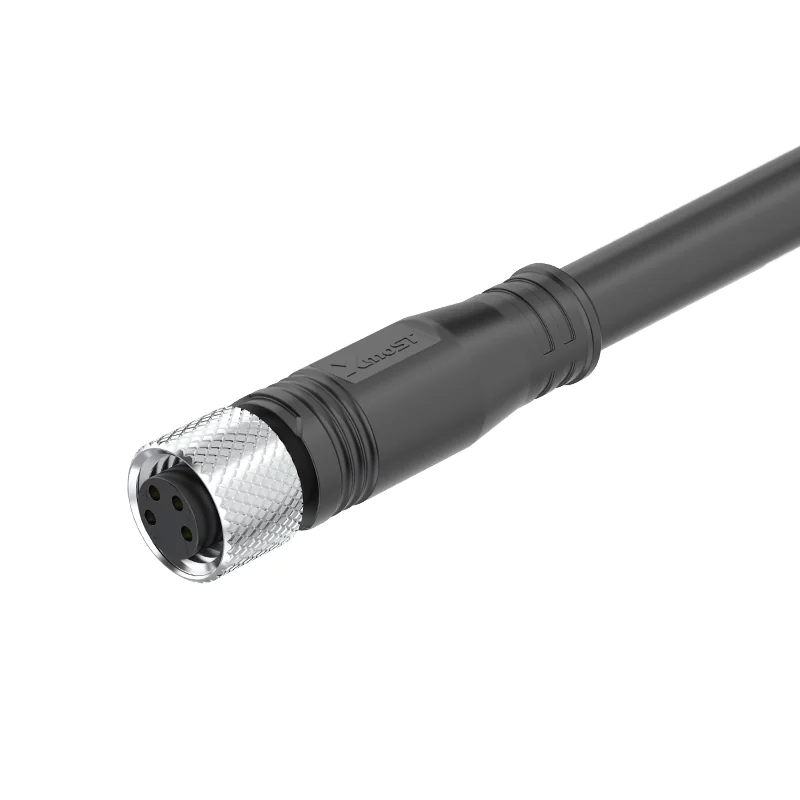

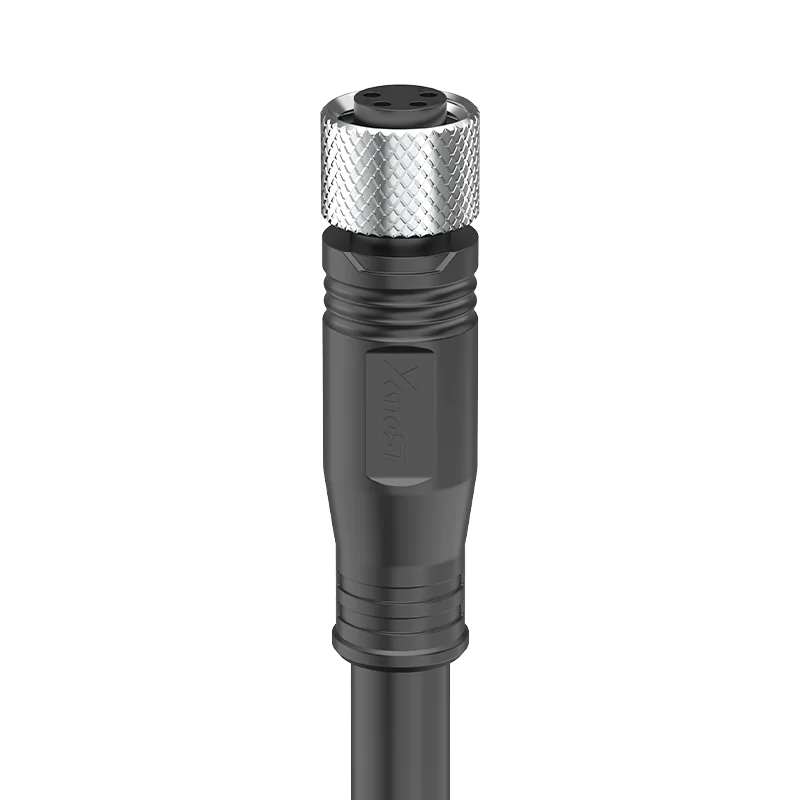

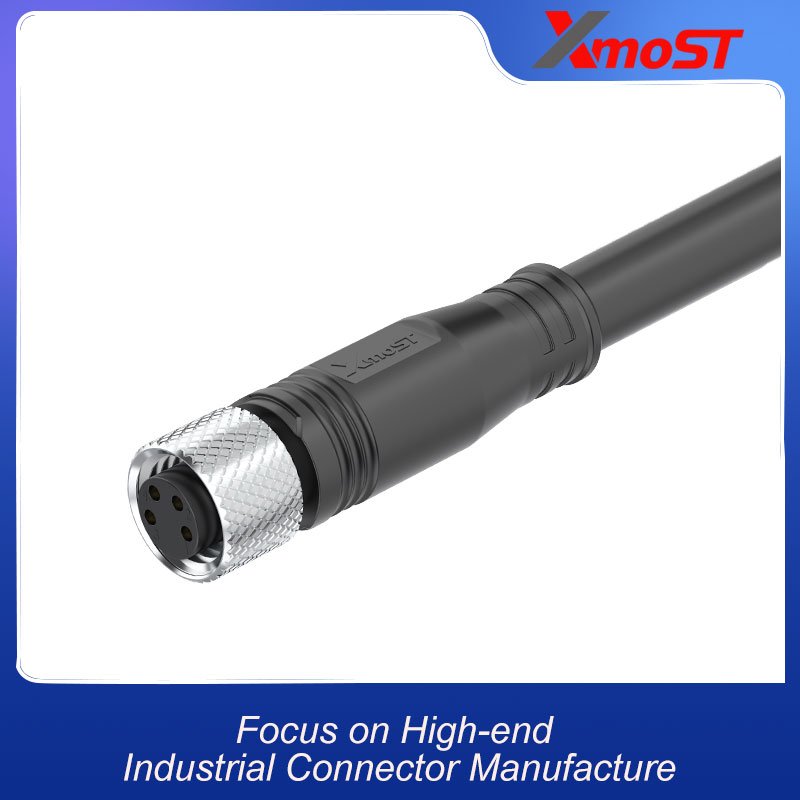

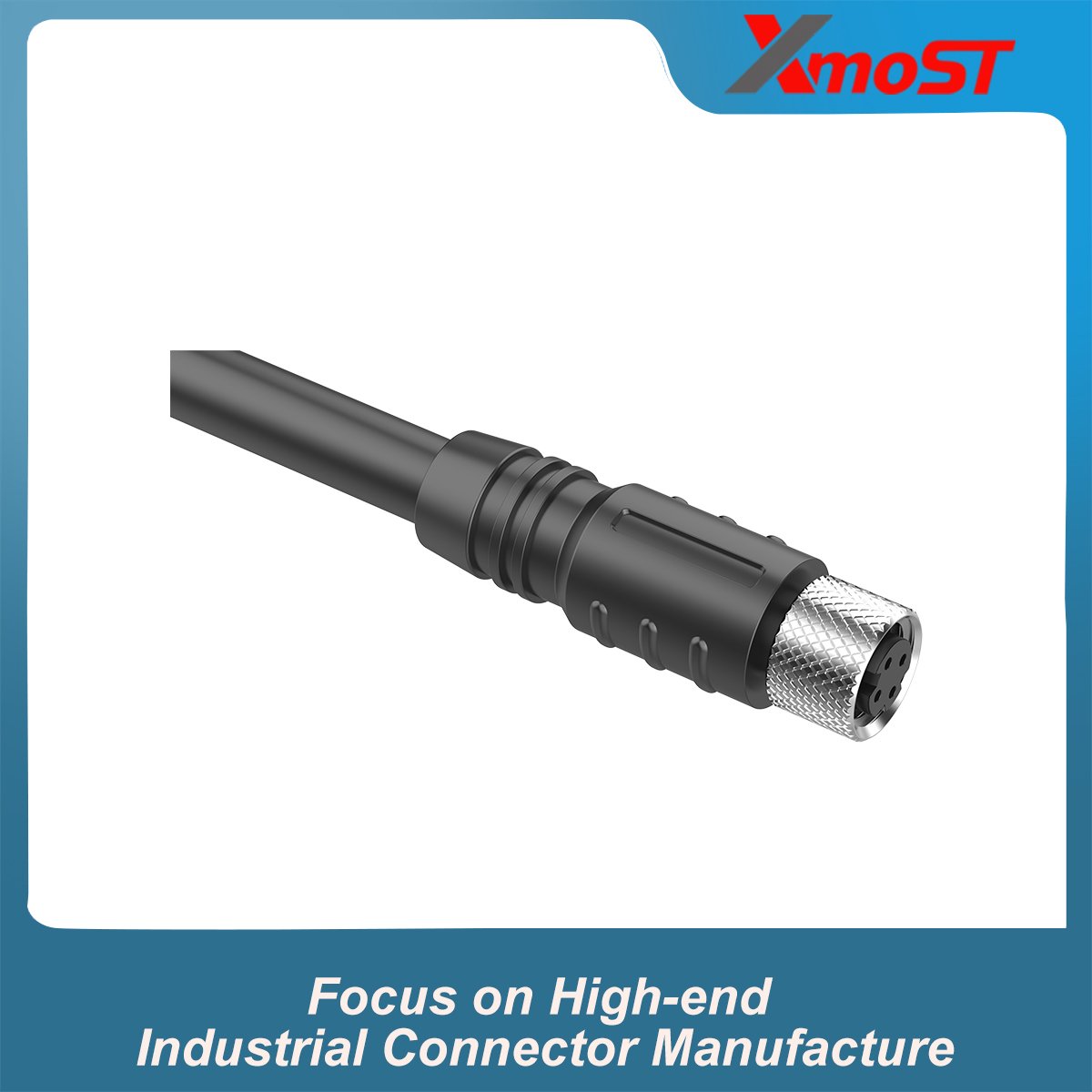

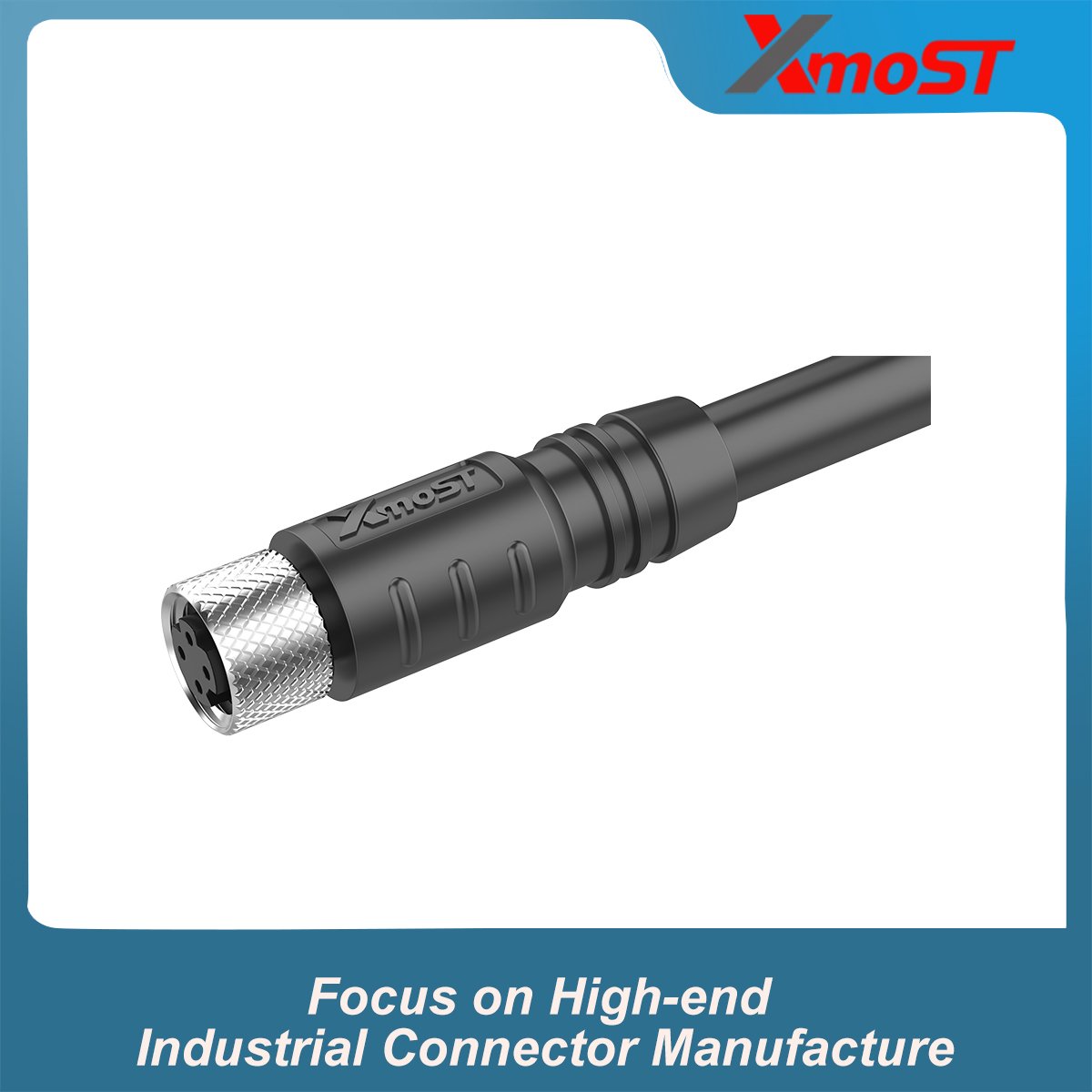

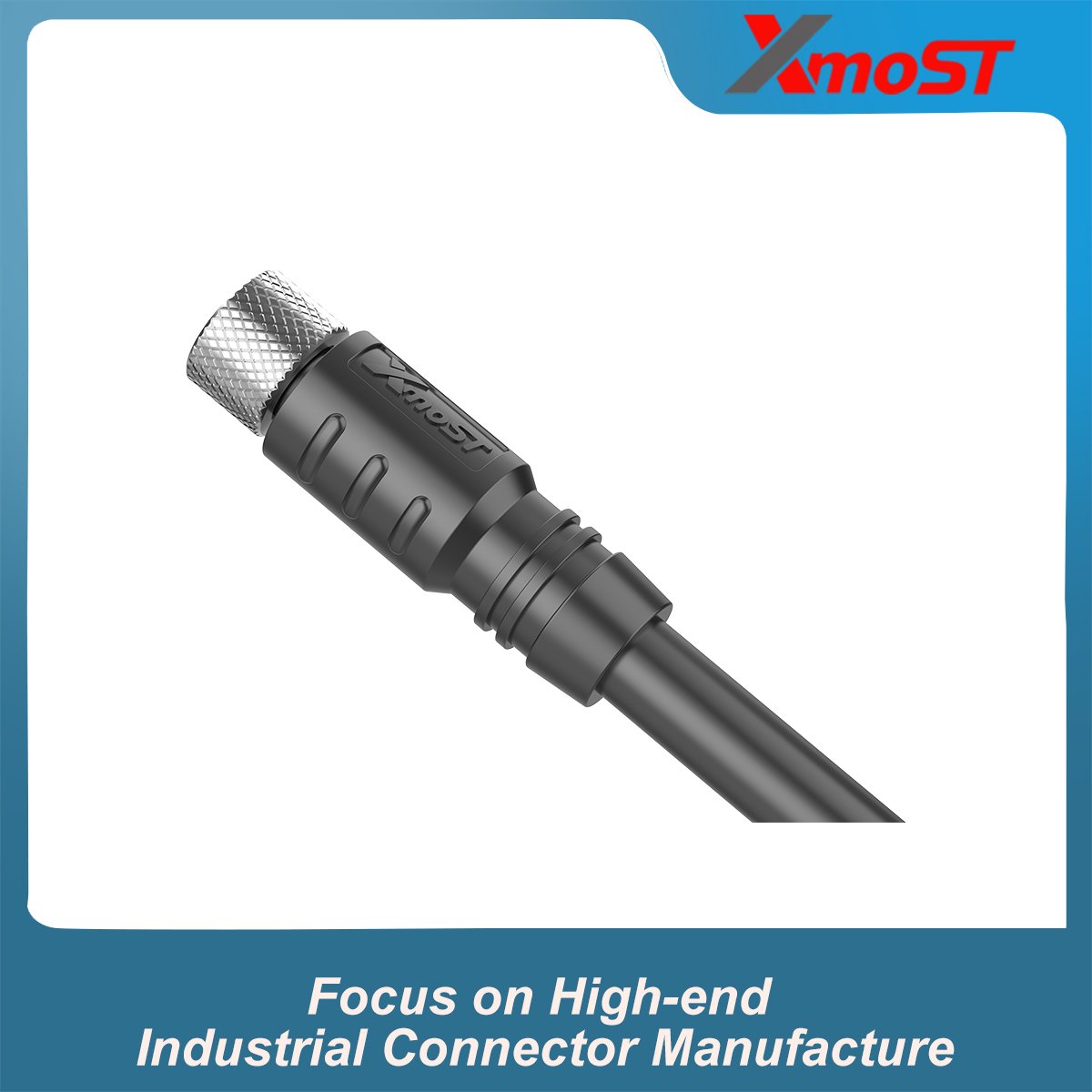

M8 D-Code 4-Pin Female Straight Molded Connector is designed for reliable connections in industrial automation, control equipment, and sensor applications. It features a 4-pin D-Code female configuration, a straight molded housing, a single-ended pre-molded cable, and EMI-shielded construction.
The connector uses an M8 × 1.0 threaded coupling with solder termination. Rated at 4 A and 60 V and protected to IP67, this M8 female connector is suitable for industrial environments where reliable electrical connections and protection from dust and water are required.
The straight cable exit provides a direct connection layout for installations with sufficient cable clearance. The integrated molded cable assembly also provides a ready-to-use M8 D-Code connector for industrial equipment and field wiring.
Key Features
- 4-Pin D-Code Female
- Straight Molded Design
- Single-Ended Pre-Molded Cable
- EMI-Shielded
- M8 × 1.0 Threaded Coupling
- Solder Termination
- 4 A / 60 V Rating
- IP67 Protection
Dimensions

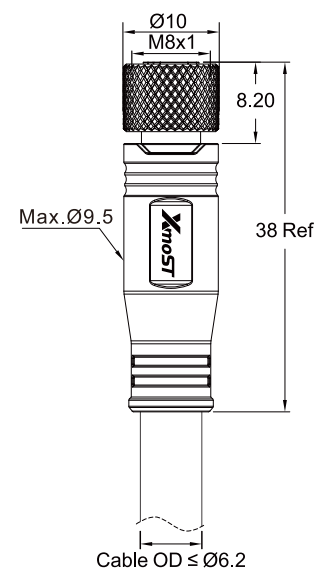

M8 D-Code 4-Pin Female Straight Molded Connector features a compact M8 housing, straight cable exit, integrated pre-molded cable, and M8 × 1.0 threaded coupling. The cable connection is overmolded at the rear of the connector. Refer to the product drawing for detailed dimensions.

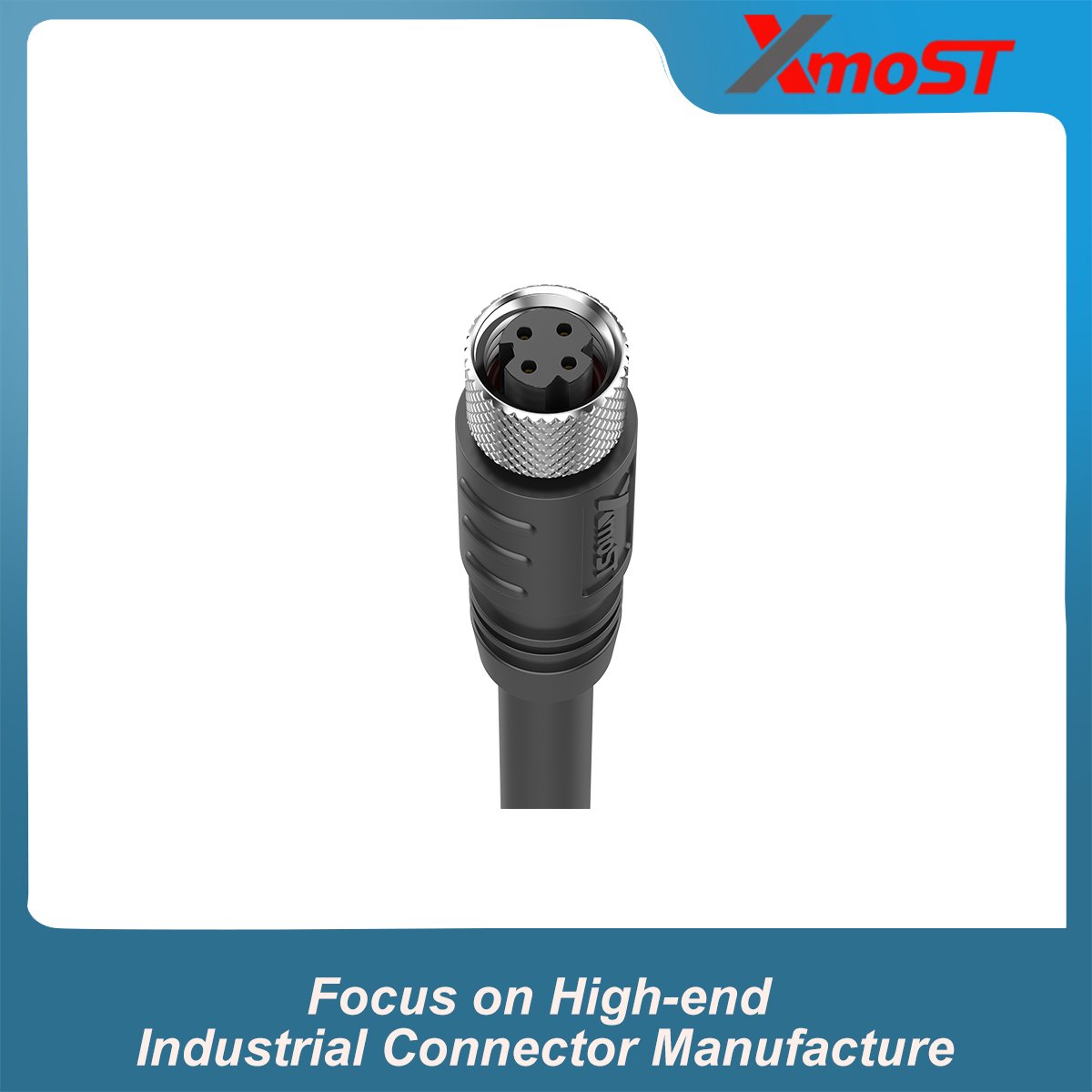

4-Pin D-Code Female
Connector features a 4-pin D-Code female interface with a straight cable exit. This configuration provides a straightforward connection layout for M8 applications where the cable can extend directly from the connector.
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Series | M8 |
| Coding | D-Code |
| Contact Configuration | 4 Pin |
| Connector Type | Female Straight Molded Connector |
| Operating Standard | IEC 61076-2-104 |
| Rated Current | 4 A |
| Rated Voltage | 60 V |
| Insulation Resistance | ≥100 MΩ |
| Contact Resistance | ≤5 mΩ |
| Shielding | Shielded / EMI-Shielded |
| Coupling | M8 × 1.0 Threaded |
| Recommended Screw Torque | 0.2 Nm |
| Maximum Screw Torque | 0.4 Nm |
| Termination | Solder |
| Cable Configuration | Single-Ended Pre-Molded Cable |
| Wire Size | 0.34 mm² (AWG22) |
| Operating Temperature | -25°C to +80°C Dynamic / -40°C to +80°C Static |
| Protection Rating | IP67 |
| Pollution Degree | 3 |
| Insulator Material | PA + GF / TPU + GF |
| Screw / Nut Material | Nickel-Plated Brass / Nickel-Plated Zinc Alloy |
| Contact Material | Phosphor Bronze / Gold-Plated Brass |
| Sealing Material | FKM / Silicone / Epoxy |
| Housing Material | TPU / PVC |
Applications
- Industrial Automation
- Control Systems
- Industrial Sensors
- Factory Equipment
- Measurement Equipment
- Industrial Machinery
