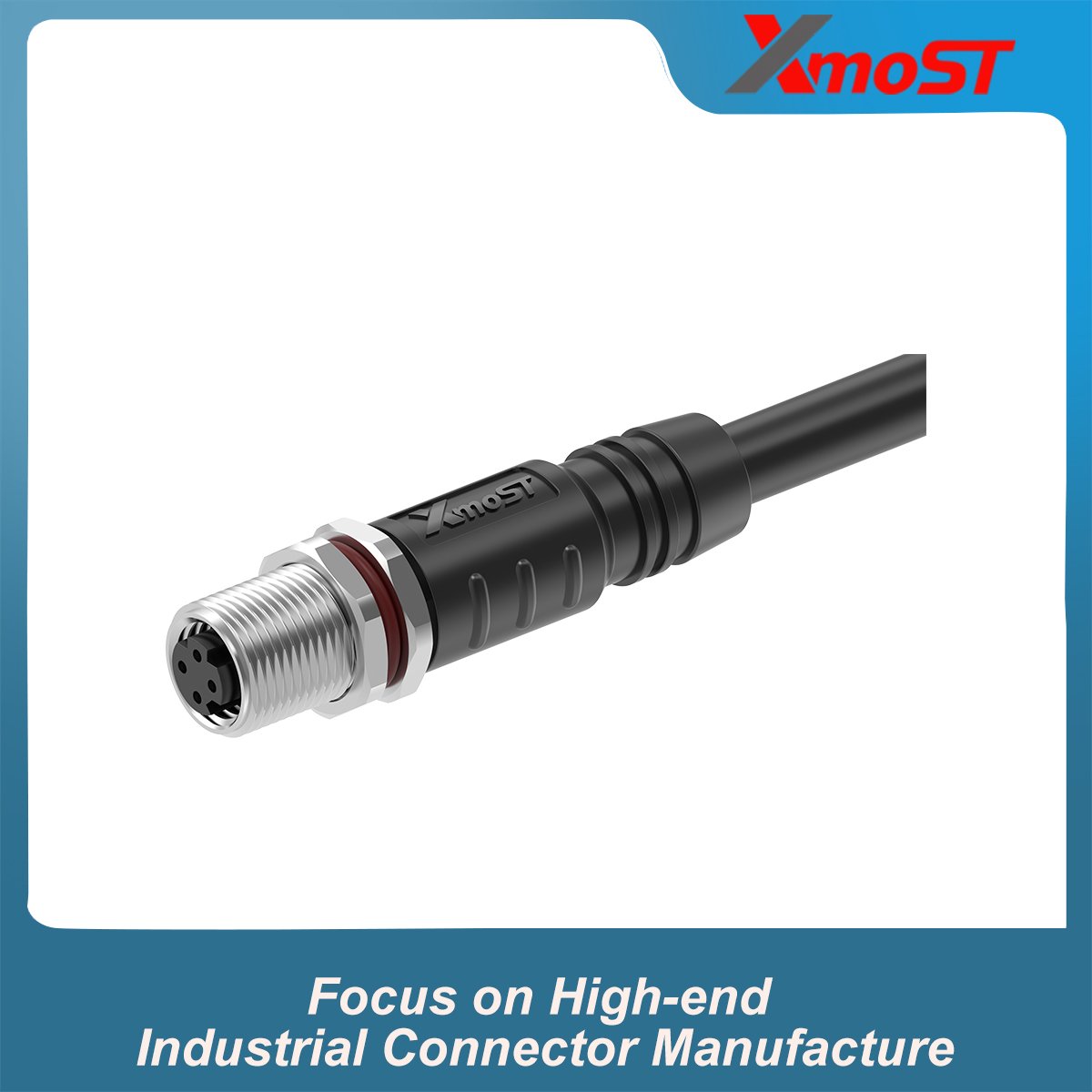

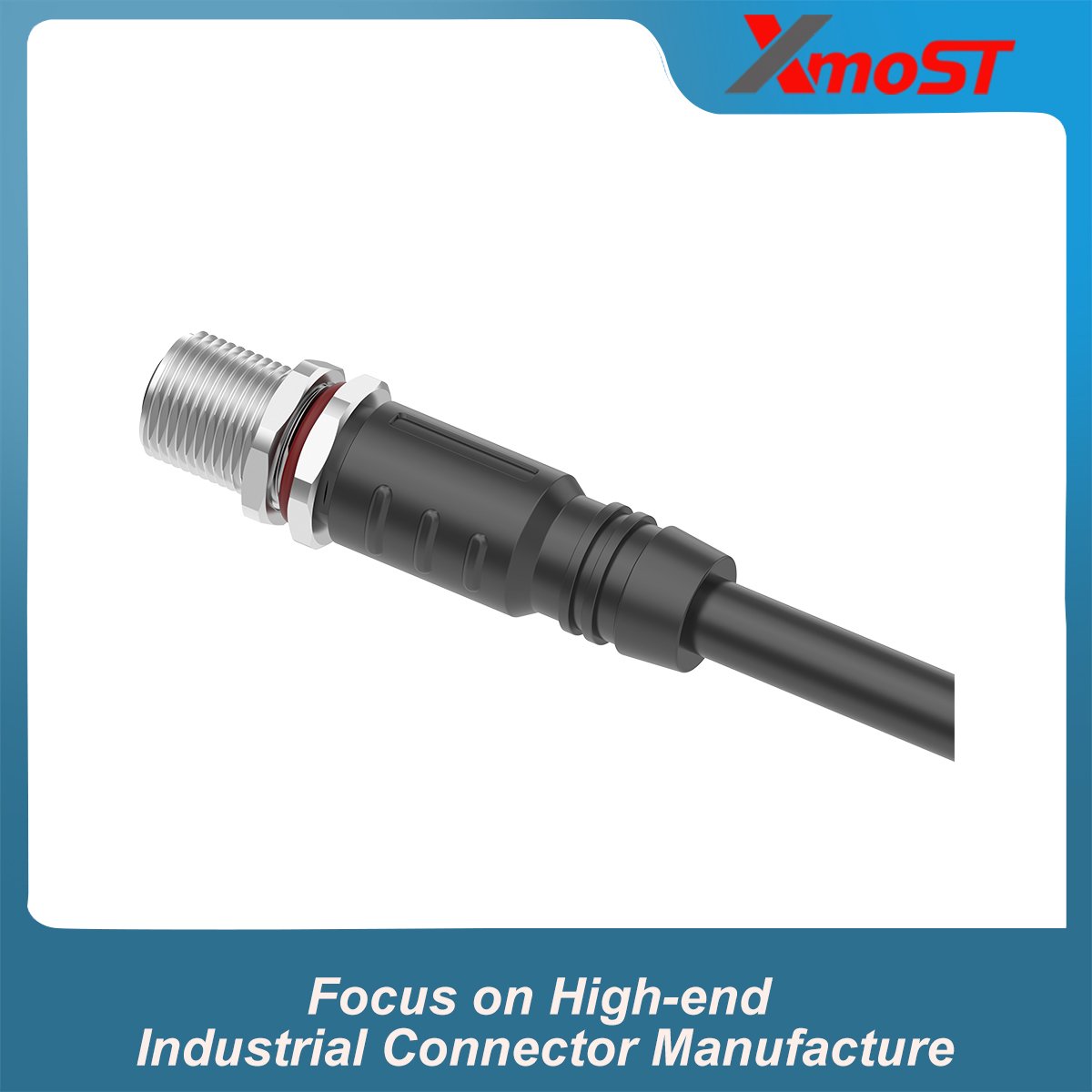

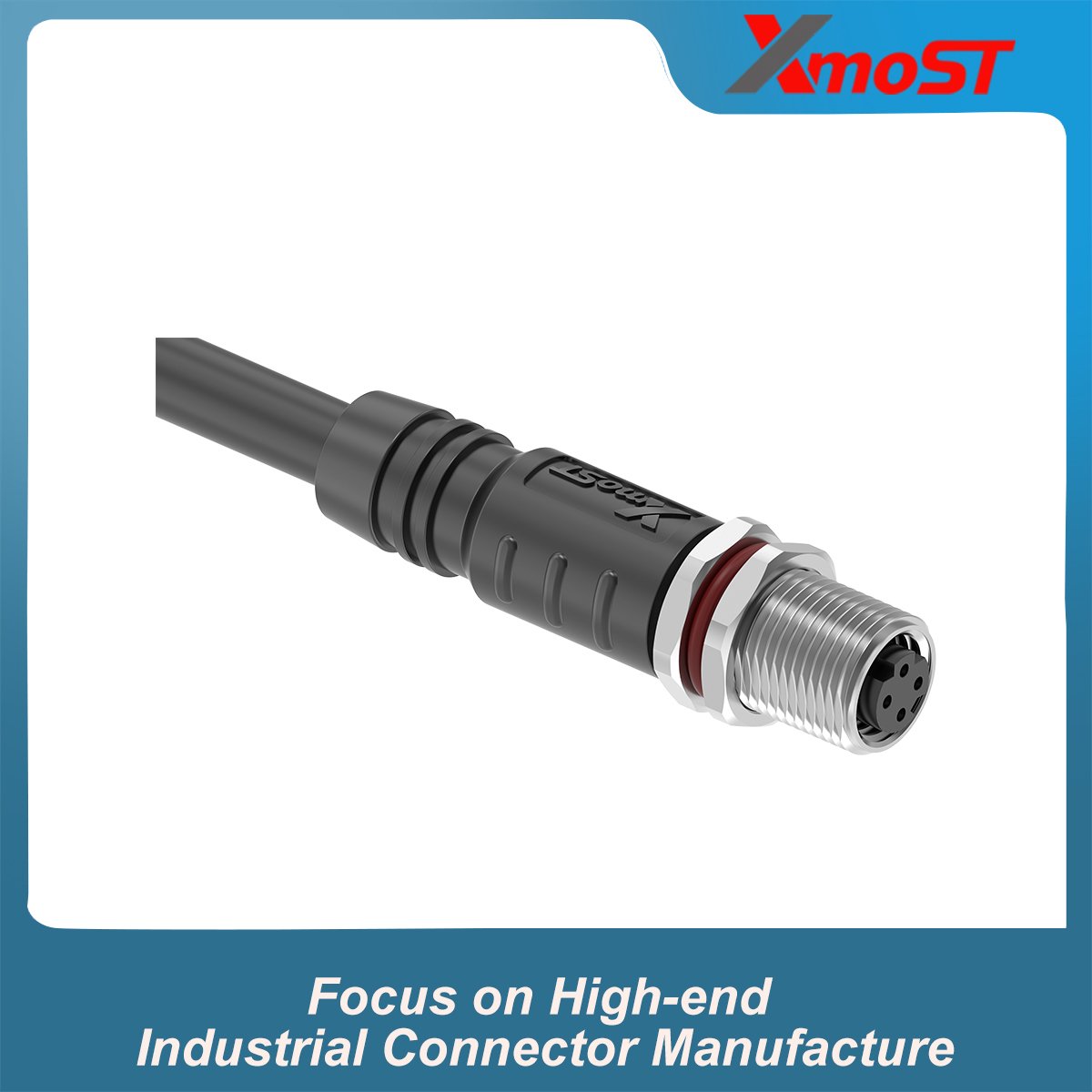

M8 D-Code 4-Pin Female Straight Molded Connector is an injection-molded industrial connector featuring a single-ended pre-molded cable and shielded construction. It uses an M8 × 1.0 threaded coupling system for secure mating and is designed for compact industrial wiring applications.
With a 4-pin D-Code female configuration, 4 A rated current, 60 V rated voltage, and IP67 protection, this connector is suitable for industrial automation, sensors, control equipment, and other applications requiring a compact and shielded M8 connection.
Key Features
- M8 D-Code 4-Pin Female Connector
- Straight injection-molded design
- Single-ended pre-molded cable
- Shielded / EMI-Shielded construction
- M8 × 1.0 threaded coupling
- Solder termination
- Rated current: 4 A
- Rated voltage: 60 V
- IP67 protection
Dimensions

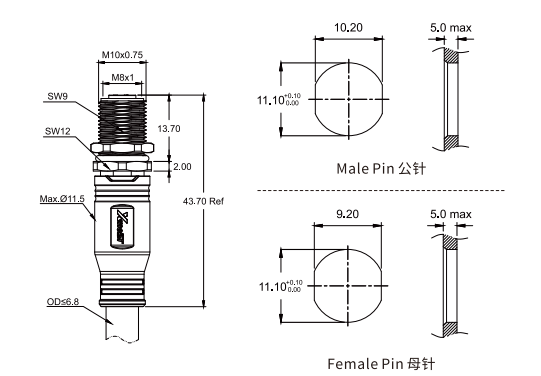

The cable connection is integrated into the molded connector body. Please refer to the product drawing for detailed housing dimensions, cable exit dimensions, and mounting information.
Contact Configuration

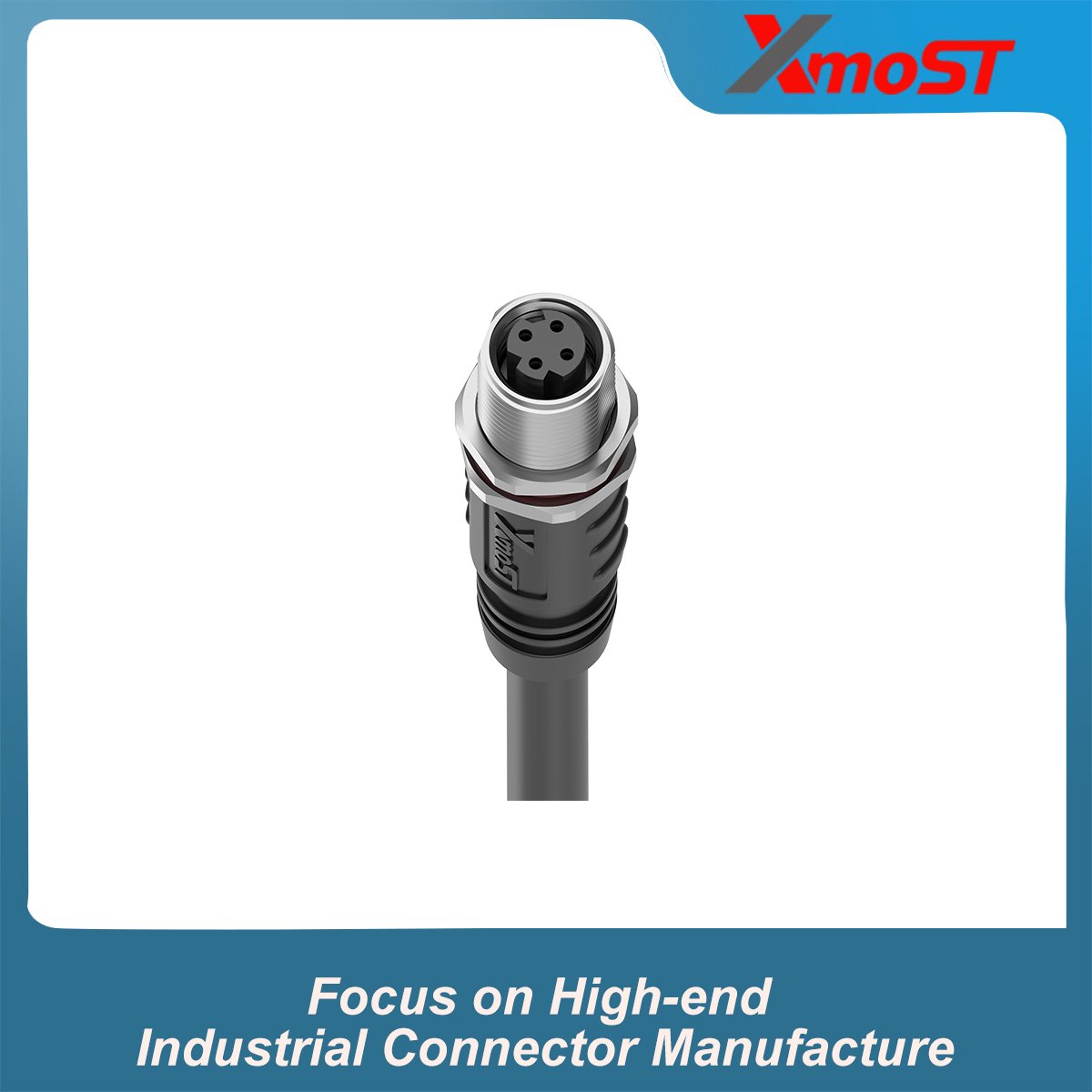

Connector features a 4-pin D-Code female contact configuration in a straight housing. The female socket design provides a compact mating interface for compatible M8 D-Code connectors.
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Series | M8 |
| Coding | D-Code |
| Contact Configuration | 4 Pin |
| Connector Type | Female Straight Molded Connector |
| Operating Standard | IEC 61076-2-114 |
| Rated Current | 4 A |
| Rated Voltage | 60 V |
| Insulation Resistance | ≥100 MΩ |
| Contact Resistance | ≤5 mΩ |
| Shielding Performance | Shielded / EMI-Shielded |
| Locking Method | M8 × 1.0 Screw |
| Screw Torque | Recommended: 0.2 Nm / Max.: 0.4 Nm |
| Wiring Method | Soldering |
| Operating Temperature | -25°C to +80°C Dynamic / -40°C to +80°C Static |
| Wire Gauge | 0.34 mm² (AWG22) |
| IP Rating | IP67 |
| Pollution Degree | 3 |
| Insulator Material | PA + GF / TPU + GF |
| Screw / Nut Material | Brass Ni / Zinc Alloy Ni |
| Pin Material | Phosphor Bronze Au / Brass Au |
| Sealing Material | FKM / Silicone / Epoxy |
| Outer Housing Material | TPU / PVC |
Applications
- Industrial Automation
- Industrial Sensors
- Control Systems
- Factory Equipment
- Measurement Equipment
- Industrial Machinery
- Industrial Wiring
