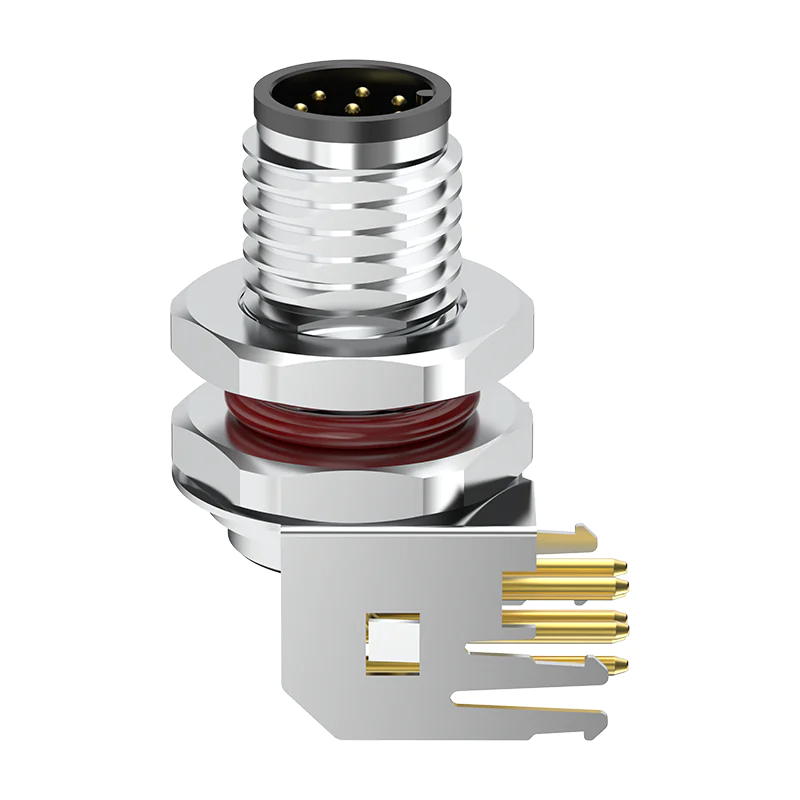

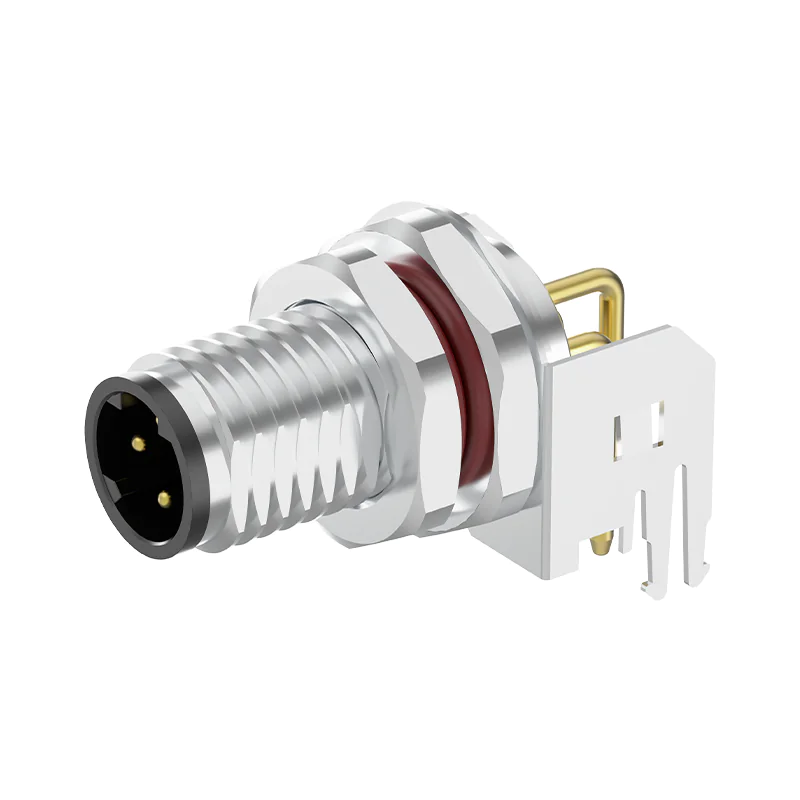

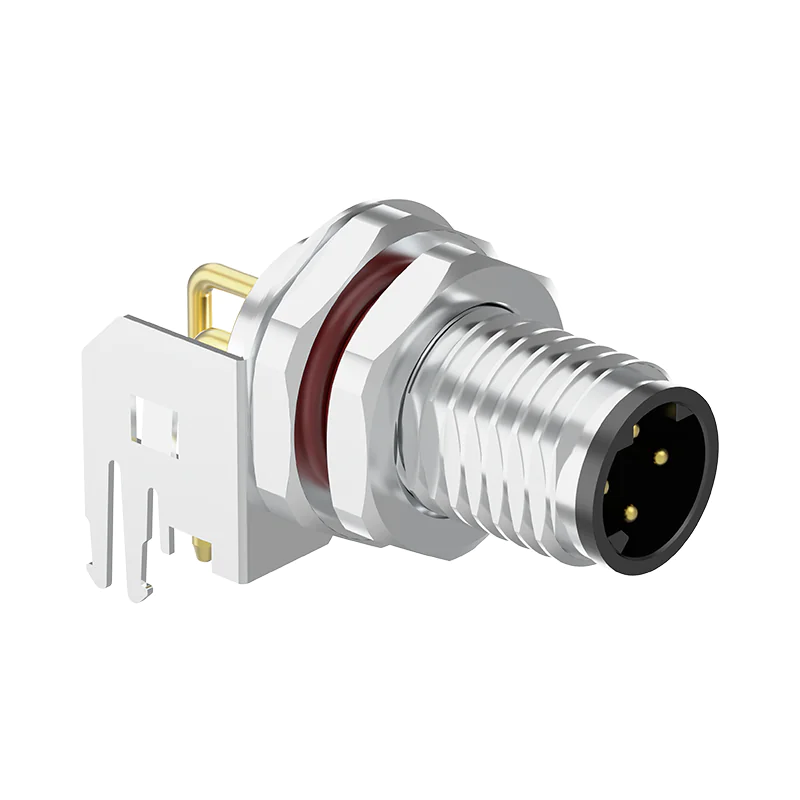

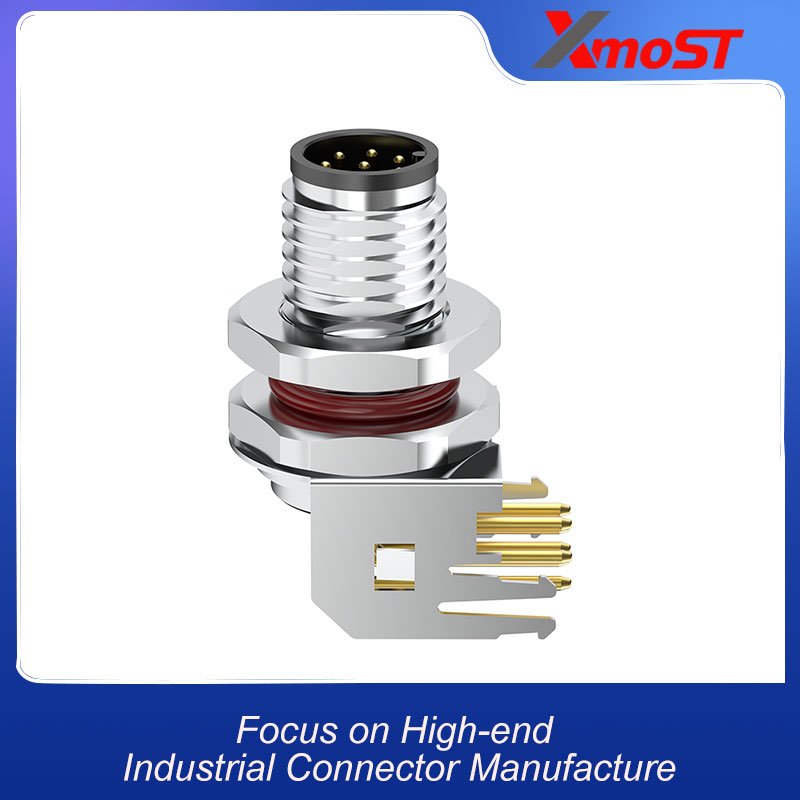

M8 front lock right angle PCB socket is a grounded male PCB connector designed for reliable signal transmission in space-constrained industrial automation applications. This 5Pin right angle M8 socket features A/B-code coding and front lock panel mounting, making it an ideal sensor actuator PCB connector for factory automation, PLC I/O, and control systems. The right angle (90°) bent end design allows installation in tight spaces. Grounded for electrical safety. Front lock mechanism provides secure panel mounting from the front. Rated 30V / 3A. Gold-plated phosphor bronze contacts. Brass nickel housing. PCB dip soldering termination. Compliant with IEC 61076-2-104. IP67 waterproof. Operating temperature -40°C to +80°C.
| Pin count | 3Pin | 4Pin | 5Pin(B-Code) | 6Pin | 8Pin |
| Operating standard | IEC 61076-2-104 | ||||
| Rated current | 3A | 3A | 1.5A | ||
| Rated voltage | 60V | 30V | 30V | ||
| Insulation resistance | ≥100MΩ | ||||
| Contact resistance | ≤5mΩ | ||||
| Shielding performance | Non-Shielded | ||||
| Locking method | M8×1.0 screw | ||||
| Screw torque | Recommend：0.3Nm,Max：0.6Nm | ||||
| Wiring method | PCB Dip Soldering | ||||
| Operating temperature | -25℃ ~ +80℃ Dynamic , -40℃ ~ +80℃ Static | ||||
| Wire gauge range | 0.25mm²(AWG24) | 0.14mm²(AWG26) | |||
| Ip rating | IP67 | ||||
| Pollution degree | 3 | ||||
| Insulator material | PA+GF/TPU+GF | ||||
| Screw/nut material | Brass Ni | ||||
| Pin material | Phosphor Bronze Au/Brass Au | ||||
| Sealing material | FKM/Silicon/epoxy | ||||
| Outer housing material | Brass Ni | ||||
