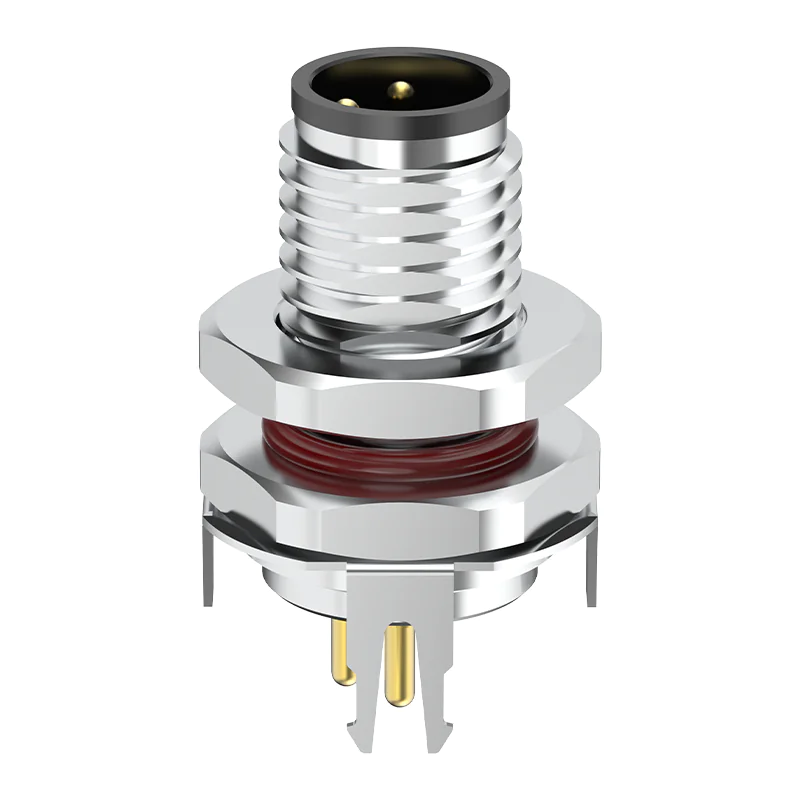

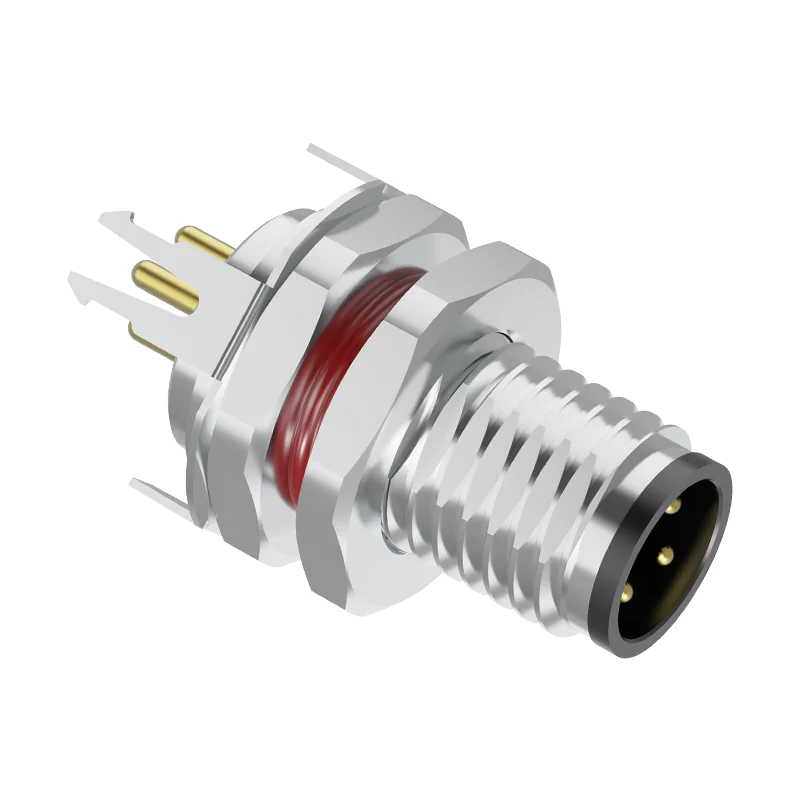

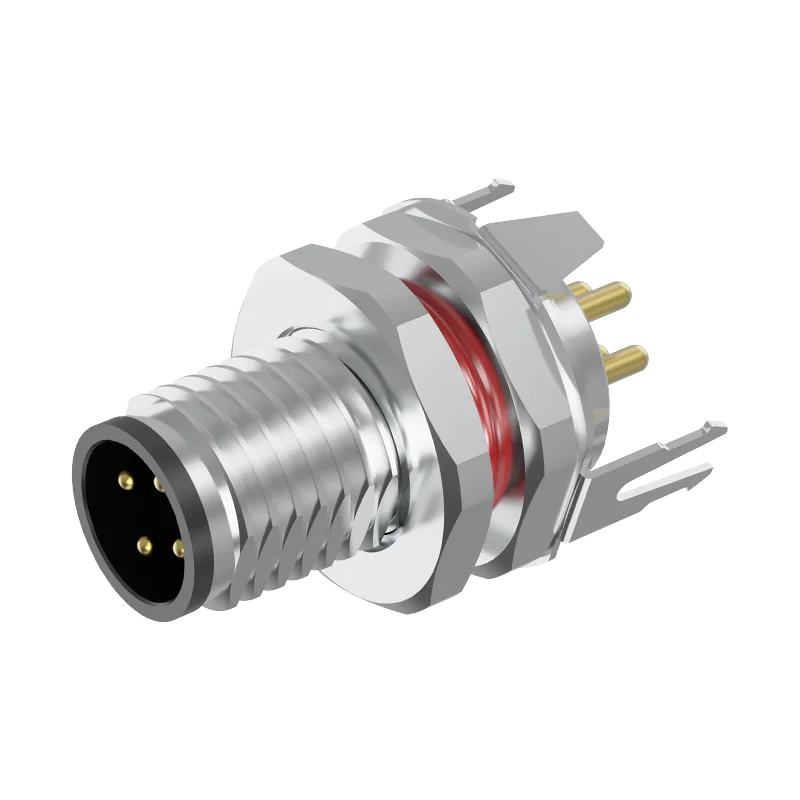

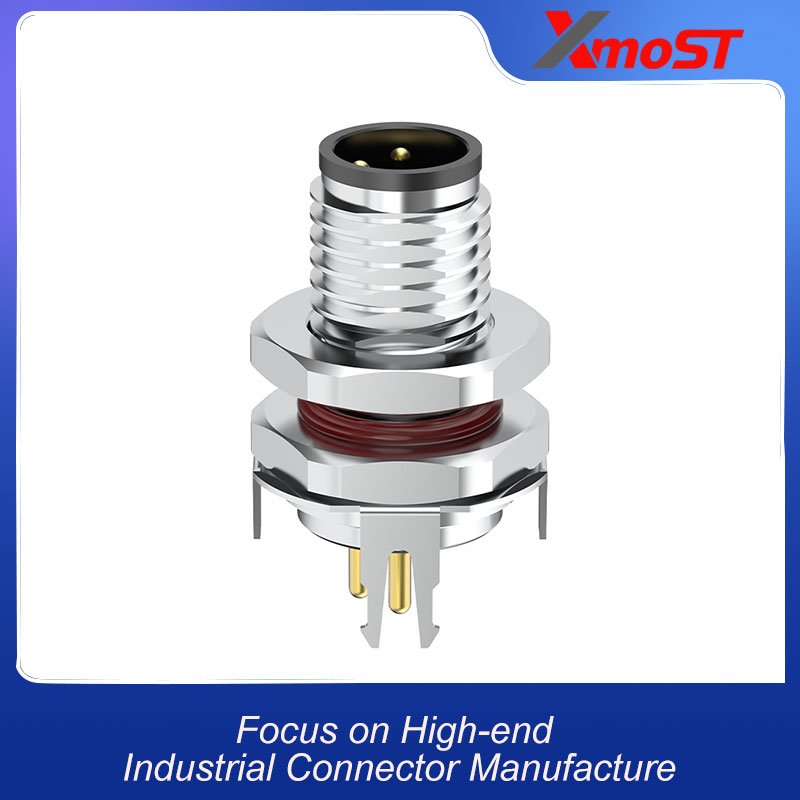

M8 front lock straight PCB socket is a grounded male PCB connector designed for reliable signal transmission in industrial automation applications. This 4Pin straight M8 socket features A/B-code coding and front lock panel mounting, making it an ideal sensor actuator PCB connector for factory automation, PLC I/O, and control systems. The shielded construction provides protection against electromagnetic interference, ensuring stable signal integrity. Grounded for electrical safety. Front lock mechanism provides secure panel mounting from the front. Rated 60V / 3A. Gold-plated phosphor bronze contacts. Brass nickel housing. PCB dip soldering termination. Compliant with IEC 61076-2-104. IP67 waterproof. Operating temperature -40°C to +80°C.
| Pin count | 3Pin | 4Pin | 5Pin(B-Code) | 6Pin | 8Pin |
| Operating standard | IEC 61076-2-104 | ||||
| Rated current | 3A | 3A | 1.5A | ||
| Rated voltage | 60V | 30V | 30V | ||
| Insulation resistance | ≥100MΩ | ||||
| Contact resistance | ≤5mΩ | ||||
| Shielding performance | Shielded | ||||
| Locking method | M8×1.0 screw | ||||
| Screw torque | Recommend：0.3Nm,Max：0.6Nm | ||||
| Wiring method | PCB Dip Soldering | ||||
| Operating temperature | -25℃ ~ +80℃ Dynamic , -40℃ ~ +80℃ Static | ||||
| Wire gauge range | 0.25mm²(AWG24) | 0.14mm²(AWG26) | |||
| Ip rating | IP67 | ||||
| Pollution degree | 3 | ||||
| Insulator material | PA+GF/TPU+GF | ||||
| Screw/nut material | Brass Ni | ||||
| Pin material | Phosphor Bronze Au/Brass Au | ||||
| Sealing material | FKM/Silicon/epoxy | ||||
| Outer housing material | Brass Ni | ||||
