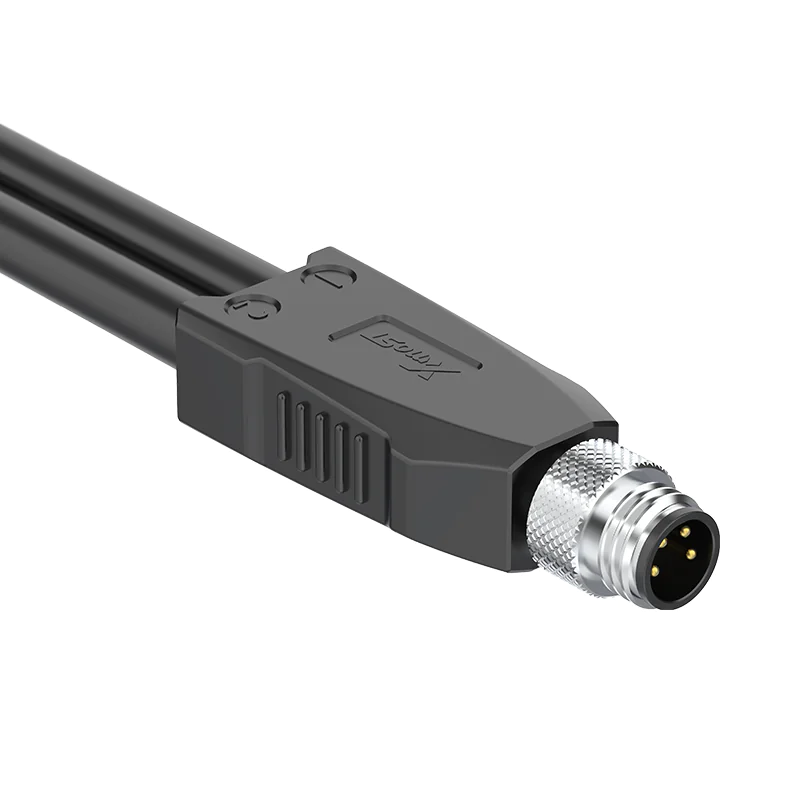

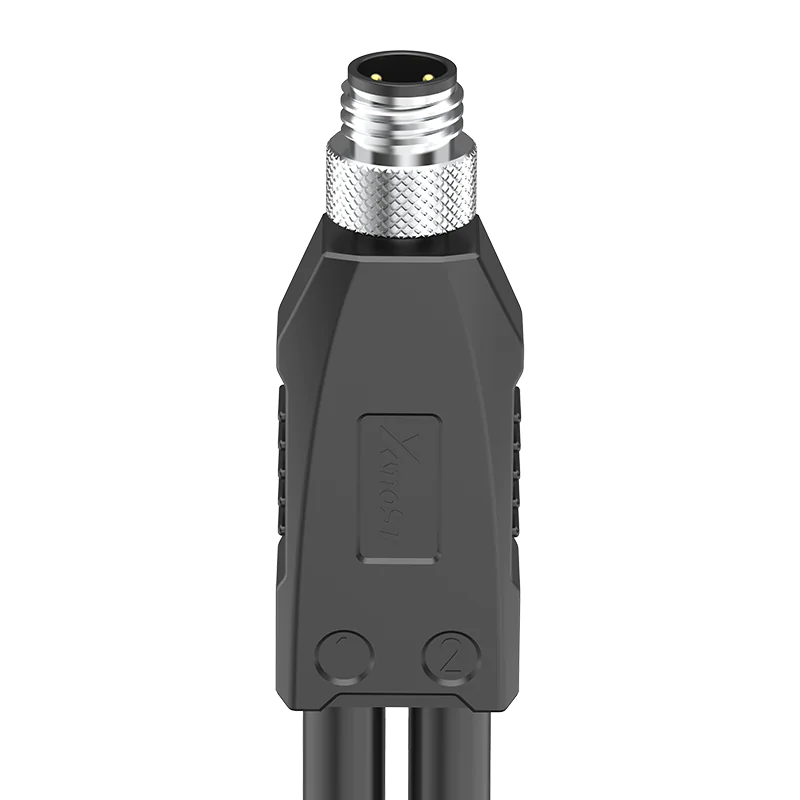

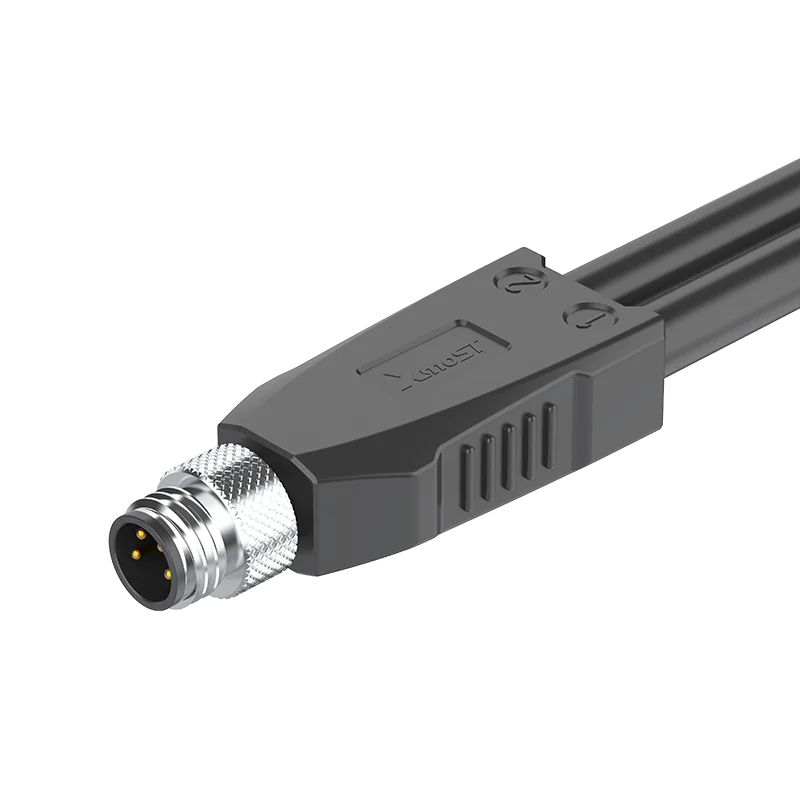

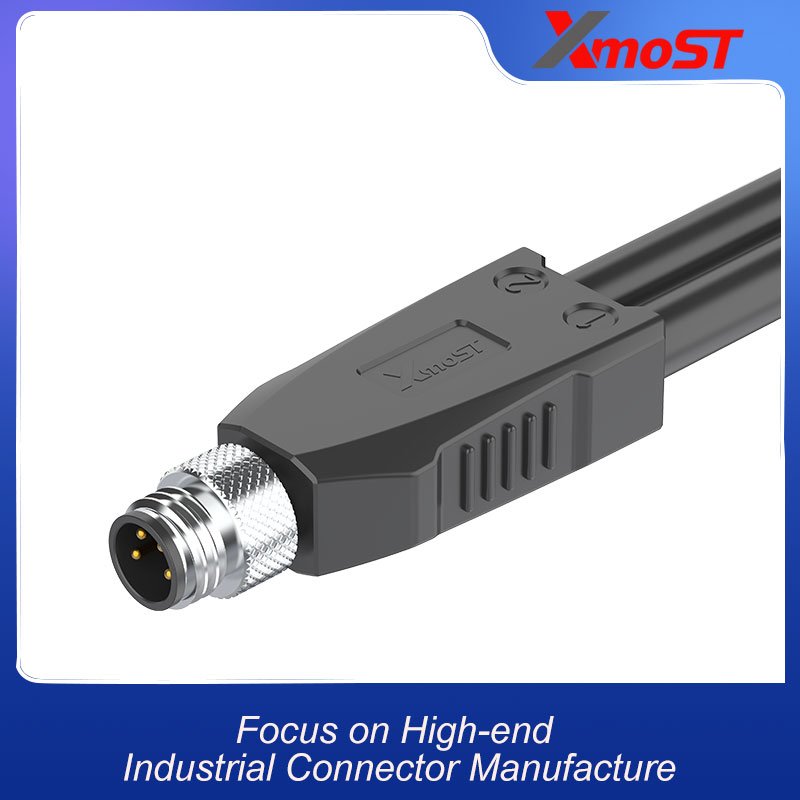

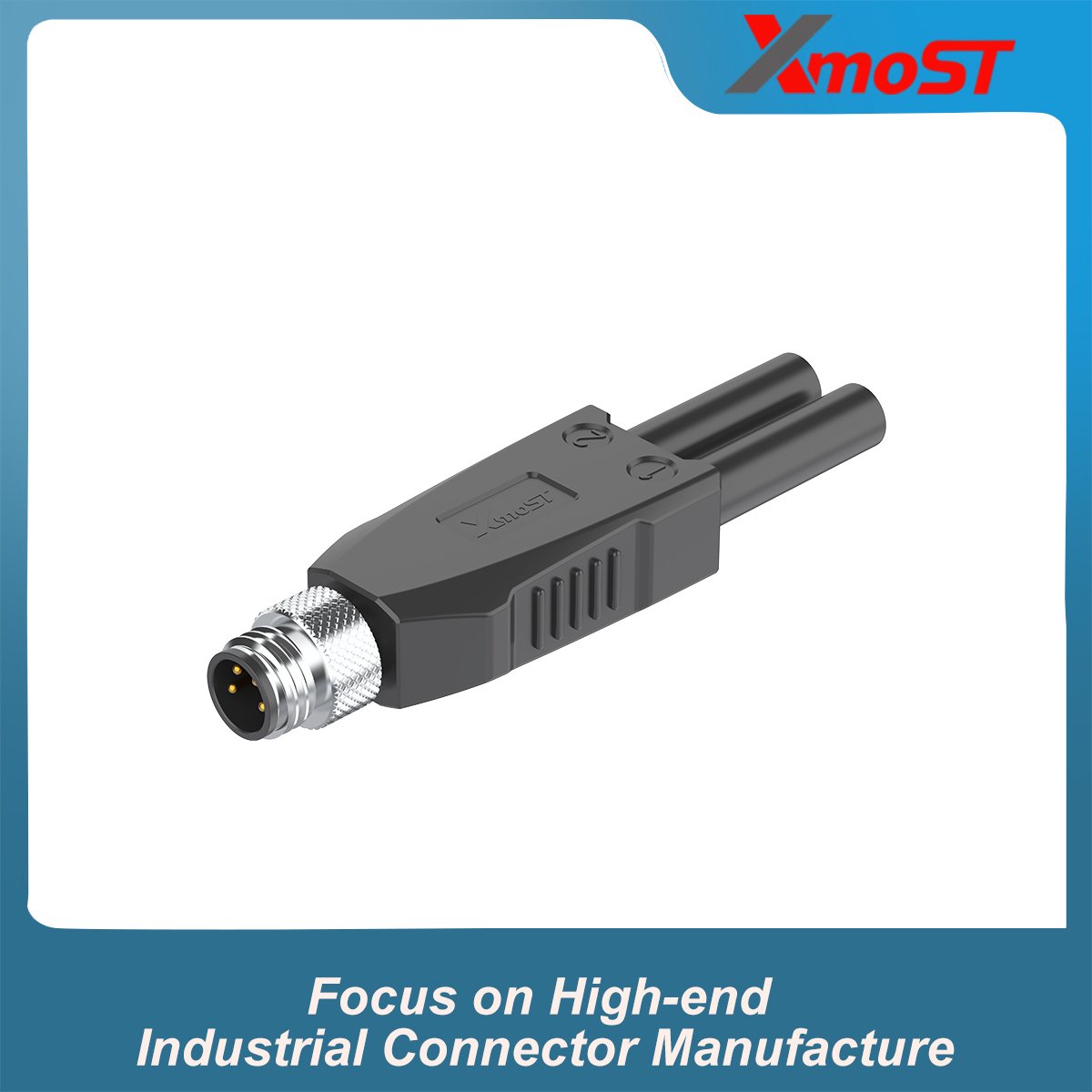

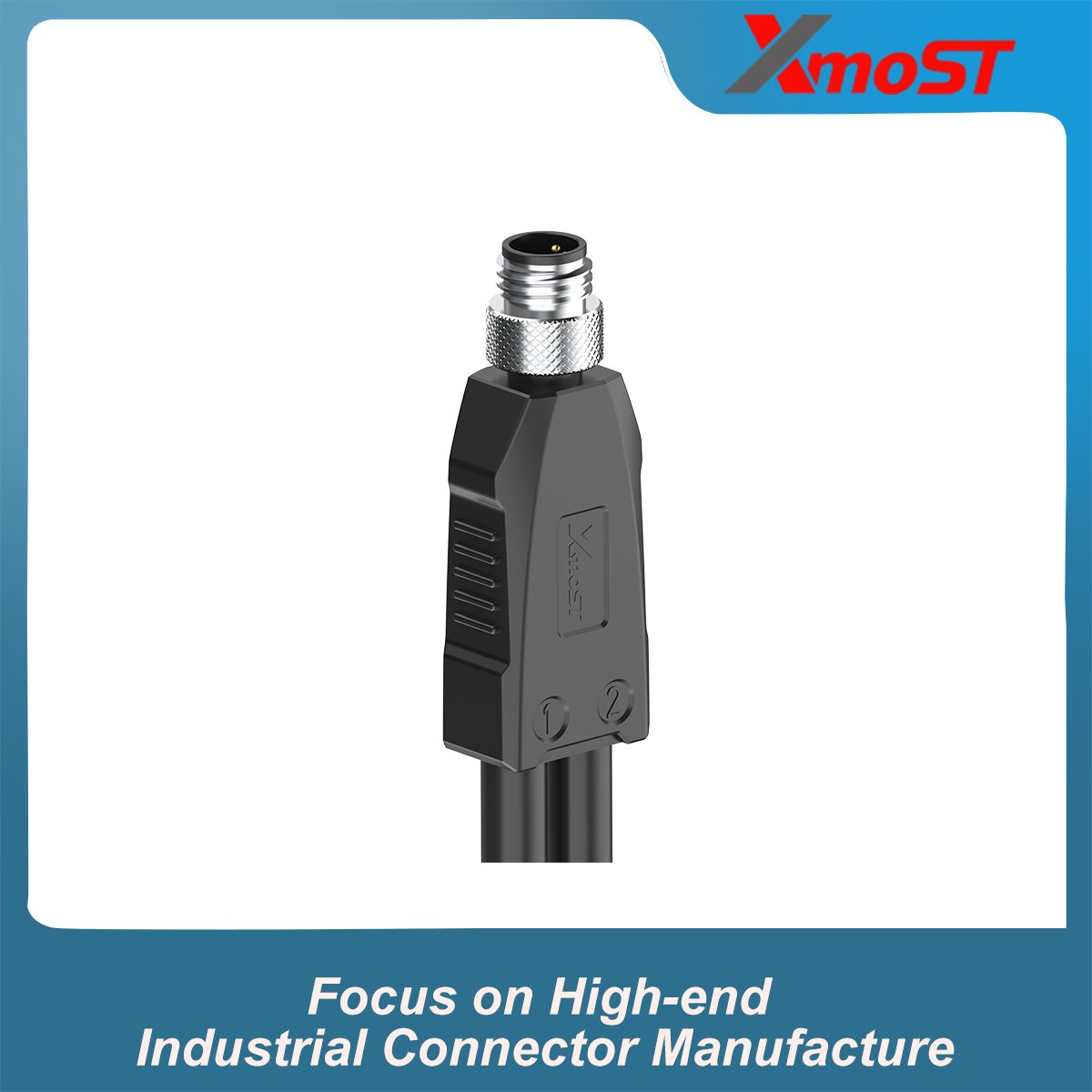

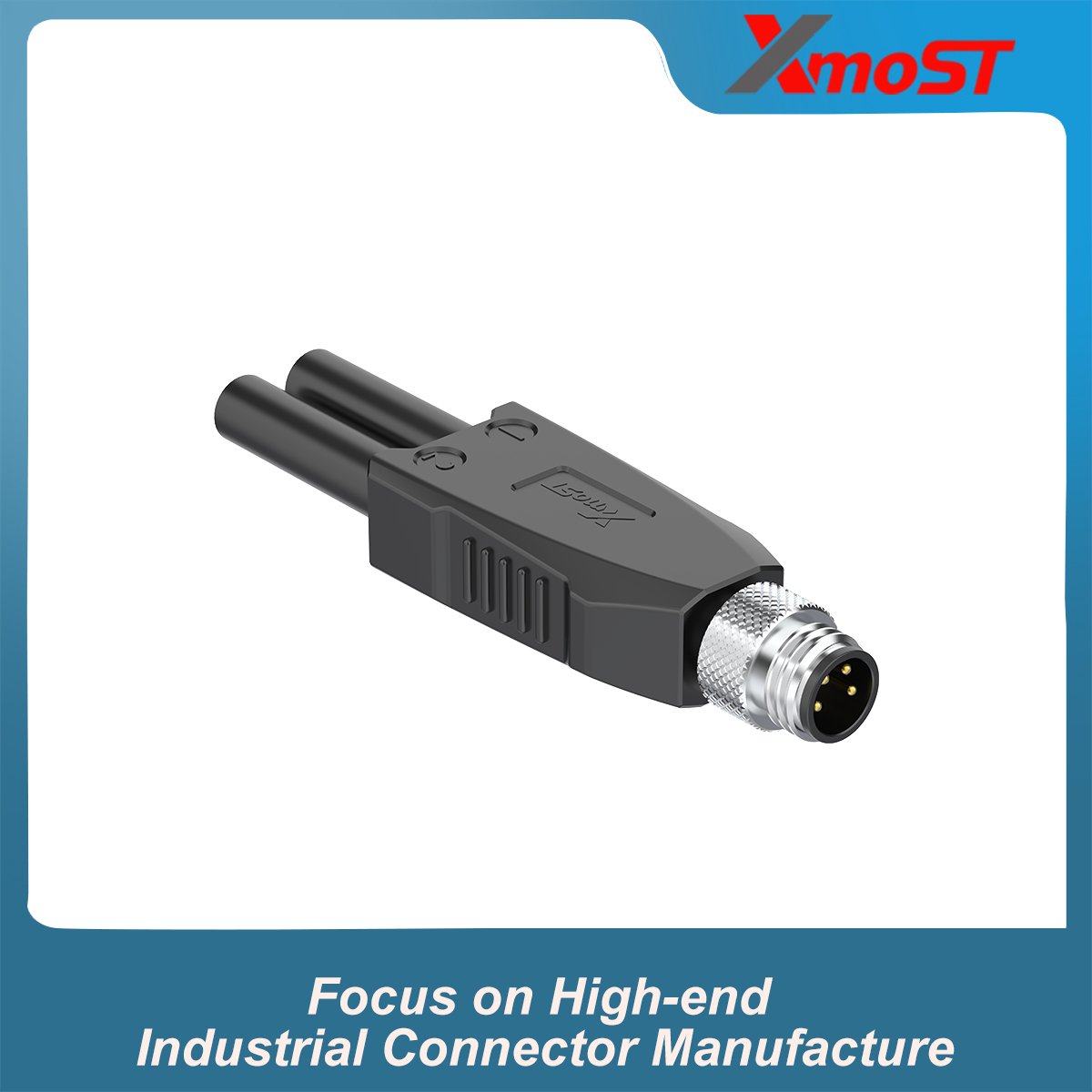

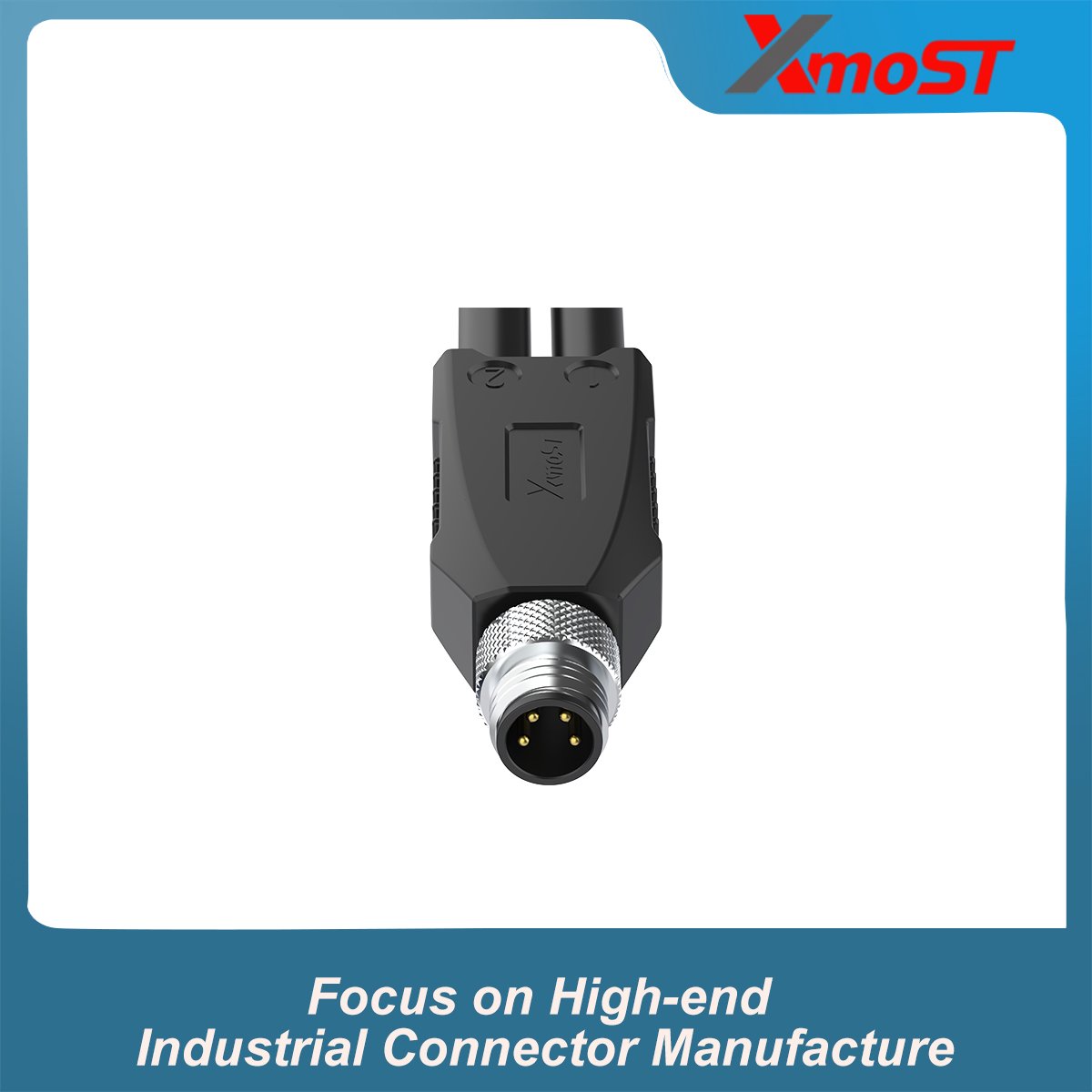

M8 A&B-Code 4-Pin Male 1-to-2 Splitter Connector is a molded M8 cable assembly designed to split one connection into two branches. The 4-pin male configuration provides a compact interface for applications that require two connection paths from a single cable assembly.
Designed for compatibility with M8 A-Code and B-Code connection systems, this M8 splitter connector uses an M8 × 1.0 screw locking system and a single-ended pre-molded cable. Its molded construction provides an integrated cable assembly for industrial wiring, automation equipment, and control applications.
The connector is rated for 3 A and 60 V for A-Code configurations, while B-Code configurations are rated at 3 A and 30 V. The product uses a non-shielded design and provides IP67 protection.
Key Features
- M8 A&B-Code 4-Pin Male Splitter Connector
- 1-to-2 molded splitter configuration
- Compatible with A-Code and B-Code systems
- Single-ended pre-molded cable
- M8 × 1.0 screw locking
- Non-shielded construction
- Solder termination
- IP67 protection
- Compact integrated cable assembly

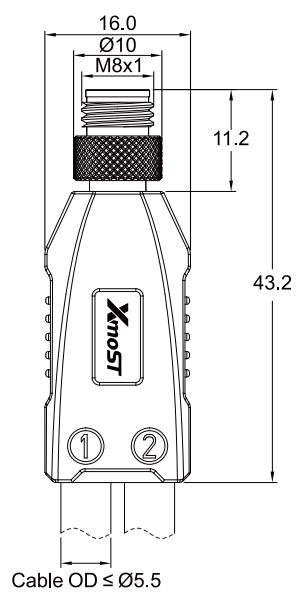

Dimensions
M8 1-to-2 splitter connector uses a molded cable assembly with an M8 × 1.0 threaded connection. The integrated splitter body connects the main cable to two branch cables in a compact configuration.
Please refer to the product drawing for detailed dimensions, cable lengths, branch spacing, and connector geometry.All dimensions are in mm.
1-to-2 Splitter Configuration
Unlike a standard M8 molded plug, this product uses a 1-to-2 splitter configuration, allowing one cable assembly to branch into two connection paths.

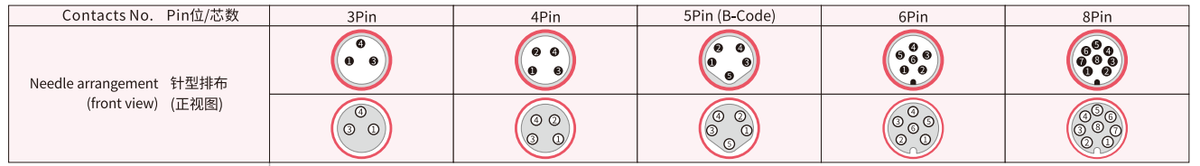

The 4-pin male interface is provided on the connector side, while the molded splitter structure integrates the cable branches into one assembly. This configuration can simplify wiring layouts where multiple M8 connections are required from a common cable run.
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Series | M8 |
| Coding | A-Code / B-Code |
| Contact Configuration | 4 Pin |
| Connector Type | Male 1-to-2 Splitter Connector |
| Construction | Molded |
| Operating Standard | IEC 61076-2-104 |
| Rated Current | 3 A |
| Rated Voltage | 60 V (A-Code) / 30 V (B-Code) |
| Insulation Resistance | ≥100 MΩ |
| Contact Resistance | ≤5 mΩ |
| Shielding Performance | Non-Shielded |
| Locking Method | M8 × 1.0 Screw |
| Screw Torque | Recommended: 0.2 Nm / Max.: 0.4 Nm |
| Wiring Method | Soldering |
| Cable Configuration | Single-Ended Pre-Molded Cable |
| Wire Gauge | 0.25 mm² (AWG24) |
| Operating Temperature | -25°C to +80°C Dynamic / -40°C to +80°C Static |
| IP Rating | IP67 |
| Pollution Degree | 3 |
| Insulator Material | PA + GF / TPU + GF |
| Screw / Nut Material | Brass Ni / Zinc Alloy Ni |
| Pin Material | Phosphor Bronze Au / Brass Au |
| Sealing Material | FKM / Silicone / Epoxy |
| Outer Housing Material | TPU / PVC |
Applications
- Industrial Automation
- Sensor Wiring
- Control Systems
- Factory Equipment
- Machine Wiring
- Industrial Control Equipment
- Multi-Point Connection Systems
M8 A&B-Code splitter connector is suitable for industrial wiring layouts that require one cable assembly to provide two connection paths.
