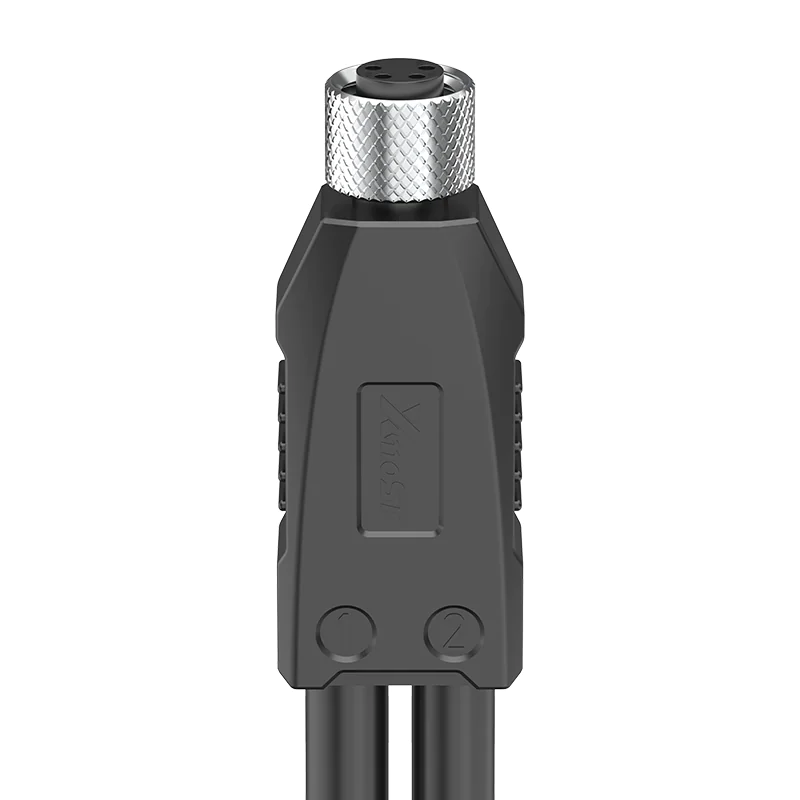

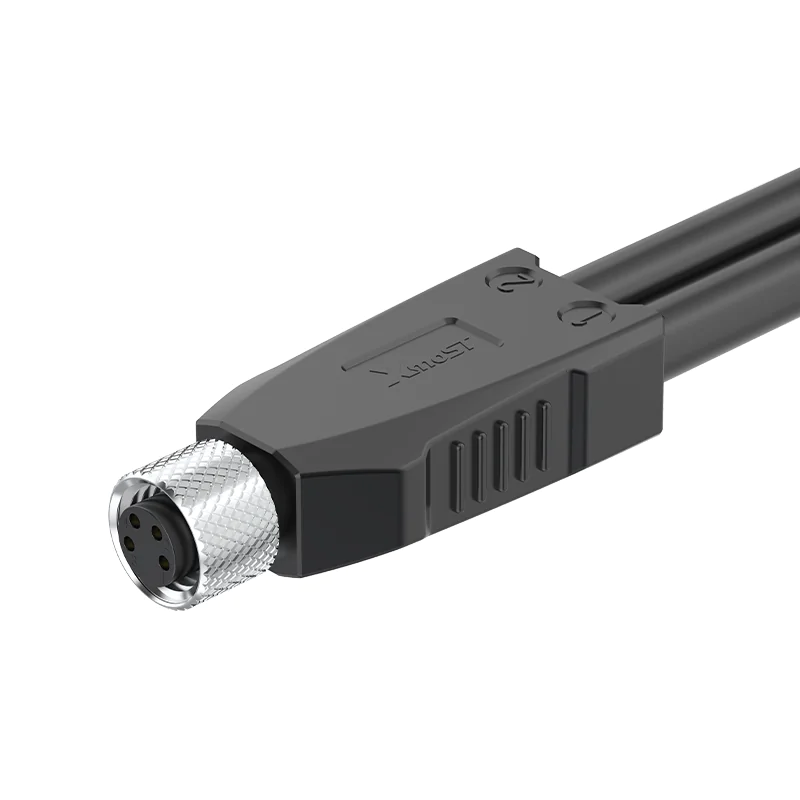

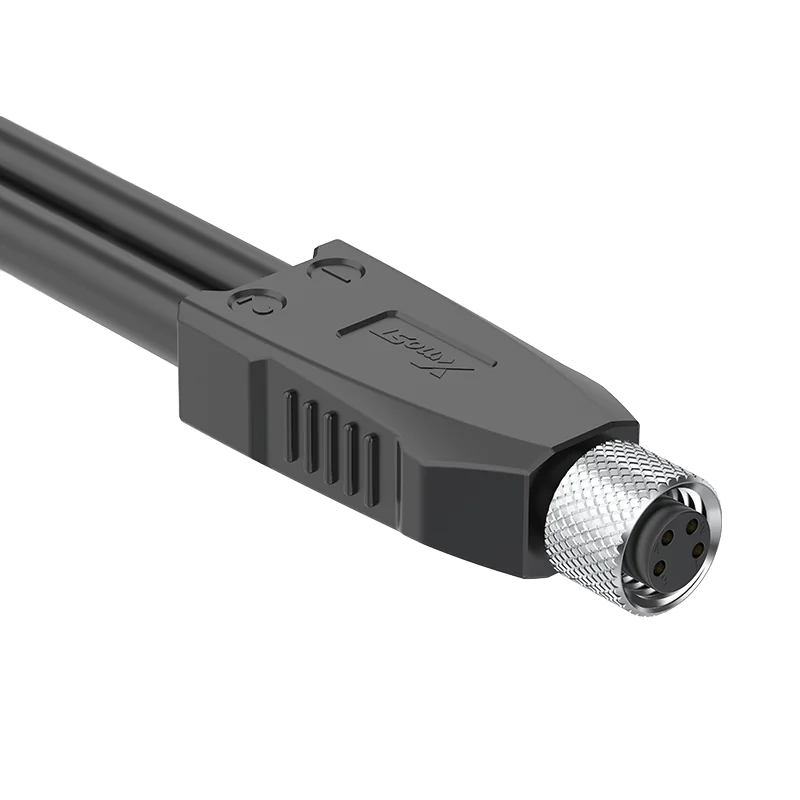

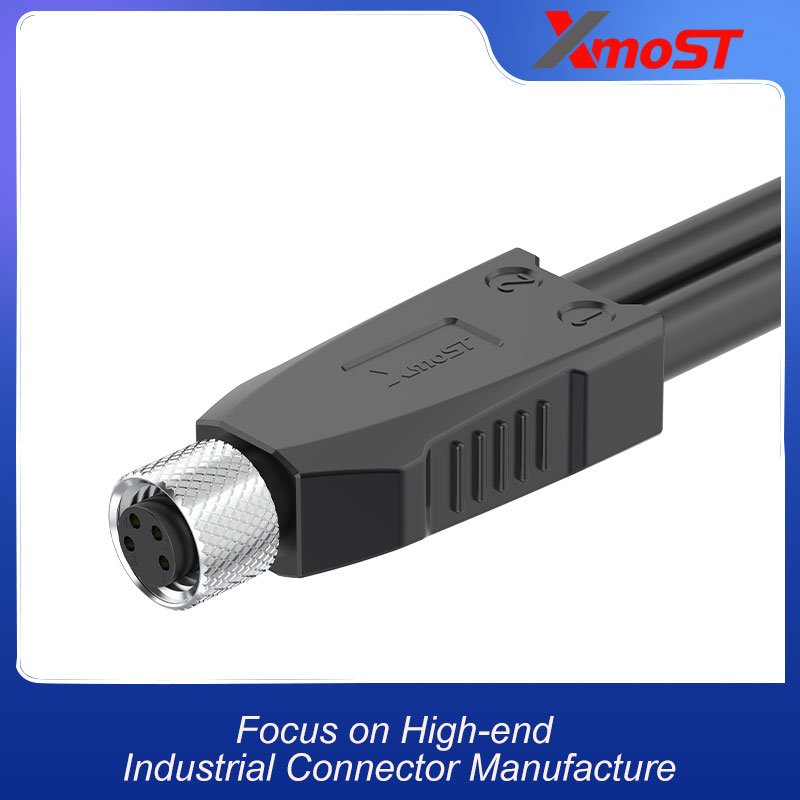

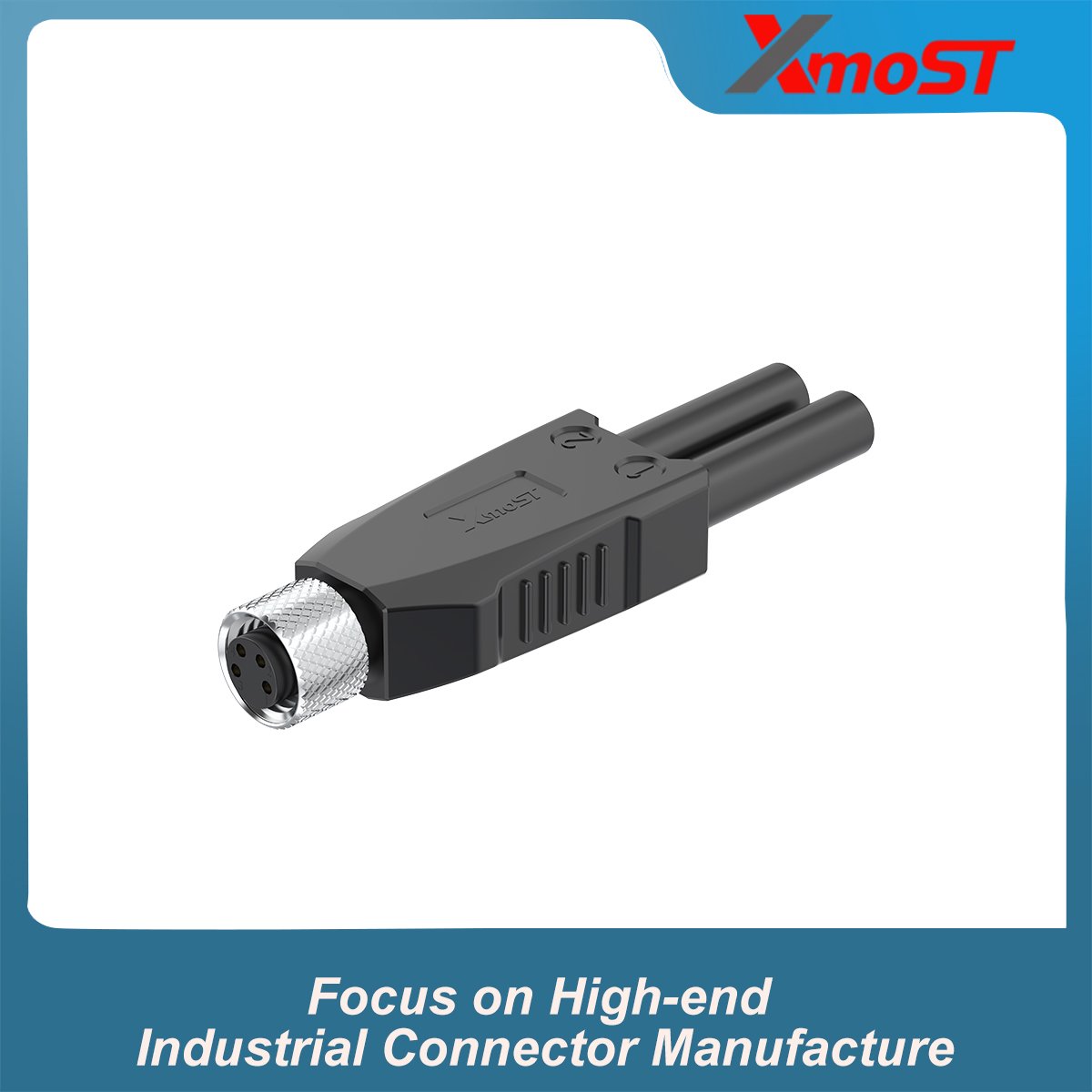

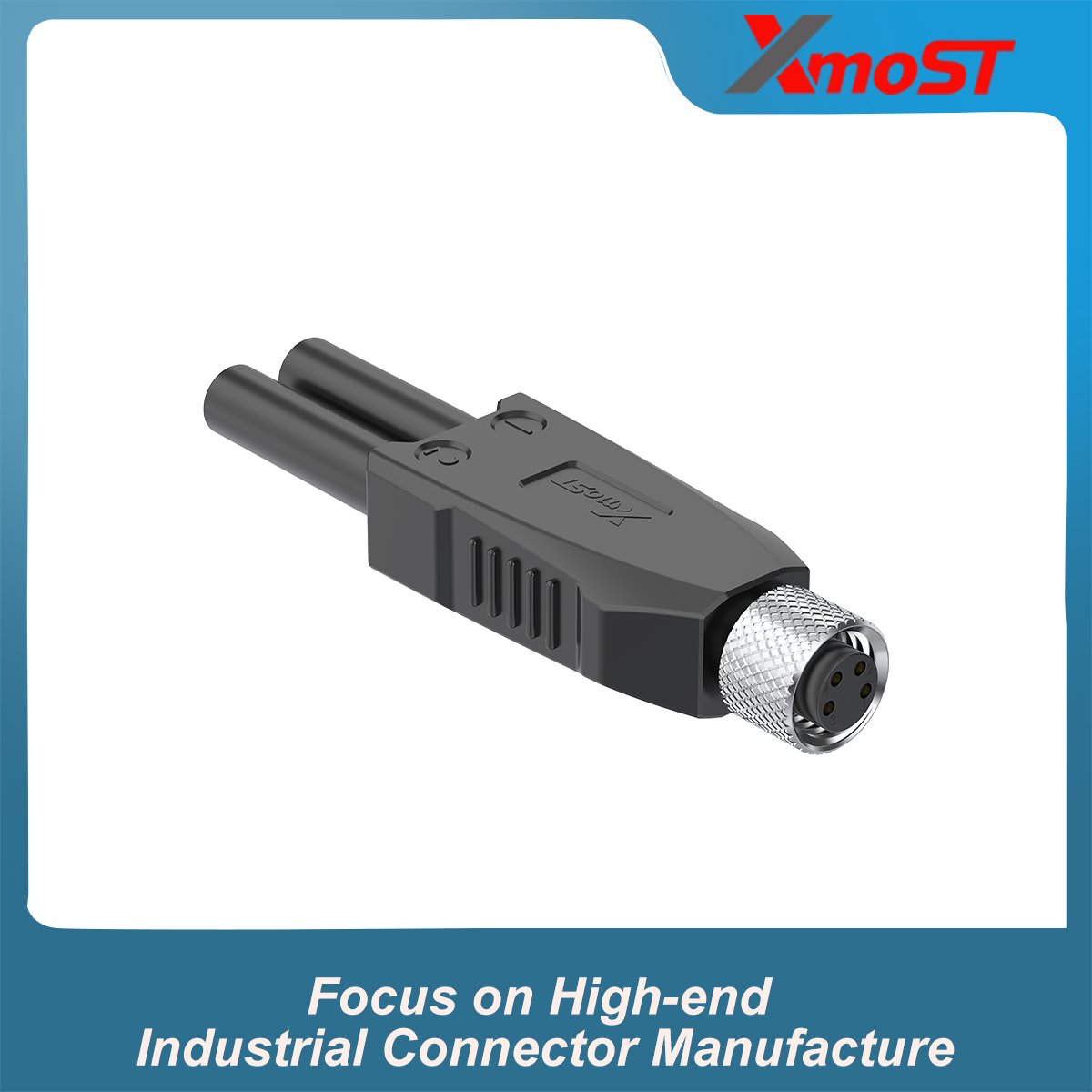

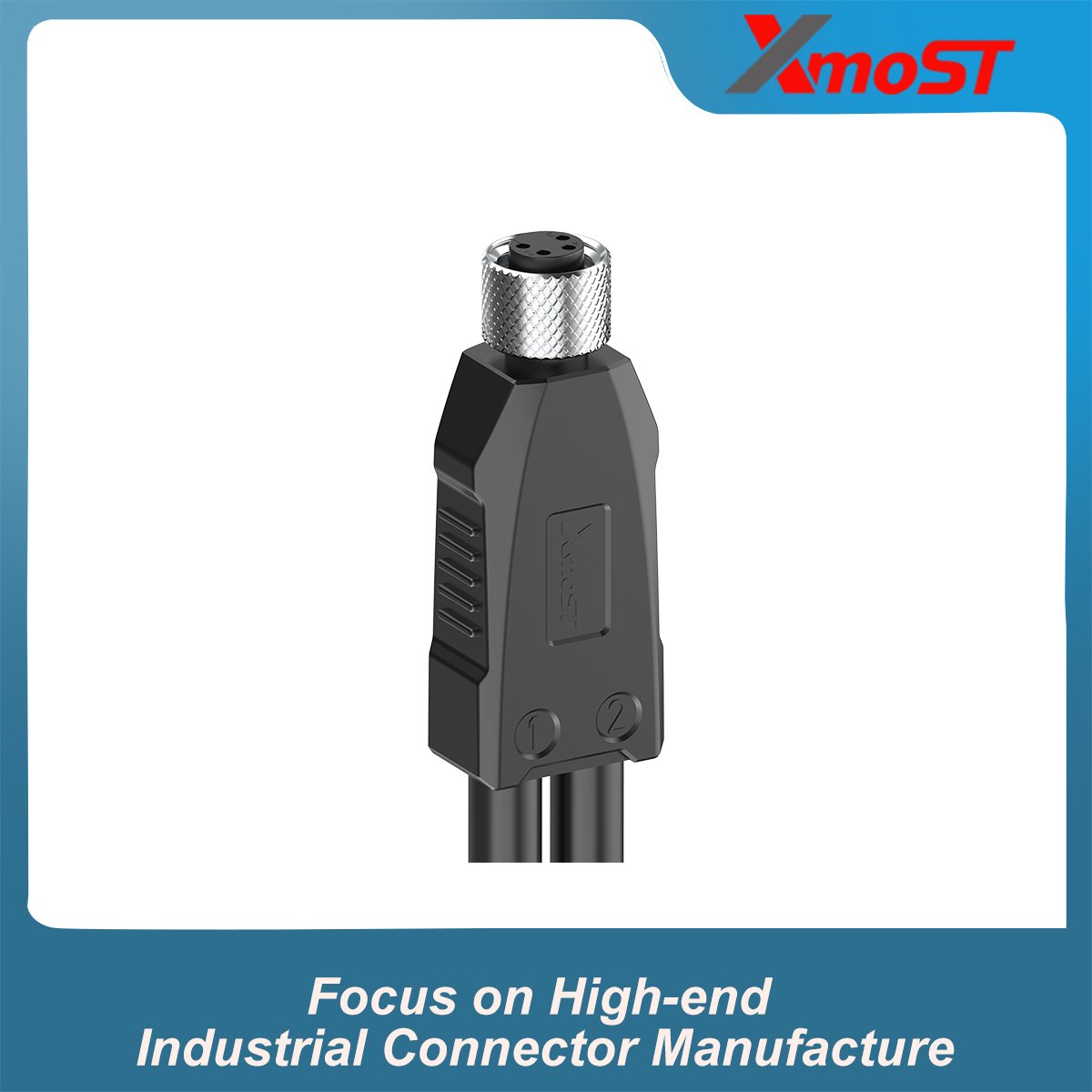

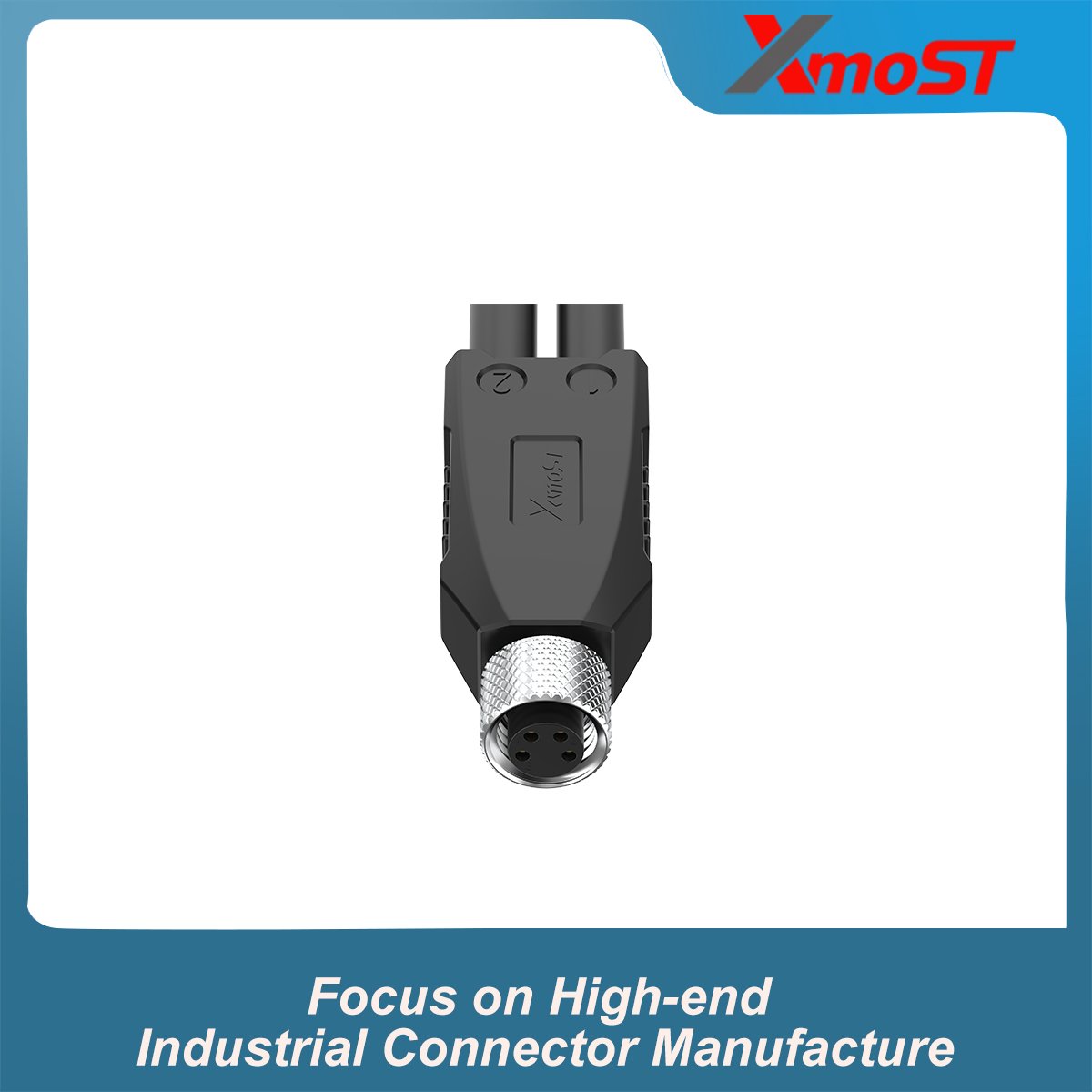

M8 A&B-Code 4-Pin Female 1-to-2 Splitter Connector is a molded M8 cable assembly that combines a female connection interface with a two-branch cable configuration. It provides a practical way to distribute one connection into two cable paths within a compact M8 assembly.
The M8 A&B-Code splitter connector supports A-Code and B-Code configurations and uses an M8 × 1.0 screw locking system. With a 4-pin female interface, single-ended pre-molded cable, non-shielded construction, and IP67 protection, it is suited to industrial wiring and equipment connection applications.
Key Features
- M8 A&B-Code 4-Pin Female Connector
- 1-to-2 molded splitter configuration
- Female socket interface
- Single-ended pre-molded cable
- Supports A-Code and B-Code configurations
- M8 × 1.0 screw locking
- Non-shielded construction
- IP67 protection
- Integrated cable assembly
Dimensions
Connector uses a molded splitter housing with an M8 × 1.0 screw locking interface and integrated cable branches.

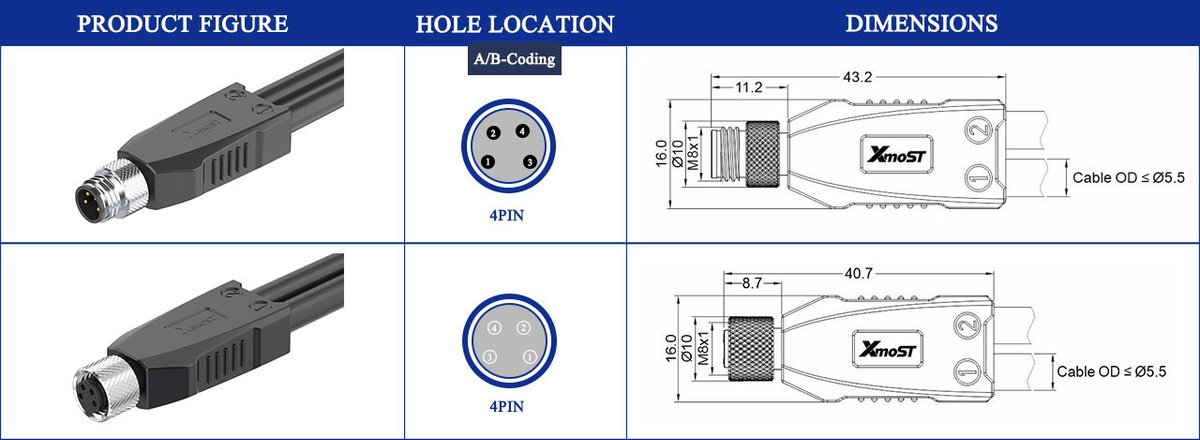

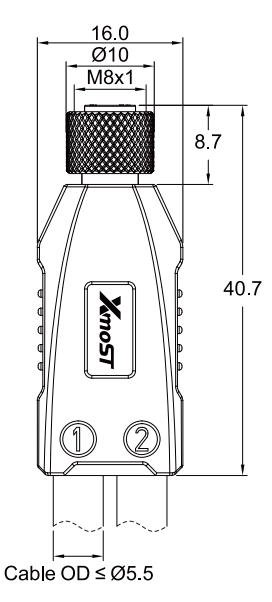

Please refer to the dimensional drawing for the exact connector and cable dimensions.All dimensions are in mm.
1-to-2 Splitter Configuration
4-pin female M8 interface connects to a compatible male connector, while the molded splitter section divides the cable assembly into two branches.
This configuration allows two downstream connection paths to be arranged from a common cable assembly, reducing the need for separate cable runs in suitable industrial wiring layouts.
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Series | M8 |
| Coding | A-Code / B-Code |
| Contact Configuration | 4 Pin |
| Connector Type | Female 1-to-2 Splitter Connector |
| Construction | Molded |
| Operating Standard | IEC 61076-2-104 |
| Rated Current | 3 A |
| Rated Voltage | 60 V (A-Code) / 30 V (B-Code) |
| Insulation Resistance | ≥100 MΩ |
| Contact Resistance | ≤5 mΩ |
| Shielding Performance | Non-Shielded |
| Locking Method | M8 × 1.0 Screw |
| Screw Torque | Recommended: 0.2 Nm / Max.: 0.4 Nm |
| Wiring Method | Soldering |
| Cable Configuration | Single-Ended Pre-Molded Cable |
| Wire Gauge | 0.25 mm² (AWG24) |
| Operating Temperature | -25°C to +80°C Dynamic / -40°C to +80°C Static |
| IP Rating | IP67 |
| Pollution Degree | 3 |
| Insulator Material | PA + GF / TPU + GF |
| Screw / Nut Material | Brass Ni / Zinc Alloy Ni |
| Pin Material | Phosphor Bronze Au / Brass Au |
| Sealing Material | FKM / Silicone / Epoxy |
| Outer Housing Material | TPU / PVC |
Applications
- Industrial Automation
- Sensor Wiring
- Control Systems
- Factory Equipment
- Machine Wiring
- Industrial Control Equipment
- Multi-Point Connection Systems
M8 4-Pin Female Splitter Connector is suitable for wiring layouts where a female M8 connection and two cable branches are required within one integrated assembly.
