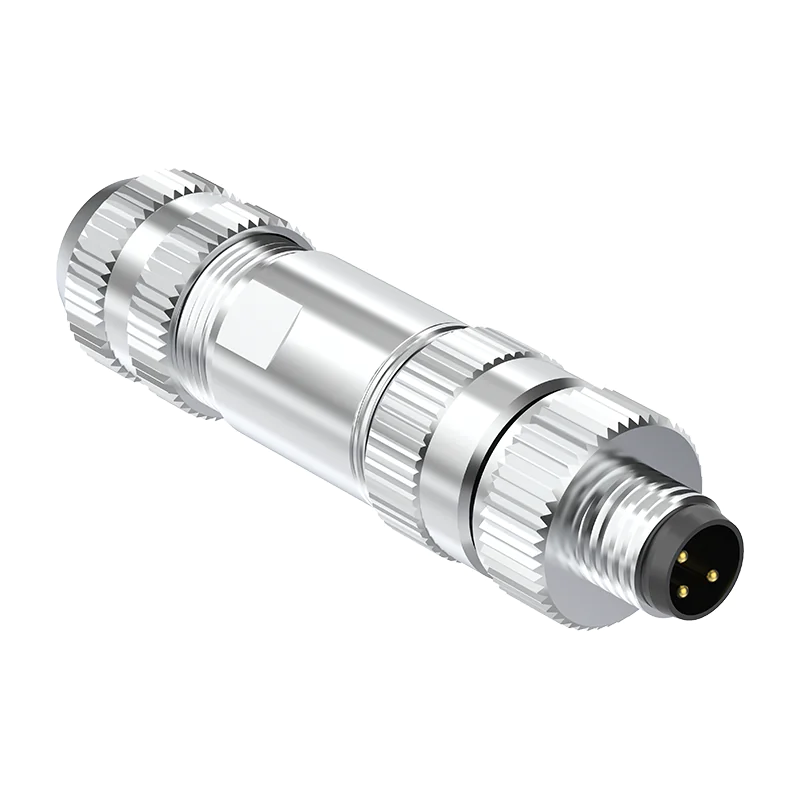

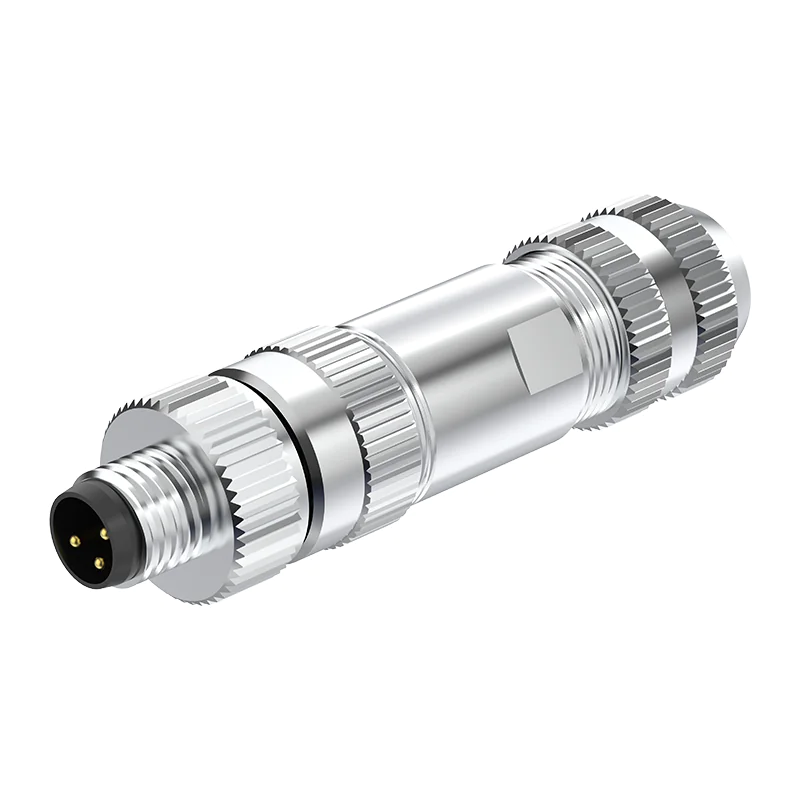

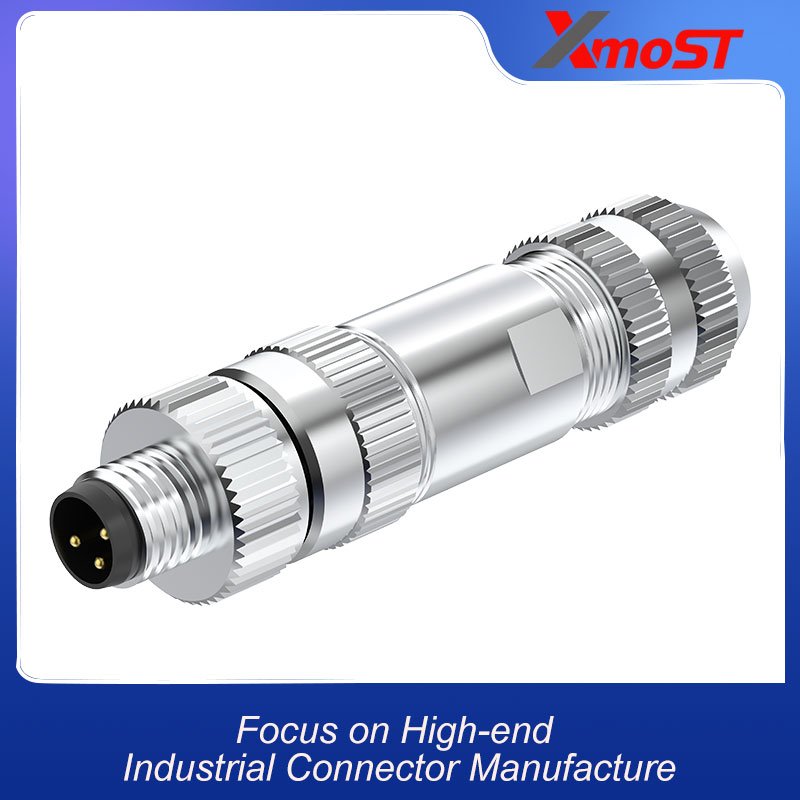

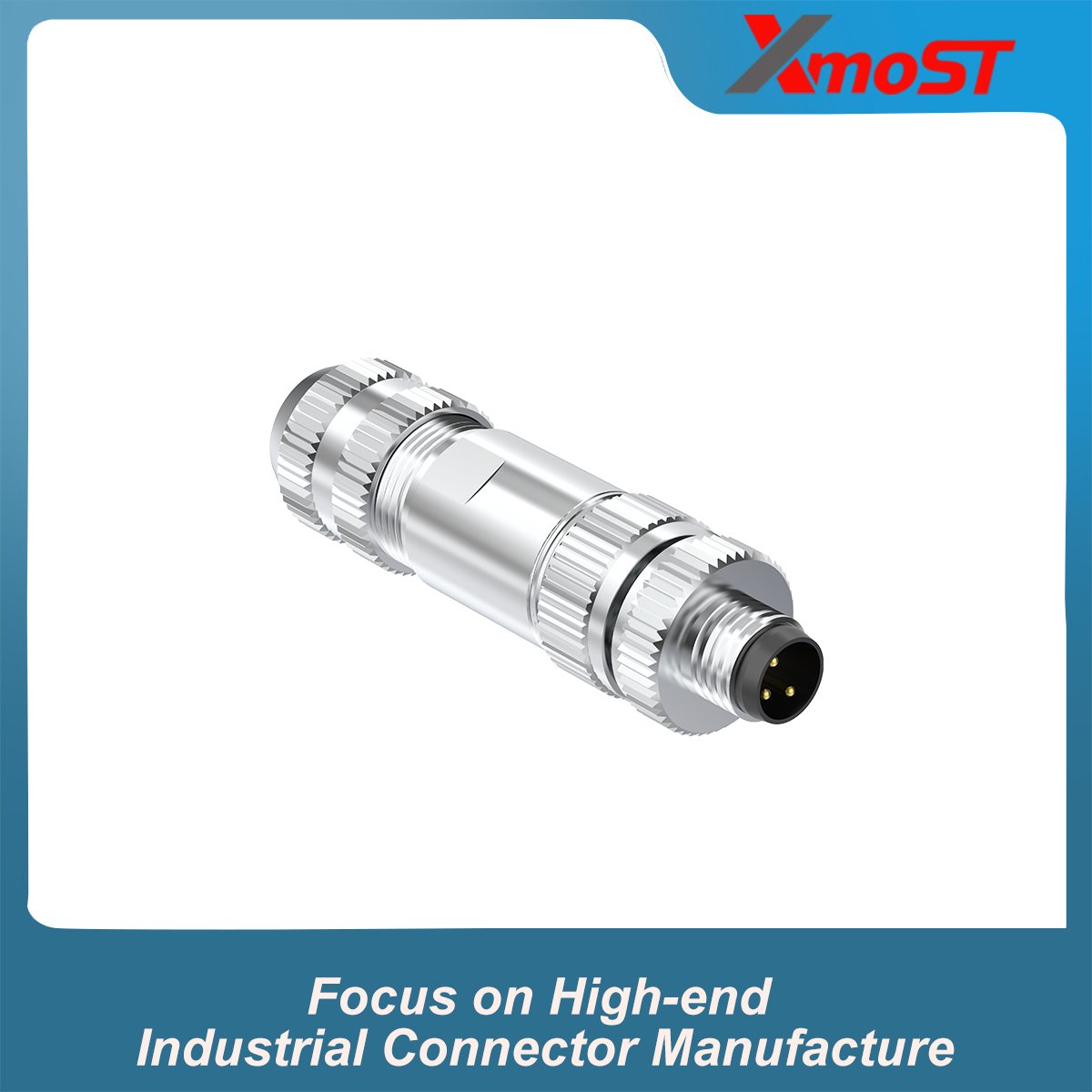

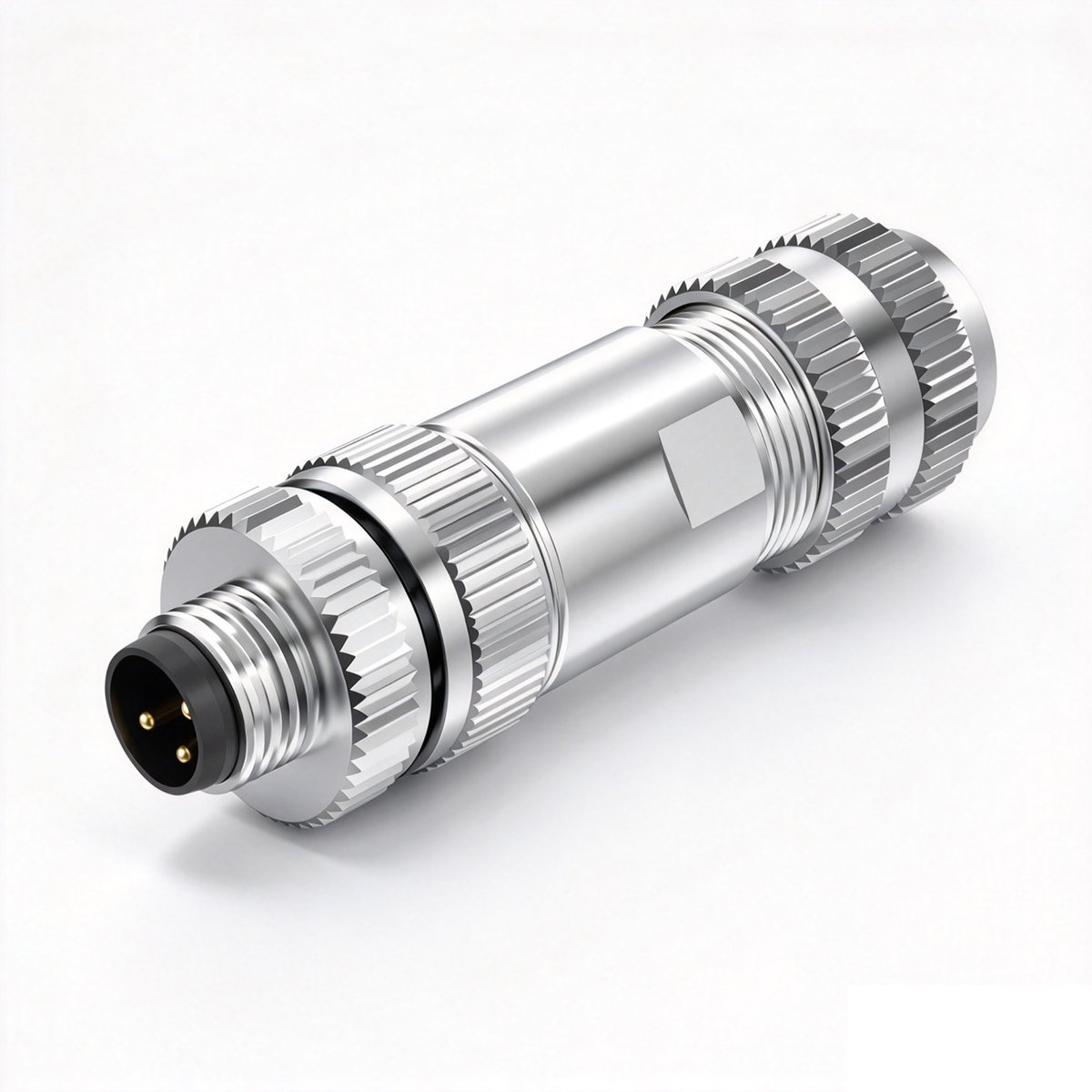

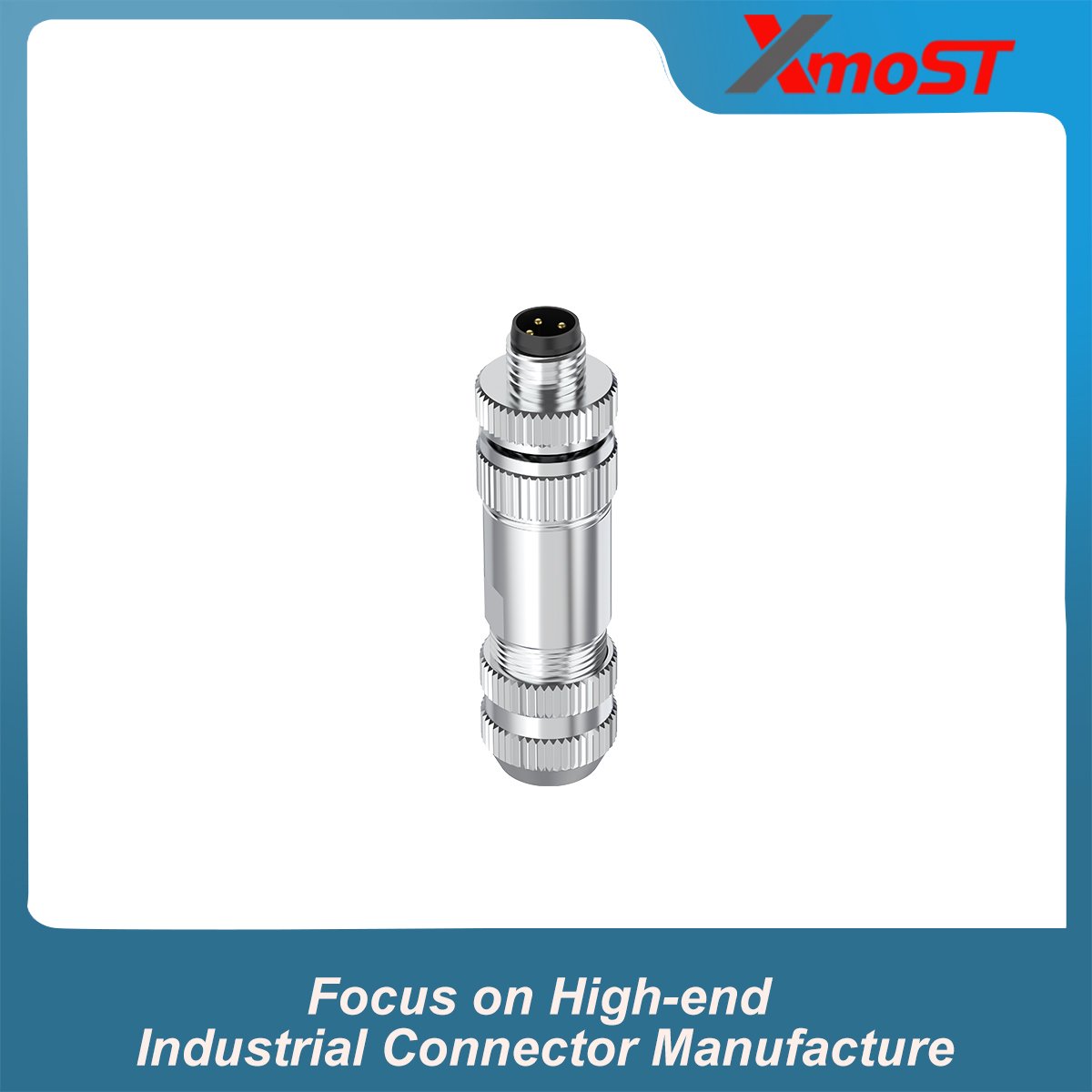

M8 3-Pin A&B-Code Male Straight Assembled Connector is a metal-bodied M8 connector designed for solder termination and EMI-shielded industrial connections. The straight configuration provides a direct cable entry, while the assembled construction allows the connector to be integrated into custom cable assemblies.
Available for A-Code and B-Code applications, the connector uses a 3-pin male interface and an M8 × 1.0 screw locking system. The A-Code version is rated for 3 A at 60 V, while the B-Code version is rated for 3 A at 30 V.
With its metal housing and shielded construction, this M8 3-Pin Male Connector is suitable for industrial wiring where a solderable, shielded connection is required.
Key Features
- M8 3-Pin Male Connector
- A-Code / B-Code configurations
- Straight assembled construction
- Metal housing
- EMI-Shielded design
- Solder-type termination
- M8 × 1.0 screw locking
- 3 A rated current
- IP67 protection

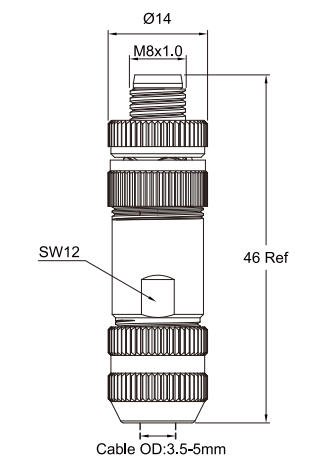

Dimensions
Connector uses a straight metal housing with an M8 × 1.0 screw locking interface and a cable entry suitable for Ø3–5 mm cable.
Please refer to the product drawing for detailed housing and mounting dimensions.All dimensions are in mm.

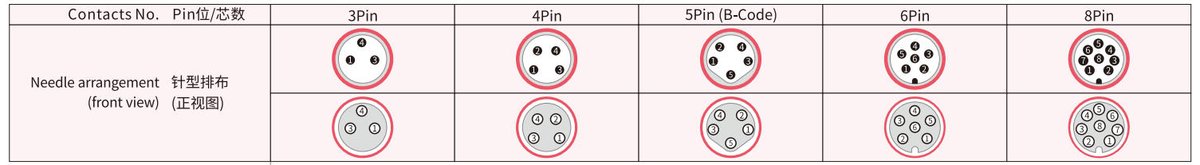

Male Contact Configuration

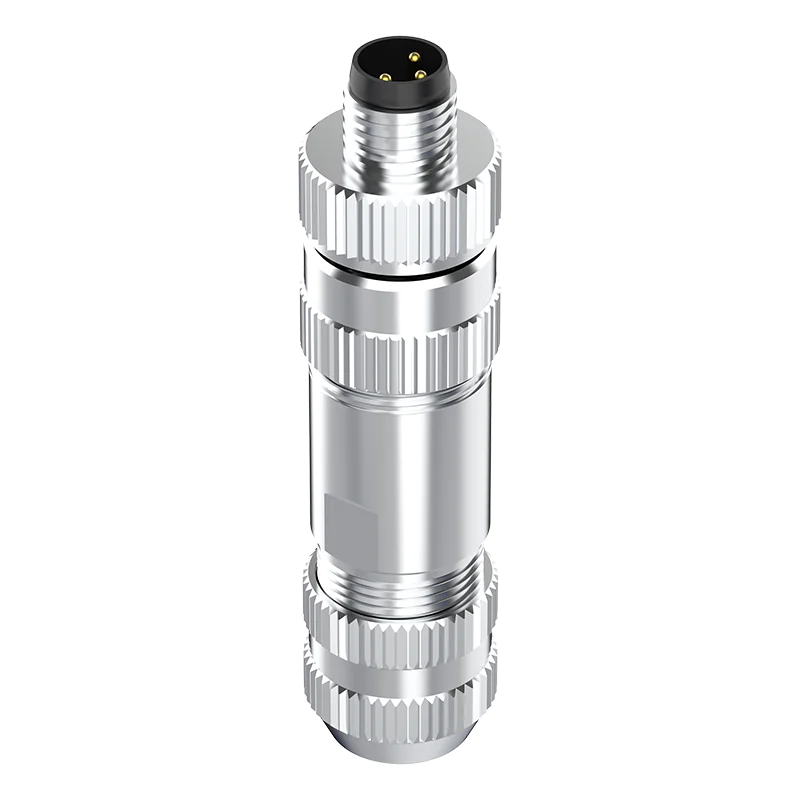

3-pin male interface provides the plug-side connection for compatible M8 female sockets. The straight connector body keeps the cable entry aligned with the mating axis, making it suitable for conventional cable routing and assembled wiring harnesses.
A-Code and B-Code versions use their corresponding M8 coding configurations for compatible mating connections.
Metal Housing and Shielding
The metal housing forms an EMI-shielded connector structure around the contact area. This makes the connector suitable for applications where shielding is required as part of the cable connection.
Unlike an overmolded cable connector, the assembled design allows the cable to be terminated by soldering during cable assembly.
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Series | M8 |
| Contact Configuration | 3 Pin |
| Coding | A-Code / B-Code |
| Connector Type | Male Straight Assembled Connector |
| Housing Type | Metal |
| Operating Standard | IEC 61076-2-104 |
| Rated Current | 3 A |
| Rated Voltage | 60 V (A-Code) / 30 V (B-Code) |
| Insulation Resistance | ≥100 MΩ |
| Contact Resistance | ≤5 mΩ |
| Shielding Performance | Shielded / EMI-Shielded |
| Locking Method | M8 × 1.0 Screw |
| Screw Torque | Recommended: 0.2 Nm / Max.: 0.4 Nm |
| Wiring Method | Soldering |
| Wire Gauge Range | 0.25 mm² (AWG24) |
| Wire Size | Ø3–5 mm |
| IP Rating | IP67 |
| Pollution Degree | 3 |
| Insulator Material | PA + GF / TPU + GF |
| Screw / Nut Material | Brass Ni / Zinc Alloy Ni |
| Pin Material | Phosphor Bronze Au / Brass Au |
| Sealing Material | FKM / Silicone / Epoxy |
| Outer Housing Material | Brass Ni / Zinc Alloy Ni |
Applications
- Industrial Automation
- Industrial Sensors
- Control Systems
- Measurement Equipment
- Factory Equipment
- Industrial Machinery
- Custom Cable Assemblies
M8 A-Code / B-Code Male Connector is suitable for applications requiring a compact, shielded, solder-terminated connection that can be integrated into custom wiring assemblies.
