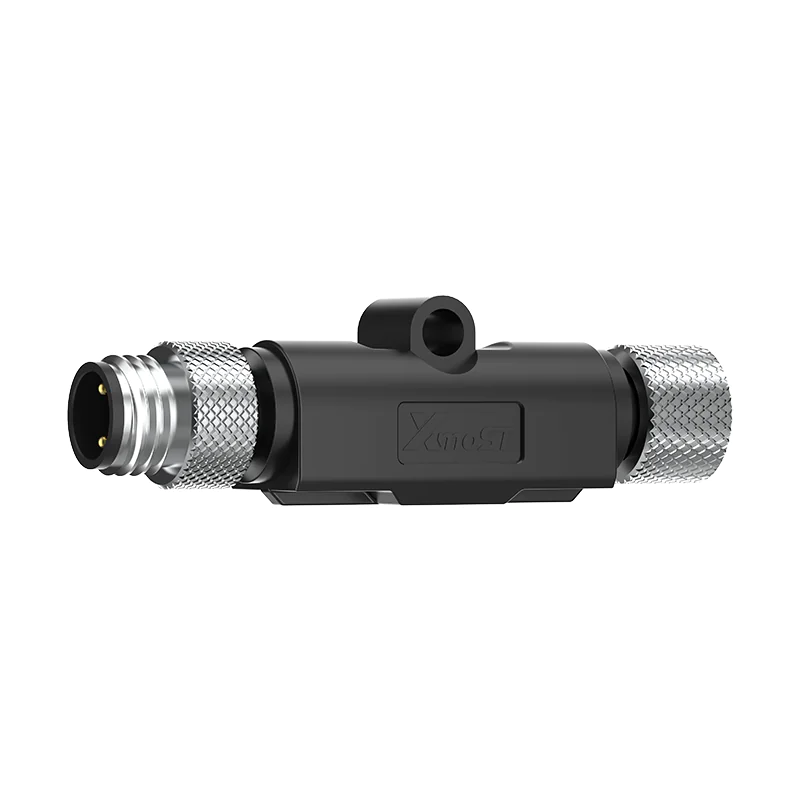

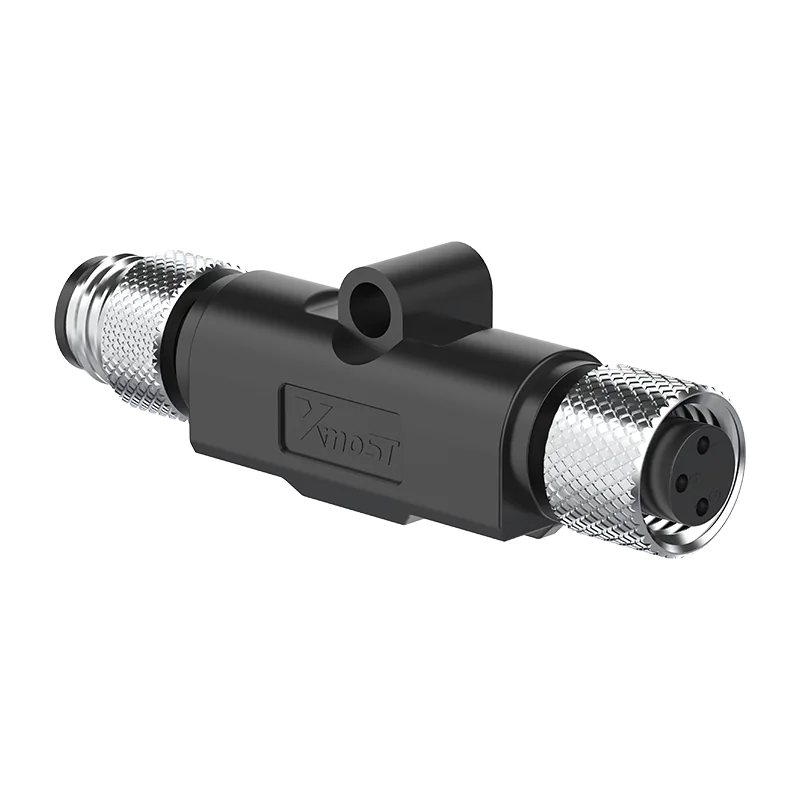

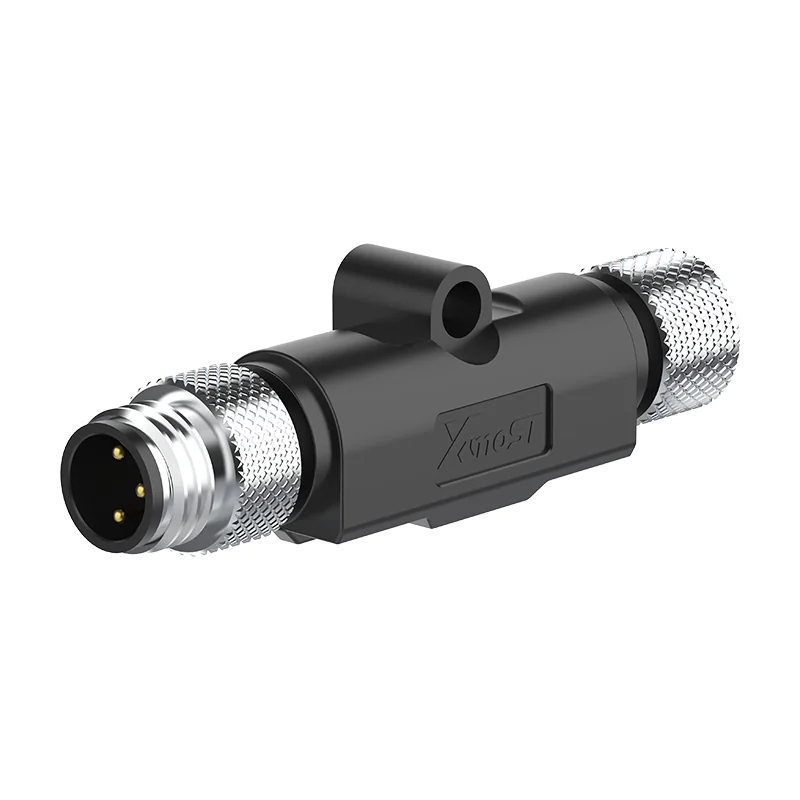

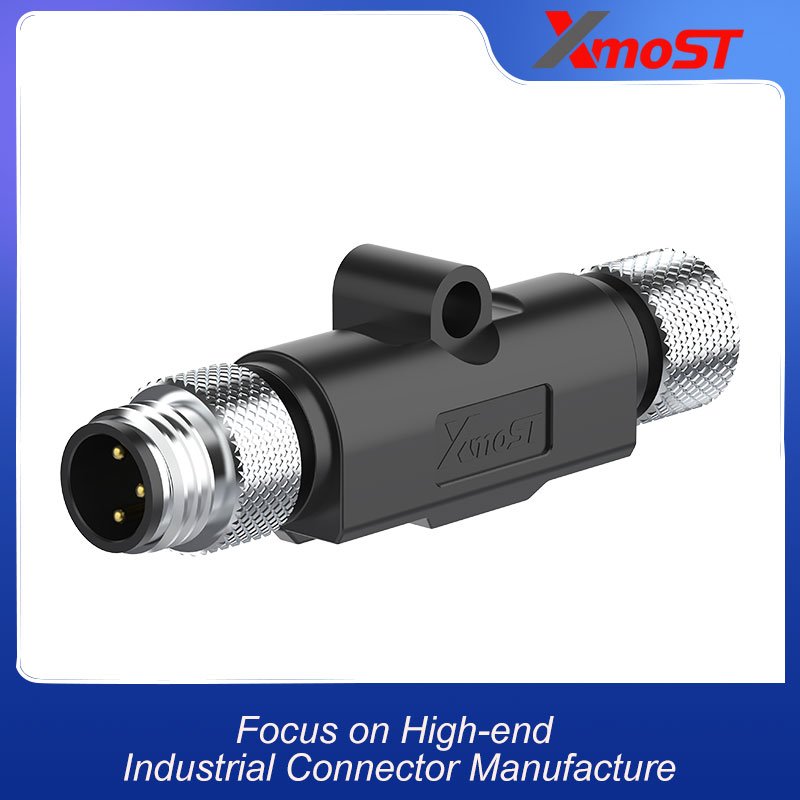

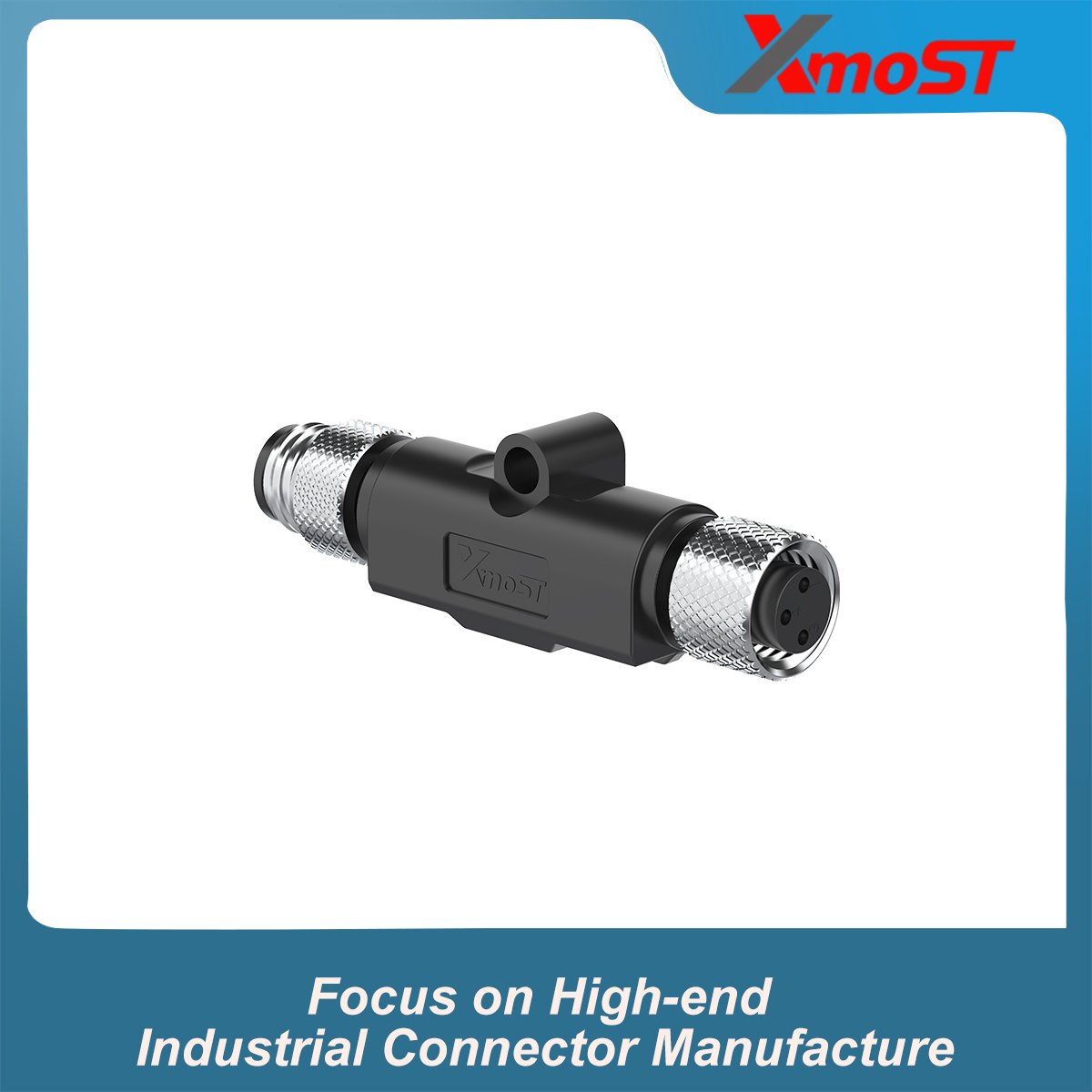

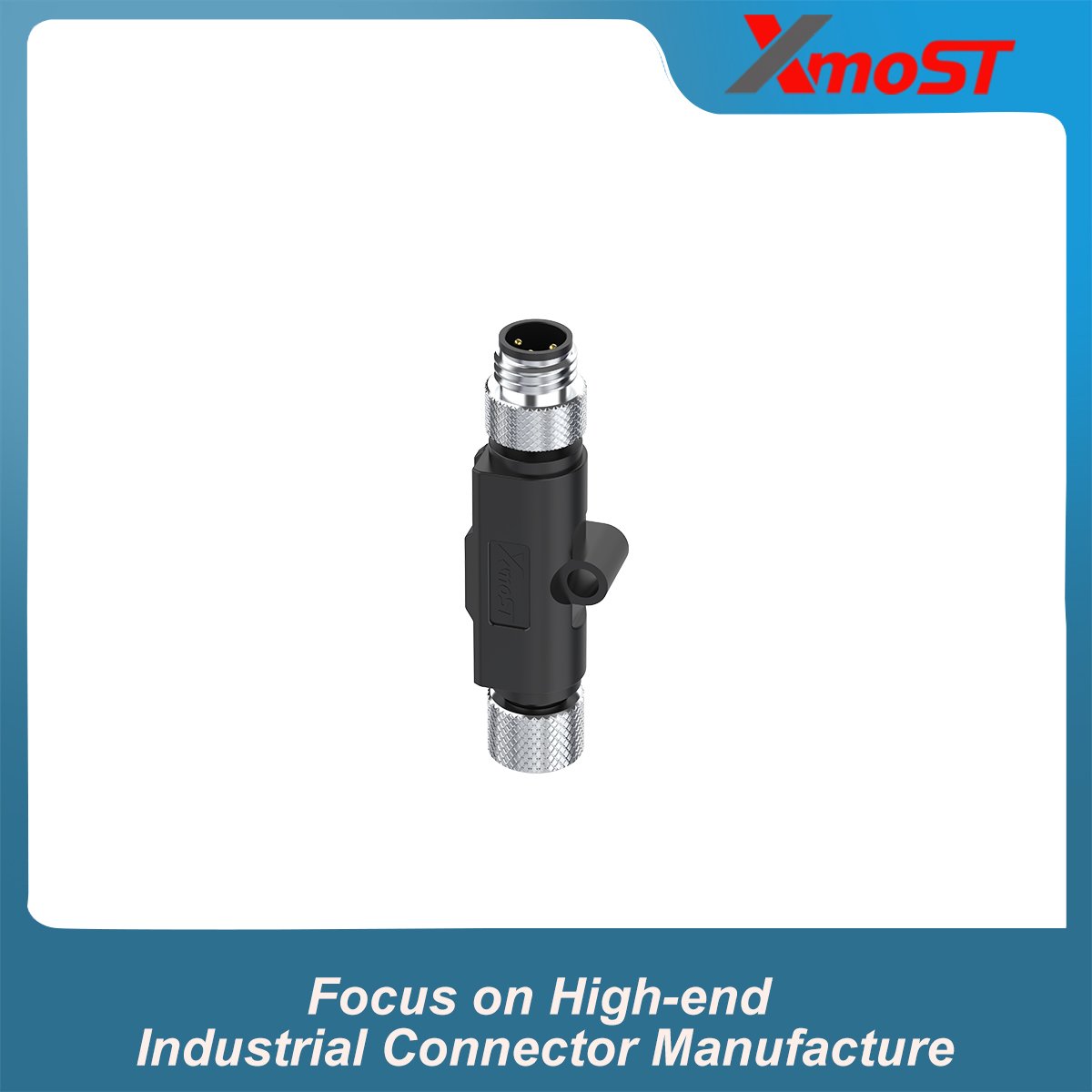

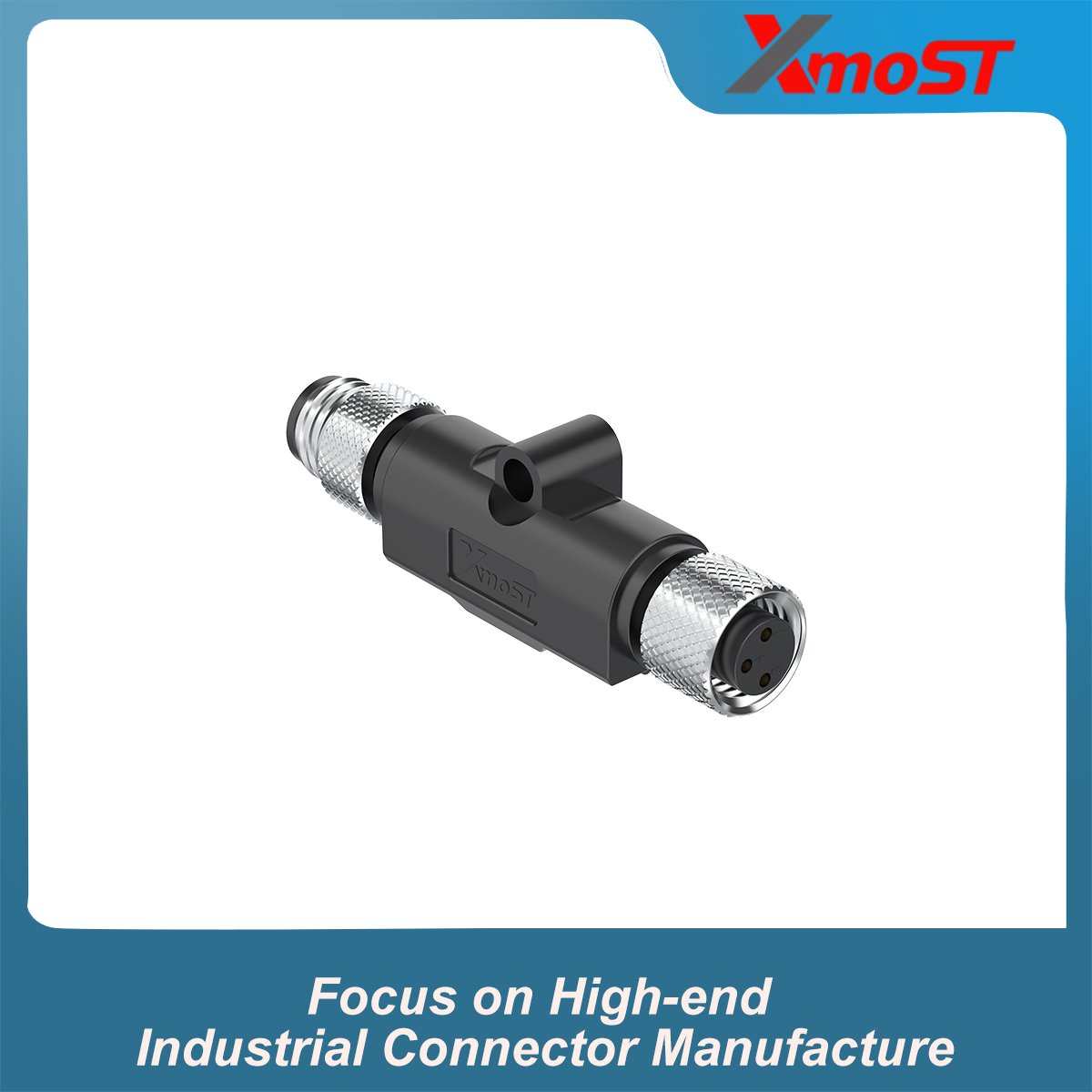

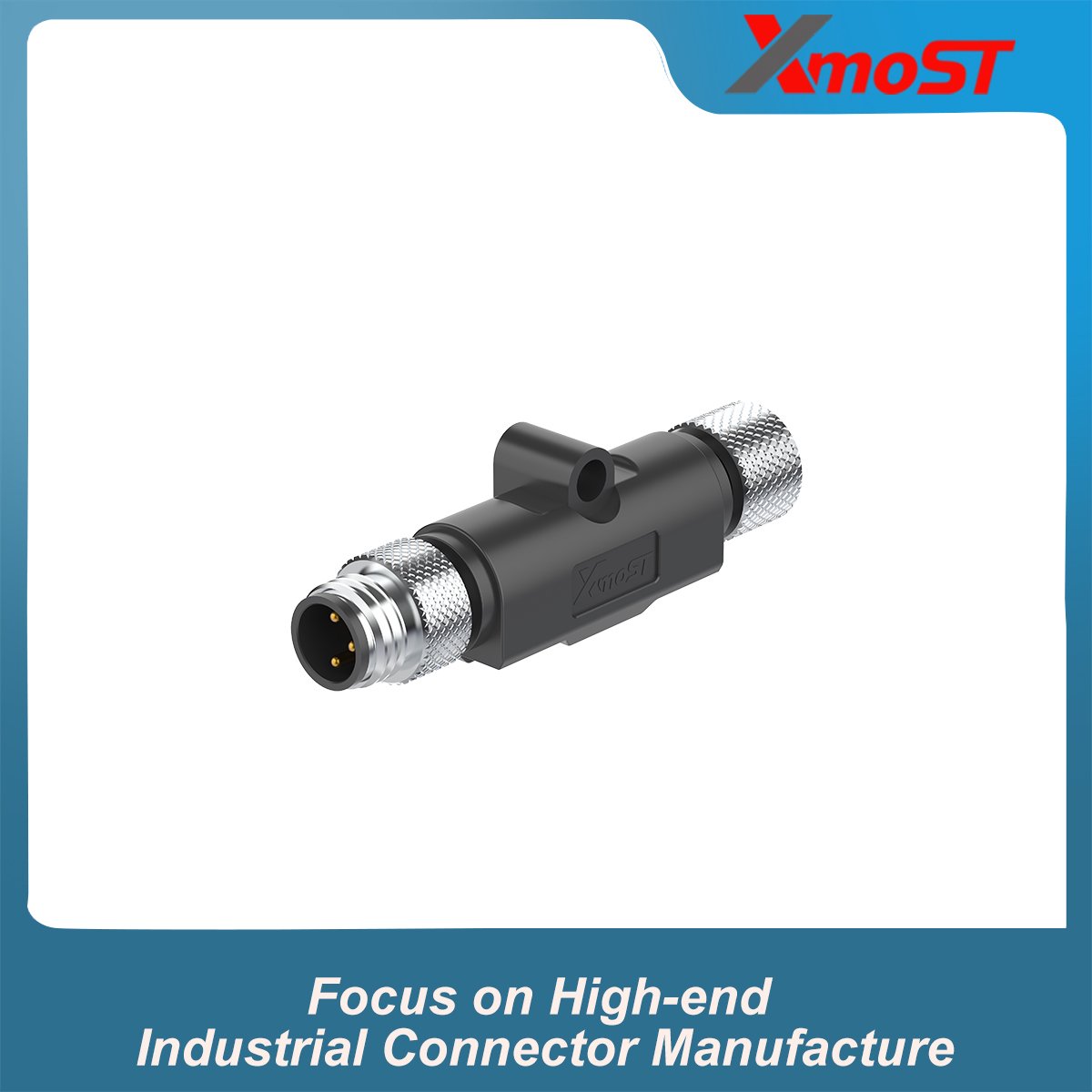

M8 A&B-Code 3-Pin Female-to-Male I-Type Splitter Connector is an inline adapter designed to connect compatible M8 female and male interfaces in a compact straight-through configuration. It supports A-Code and B-Code 3-pin connection requirements and uses the standard M8 × 1.0 screw locking interface.
The connector supports up to 3 A and provides IP67 protection, making it suitable for industrial automation, sensors, control equipment, and other applications requiring a compact M8 inline connection.
Key Features
- M8 A&B-Code 3-pin configuration
- Female-to-male inline connection
- I-type adapter design
- M8 × 1.0 screw locking
- Rated current up to 3 A
- Non-shielded design
- Soldering termination
- IP67 protection
Dimensions

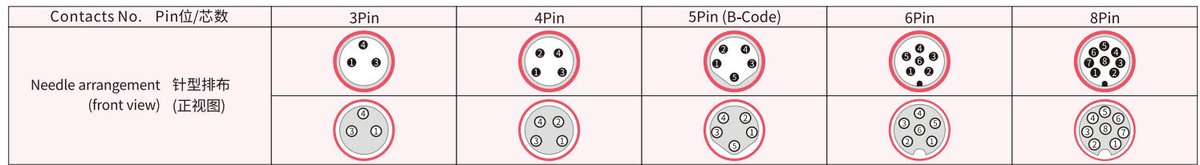

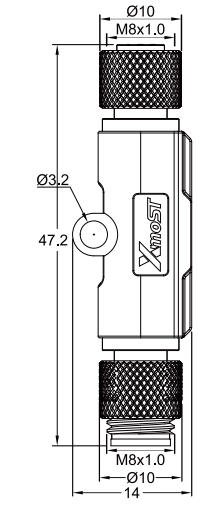

Refer to the product dimensional drawing for detailed dimensions.All dimensions are in mm.
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Series | M8 |
| Coding | A-Code / B-Code |
| Contact Configuration | 3 Pin |
| Connector Type | Female-to-Male I-Type Adapter |
| Operating Standard | IEC 61076-2-104 |
| Rated Current | 3 A |
| Rated Voltage | A-Code: 60 V / B-Code: 30 V |
| Insulation Resistance | ≥100 MΩ |
| Contact Resistance | ≤5 mΩ |
| Shielding Performance | Non-Shielded |
| Locking Method | M8 × 1.0 Screw |
| Screw Torque | Recommended: 0.3 Nm / Max.: 0.6 Nm |
| Wiring Method | Soldering |
| Operating Temperature | -25°C to +80°C Dynamic / -40°C to +80°C Static |
| IP Rating | IP67 |
| Pollution Degree | 3 |
Applications
- Industrial automation
- Sensor connections
- Control systems
- Factory equipment
- Machine wiring
- Industrial instrumentation
