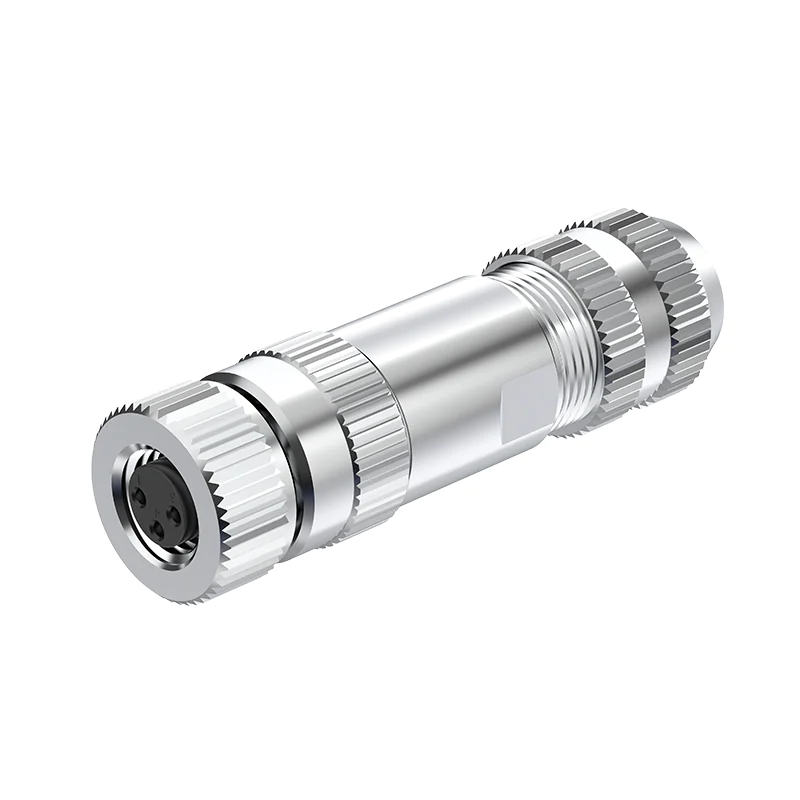

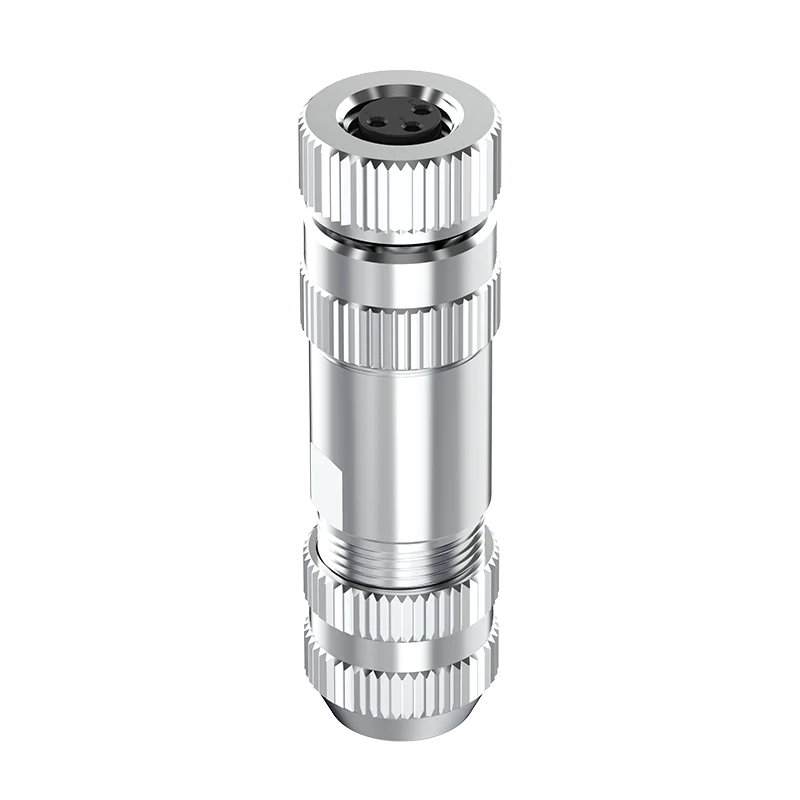

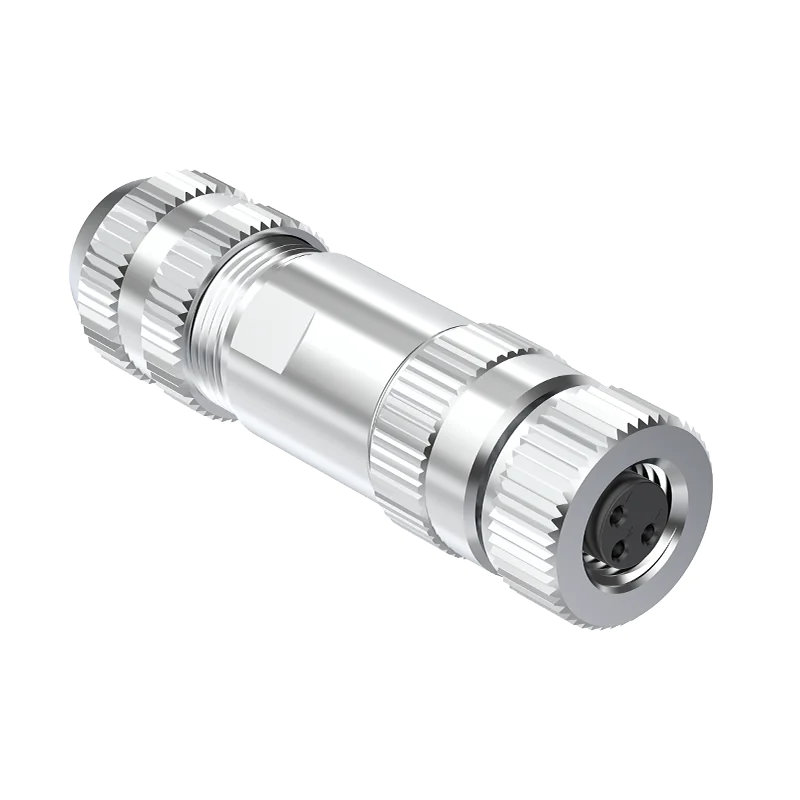

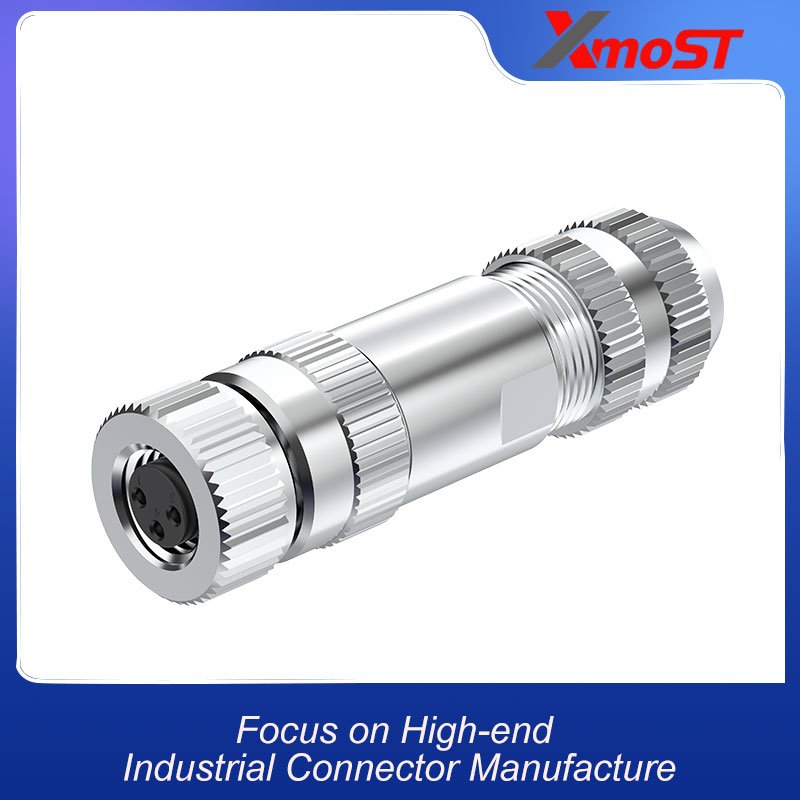

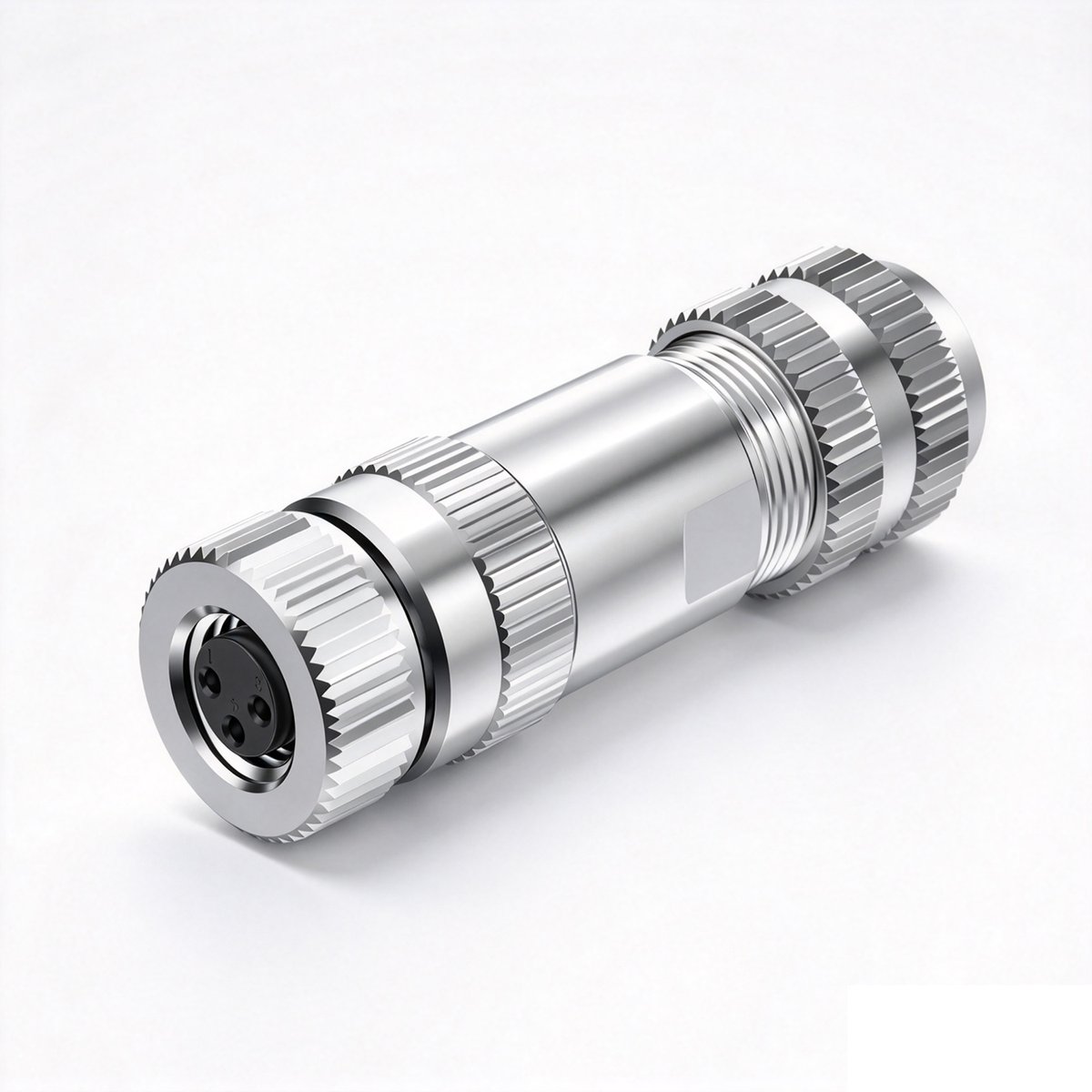

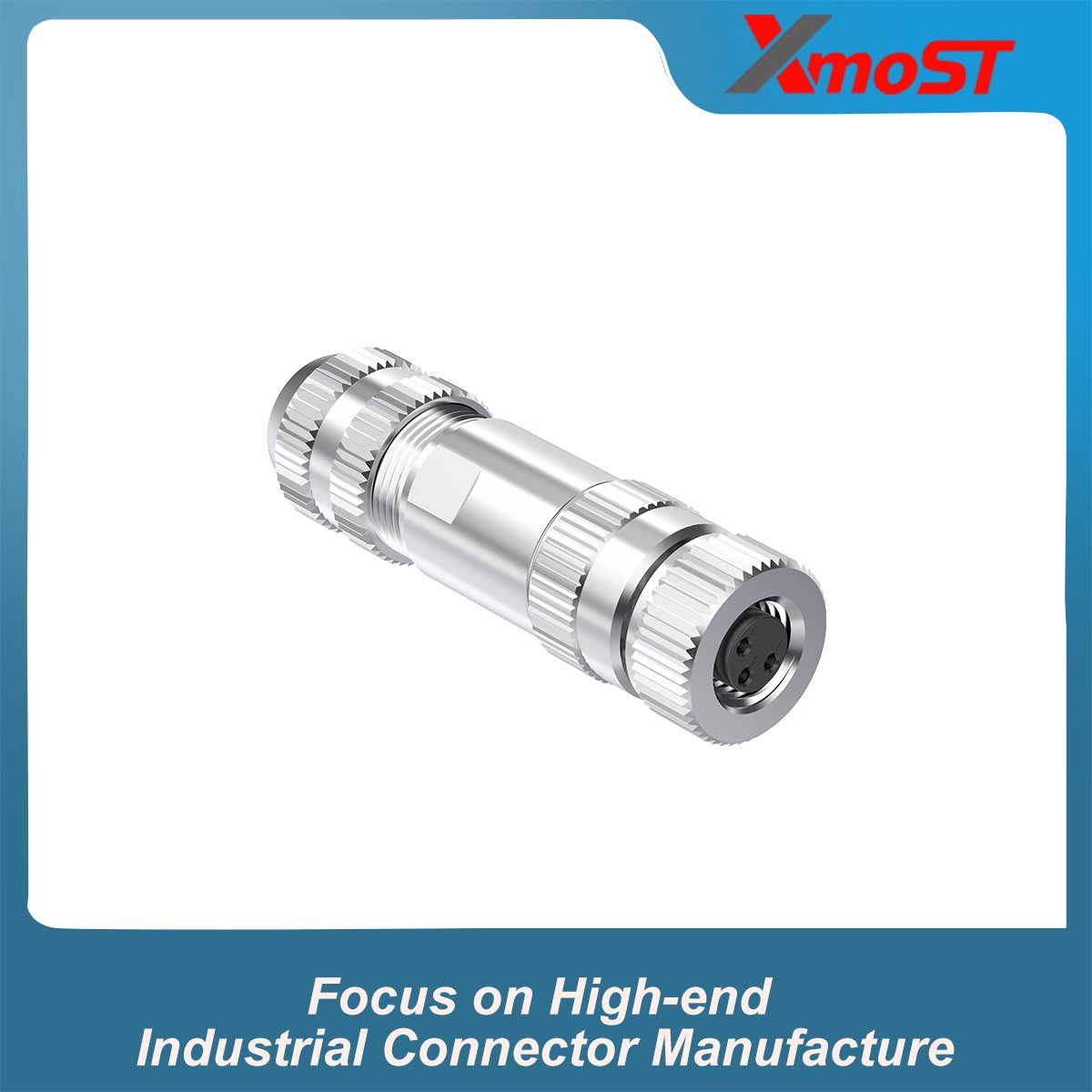

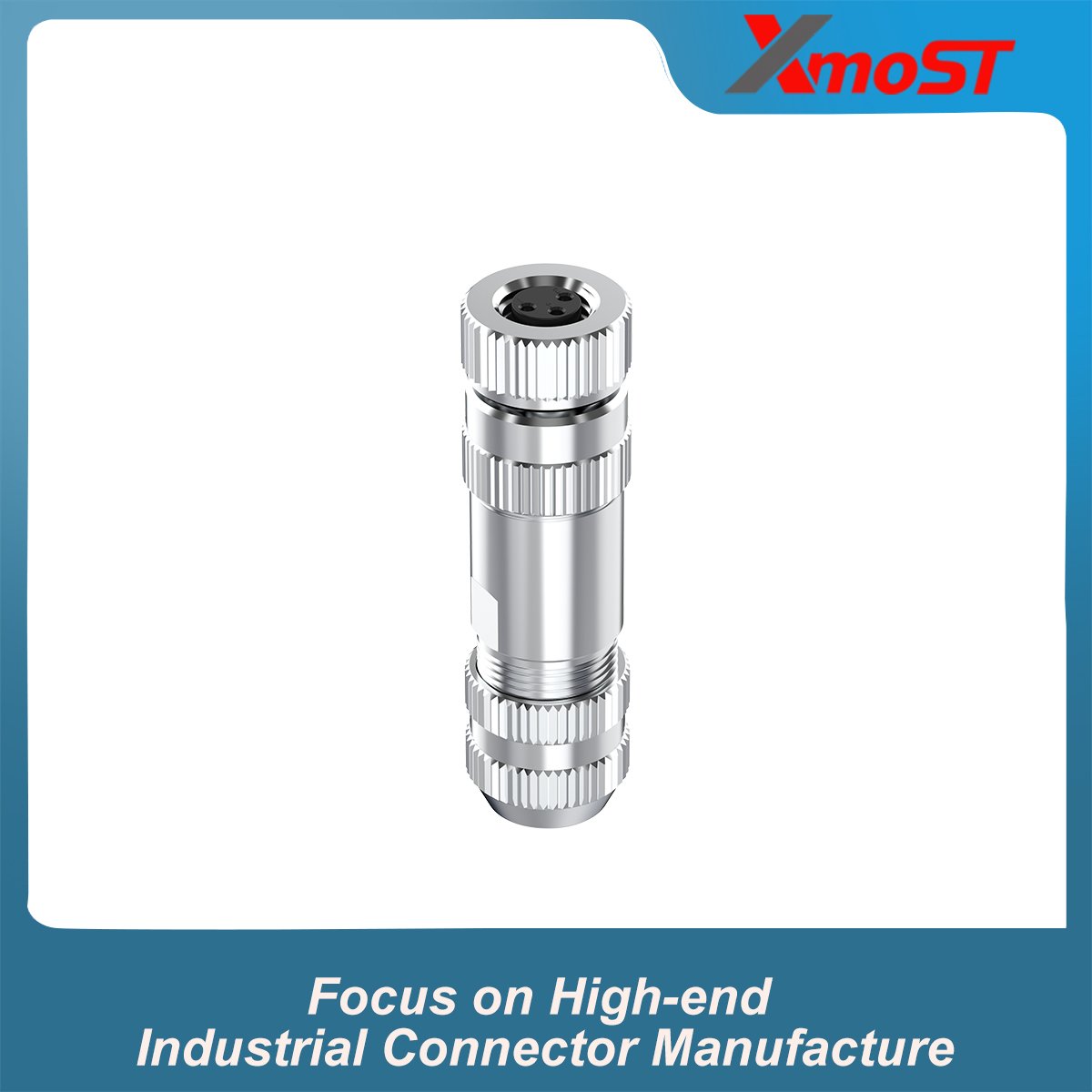

M8 3-Pin A&B-Code Female Straight Assembled Connector provides a compact female connection point for M8 cable assemblies and industrial equipment. Its metal housing incorporates EMI shielding, while the solder-type construction allows the cable conductors to be terminated directly inside the connector.
The connector is available in A-Code and B-Code configurations and uses an M8 × 1.0 screw locking system. Both versions support a rated current of 3 A, with the A-Code configuration rated at 60 V and the B-Code configuration rated at 30 V.
This M8 3-Pin Female Connector is intended for applications requiring a reusable assembled connection rather than a permanently overmolded cable end.
Key Features
- M8 3-Pin Female Connector
- A-Code / B-Code configurations
- Straight assembled socket design
- Metal housing
- EMI-Shielded construction
- Solder termination
- M8 × 1.0 screw locking
- Ø3–5 mm cable compatibility
- IP67 protection

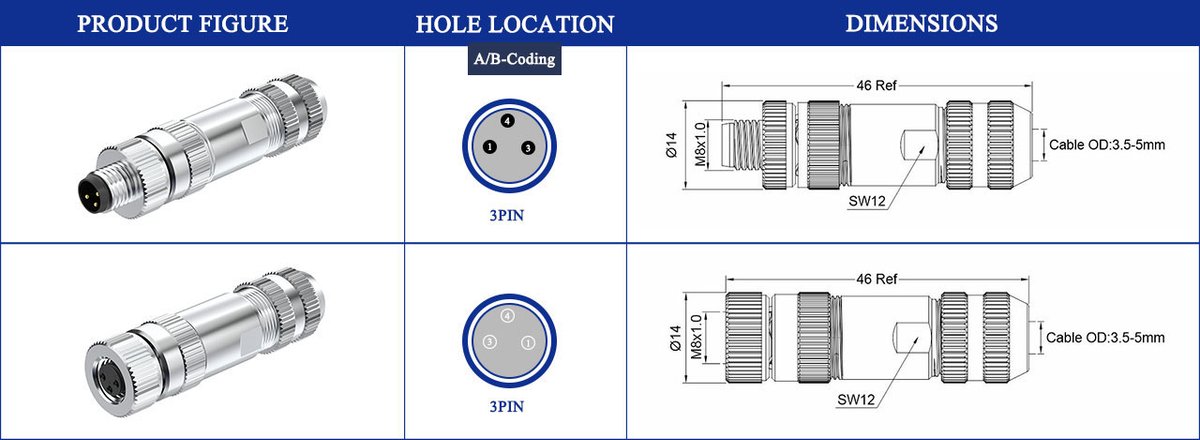

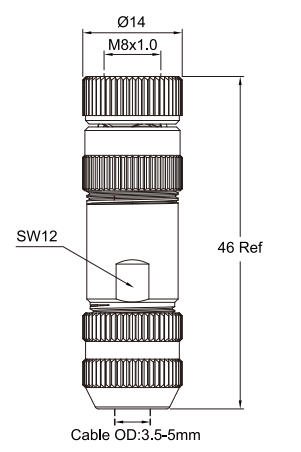

Dimensions
The straight connector housing uses an M8 × 1.0 screw locking interface and accommodates cables with a Ø3–5 mm cable size.
Please refer to the product drawing for detailed connector dimensions and assembly information.All dimensions are in mm.
Configuration
3-pin female socket interface is designed to mate with a compatible M8 male connector. Its straight configuration places the cable entry along the connector axis, providing a conventional layout for equipment wiring and cable assemblies.
A-Code and B-Code versions maintain their respective coding configurations to ensure compatibility with the corresponding M8 mating components.

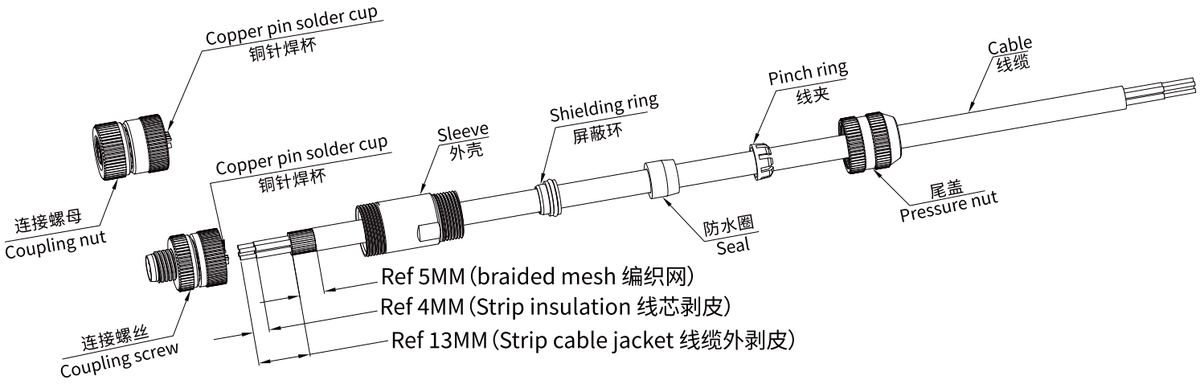

Assembly and Cable Connection
The solder-type construction allows individual conductors to be terminated directly to the connector contacts during assembly. This makes the M8 female assembled connector suitable for custom cable lengths and wiring configurations.
The metal housing provides the connector with its shielded structure, while the sealing components support the IP67 protection rating.
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Series | M8 |
| Contact Configuration | 3 Pin |
| Coding | A-Code / B-Code |
| Connector Type | Female Straight Assembled Connector |
| Housing Type | Metal |
| Operating Standard | IEC 61076-2-104 |
| Rated Current | 3 A |
| Rated Voltage | 60 V (A-Code) / 30 V (B-Code) |
| Insulation Resistance | ≥100 MΩ |
| Contact Resistance | ≤5 mΩ |
| Shielding Performance | Shielded / EMI-Shielded |
| Locking Method | M8 × 1.0 Screw |
| Screw Torque | Recommended: 0.2 Nm / Max.: 0.4 Nm |
| Wiring Method | Soldering |
| Wire Gauge Range | 0.25 mm² (AWG24) |
| Wire Size | Ø3–5 mm |
| IP Rating | IP67 |
| Pollution Degree | 3 |
| Insulator Material | PA + GF / TPU + GF |
| Screw / Nut Material | Brass Ni / Zinc Alloy Ni |
| Pin Material | Phosphor Bronze Au / Brass Au |
| Sealing Material | FKM / Silicone / Epoxy |
| Outer Housing Material | Brass Ni / Zinc Alloy Ni |
Applications
- Industrial Automation
- Industrial Sensors
- Control Systems
- Measurement Equipment
- Factory Equipment
- Industrial Machinery
- Custom M8 Cable Assemblies
