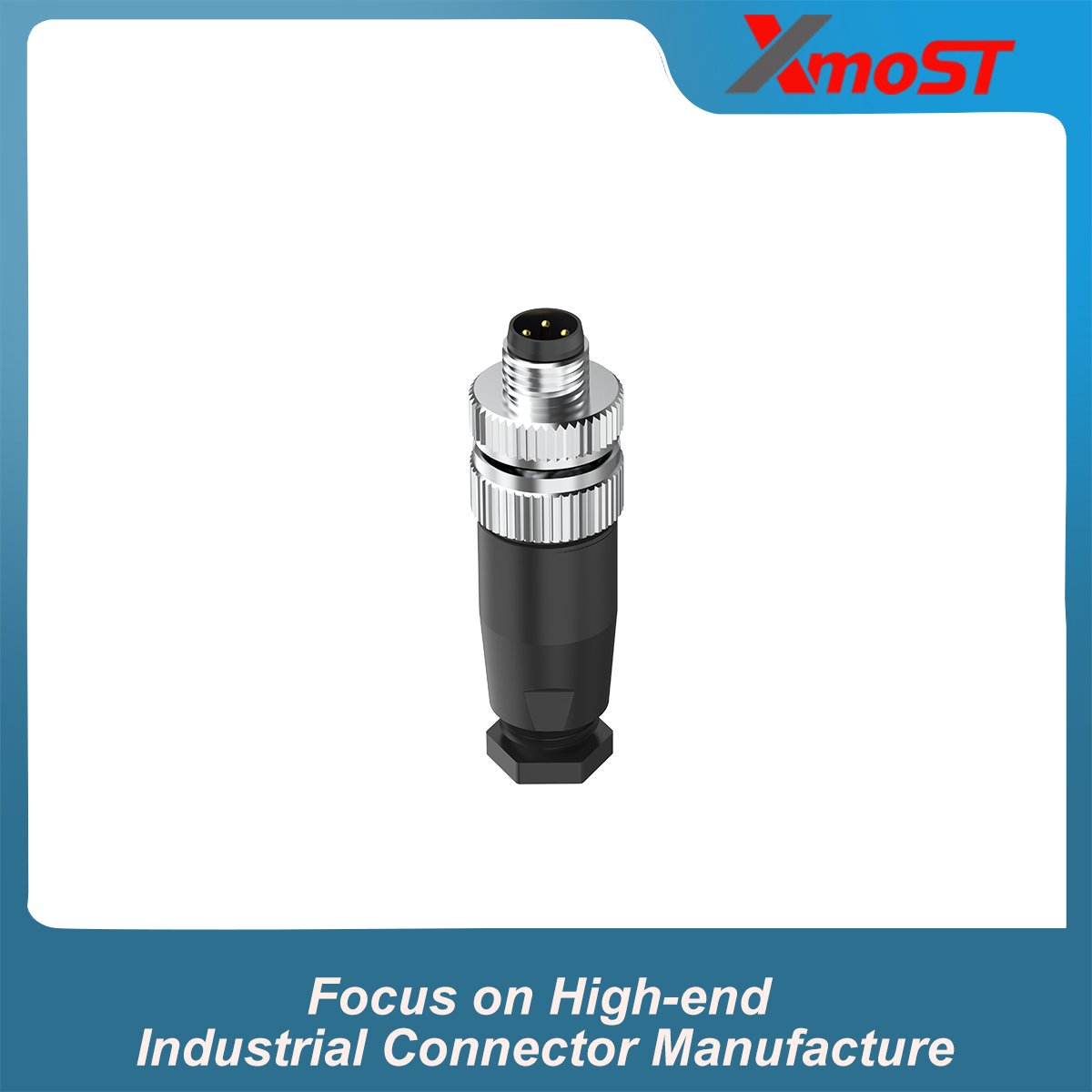

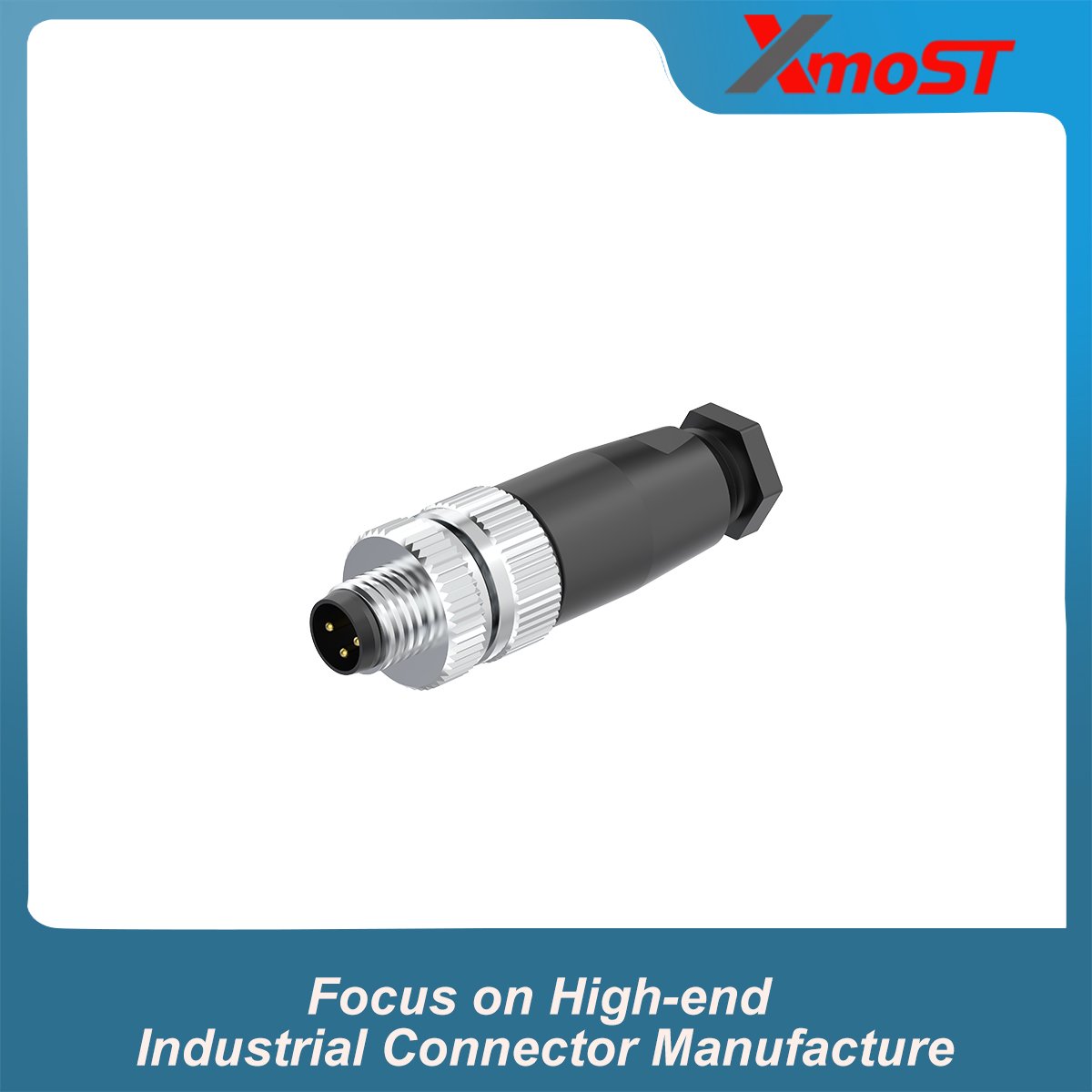

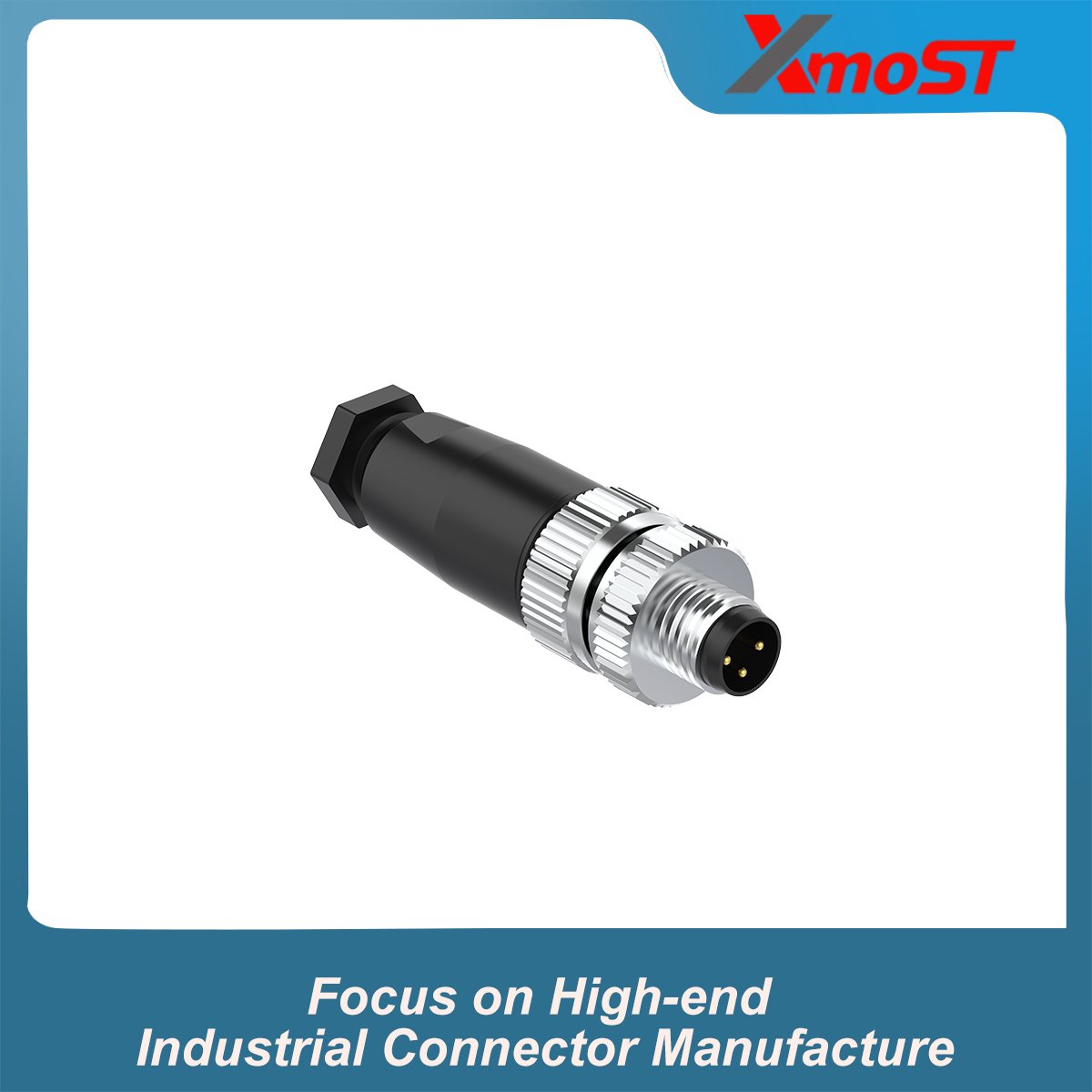

M8 A&B-Code 3-Pin Male Plastic Straight Assembled Connector is a compact M8 plug designed for solder-type cable termination. Its straight configuration provides a direct cable entry, while the assembled construction allows the connector to be wired for custom cable assemblies.
Available in A-Code and B-Code configurations, this 3-pin M8 male connector uses an M8 × 1.0 screw locking system. The A-Code version is rated at 3 A / 60 V, while the B-Code version is rated at 3 A / 30 V.
The plastic housing provides a lightweight connector construction for industrial wiring applications. With IP67 protection and a cable size range of Ø3.5–5 mm, the connector can be used for custom M8 cable assemblies, sensors, control equipment, and industrial machinery.
Key Features
- M8 A&B-Code 3-Pin Male Connector
- Straight assembled configuration
- Plastic housing
- Solder-type termination
- M8 × 1.0 screw locking
- Non-shielded construction
- A-Code / B-Code options
- Ø3.5–5 mm cable compatibility
- IP67 protection
Dimensions
The connector features a straight plastic housing with an M8 × 1.0 threaded coupling and a cable entry for Ø3.5–5 mm cable.Please refer to the dimensional drawing for detailed connector and assembly dimensions.
Male Contact Configuration
The 3-pin male M8 interface provides the plug-side connection for a compatible female connector. The straight housing keeps the cable entry aligned with the mating axis, making the connector suitable for conventional cable routing.
The A-Code and B-Code versions use their corresponding coding configurations for compatible M8 mating connections.
Solder-Type Assembly
M8 assembled connector uses solder termination for connecting the cable conductors to the contacts. The assembled design allows the connector to be integrated into custom cable assemblies without using a permanently overmolded cable.
Connector accommodates Ø3.5–5 mm cable, while the supplied wire specification is 0.25 mm² (AWG24).
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Series | M8 |
| Coding | A-Code / B-Code |
| Contact Configuration | 3 Pin |
| Connector Type | Male Straight Assembled Connector |
| Housing Type | Plastic |
| Operating Standard | IEC 61076-2-104 |
| Rated Current | 3 A |
| Rated Voltage | 60 V (A-Code) / 30 V (B-Code) |
| Insulation Resistance | ≥100 MΩ |
| Contact Resistance | ≤5 mΩ |
| Shielding Performance | Non-Shielded |
| Locking Method | M8 × 1.0 Screw |
| Screw Torque | Recommended: 0.2 Nm / Max.: 0.4 Nm |
| Wire Screw Torque | 0.1 Nm |
| Cable Gland Torque | 0.4–0.8 Nm |
| Wiring Method | Soldering |
| Wire Gauge Range | 0.25 mm² (AWG24) |
| Wire Size | Ø3.5–5 mm |
| Operating Temperature | -25°C to +80°C Dynamic / -40°C to +80°C Static |
| IP Rating | IP67 |
| Pollution Degree | 3 |
Applications
- Industrial Automation
- Industrial Sensors
- Control Systems
- Measurement Equipment
- Factory Equipment
- Industrial Machinery
- Custom Cable Assemblies
M8 A-Code / B-Code 3-Pin Male Connector is suitable for industrial wiring and custom cable assemblies that require a compact, non-shielded M8 interface with solder termination.
