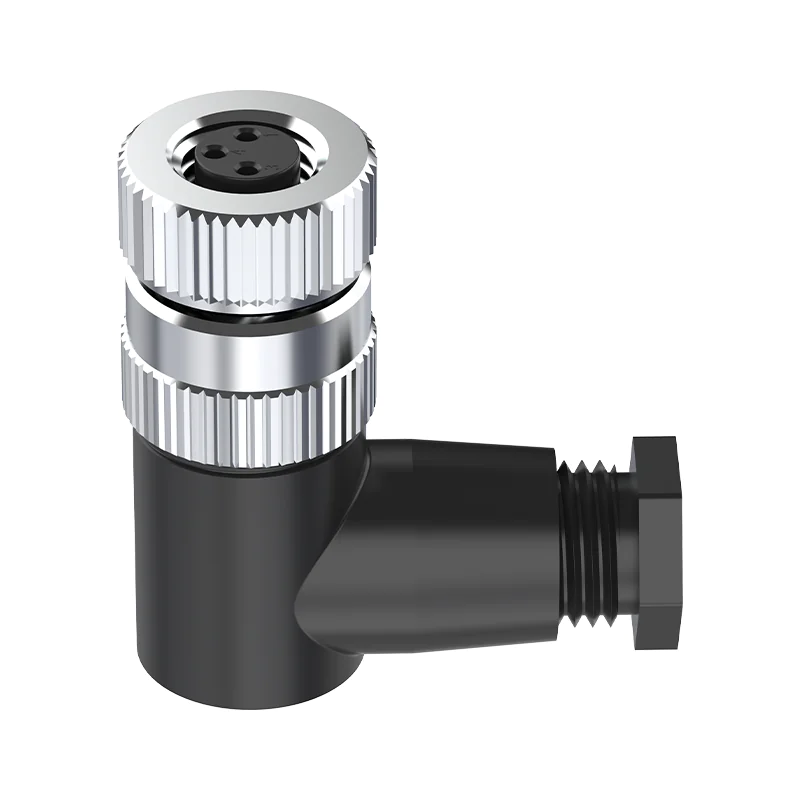

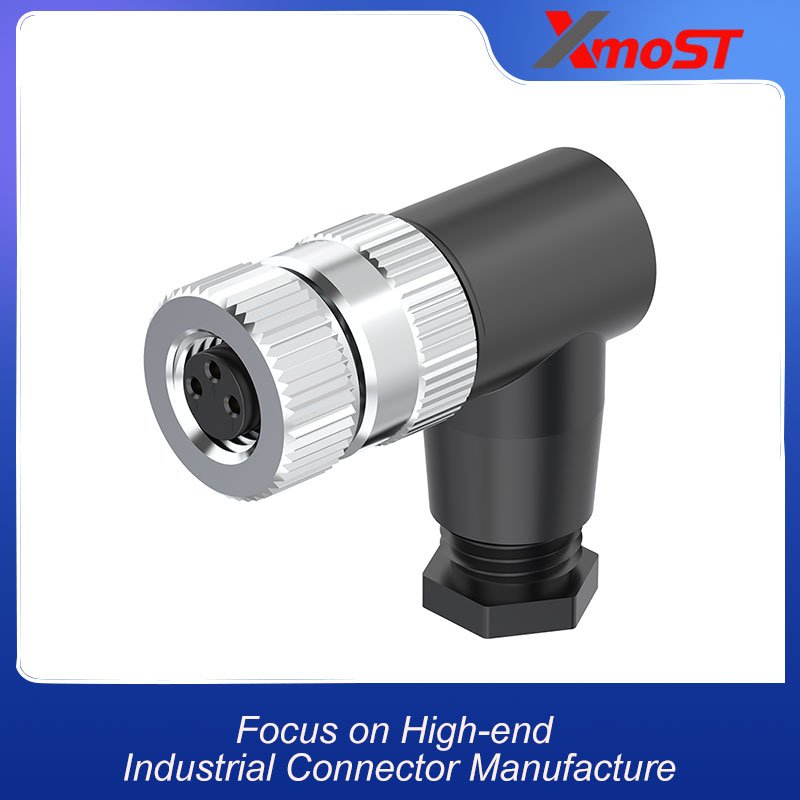

M8 A-Code 3-Pin Female 90° Right-Angle Screw-Type Assembled Connector is designed for compact industrial connections requiring a female A-coded interface and 90° cable entry. The screw-type assembly allows field wiring, while the M8 × 1.0 screw locking system provides a secure connection.
Rated for 3 A at 60 V, the connector accommodates 0.25–0.34 mm² (AWG24–AWG22) wire with a 3.5–5 mm cable diameter. IP67 protection makes it suitable for industrial automation, sensors, control equipment, and compact machine wiring.
Key Features
- M8 A-Code 3-pin female configuration
- 90° right-angle cable entry
- Screw-type field assembly
- M8 × 1.0 screw locking
- Rated current up to 3 A
- Rated voltage up to 60 V
- Non-shielded design
- IP67 protection
- Supports 0.25–0.34 mm² (AWG24–AWG22) wire
Dimensions
Refer to the product dimensional drawing for detailed dimensions.All dimensions are in mm.
Contact Configuration

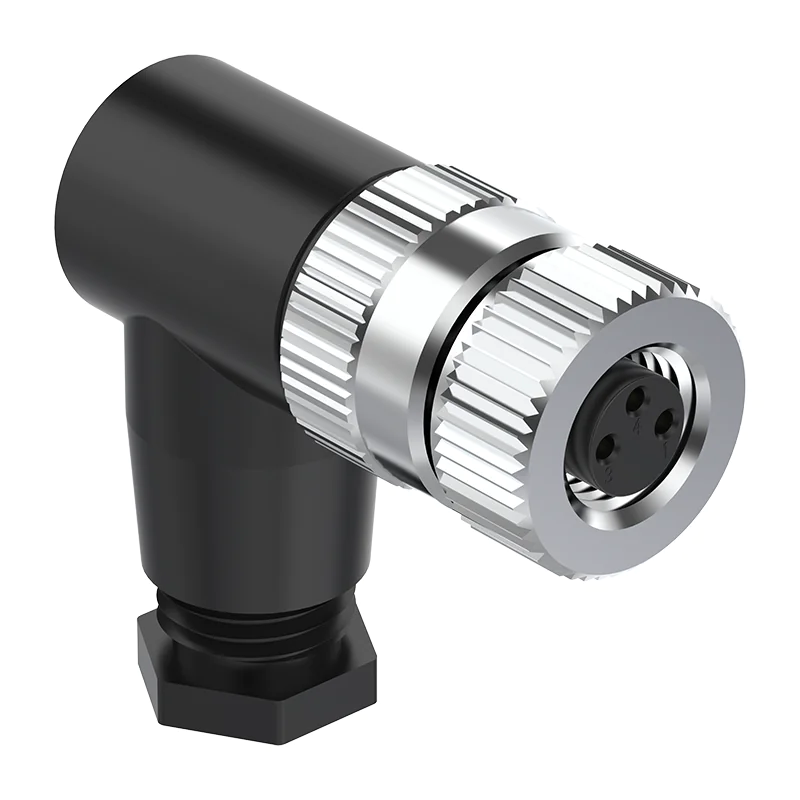

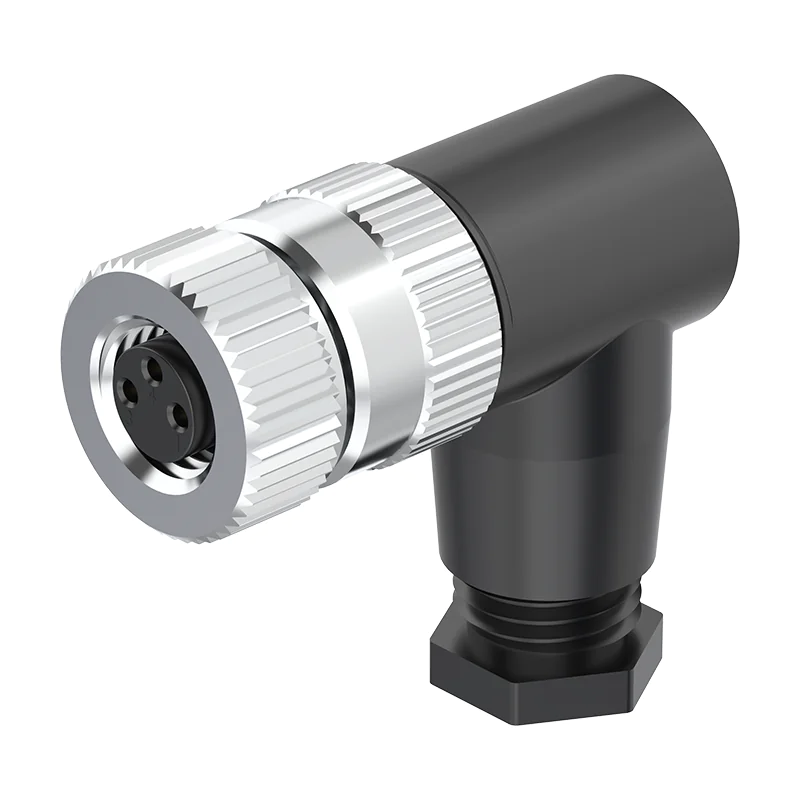

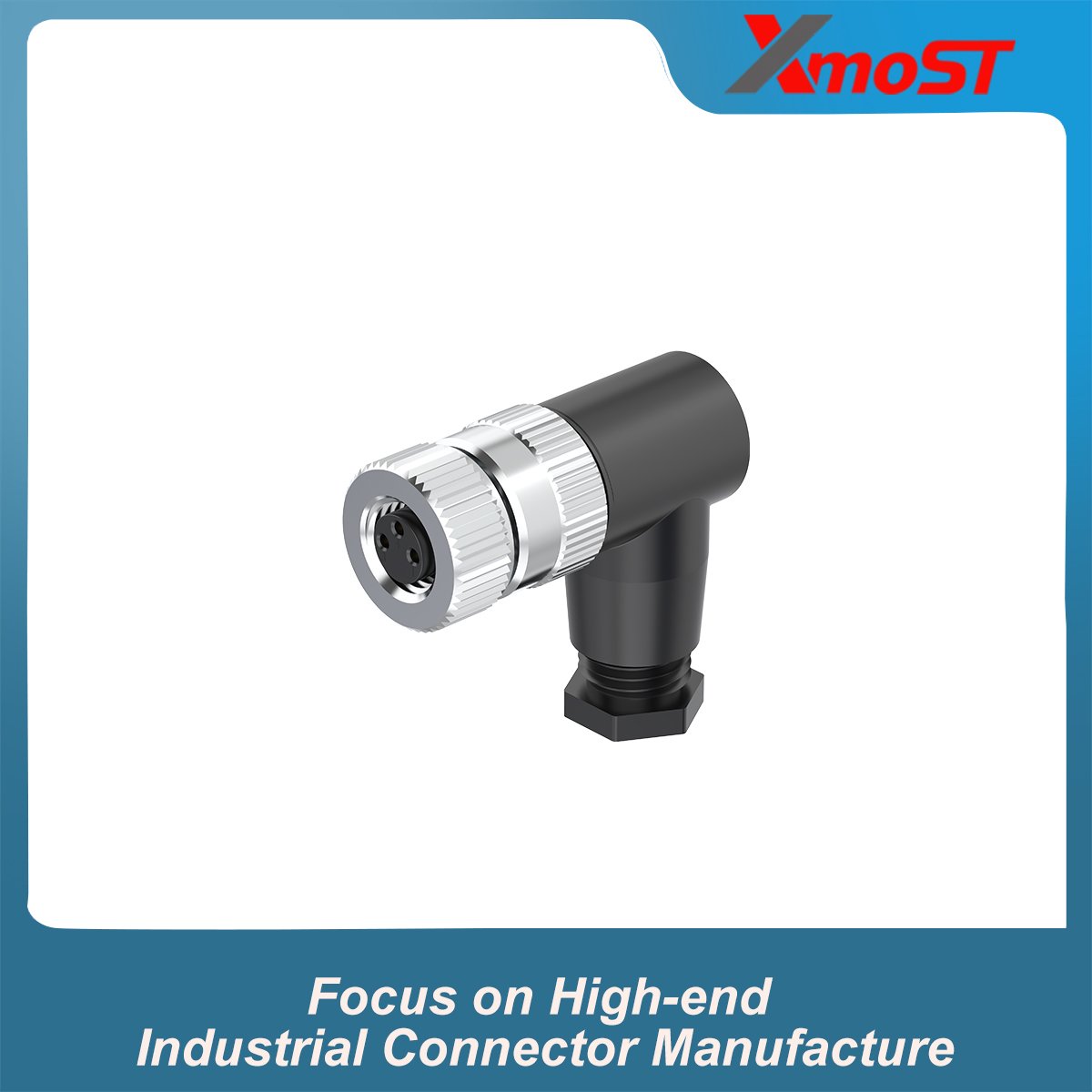

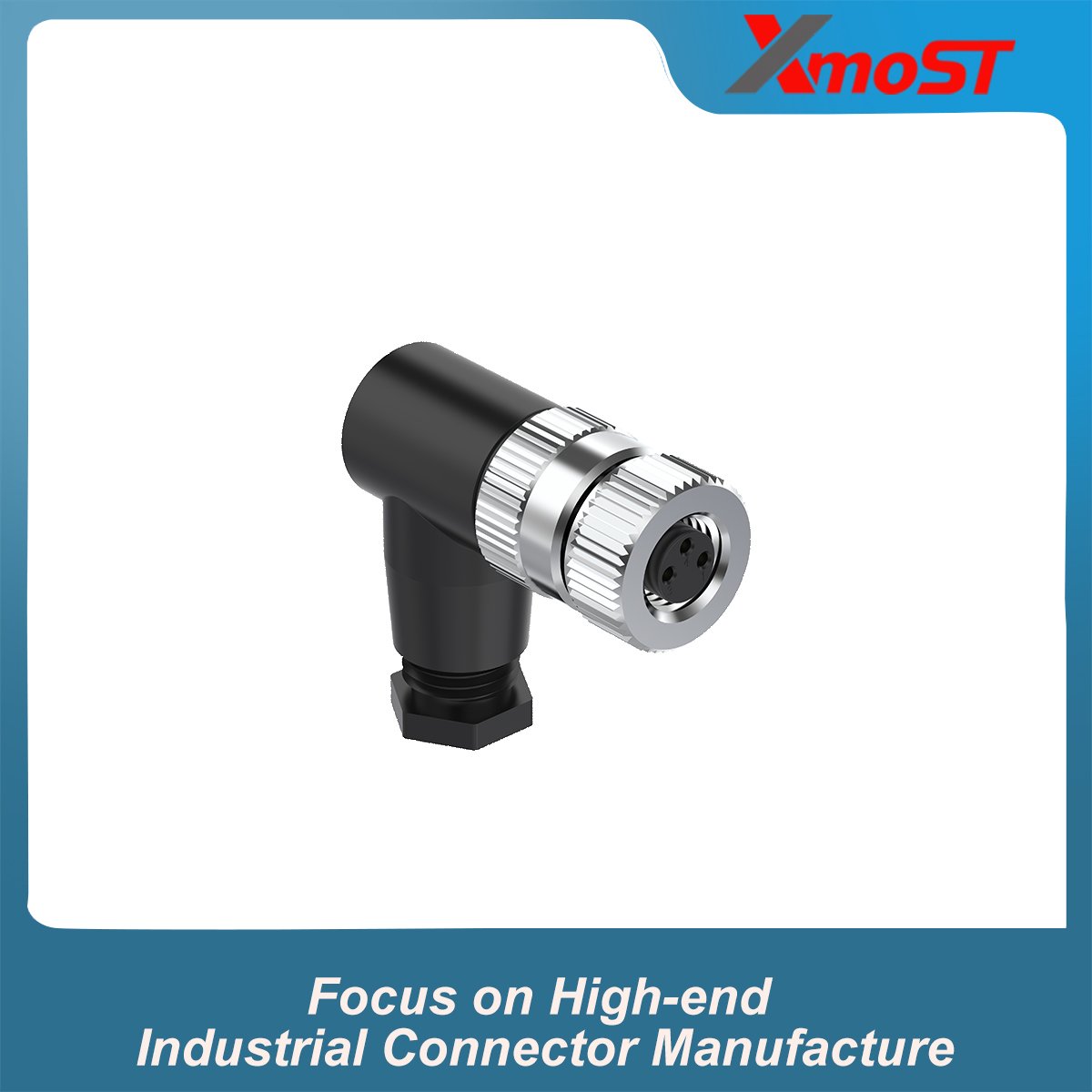

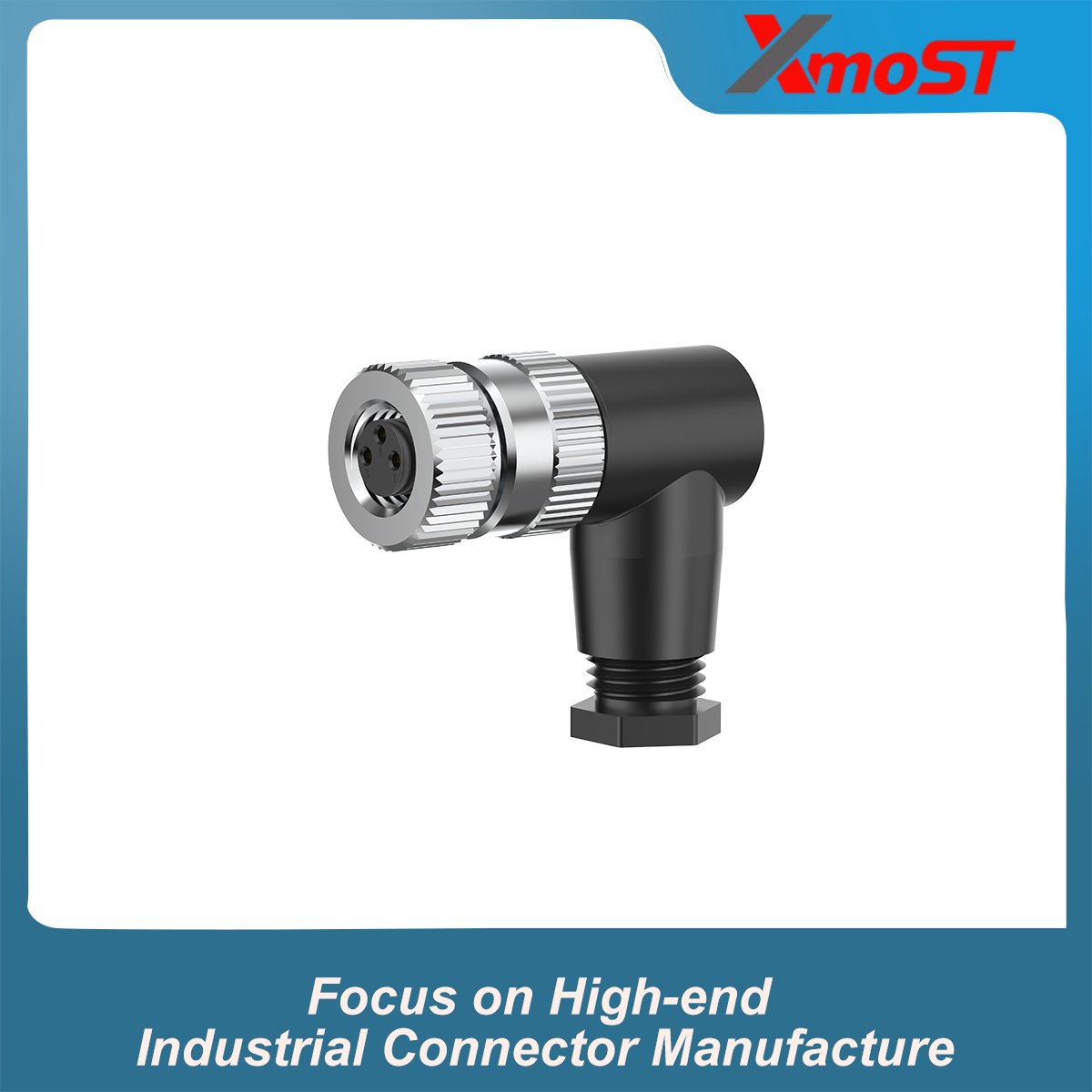

Connector features an A-Code 3-pin female interface with a right-angle housing and screw-type wire termination. The 90° cable entry provides a compact connection layout for equipment where cable routing space is limited.

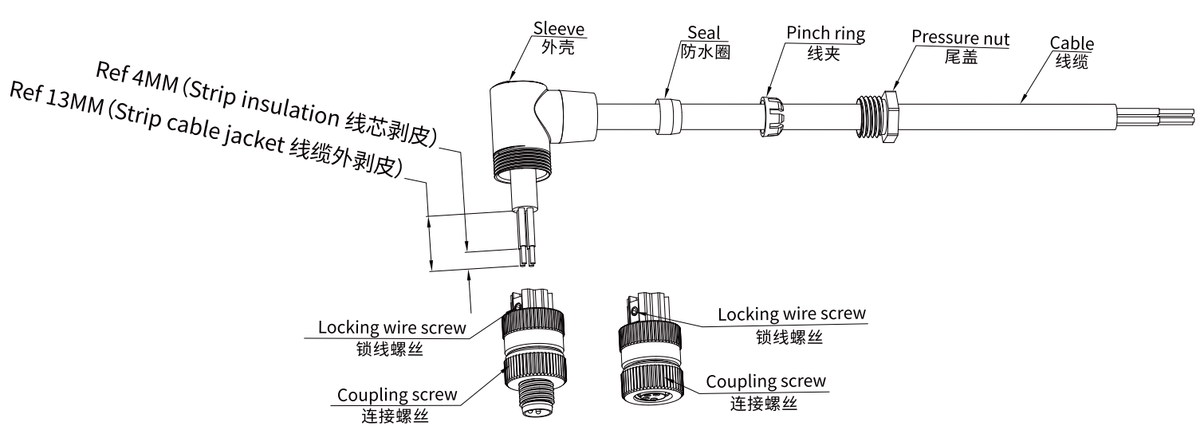

Assembly Diagram
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Series | M8 |
| Coding | A-Code |
| Contact Configuration | 3 Pin |
| Connector Type | Female Right-Angle Assembled Connector |
| Operating Standard | IEC 61076-2-104 |
| Rated Current | 3 A |
| Rated Voltage | 60 V |
| Insulation Resistance | ≥100 MΩ |
| Contact Resistance | ≤5 mΩ |
| Shielding Performance | Non-Shielded |
| Locking Method | M8 × 1.0 Screw |
| Screw Torque | Recommended: 0.2 Nm / Max.: 0.4 Nm |
| Wire Screw Torque | 0.1 Nm |
| Cable Gland Torque | 0.4–0.8 Nm |
| Wiring Method | Screw Fixing |
| Operating Temperature | -25°C to +80°C Dynamic / -40°C to +80°C Static |
| Wire Gauge | 0.25–0.34 mm² (AWG24–AWG22) |
| Wire Size | Ø3.5–5 mm |
| IP Rating | IP67 |
| Pollution Degree | 3 |
Applications
- Industrial automation
- Sensors and control systems
- Factory equipment
- Measurement and instrumentation
- Compact machine wiring
- Industrial control equipment
