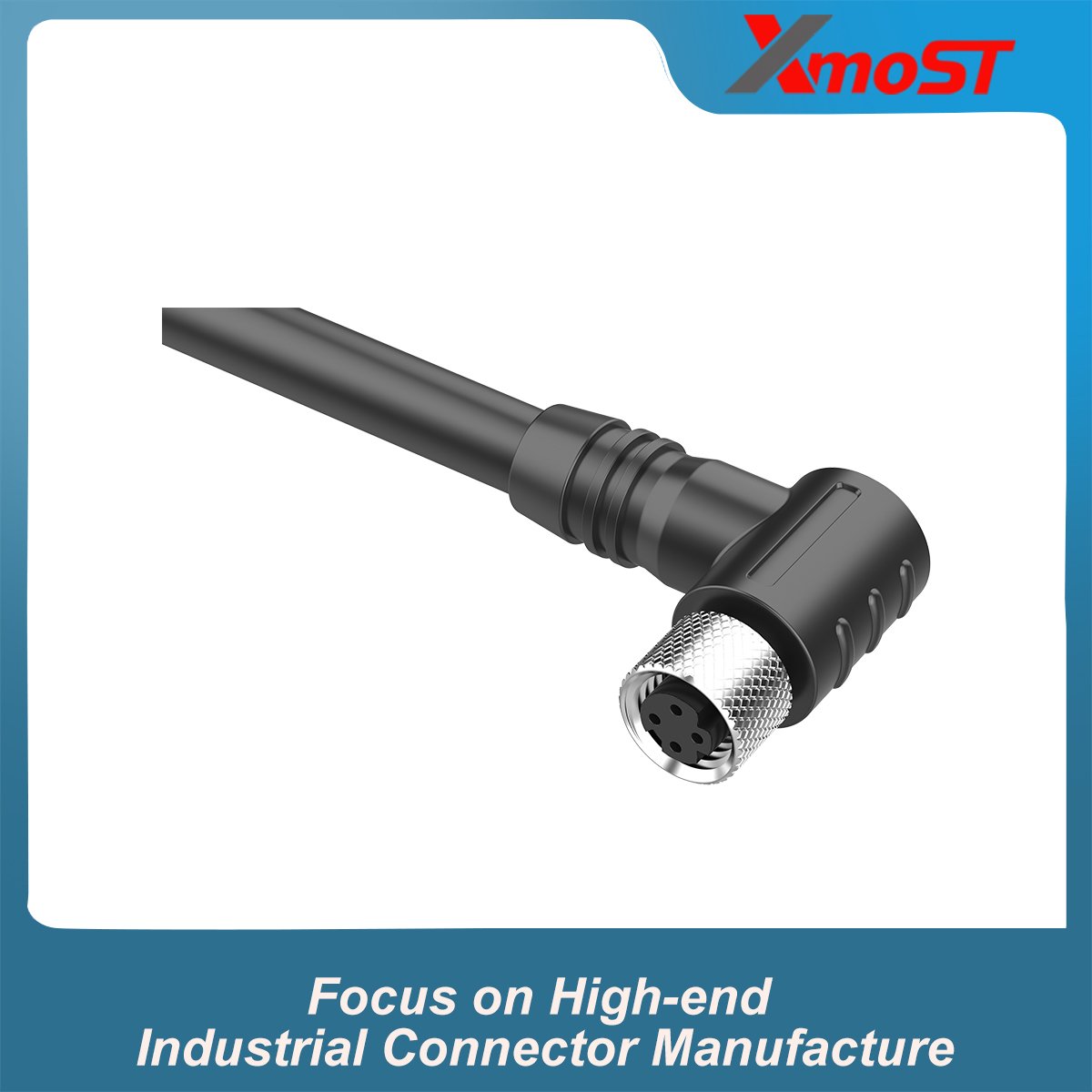

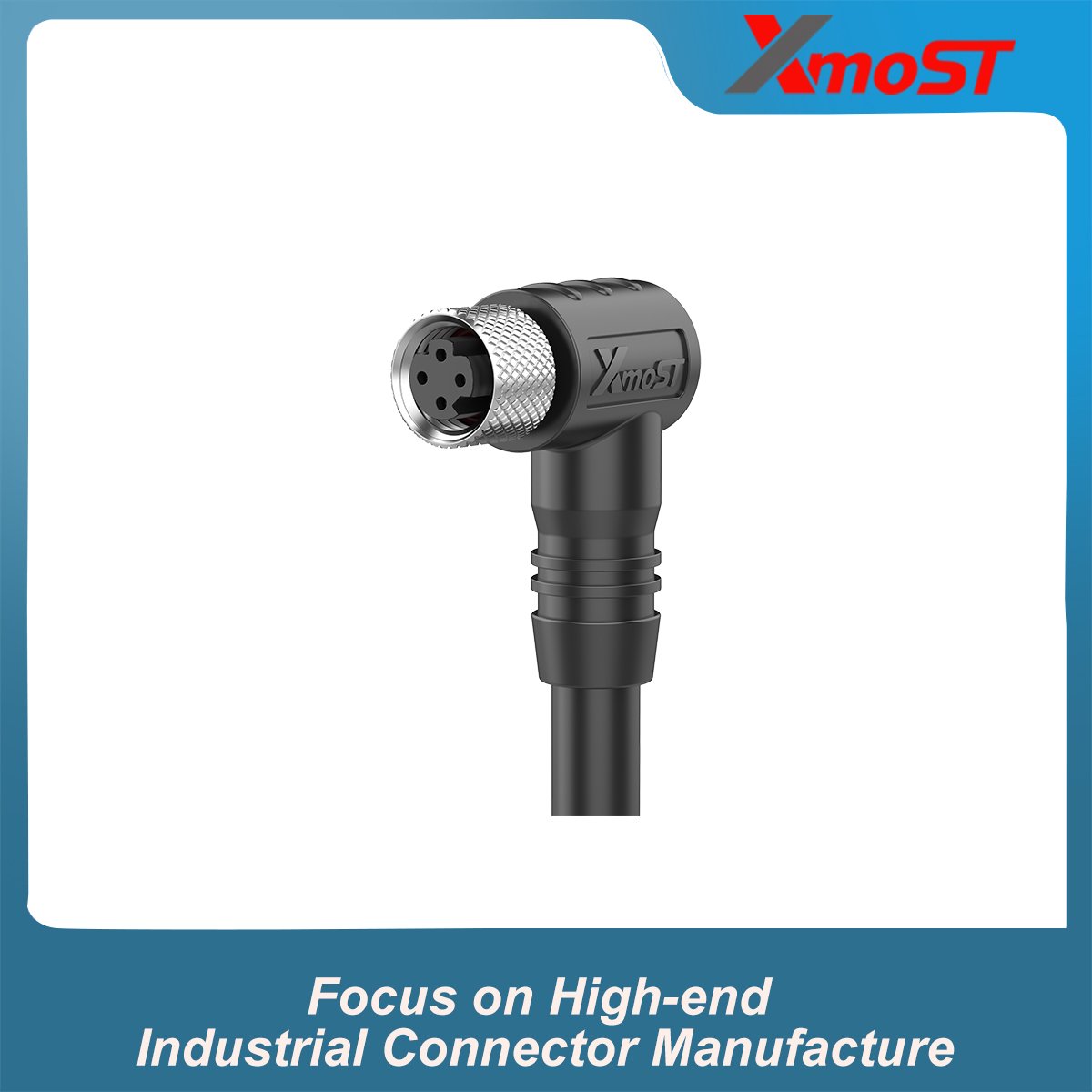

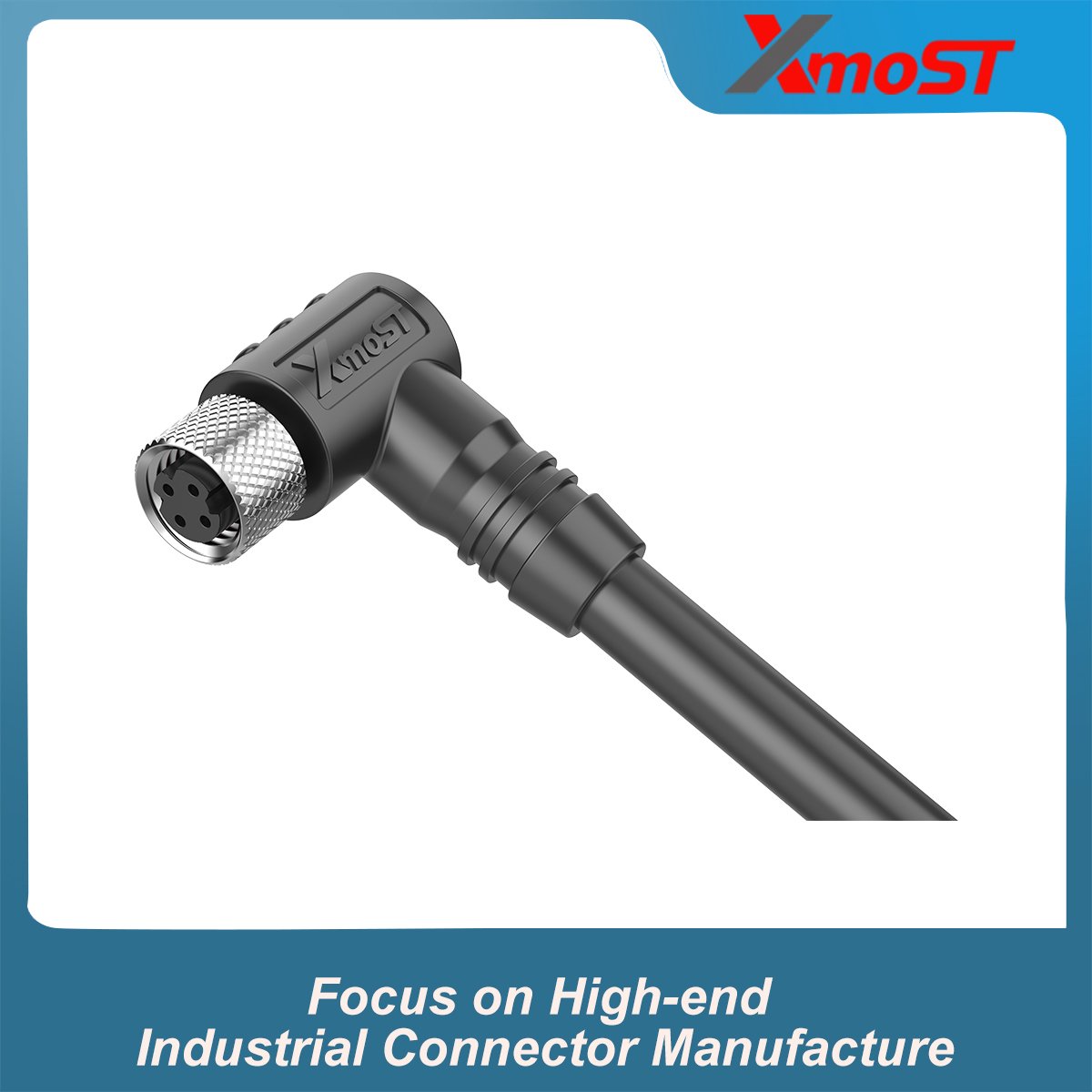

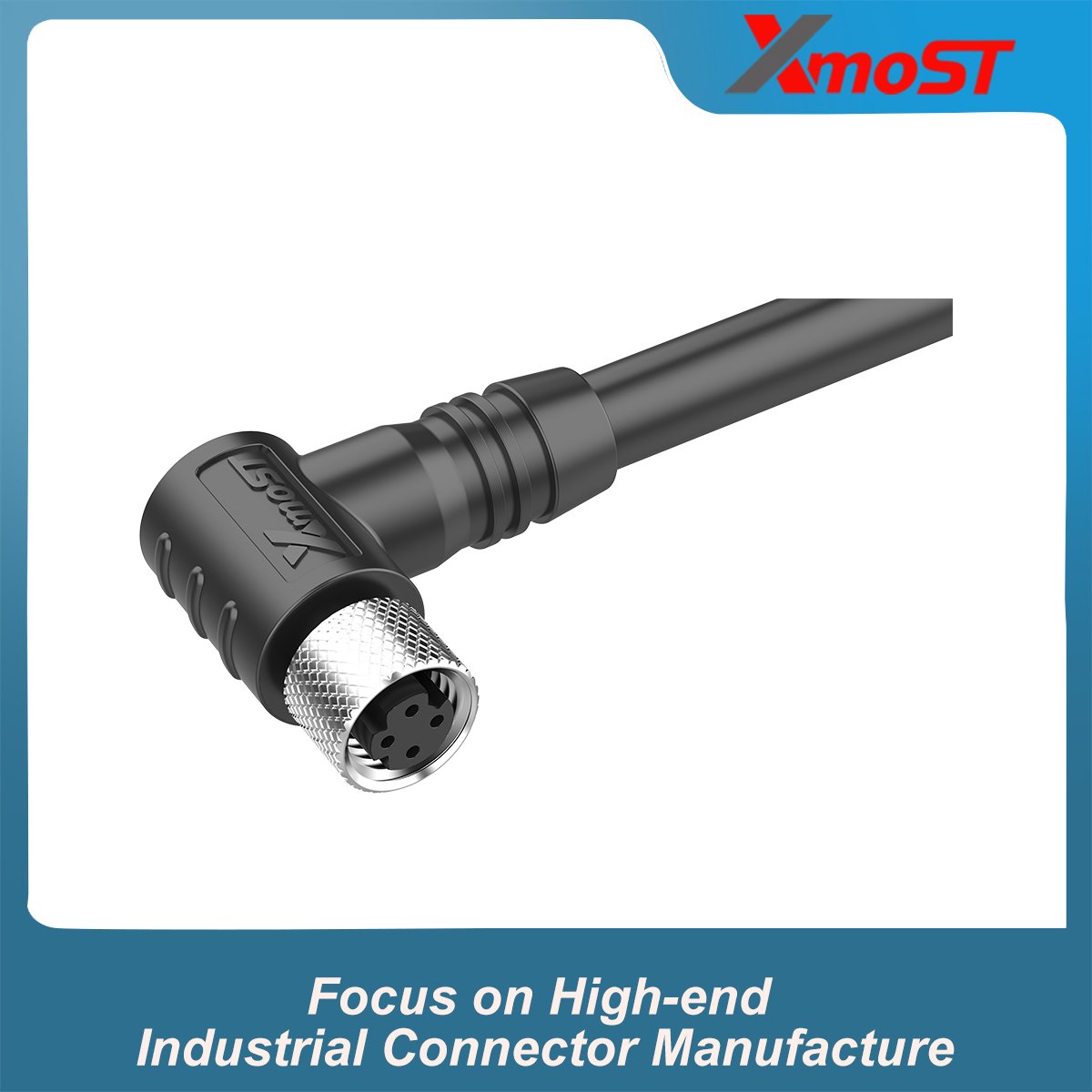

M8 D-Code 4-Pin Female Right-Angle Molded Connector is built for compact, reliable connections in industrial equipment, automation systems, and control applications. It features a 4-pin D-Code female interface, a 90° cable exit, an overmolded cable assembly, and EMI shielding.
The connector has an M8 × 1.0 threaded coupling and solder termination. It is rated for 4 A at 60 V and provides IP67 protection against dust and water ingress. The right-angle design keeps the cable close to the equipment, making it a good fit for installations where space around the connector is limited.
Key Features
- 4-Pin D-Code Female
- 90° Right-Angle Design
- Overmolded Cable Assembly
- EMI-Shielded
- M8 × 1.0 Threaded Coupling
- Solder Termination
- 4 A / 60 V Rating
- IP67 Protection
Dimensions

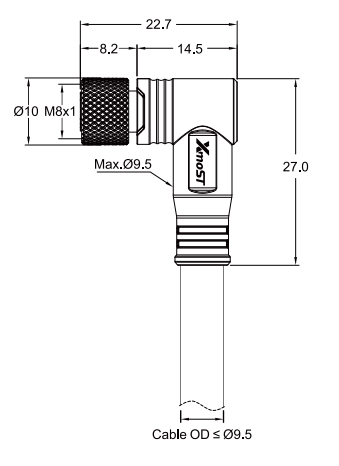

Connector has a compact M8 housing with a 90° cable exit and M8 × 1.0 threaded coupling. The cable connection is overmolded at the rear of the connector. See the product drawing for complete dimensions and mounting details.
Contact Configuration
4-Pin D-Code Female
connector uses a 4-pin D-Code female interface with a 90° cable exit. The overmolded cable is integrated into the connector body for a compact, ready-to-use cable assembly.
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Series | M8 |
| Coding | D-Code |
| Contact Configuration | 4 Pin |
| Connector Type | Female Right-Angle Molded Connector |
| Operating Standard | IEC 61076-2-104 |
| Rated Current | 4 A |
| Rated Voltage | 60 V |
| Insulation Resistance | ≥100 MΩ |
| Contact Resistance | ≤5 mΩ |
| Shielding Performance | Shielded / EMI-Shielded |
| Locking Method | M8 × 1.0 Screw Lock |
| Recommended Screw Torque | 0.2 Nm |
| Maximum Screw Torque | 0.4 Nm |
| Wiring Method | Soldering |
| Cable Type | Single-Ended Pre-Molded Cable |
| Wire Gauge | 0.34 mm² (AWG22) |
| Operating Temperature | -25°C to +80°C Dynamic / -40°C to +80°C Static |
| Protection Rating | IP67 |
| Pollution Degree | 3 |
| Insulator Material | PA + GF / TPU + GF |
| Screw / Nut Material | Brass Ni / Zinc Alloy Ni |
| Pin Material | Phosphor Bronze / Au Brass |
| Sealing Material | FKM / Silicone / Epoxy |
| Outer Housing Material | TPU / PVC |
Applications
- Industrial Automation
- Control Systems
- Industrial Sensors
- Factory Equipment
- Measurement and Instrumentation
- Industrial Machinery
