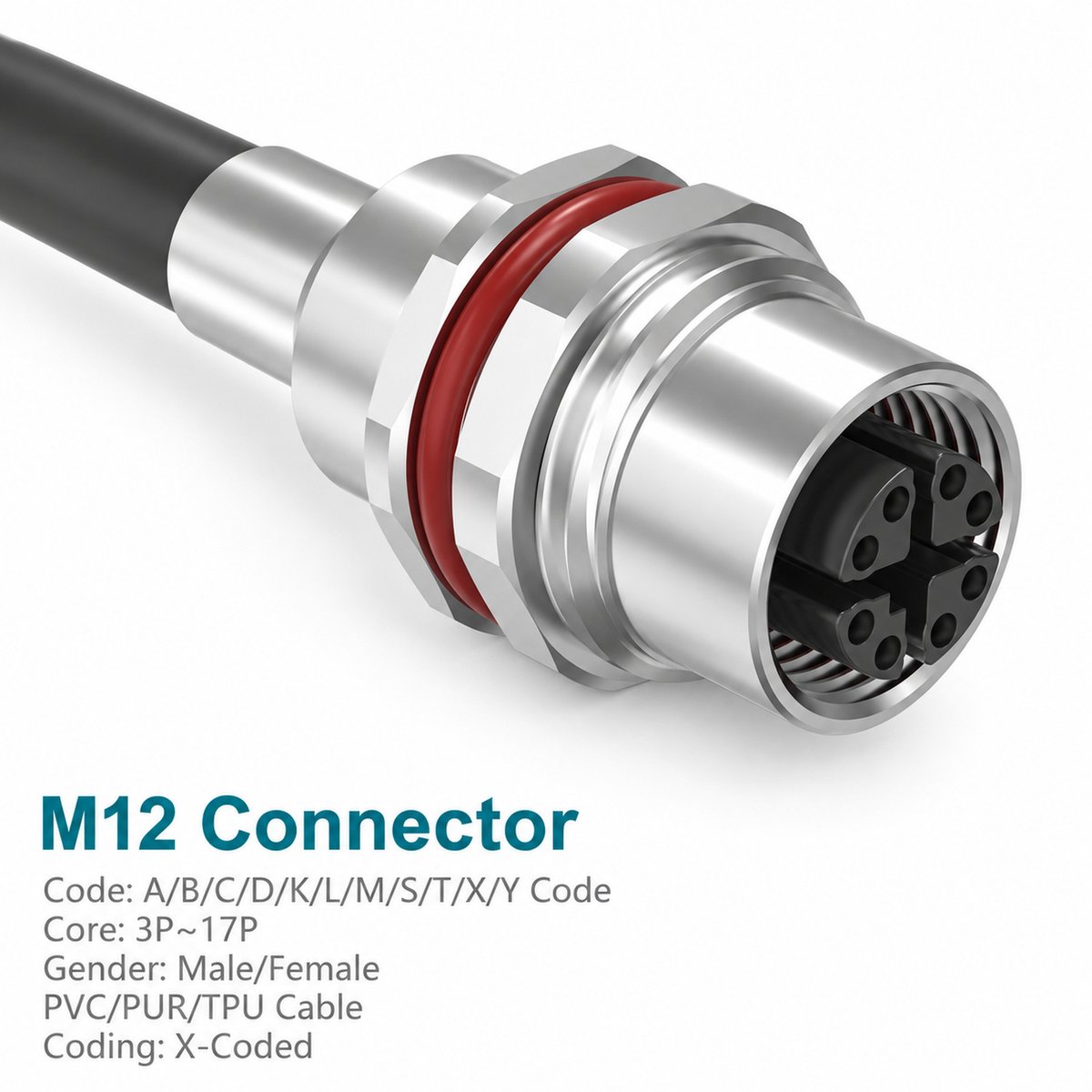

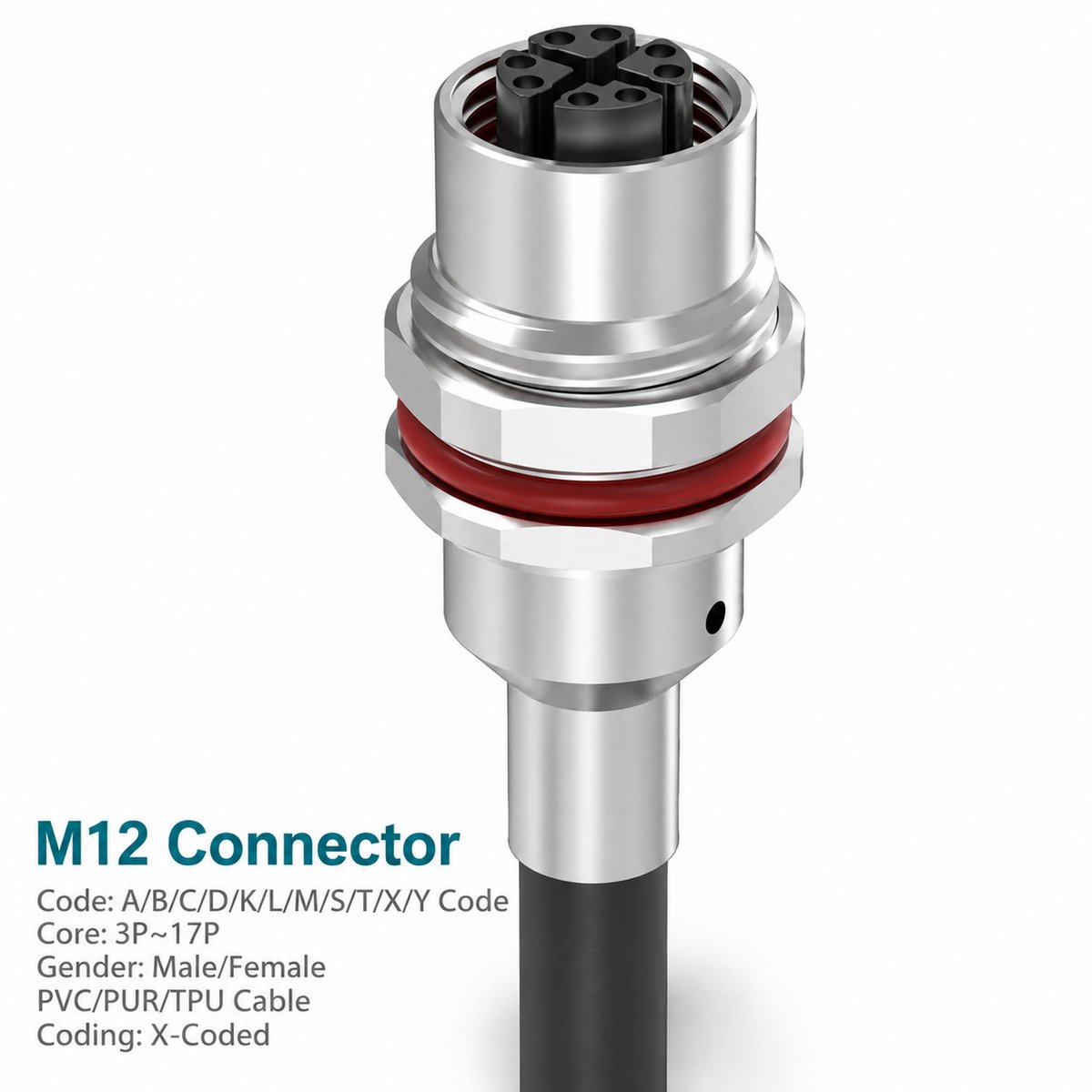

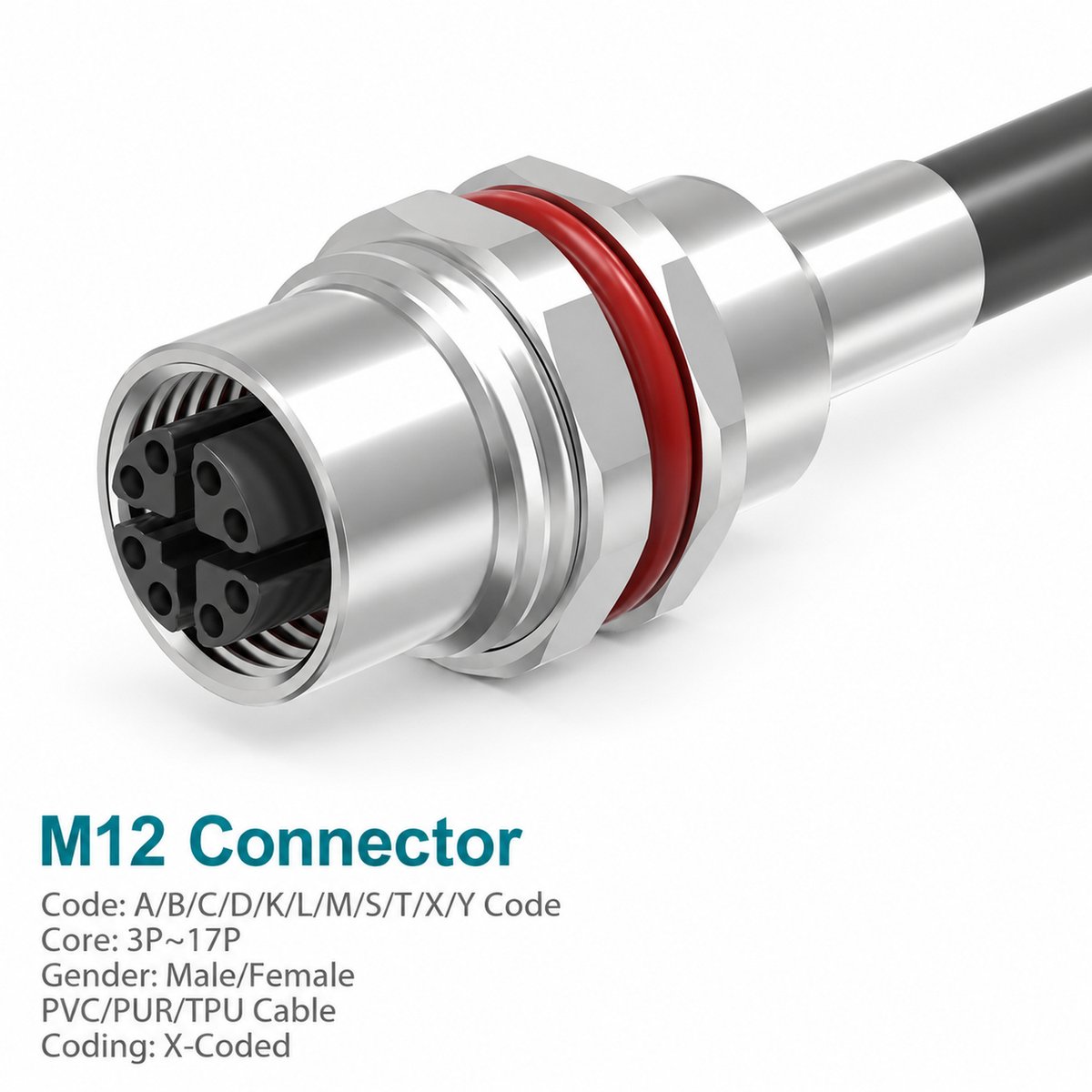

Xmost M12 X-coded female metal panel-mount receptacle provides an 8-pin shielded interface for compatible industrial Ethernet equipment. The illustrated version uses a metal rear cable section rather than the longer molded housing of the companion model.
Its straight female interface mates with a matching X-coded male connector using M12 × 1.0 screw locking. Mounting hardware and a sealing ring are shown for panel installation.
The catalog lists PG9 and M16 × 1.5 mounting options, with PVC or PUR cable in 1 m, 3 m, 5 m, 10 m and 15 m lengths.
Key Features
- 8-pin M12 X-coded female interface.
- Shielded CAT6A cable connection for compatible industrial Ethernet equipment.
- Straight metal panel-mount receptacle.
- Rear cable section without molded overmold.
- M12 × 1.0 screw-locking interface.
- PG9 or M16 × 1.5 mounting options.
- PVC or PUR cable in multiple catalog lengths.
Product Dimensions

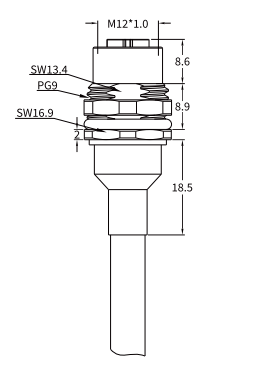

Dimensions (mm) — Illustrated PG9 Version
| Dimension | Value |
|---|---|
| Front interface axial span shown | 8.6 |
| Panel mounting thread | PG9 |
| Mating thread | M12 × 1.0 |
Use the complete metal receptacle drawing for the remaining mounting and rear-section dimensions. The M16 × 1.5 version requires its corresponding drawing. Cable length is specified separately.
Needle Arrangement (Front View)
The pin arrangement diagram shows the 8-pin X-coded female mating face viewed from the front.
Use the numbered contacts and coding position to identify the interface. Match the female diagram to the corresponding X-coded male connector before wiring.
Product Specifications
| Parameter | Specification |
|---|---|
| Brand | Xmost |
| Connector Size | M12 |
| Coding | X-coded |
| Contact Gender | Female |
| Contact Count | 8-pin |
| Connector Orientation | Straight |
| Mounting Type | Panel mount |
| Mounting Thread Options | PG9 / M16 × 1.5 |
| Assembly Type | Single-ended cable receptacle without molded overmold |
| Cable Category | CAT6A |
| Application Listed | Industrial Ethernet |
| Shielding | Shielded |
| Standard Listed | IEC 61076-2-109 |
| Wire Size | 0.14 mm² / AWG26 |
| Locking Method | M12 × 1.0 screw locking |
| Contact Termination | Soldering |
| Insulation Resistance | ≥ 100 MΩ |
| Contact Resistance | ≤ 5 mΩ |
| Recommended Tightening Torque | 0.4 N·m |
| Maximum Tightening Torque | 0.8 N·m |
| Dynamic Operating Temperature | −25 °C to +80 °C |
| Static Operating Temperature | −40 °C to +80 °C |
| Protection Ratings Listed | IP65 / IP67 |
| Pollution Degree | 3 |
| Insulator Material Options | PA66 + GF / TPU + GF |
Applications
Suggested applications for this M12 X-coded female metal panel receptacle include:
- Industrial equipment panels: Shielded Ethernet connections to compatible X-coded male cable interfaces.
- Automation enclosures: Connections between internal cabling and external network equipment.
- Machine network modules: Detachable interfaces using the specified 8-pin arrangement.
- Panel installations requiring a metal rear section: Connections using the illustrated non-overmolded construction.
Match the connector and cable requirements to the network equipment.
Wiring and Shield Connection
| Contact | Wire Color |
|---|---|
| Pin 1 | White/Orange — WH/OR |
| Pin 2 | Orange — OR |
| Pin 3 | White/Green — WH/GN |
| Pin 4 | Green — GN |
| Pin 5 | White/Brown — WH/BN |
| Pin 6 | Brown — BN |
| Pin 7 | White/Blue — WH/BU |
| Pin 8 | Blue — BU |
| Shell | Cable braid |
Follow the female front-view pin diagram and maintain the specified shield connection during installation.
Selection and Ordering
Specify the version without molded overmold, mounting thread, cable jacket and cable length.
Select the corresponding part number from the catalog section titled No Precast, Cables Only. Check the panel mounting dimensions and mating interface before ordering.
