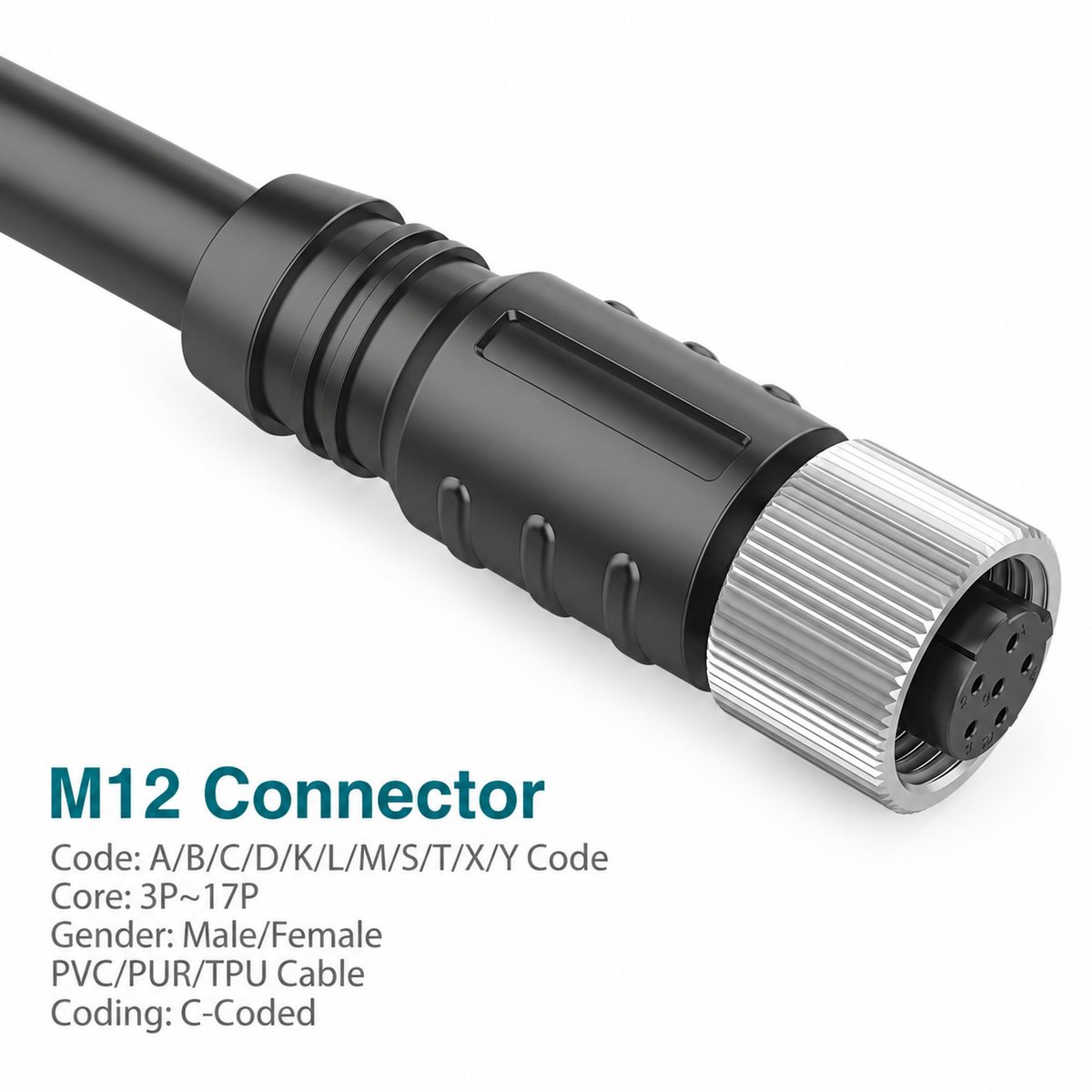

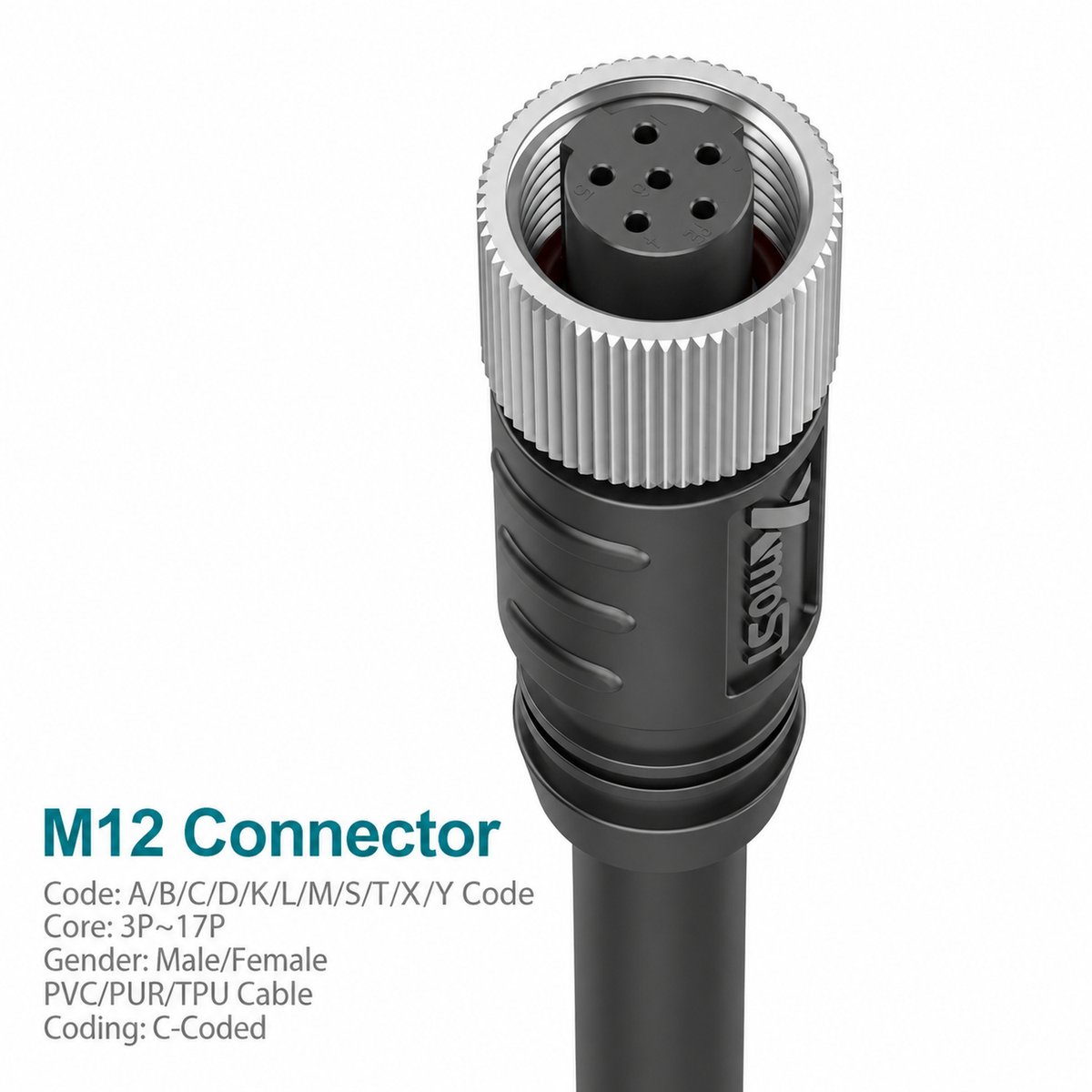

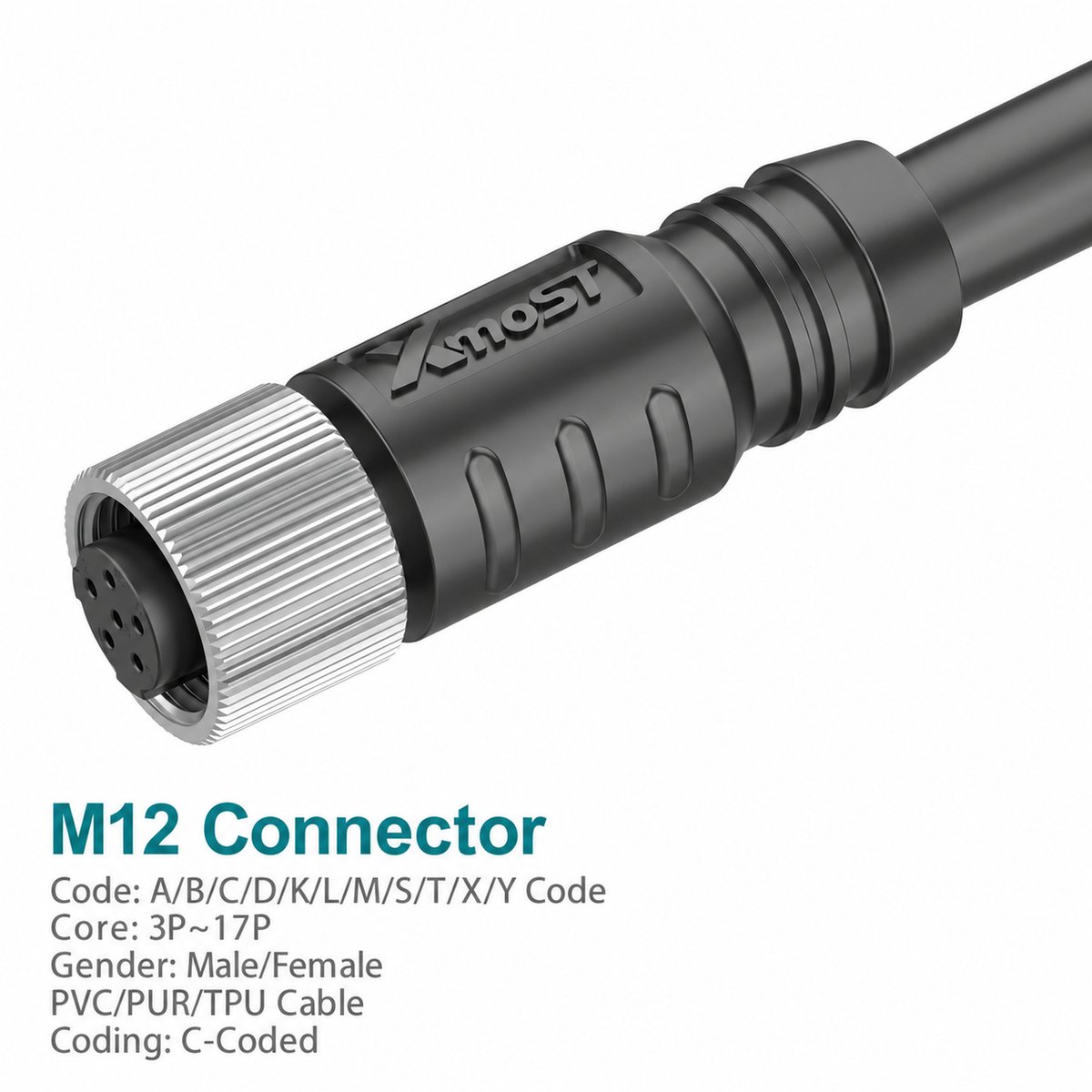

Xmost M12 C-coded female straight power cable connector features an unshielded, single-ended molded construction. Its straight cable exit supports axial cable routing, while the M12 × 1.0 screw-locking interface secures the connection to a matching male connector.
The range includes 3-, 4-, 5- and 6-pin configurations with protective earth contacts for compatible C-coded AC power interfaces. PVC and PUR cable options are listed in 1 m and 3 m lengths. Electrical ratings depend on the selected contact configuration.
Key Features
- C-coded female interface for compatible AC power connections.
- Straight cable exit for axial cable routing.
- Single-ended molded cable assembly.
- Unshielded construction.
- 3-, 4-, 5- and 6-pin configurations with protective earth contacts.
- M12 × 1.0 screw locking.
- PVC or PUR cable options, with 1 m and 3 m catalog lengths.

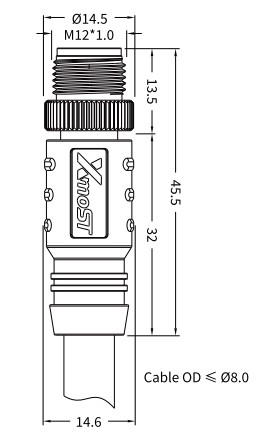

Product Dimensions
Dimensions (mm)
| Dimension | Value |
|---|---|
| Connector axial length shown | 45.4 |
| Coupling section axial span | 13.4 |
| Molded body axial span | 32 |
| Coupling outside diameter | Ø14.5 |
| Cable-exit width shown | 12.9 |
| Maximum cable outside diameter | ≤ Ø8.0 |
| Mating thread | M12 × 1.0 |
Cable length is specified separately. Dimensions correspond to the marked spans in the straight female connector drawing.
Product Specifications
Electrical Ratings
| Contact Configuration | Rated Current | Rated Voltage | Wire Size |
|---|---|---|---|
| 3-pin (2 + PE) | 4 A | 250 V | 0.34 mm² / AWG22 |
| 4-pin (3 + PE) | 4 A | 250 V | 0.34 mm² / AWG22 |
| 5-pin (4 + PE) | 2 A | 60 V | 0.14 mm² / AWG26 |
| 6-pin (5 + PE) | 2 A | 30 V | 0.14 mm² / AWG26 |
PE = Protective Earth.
General Specifications
| Parameter | Specification |
|---|---|
| Connector Size | M12 |
| Coding | C-coded |
| Contact Gender | Female |
| Connector Orientation | Straight |
| Assembly Type | Single-ended molded cable assembly |
| Shielding | Unshielded |
| Standard Listed | IEC 61076-2-101 |
| Locking Method | M12 × 1.0 screw locking |
| Contact Termination | Soldering |
| Insulation Resistance | ≥ 100 MΩ |
| Contact Resistance | ≤ 5 mΩ |
| Recommended Tightening Torque | 0.4 N·m |
| Maximum Tightening Torque | 0.8 N·m |
| Dynamic Operating Temperature | −25 °C to +80 °C |
| Static Operating Temperature | −40 °C to +80 °C |
| Protection Ratings Listed | IP67 / IP68 |
| Pollution Degree | 3 |
| Insulator Material Options | PA66 + GF / TPU + GF |
| Screw / Nut Material Options | Nickel-plated brass / nickel-plated zinc alloy |
| Contact Material Options | Gold-plated phosphor bronze / gold-plated brass |
| Sealing Material Options | FKM / silicone / epoxy |
| Outer Housing Material Options | TPU / PVC |
| Cable Jacket Options | PVC / PUR |
| Catalog Cable Lengths | 1 m / 3 m |
Applications
Industrial machinery: Power connections to equipment with matching C-coded male interfaces.
Automation modules: AC power wiring between compatible machine components.
Modular equipment: Detachable power connections between equipment sections.
Axial cable-routing layouts: Installations with space for the cable to exit directly behind the connector.
Select the contact configuration according to the equipment’s voltage, current and protective earth requirements.
Selection and Ordering
Specify the contact configuration, cable jacket and cable length. Select the corresponding straight female part number from the catalog ordering table.
The mating connector must match the C-coded interface and contact arrangement. Follow the female connector’s front-view pin diagram and the corresponding wire-color assignment when wiring.
