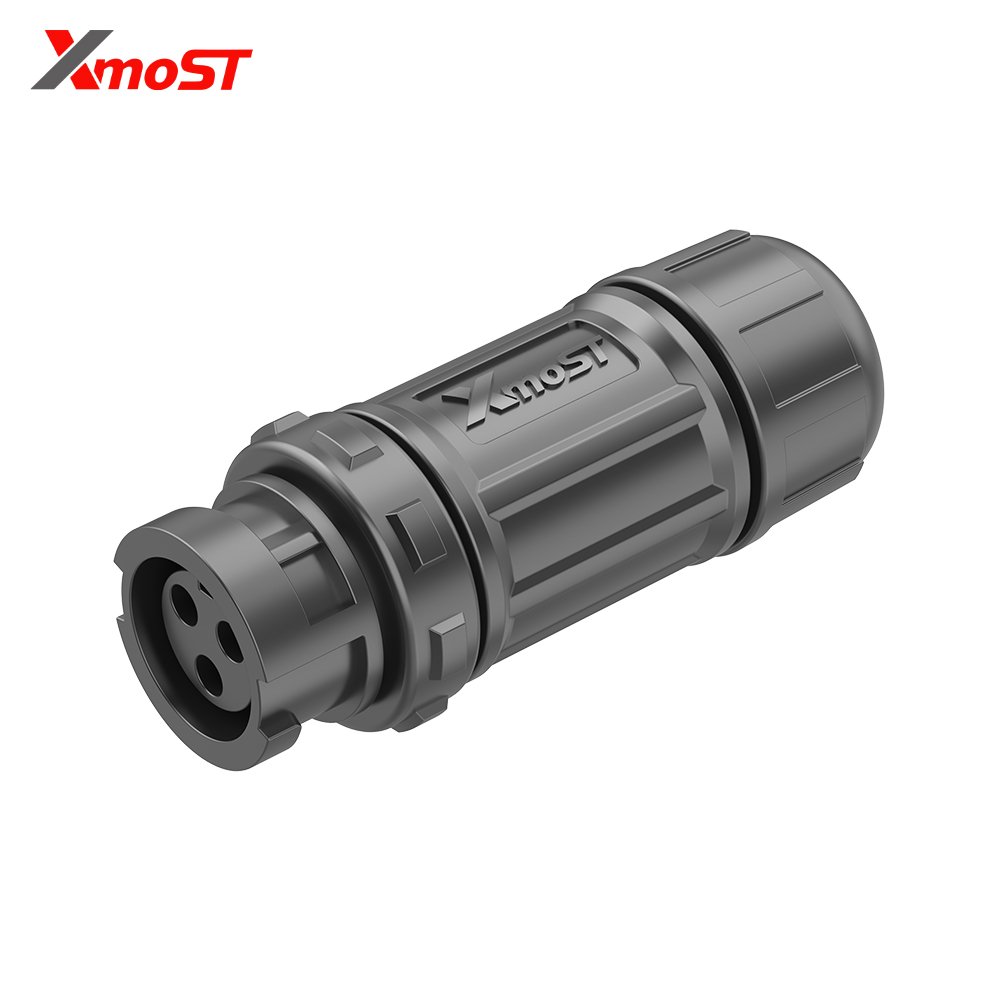

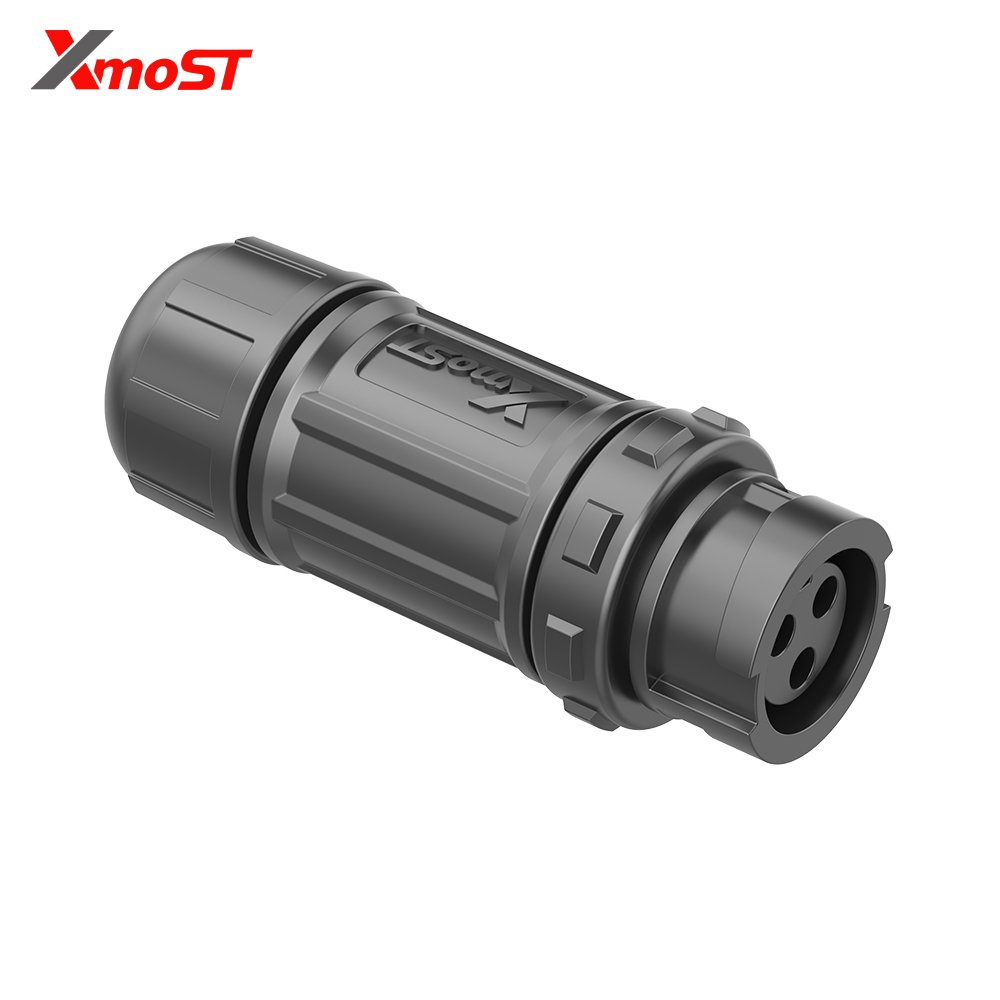

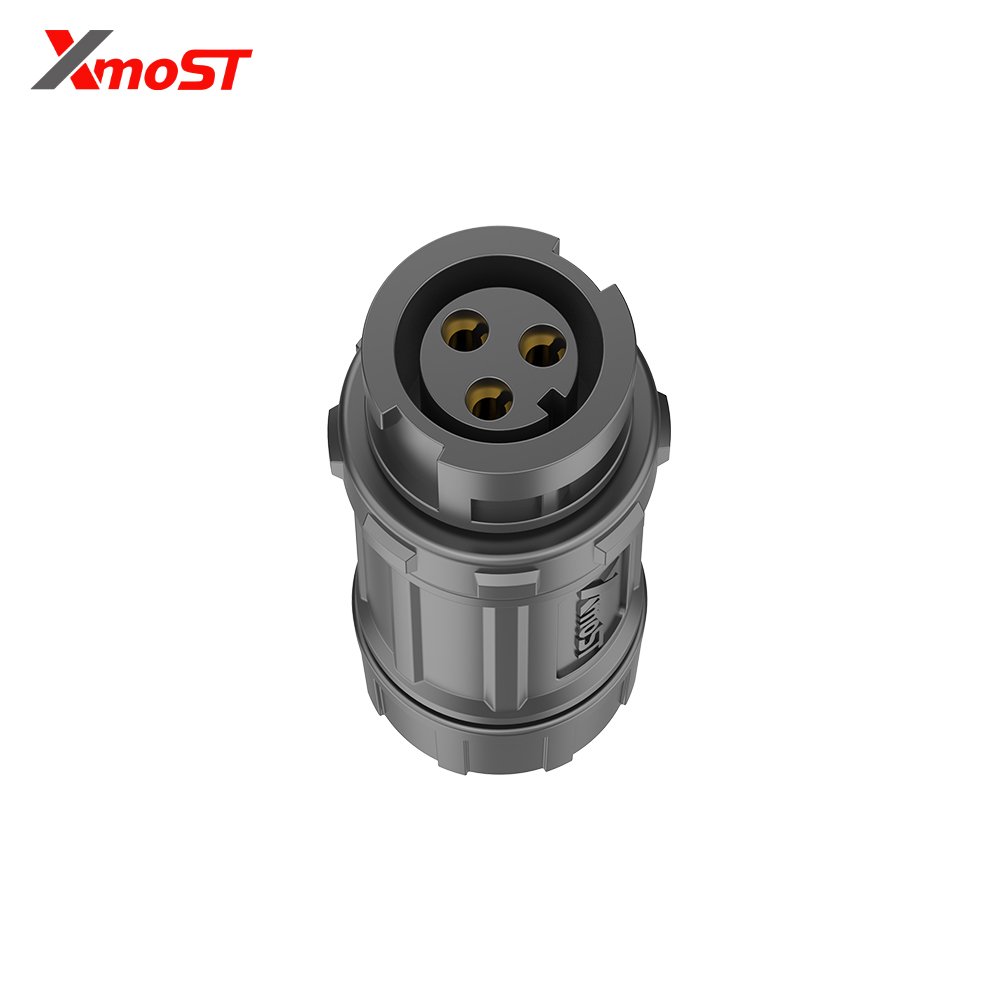

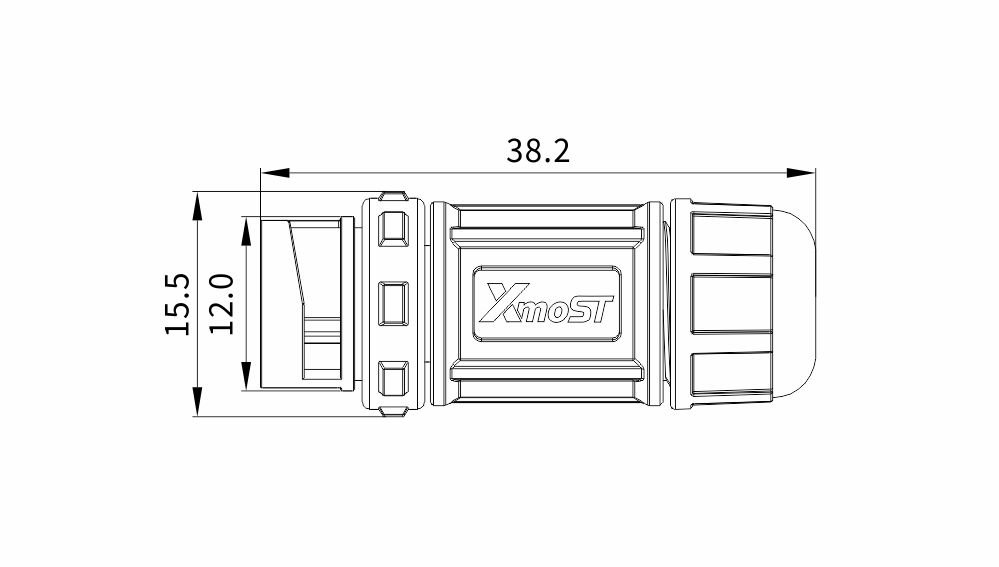

M12 3-Pin Female Assembly Straight Mating Socket

M12 3-Pin Female Assembly Straight Mating Socket – Quick-Lock, Field Installable, IP67

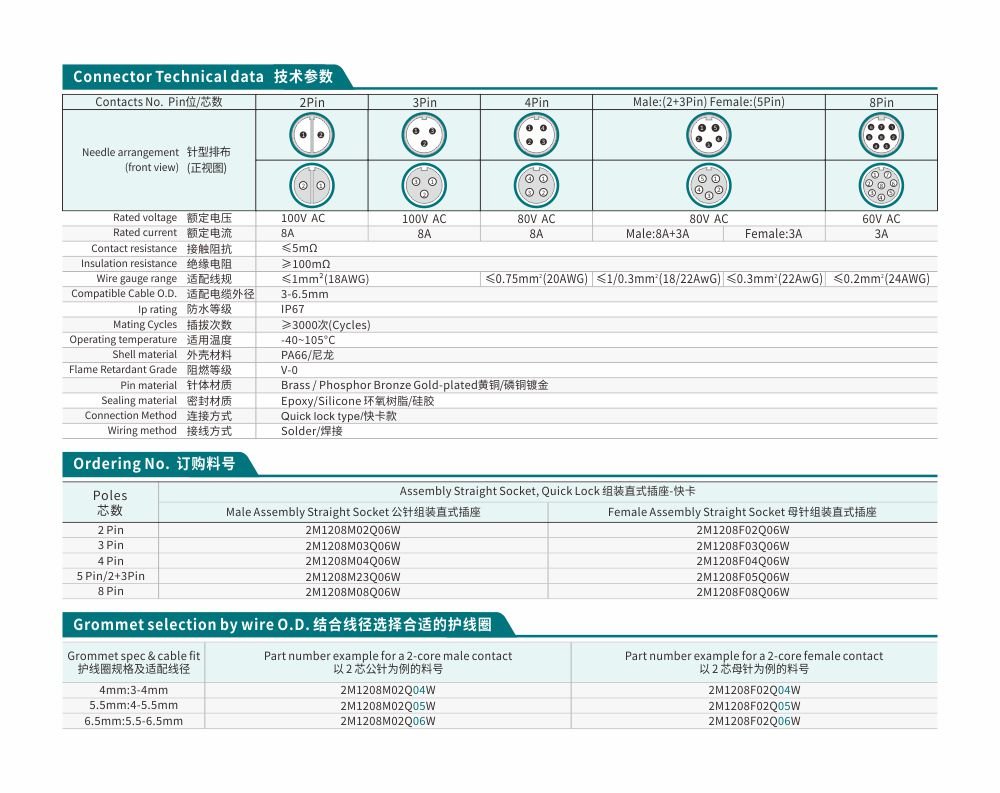

Contacts : 3-Pin
Needle Arrangement: Female
Rated Voltage: 100V AC
Rated Current: 8A
Contact Resistance: ≤5mΩ
Insulation Resistance: ≥100MΩ
Wire Gauge Range: ≤0.75mm² (20 AWG)
Compatible Cable O.D.: 3 – 6.5mm
IP Rating: IP67
Mating Cycles: ≥3,000 Cycles
Operating Temperature: -40°C ~ +105°C
Shell Material: PA66/Nylon
Flame Retardant Grade: UL94 V-0
Contact Material: Brass/Phosphor Bronze Gold-plated
Sealing Material: Epoxy/Silicone
Connection Method: Threaded-Mating Type
Wiring Method: Solder

Field Installable – On-Site Assembly for Custom Cable Lengths & Fast Repairs

This M12 female mating socket is designed for field installation – solder the contacts to your cable and assemble the connector on-site. No factory pre-molding required. Cut cables to exact length for control cabinets, junction boxes, and panel installations. Perfect for custom cable assemblies, field retrofits, and quick repairs without waiting for custom pre-molded cables.

Threaded Coupling – Secure, Vibration-Proof Connections for High-Shock Environments

The threaded locking mechanism ensures a secure, anti-vibration connection that stays locked under mechanical stress. 12mm standard M12 thread provides reliable, maintenance-free performance in demanding industrial conditions. Unlike quick-lock connectors that may loosen over time, this threaded design is built for conveyor systems, robotic arms, packaging machinery, and heavy equipment where connection integrity is critical.

Straight Mating Socket Design – Streamlined Cable-to-Cable Connections

The straight inline socket configuration provides a low-profile, streamlined solution for cable-to-cable connections. The female socket design accepts standard M12 male pins, making it ideal for cable extensions, sensor connections, and device interfaces where secure mating is essential.

IP67 Waterproof & PA66 Construction – Built for Factory Automation & Harsh Environments

Rated IP67 waterproof and dust-tight, this connector withstands moisture, washdowns, oils, and dust. PA66 nylon housing resists corrosion and mechanical stress. Operating -40°C to +105°C – suitable for cold storage, hot production lines, outdoor sensors, and food processing equipment. Complies with IEC 61076-2-101 international standard.

Gold-Plated Contacts – Reliable Signal Transmission with Low Contact Resistance

Brass/phosphor bronze contacts with gold plating ensure contact resistance ≤5mΩ and insulation resistance ≥100MΩ. Supports up to 0.75mm² (20 AWG) wire with cable O.D. 3-6.5mm. Solder termination provides a permanent, low-loss connection. Compatible with PROFINET, EtherCAT, and CANopen fieldbus systems for distributed I/O and actuator/sensor networks.
