Tool-Free Quick-Lock Coupling for Fast Mating – Push and click to mate, pull to release. Eliminates time-consuming multi-turn fastening of traditional threaded connectors. Rated for 3,000+ mating cycles, ideal for applications requiring frequent connections and disconnections.

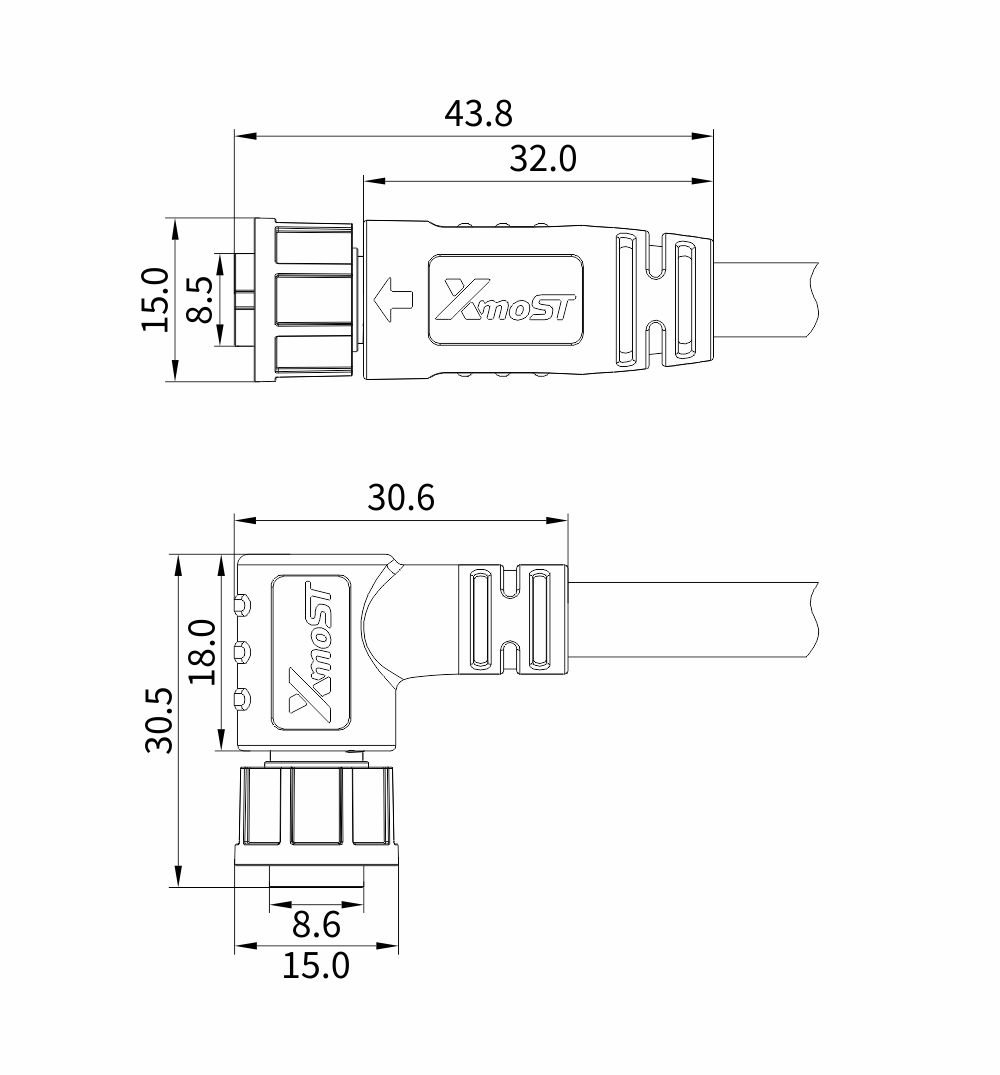

Straight Molded Design for Streamlined Cable Connections – The straight configuration provides a low-profile, streamlined solution for cable connections. Pre-molded one-piece construction eliminates weak solder joints, delivering superior strain relief and extended service life in demanding industrial environments.
IP67 Waterproof Protection for Harsh Environments – Fully dust-tight and protected against temporary immersion. Withstands moisture, dirt, and washdown conditions. Operating temperature range from -40°C to +105°C – suitable for sensors, actuators, and factory automation equipment.
Rugged PA66 Plastic Construction – Made from high-performance PA66 nylon with UL94 V-0 flame retardant rating. Offers excellent corrosion resistance, significant weight reduction compared to metal connectors, and long-term durability in demanding industrial environments.

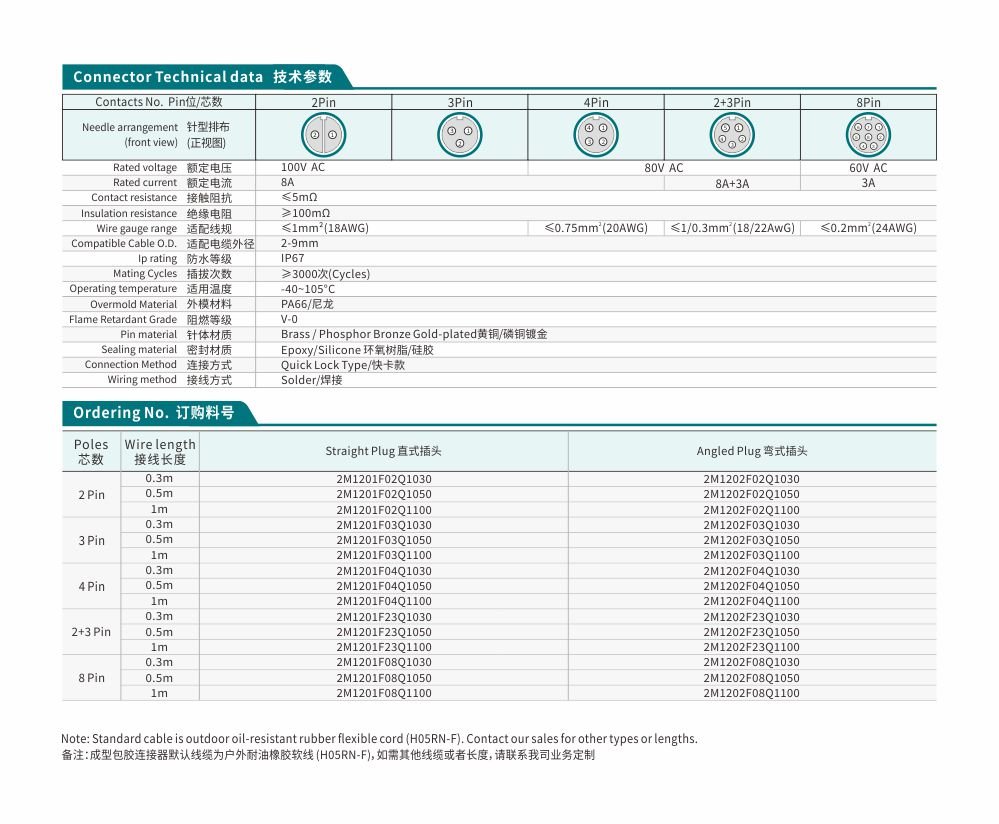

Gold-Plated Contacts for Reliable Signal Transmission – Brass/phosphor bronze contacts with gold plating ensure low and stable contact resistance (≤5mΩ) and high insulation resistance (≥100MΩ). Supports 0.75mm² (20 AWG) wire with cable O.D. 2-9mm. Solder termination for secure, permanent connections.
