Threaded Coupling – Secure, Vibration-Proof Connections for High-Shock Factory Automation
The threaded locking mechanism ensures a secure, anti-vibration connection that stays locked under mechanical stress. Unlike quick-lock or push-pull connectors that may loosen over time, this M12 male mating socket is built for high-vibration environments – conveyor systems, robotic arms, packaging machinery, and heavy equipment where connection integrity is critical. Standard M12 thread provides reliable, maintenance-free performance in demanding industrial conditions.
Field Installable – On-Site Assembly for Custom Cable Lengths & Fast Repairs

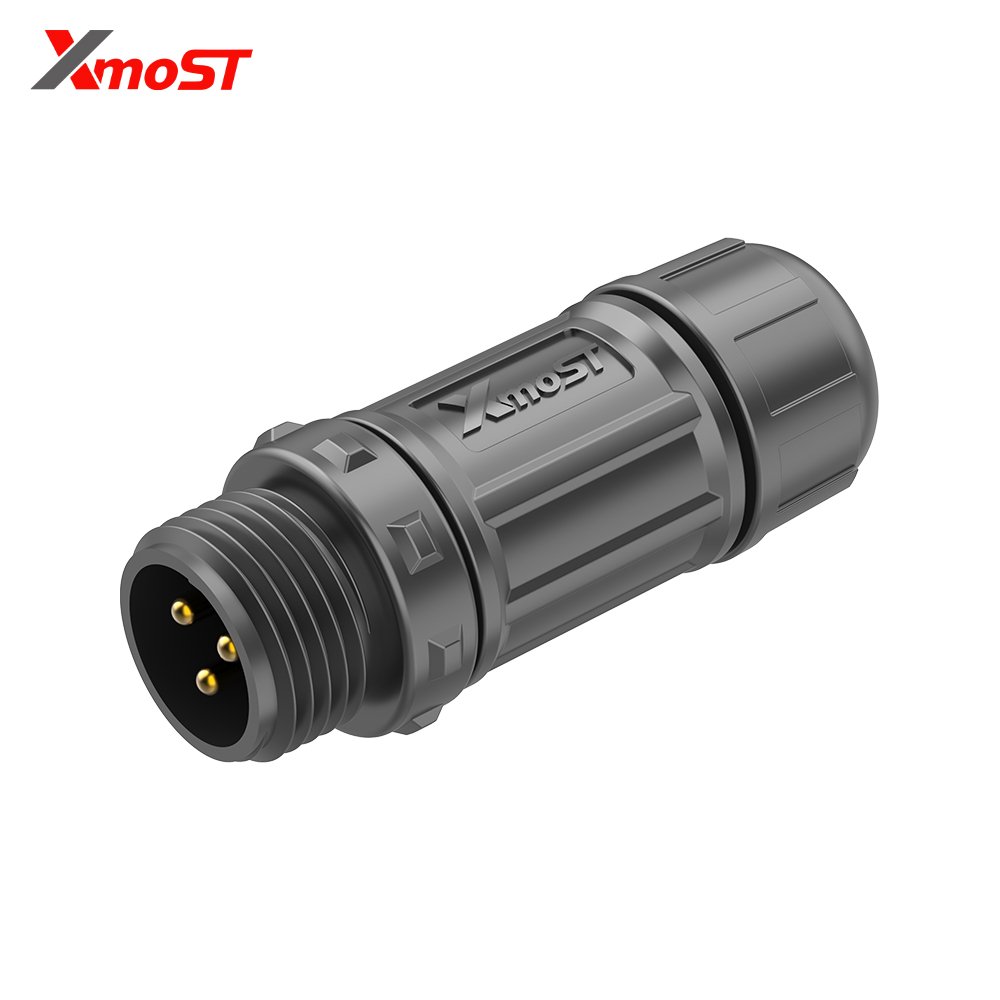

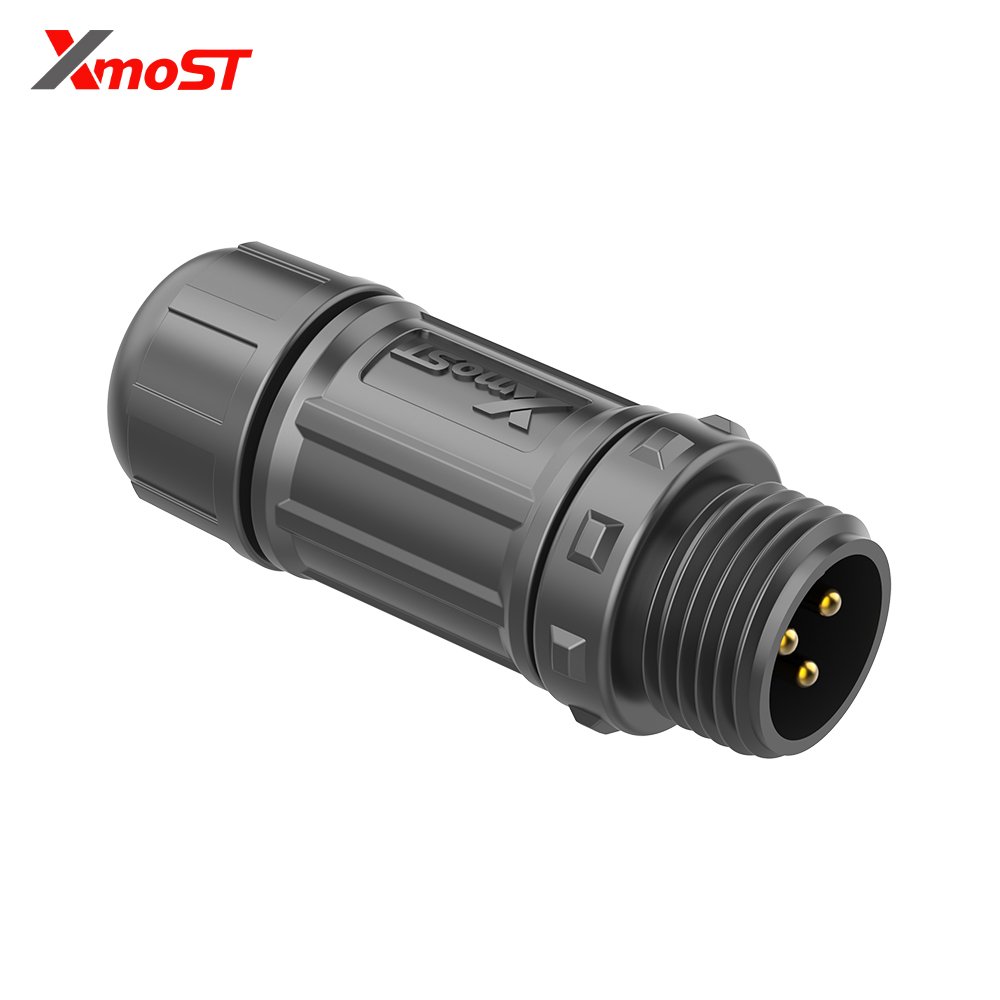

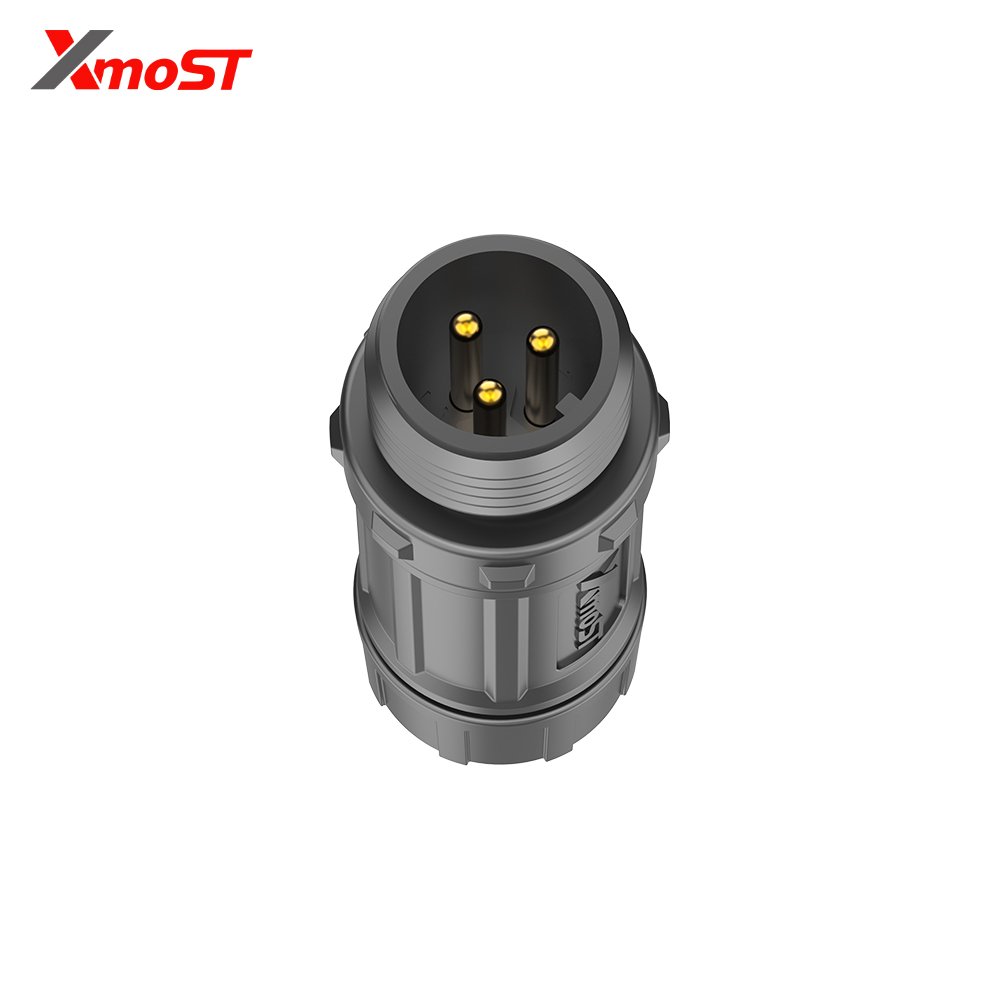

This M12 male mating socket is designed for field installation – solder the contacts to your cable and assemble the connector on-site. No factory pre-molding required. Cut cables to exact length for control cabinets, junction boxes, and panel installations. Perfect for custom cable assemblies, field retrofits, and quick repairs without waiting for custom pre-molded cables. The male pin design accepts standard M12 female sockets.
Straight Mating Socket Design – Streamlined Cable-to-Cable Connections
The straight inline socket configuration provides a low-profile, streamlined solution for cable-to-cable connections. The male pin design makes it ideal for cable extensions, sensor connections, and device interfaces where secure mating is essential. The compact straight design fits easily through cable glands and inside crowded junction boxes.
IP67 Waterproof & PA66 Construction – Built for Factory Floors & Harsh Environments
Rated IP67 waterproof and dust-tight, this connector withstands moisture, washdowns, oils, and dust. PA66 nylon housing resists corrosion and mechanical stress. Operating -40°C to +105°C – suitable for cold storage, hot production lines, outdoor sensors, and food processing equipment. Complies with IEC 61076-2-101 international standard for interchangeability and compatibility.
Gold-Plated Contacts – Reliable Signal Transmission with Low Contact Resistance
Brass/phosphor bronze contacts with gold plating ensure contact resistance ≤5mΩ and insulation resistance ≥100MΩ. Supports up to 0.75mm² (20 AWG) wire with cable O.D. 3-6.5mm. Solder termination provides a permanent, low-loss connection. Compatible with PROFINET, EtherCAT, and CANopen fieldbus systems for distributed I/O and actuator/sensor networks. 3,000+ mating cycles for long-term reliability in demanding automation environments.
