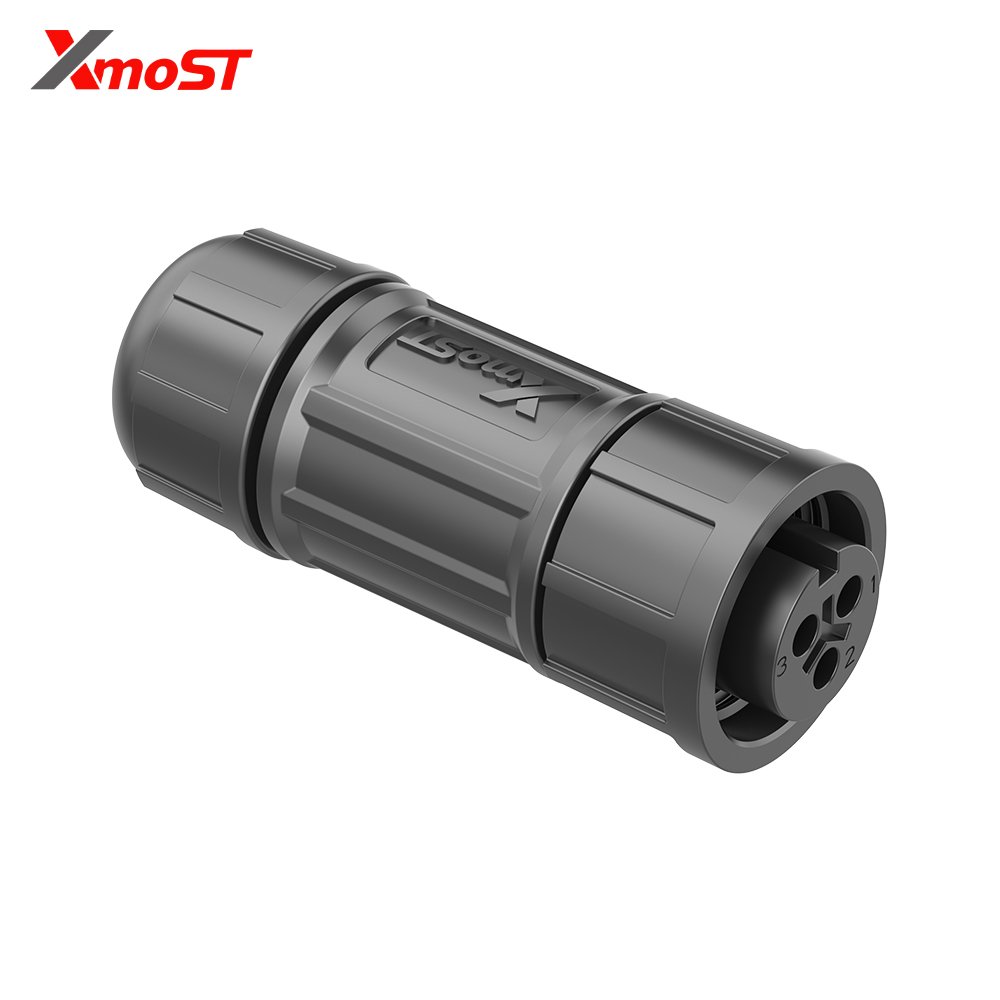

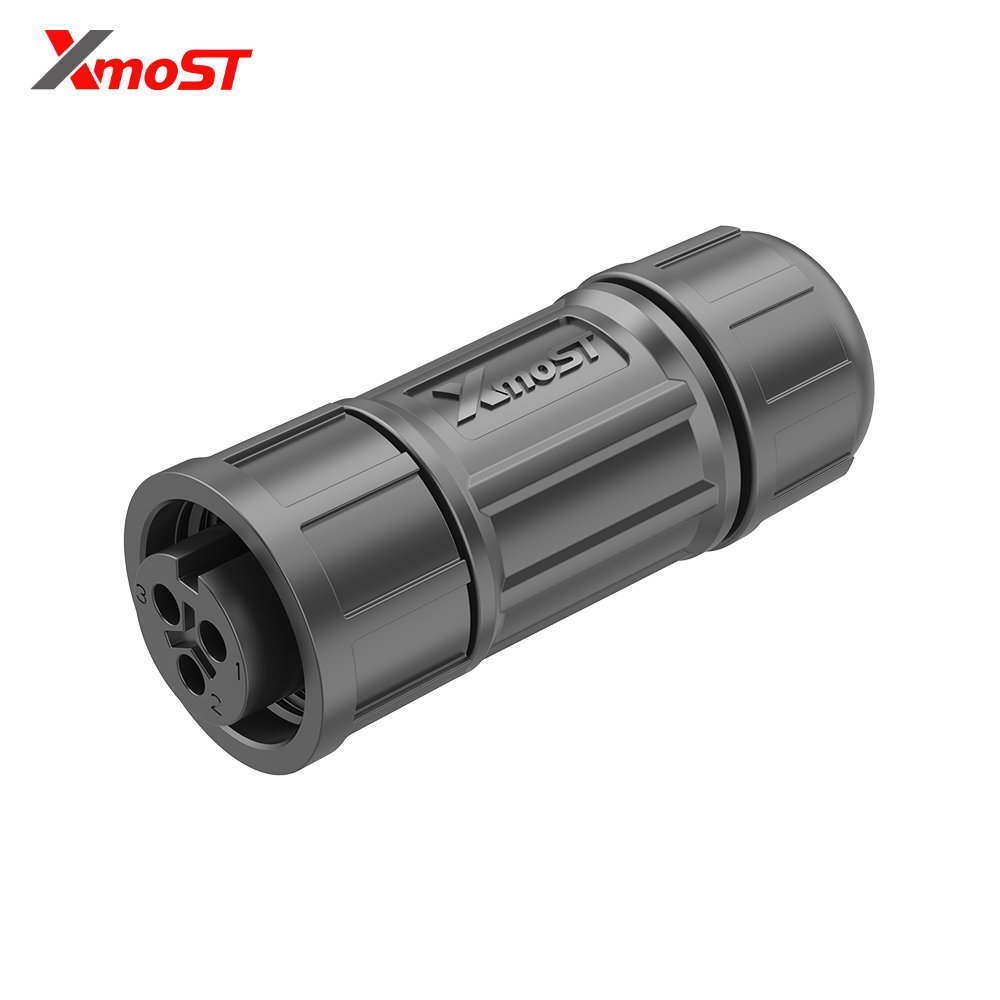

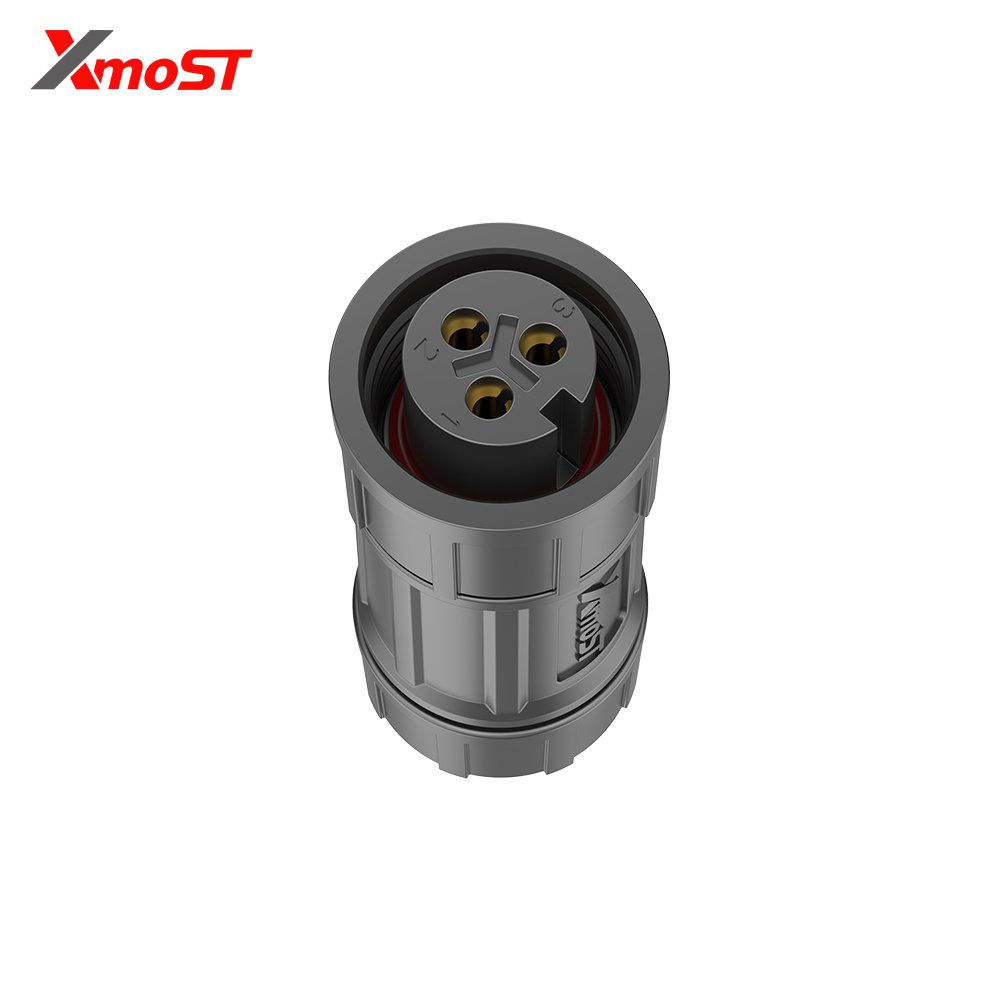

M12 3-Pin Female Assembly Plug

Threaded Coupling – Secure, Vibration-Proof Connections for High-Shock Environments

The threaded locking mechanism ensures a secure, anti-vibration connection that stays locked under mechanical stress. Unlike quick-lock or push-pull connectors that may loosen over time, this M12 female assembly plug is built for high-vibration environments – conveyor systems, robotic arms, packaging machinery, and heavy equipment where connection integrity is critical. 12mm standard M12 thread provides reliable, maintenance-free performance in demanding industrial conditions. The female socket design accepts standard M12 male pins, making it ideal for cable-to-cable extensions and device connections where vibration resistance is essential.

On-Site Assembly – No Pre-Molding, Full Flexibility for Custom Cable Lengths

Designed for field installation, this M12 female assembly plug lets you solder contacts to your cable and assemble the connector on-site – no factory pre-molding required. Cut cables to exact length for control cabinets, junction boxes, and panel installations. Eliminate excess cable bundling, reduce cabinet clutter, and stop waiting for custom pre-molded cable assemblies. Perfect for PLC I/O connections, sensor distribution boxes, and actuator interfaces where the female socket provides secure mating with standard male connectors.

IP67 Waterproof – Built for Factory Floors, Outdoor Sensors & Washdown Areas

Rated IP67 waterproof and dust-tight, this connector withstands moisture, washdowns, oils, and dust. PA66 nylon housing resists corrosion and mechanical stress. Operating -40°C to +105°C – suitable for cold storage, hot production lines, outdoor sensors, food processing equipment, and everything in between. Complies with IEC 61076-2-101 international standard for interchangeability and compatibility. Female contacts provide secure, low-resistance mating with standard M12 male pins.

Gold-Plated Contacts – Reliable Signal Transmission with Low Contact Resistance

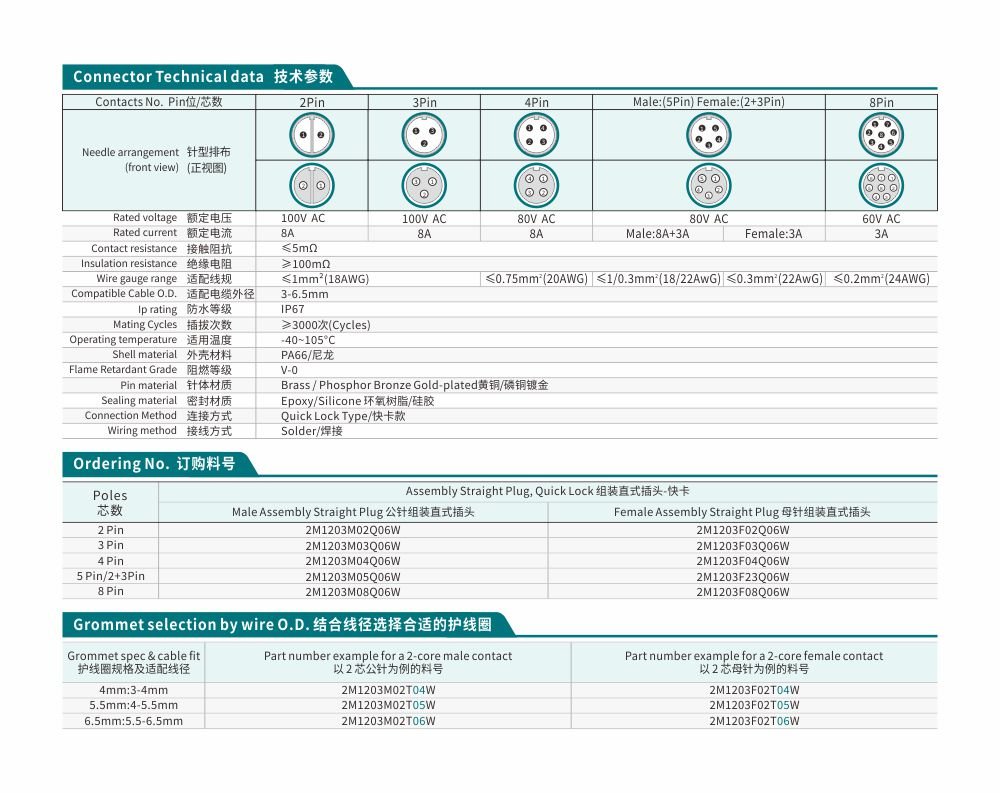

Brass/phosphor bronze contacts with gold plating ensure contact resistance ≤5mΩ and insulation resistance ≥100MΩ. Supports up to 0.75mm² (20 AWG) wire with cable O.D. 3-6.5mm. Solder termination provides a permanent, low-loss connection that won’t loosen over time. Compatible with PROFINET, EtherCAT, and CANopen fieldbus systems for distributed I/O and actuator/sensor networks. The female socket configuration ensures reliable, repeatable connections in demanding automation environments.

Repair, Retrofit & Replacement – Minimize Downtime, Reuse Existing Cables

When sensors or actuators fail, replace only the connector – not the entire cable run. Maintenance crews can solder on a new female plug in minutes, getting production back online fast. Perfect for field retrofits, machinery upgrades, and temporary test setups where custom pre-molded cables aren’t practical. The female assembly plug allows you to create custom cable extensions and repair damaged connectors without replacing entire cable assemblies. Saves time, saves material cost, reduces downtime. Widely used in industrial sensors, automation equipment, packaging machinery, and electric vehicle applications.

Contacts (Pin Count): 3-Pin
