On-Site Assembly – No Pre-Molding, Full Flexibility for Control Cabinet Wiring & Field Installation

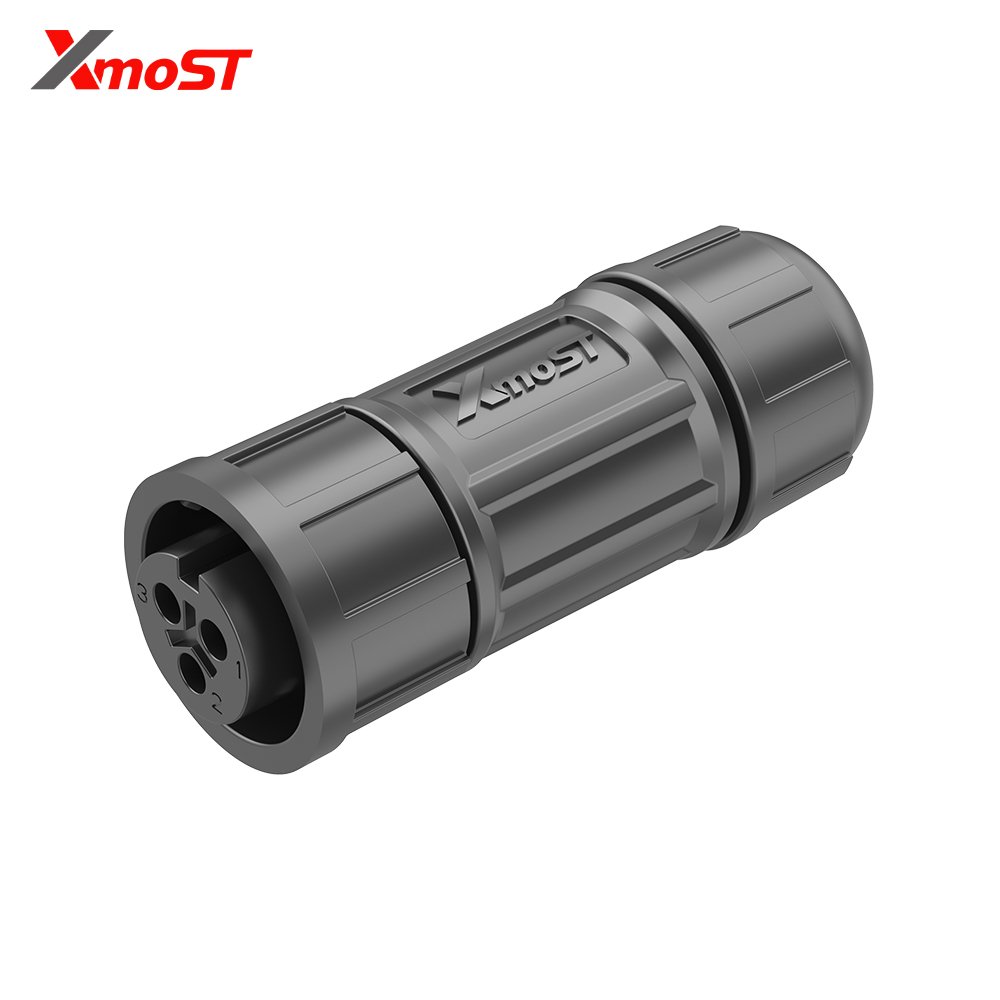

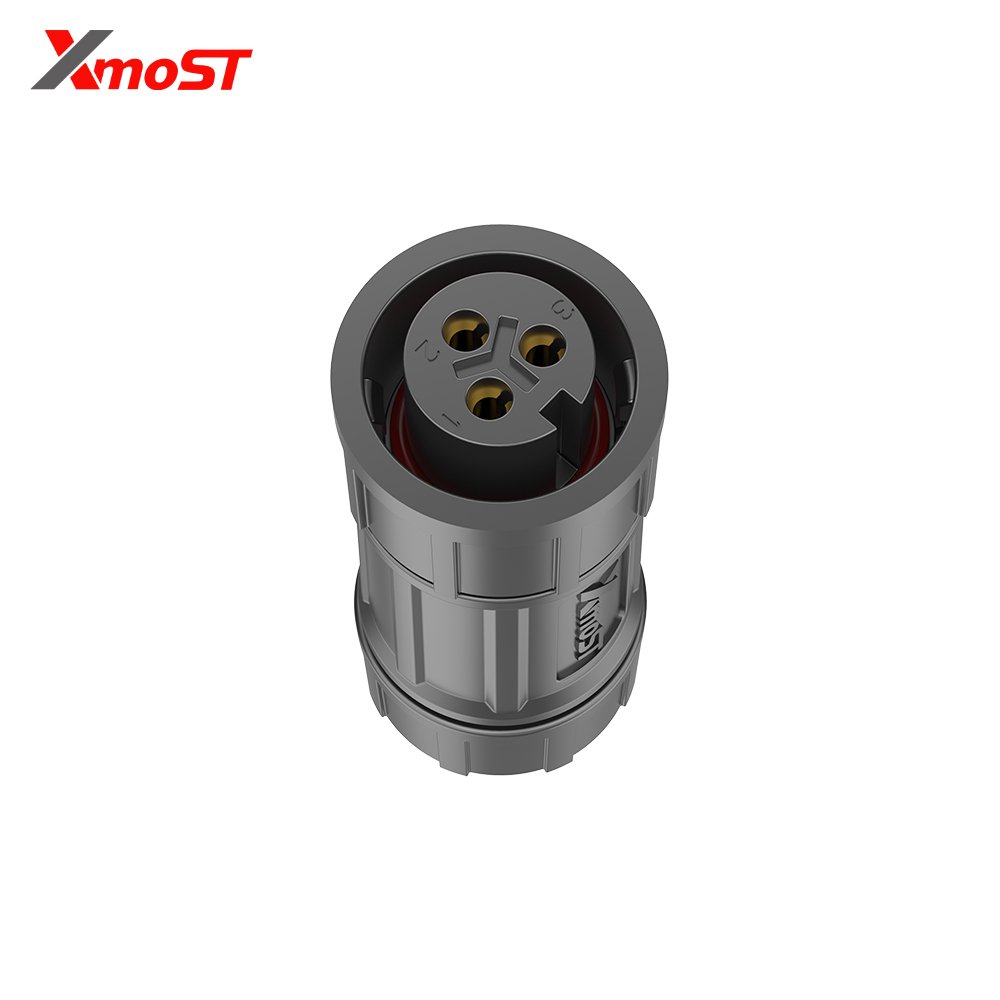

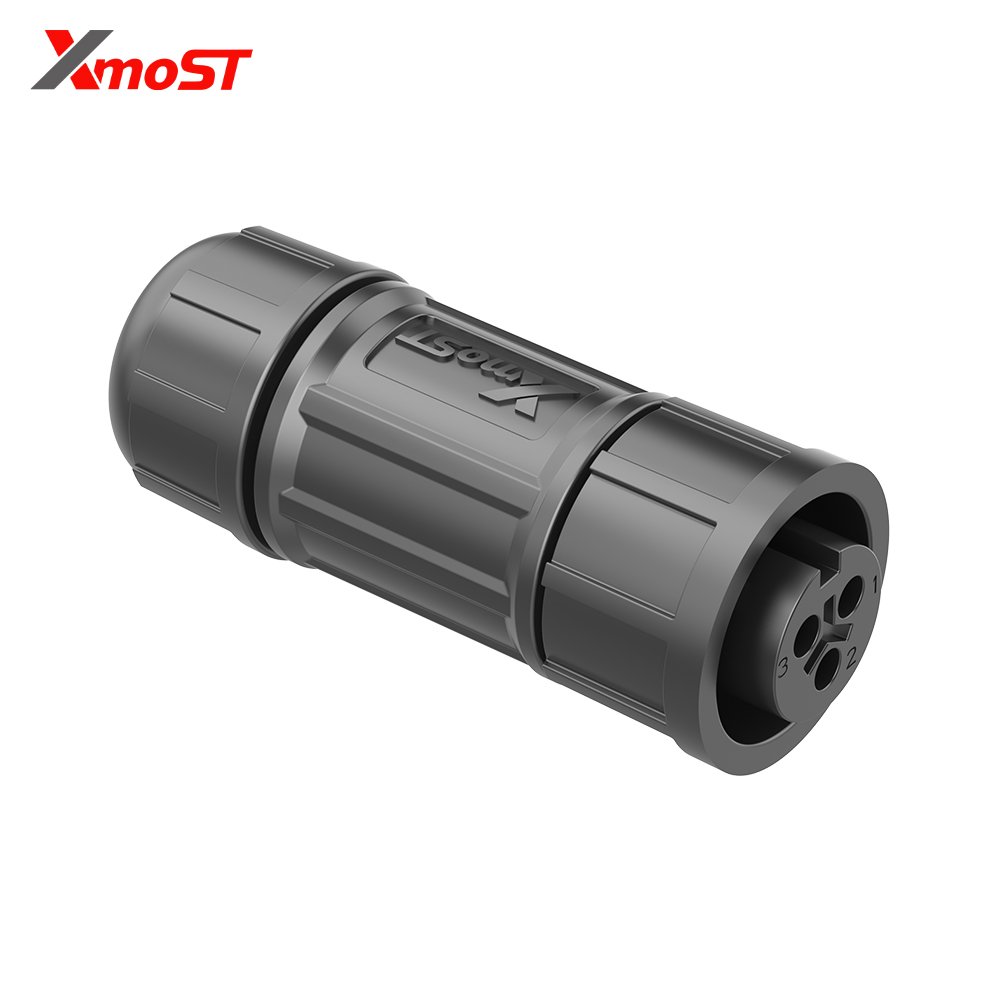

Designed for field installation, this M12 female assembly plug lets you solder contacts to your cable and assemble the connector on-site – no factory pre-molding required. Cut cables to exact length for control cabinets, junction boxes, and panel installations. Eliminate excess cable bundling, reduce cabinet clutter, and stop waiting for custom pre-molded cable assemblies. Perfect for PLC I/O connections, sensor distribution boxes, and actuator interfaces where space is limited and cable management matters. The female socket design accepts standard male pins, making it ideal for cable-to-cable extensions and device connections.
Quick-Lock Coupling – Fast Tool-Free Mating for Field Technicians & Maintenance Crews
The quick-lock system enables tool-free mating – push to connect with an audible click, pull to release. No torque specs, no wrenches, no over-tightening. Field technicians can connect and disconnect in seconds, saving valuable time during installation, maintenance, and equipment changeovers. Rated for 3,000+ mating cycles, built for the daily demands of factory floors, field service, and production environments where connectors are frequently mated and unmated.
IP67 Waterproof – Built for Factory Automation, Outdoor Sensors & Washdown Environments
Rated IP67 waterproof and dust-tight, this connector withstands moisture, washdowns, oils, and dust. PA66 nylon housing resists corrosion and mechanical stress. Operating -40°C to +105°C – suitable for cold storage, hot production lines, outdoor sensors, food processing equipment, and everything in between. Reliable performance where other connectors fail, ensuring consistent signal transmission in harsh industrial environments.
Gold-Plated Contacts – Reliable Signal Transmission with Low Contact Resistance for Sensors & Actuators
Brass/phosphor bronze contacts with gold plating ensure contact resistance ≤5mΩ and insulation resistance ≥100MΩ. Supports up to 0.75mm² (20 AWG) wire with cable O.D. 3-6.5mm. Solder termination provides a permanent, low-loss connection that won’t loosen over time. Compatible with PROFINET, EtherCAT, and CANopen fieldbus systems for distributed I/O and actuator/sensor networks. The female contacts provide secure, low-resistance mating with standard M12 male pins.
Repair, Retrofit & Replacement – Minimize Downtime, Reuse Existing Cables in Production Lines
When sensors or actuators fail, replace only the connector – not the entire cable run. Maintenance crews can solder on a new female plug in minutes, getting production back online fast. Perfect for field retrofits, machinery upgrades, and temporary test setups where custom pre-molded cables aren’t practical. The female assembly plug allows you to create custom cable extensions and repair damaged connectors without replacing entire cable assemblies. Saves time, saves material cost, reduces downtime.
