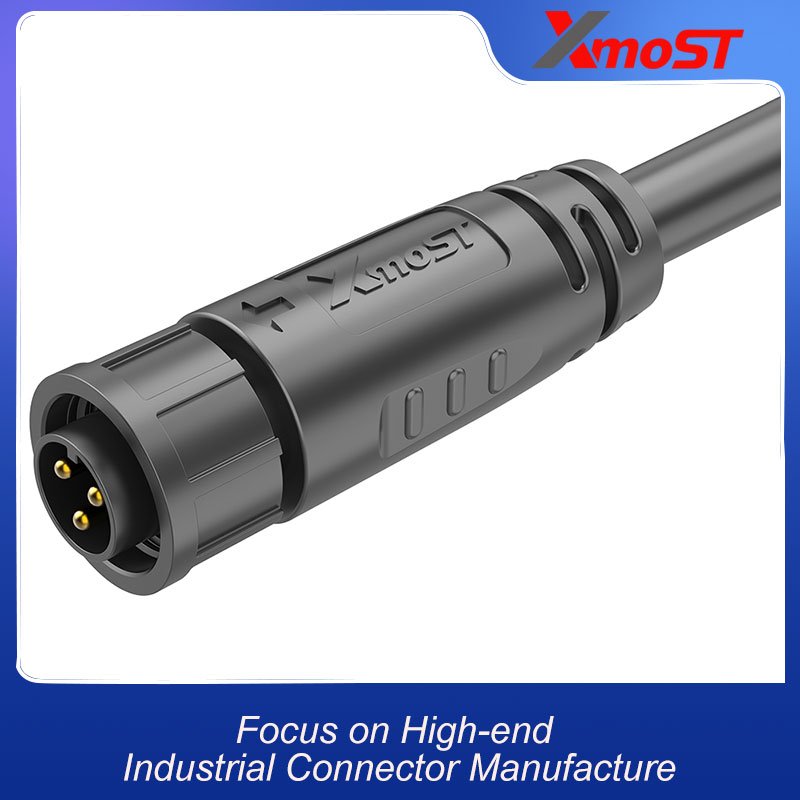

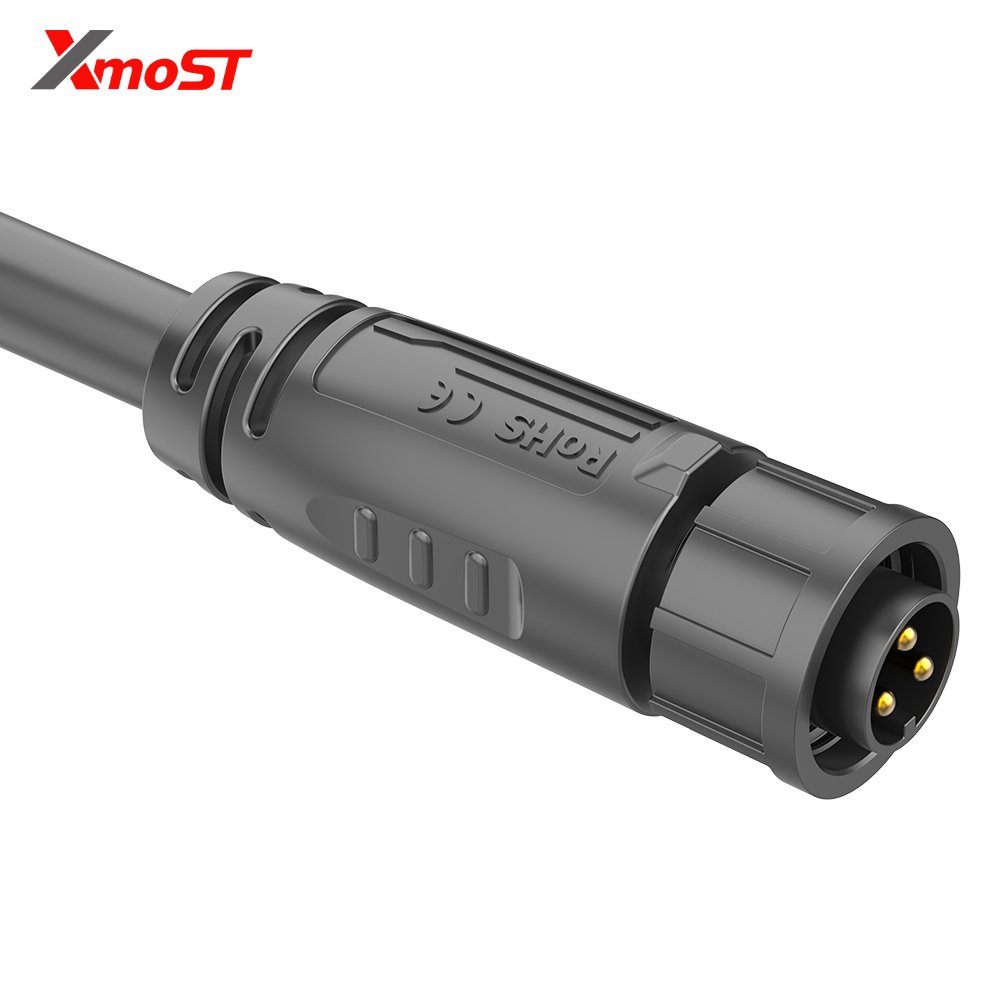

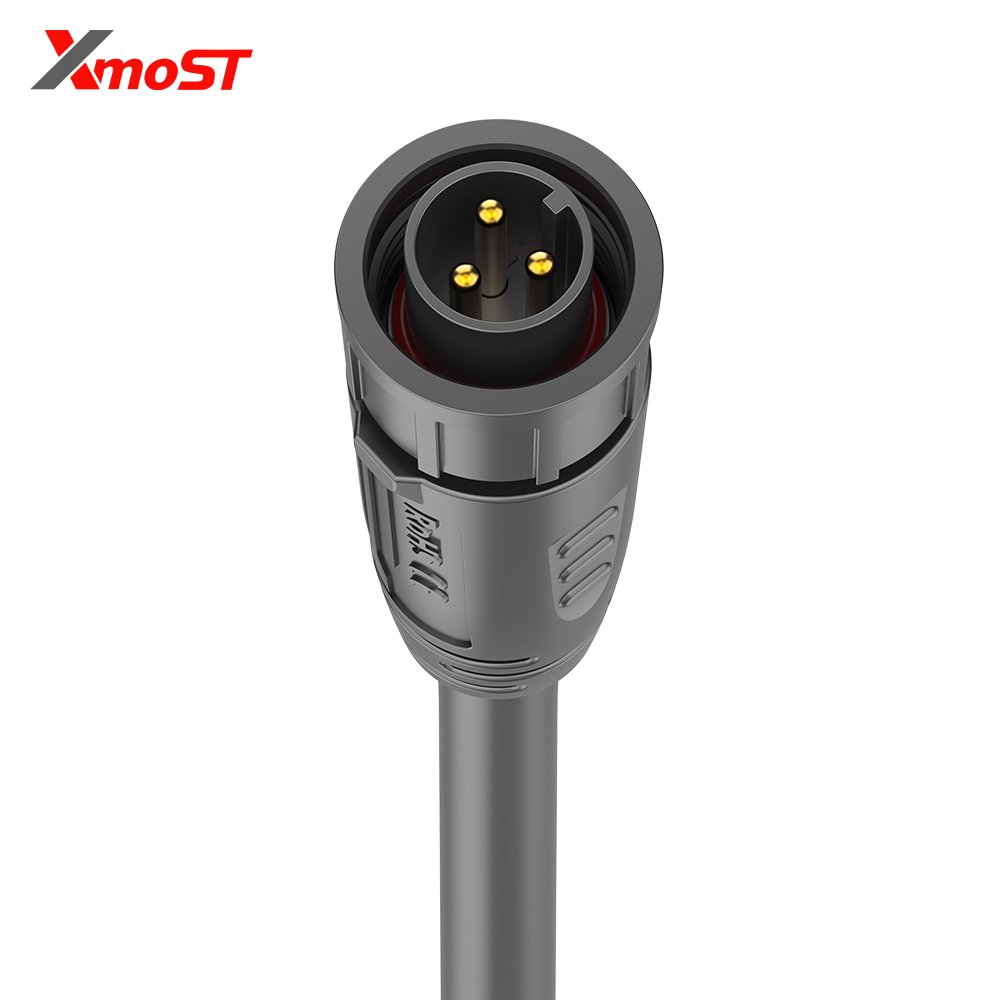

IP67-Rated M12 Male Connector for Harsh Environments – Built with a durable PA66 nylon overmold, this 3-pin male circular connector provides reliable IP67 waterproof and dustproof protection. Withstands moisture, dirt, and temperature extremes from -40°C to +105°C, making it ideal for factory automation and industrial equipment.

 Straight Molded Design for Streamlined Cable Connections – The straight configuration provides a low-profile, streamlined solution for cable connections. Pre-molded one-piece construction eliminates weak solder joints, delivering superior strain relief and extended service life in demanding applications.

 Threaded Coupling for Secure, Vibration-Proof Connections – The threaded locking mechanism ensures a secure, anti-vibration connection that stays locked under mechanical stress. Provides reliable performance in high-vibration environments where push-pull or quick-lock connectors may loosen over time.

Gold-Plated Contacts for Reliable Signal Transmission – Features brass/phosphor bronze contacts with gold plating, ensuring excellent conductivity with contact resistance ≤5mΩ and insulation resistance ≥100MΩ. Supports 0.75mm² (20 AWG) wire with cable O.D. 2-9mm. Solder termination for secure, permanent connections.

Lightweight PA66 Construction with V-0 Flame Retardancy – Manufactured from high-performance PA66 nylon with UL94 V-0 flame retardant rating. Offers significant weight savings over metal connectors while providing excellent corrosion resistance and long-term durability.
