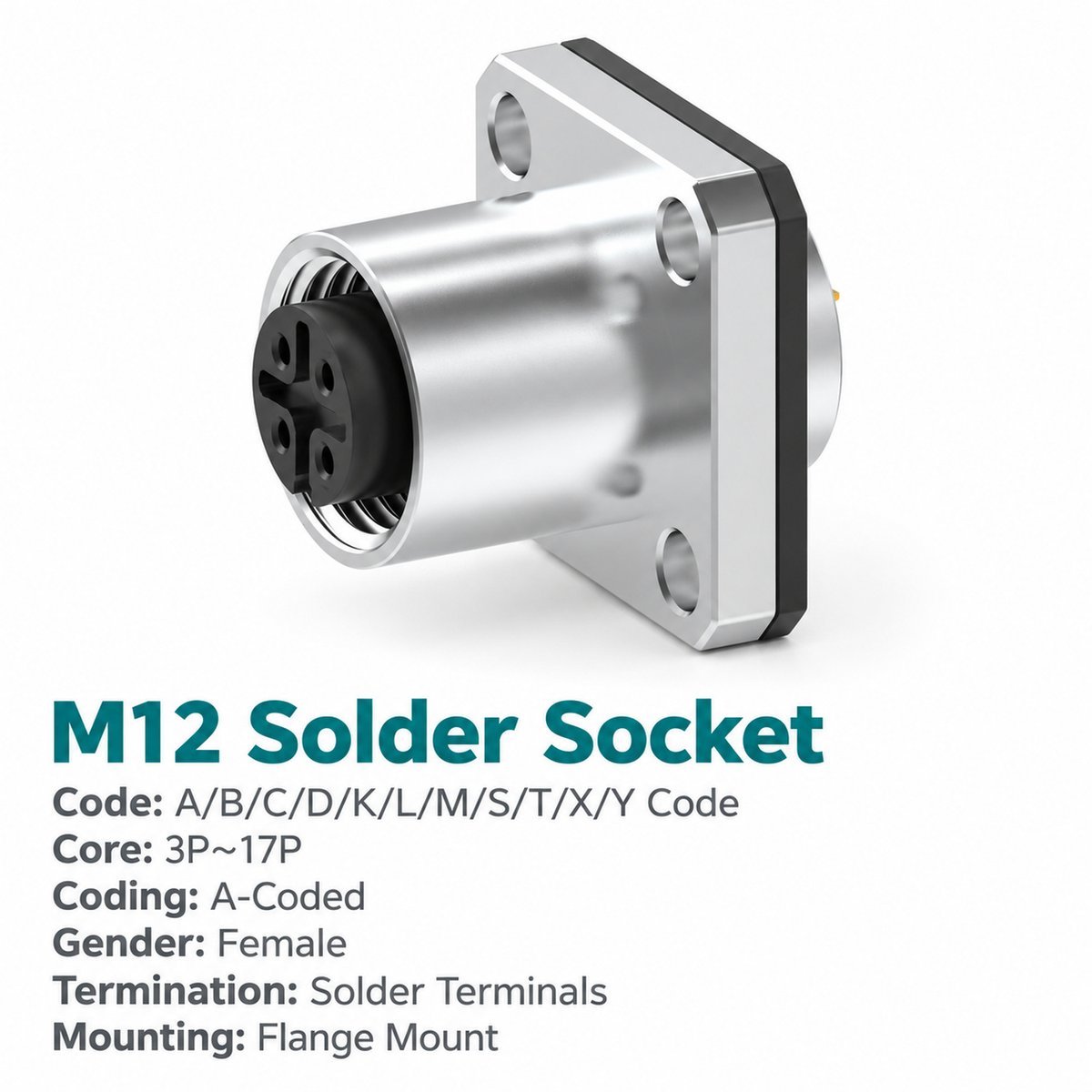

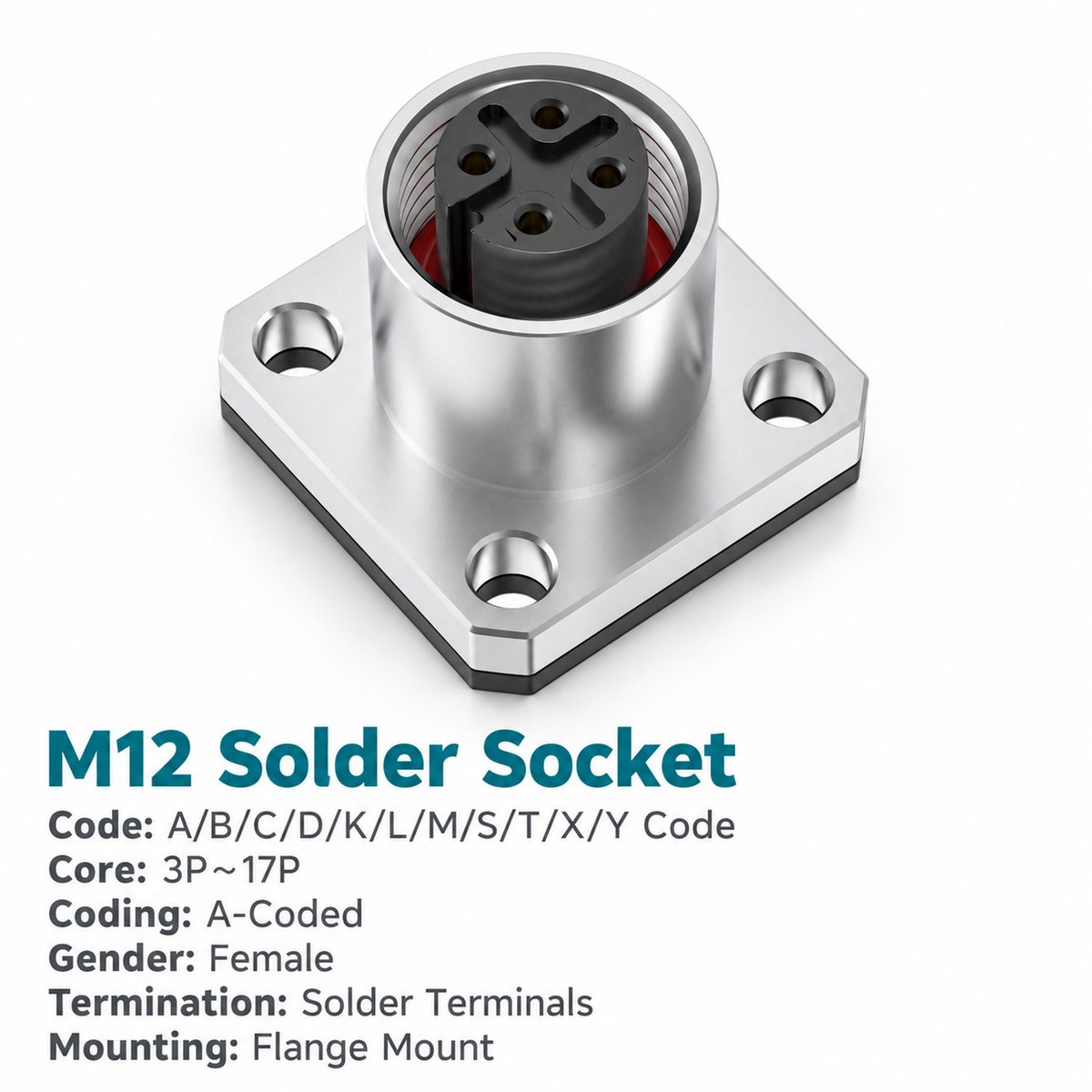

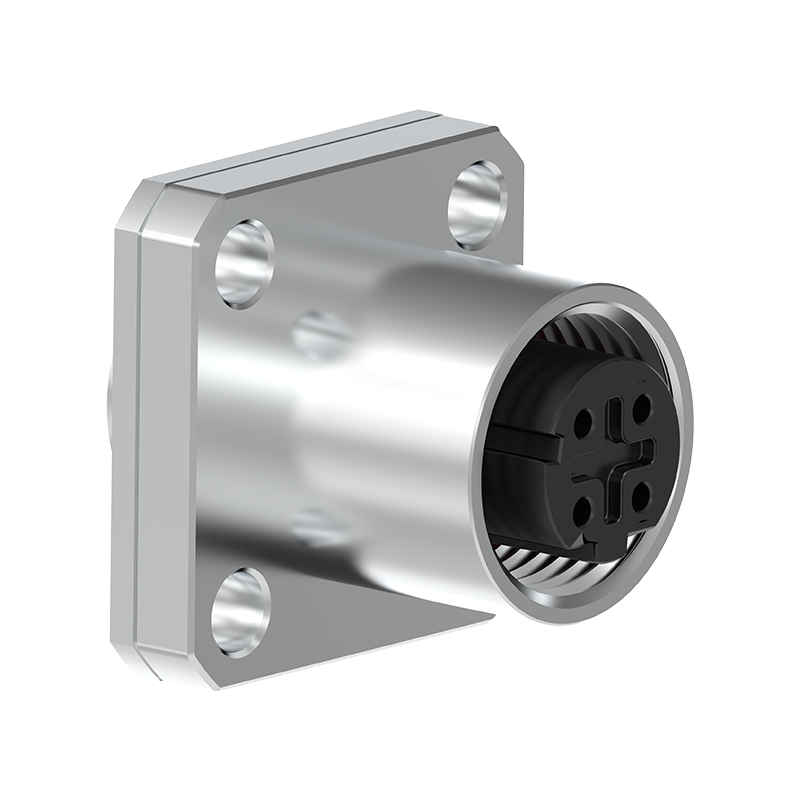

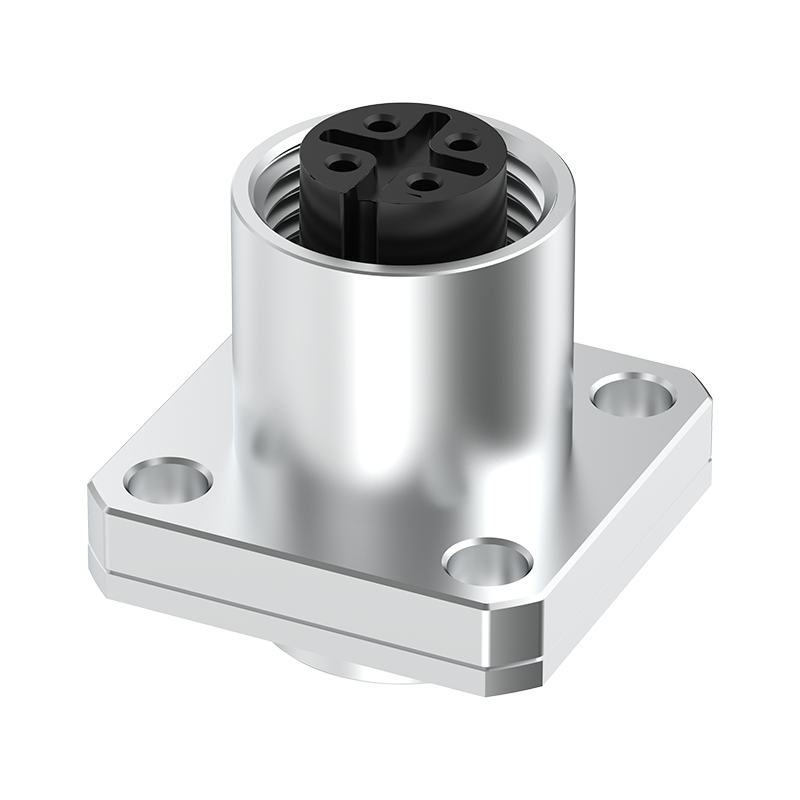

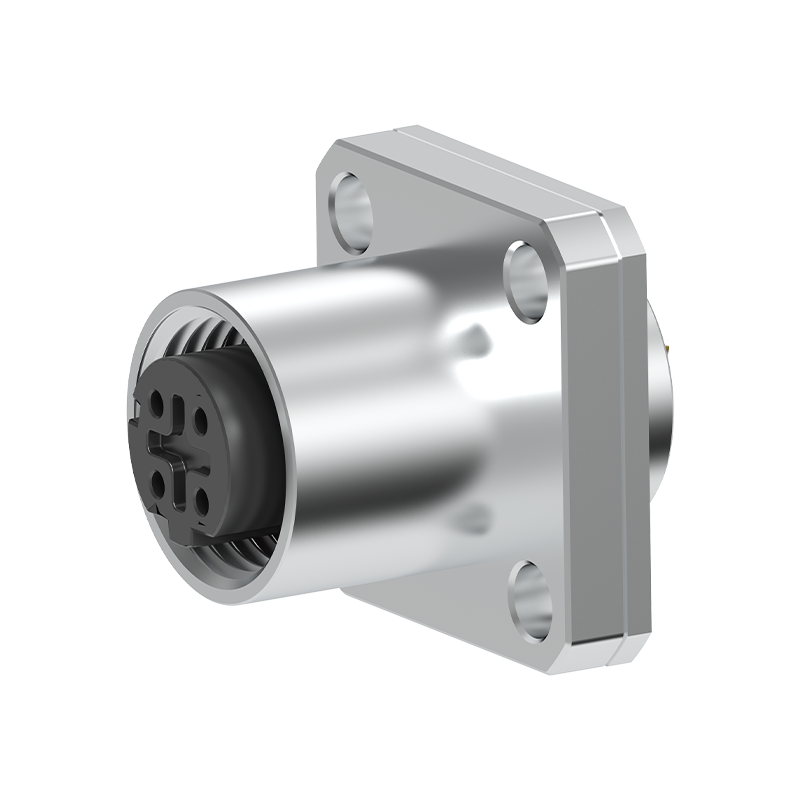

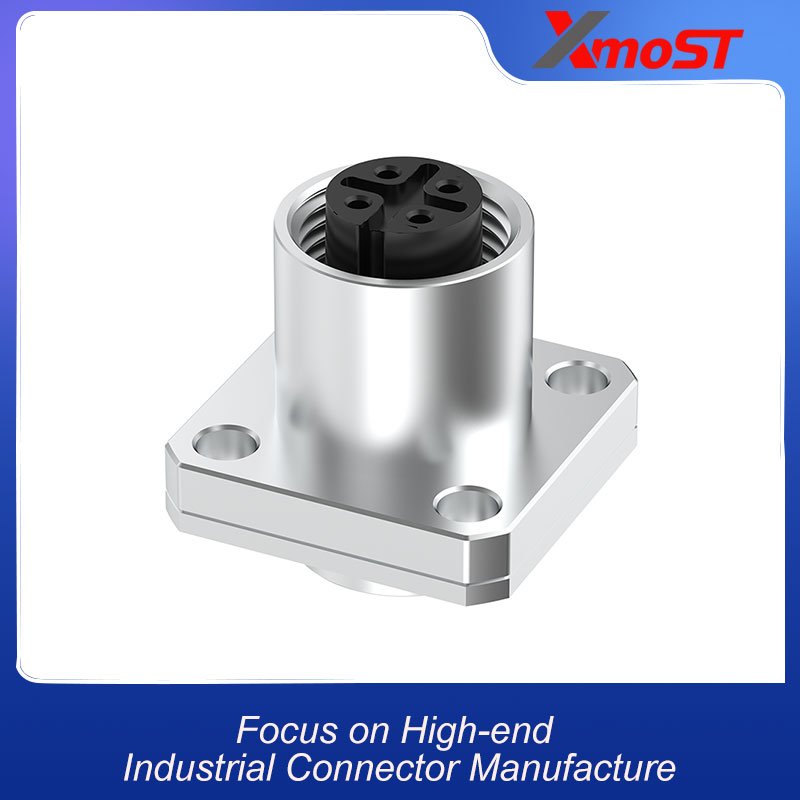

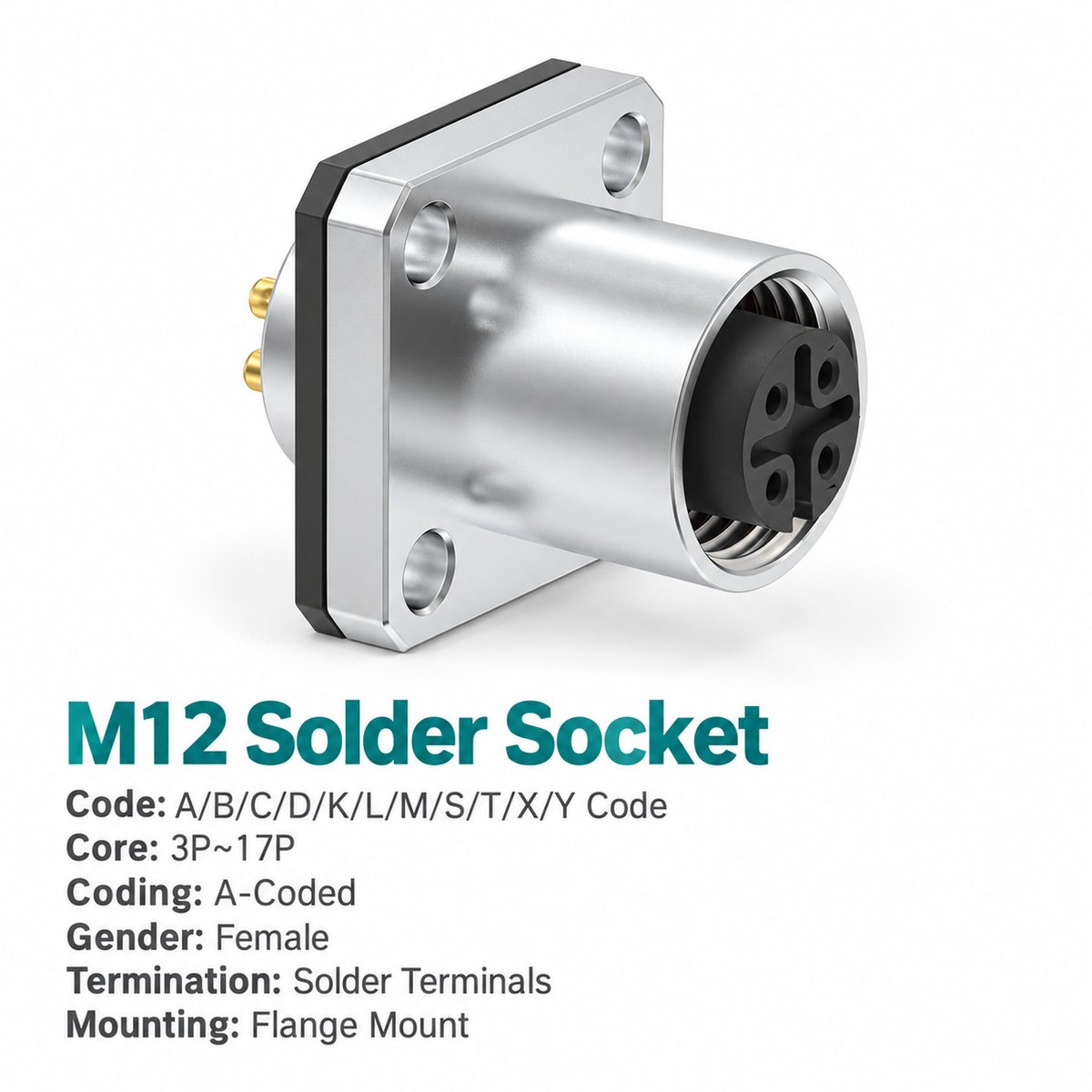

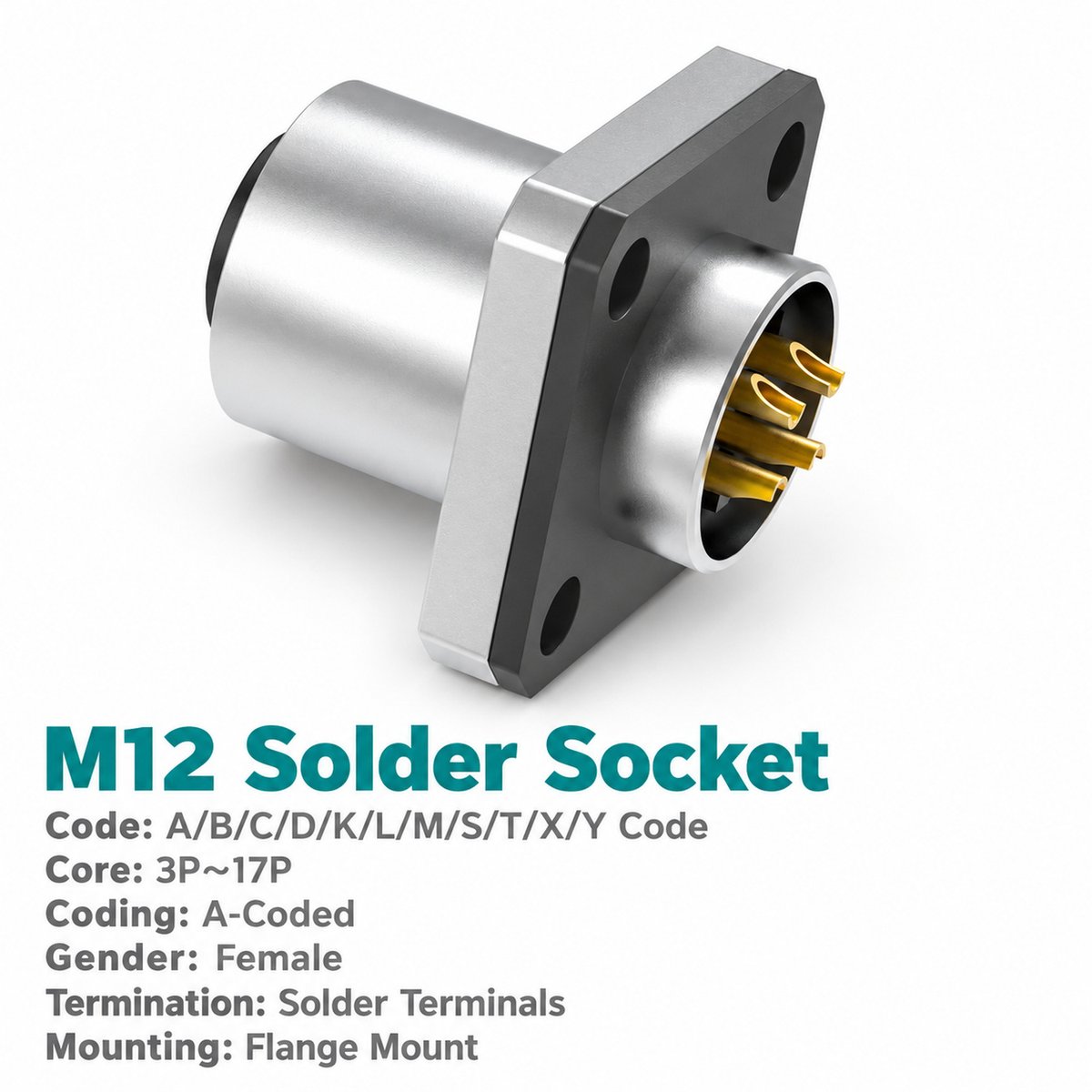

M12 A-code flange socket is a sensor actuator panel connector designed for secure surface mounting in industrial automation. This flange mount M12 female socket features a 4Pin configuration, making it ideal for sensor signal transmission, actuator control, and PLC I/O connections. The 4Pin signal connector provides reliable 250V / 4A power and signal transmission. Non-shielded design. Rated IP68 waterproof, it withstands harsh industrial environments. M12x1.0mm screw locking ensures vibration-resistant connection. Solder type termination (supports wire gauge 0.14mm² to 0.34mm²). Compliant with IEC 61076-2-101.

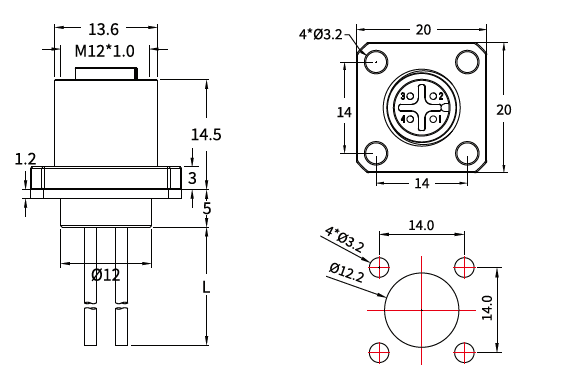

| Pin count | 3Pin | 4Pin | 5Pin | 8Pin | 12Pin | 17Pin |
| Operating standard | IEC 61076-2-101 | |||||
| Rated current | 4A | 4A | 2A | 1.5A | ||
| Rated voltage | 250V | 60V | 30V | 30V | ||
| Insulation resistance | ≥100MΩ | |||||
| Contact resistance | ≤5mΩ | |||||
| Shielding performance | Non-Shielded | |||||
| Locking method | M12x1.0mm screw | |||||
| Screw torque | Recommend：0.4Nm；Max：0.8Nm | |||||
| Wiring method | Soldering | |||||
| Operating temperature | -25℃ ~ +80℃ Dynamic , -40℃ ~ +80℃ Static | |||||
| Wire gauge range | 0.34mm²(AWG22) | 0.25mm²(AWG24) | 0.14mm²(AWG26) | |||
| Ip rating | IP67，IP68 | |||||
| Pollution degree | 3 | |||||
| Insulator material | PA66+GF/TPU+GF | |||||
| Screw/nut material | Brass Ni/Zinc Alloy Ni | |||||
| Pin material | Phosphor Bronze Au/Brass Au | |||||
| Sealing material | FKM/Silicon/epoxy | |||||
