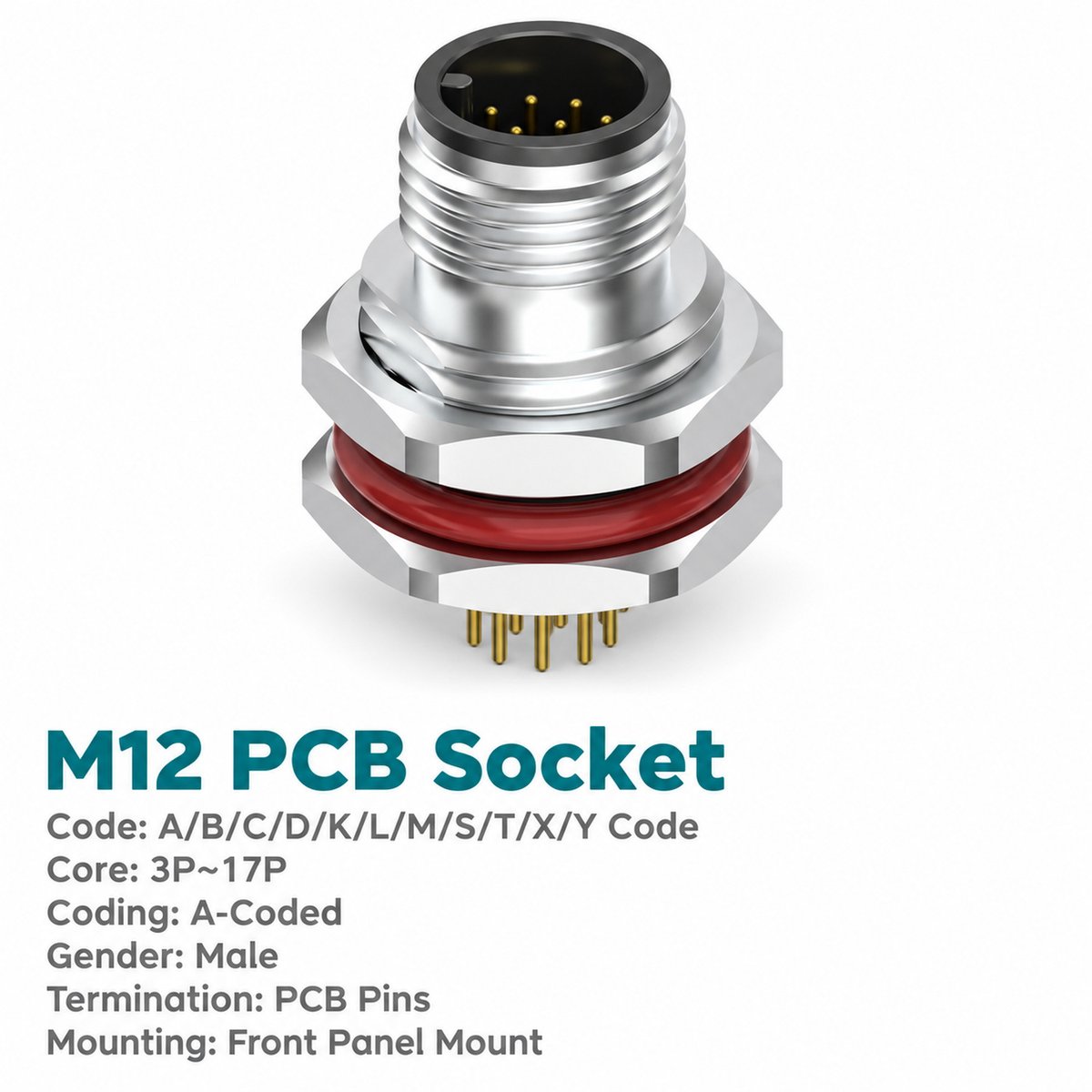

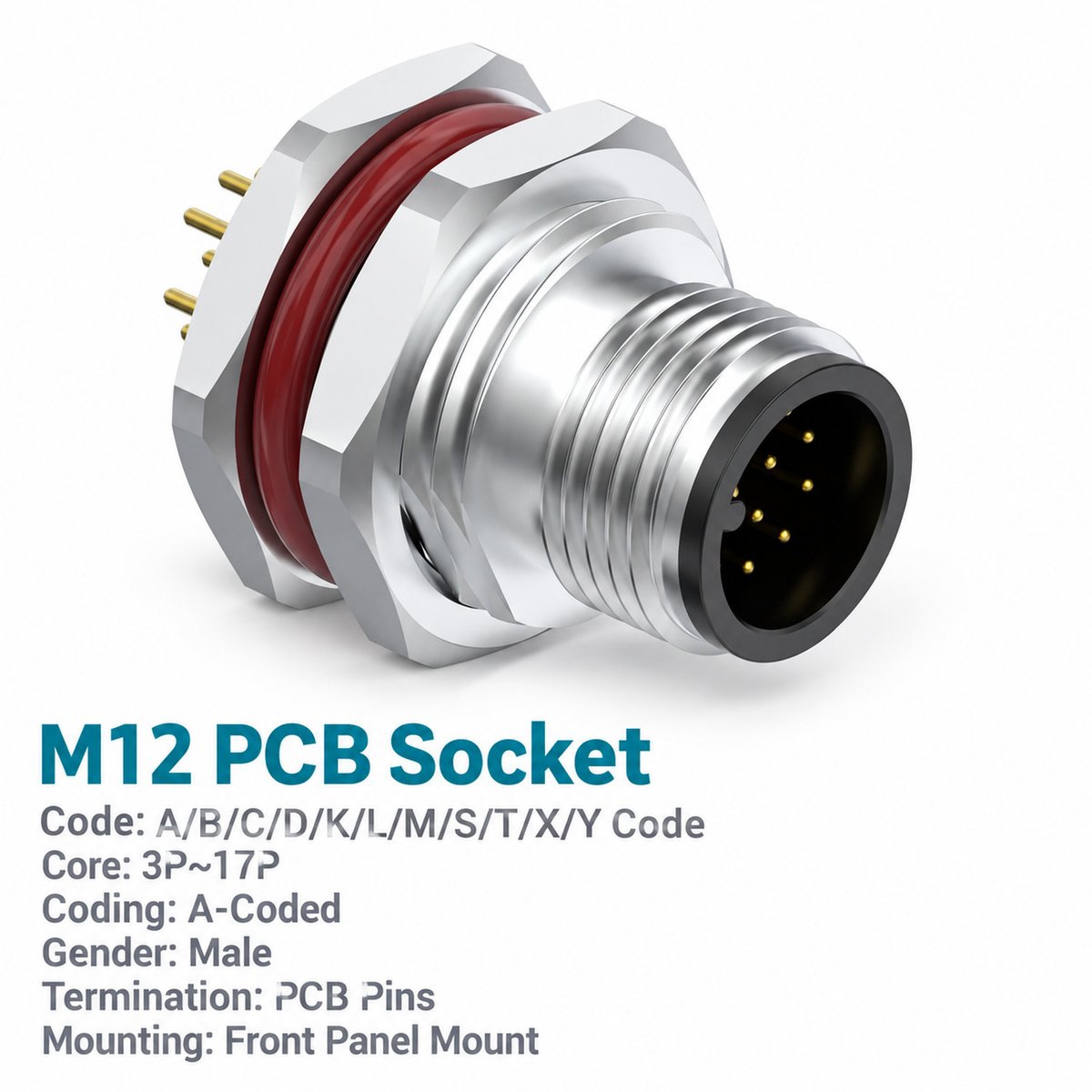

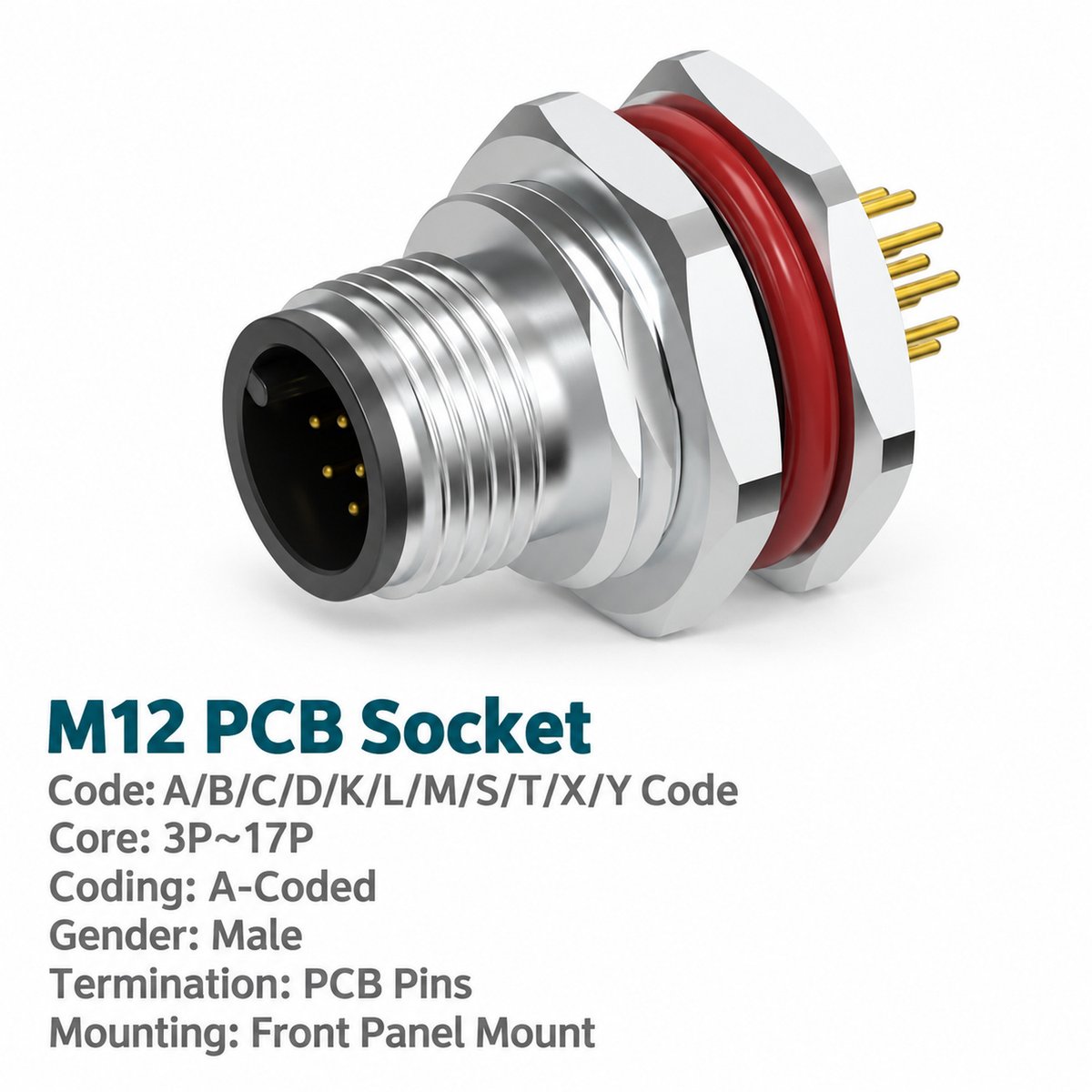

Key Features
- Front fastened panel mounting with an M12 × 1.0 mating interface.
- Six contact options: 3, 4, 5, 8, 12 and 17 pins.
- PCB insertion contacts for dip soldering.
- Grounded/ungrounded and shielded/unshielded options.
Product Dimensions

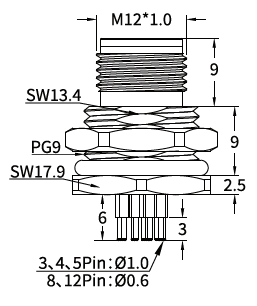

[Insert the male front mount outline drawing and corresponding panel cut-out drawing.]
Illustrated PG9 Version — Dimensions in mm
| Dimension | Value |
|---|---|
| Mating thread | M12 × 1.0 |
| Panel mounting thread shown | PG9 |
| Upper axial section | 9 |
| Middle axial section | 9 |
| Lower axial section | 2.5 |
| Upper wrench size | SW13.4 |
| Mounting nut wrench size | SW17.9 |
| Rear contact section | 6 |
| Contact tip section | 3 |
| PCB contact diameter: 3 / 4 / 5 pins | Ø1.0 |
| PCB contact diameter: 8 / 12 pins | Ø0.6 |
The 17-pin contact diameter is not specified in the outline drawing.
Needle Arrangement (Front View)
[Insert the male contact arrangement diagrams for 3, 4, 5, 8, 12 and 17 pins.]
Mating-face view. The 3-pin version uses contact positions 1, 3 and 4.
Specifications
| Parameter | Specification |
|---|---|
| Brand | Xmost |
| Interface | M12 A-coded, male |
| Mounting | Front fastened |
| Termination | PCB dip soldering |
| Standard listed | IEC 61076-2-101 |
| Grounding | Grounded / ungrounded |
| Shielding | Shielded / unshielded |
| Insulation resistance | ≥100 MΩ |
| Contact resistance | ≤5 mΩ |
| Coupling torque | Recommended 0.4 N·m; maximum 0.8 N·m |
| Temperature, flexible use | −25°C to +80°C |
| Temperature, static use | −40°C to +80°C |
| Protection ratings listed | IP67 / IP68 |
| Pollution degree | 3 |
| Insulator materials | PA66+GF / TPU+GF |
| Contacts | Rated Current | Rated Voltage |
|---|---|---|
| 3 / 4 pins | 4 A | 250 V |
| 5 pins | 4 A | 60 V |
| 8 pins | 2 A | 30 V |
| 12 / 17 pins | 1.5 A | 30 V |
Applications
- Sensor interface modules with external female cable connections.
- Actuator controllers with direct PCB termination.
- Front mount connection panels for automation equipment.
- Multi-contact signal interfaces in industrial control devices.
Ordering Options
| Item | Options |
|---|---|
| Contact count | 3 / 4 / 5 / 8 / 12 / 17 pins |
| Panel mounting thread | M12 × 1.0 / PG9 / M16 × 1.5 / M20 × 1.5 |
| Grounding | Grounded / ungrounded |
| Shielding | Shielded / unshielded |
