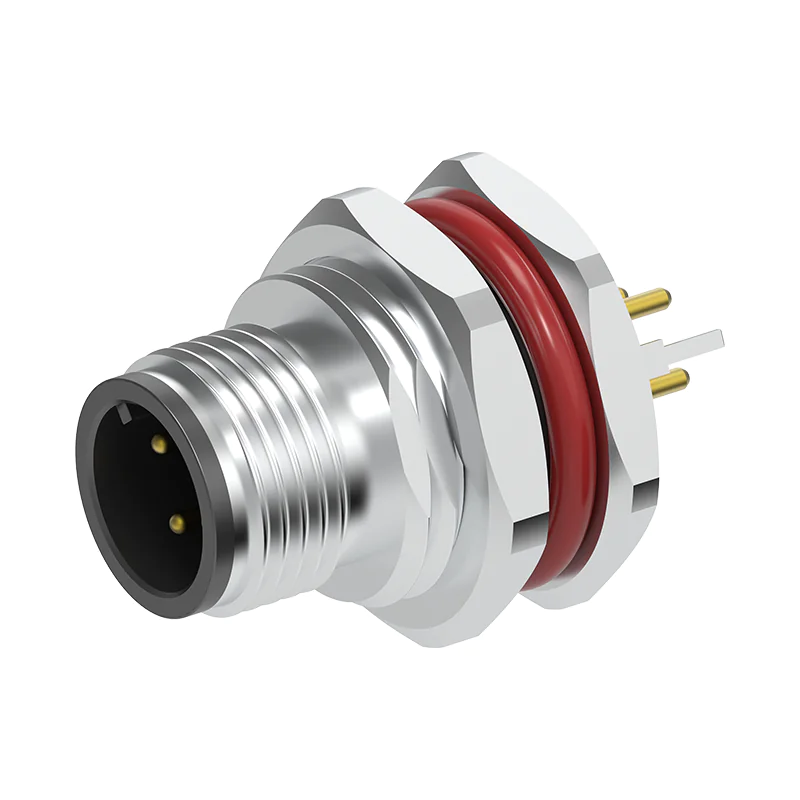

M12 Connector D-Code 4Pin Male - Fast Ethernet Panel Socket, IP68 - Image 2

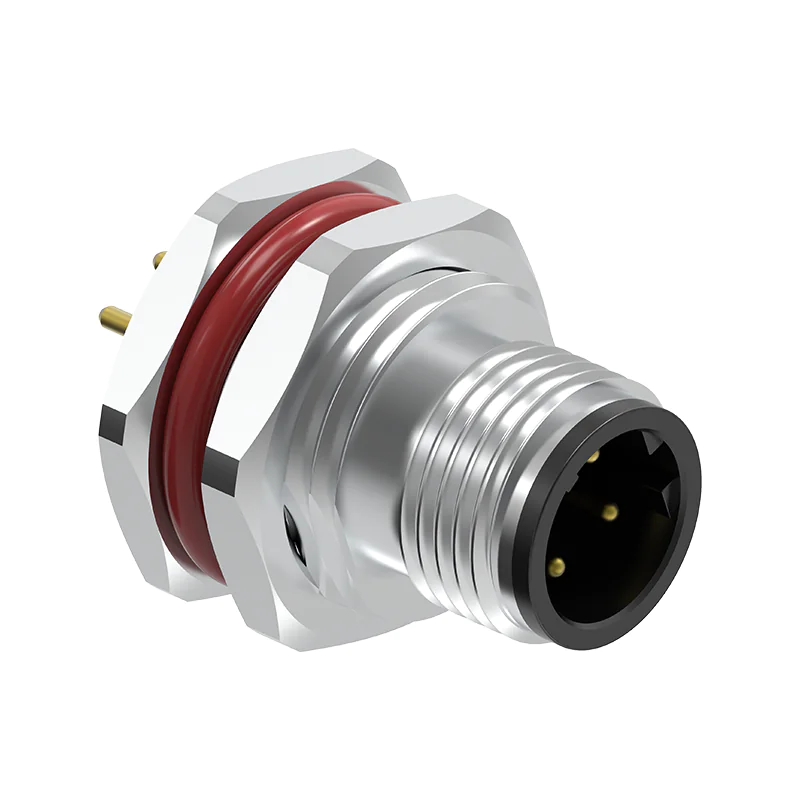

M12 Connector D-Code 4Pin Male - Fast Ethernet Panel Socket, IP68 - Image 3

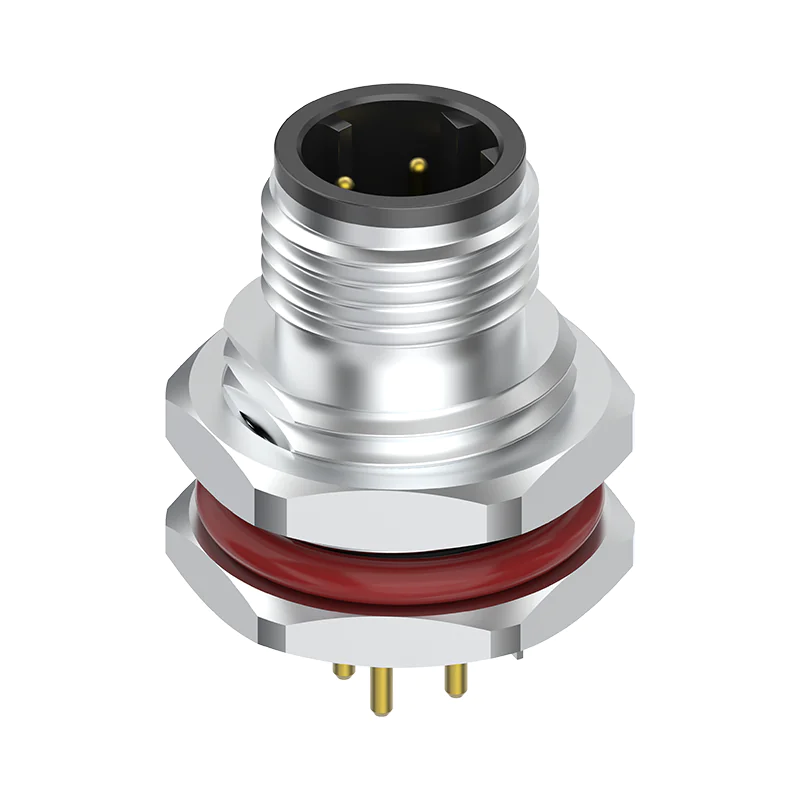

M12 Connector D-Code 4Pin Male – Fast Ethernet Panel Socket, IP68

  • Category: M12
  • Model: Front-Locking Socket
  • Connector Type: Male Pin
  • Coding: D Code
  • Number of Cores: 4
  • Shape: Straight
  • Wiring Method: Plug-in Type / PCB Dip Soldering
  • Shielding: Yes / No (Shielded or Unshielded Optional)
  • Protection Rating: IP67, IP68
  • Standard: IEC 61076-2-101
  • Rated Current: 4A
  • Rated Voltage: 250V
  • Insulation Resistance: ≥100MΩ
  • Contact Resistance: ≤5mΩ
  • Shielding Performance: Shielded or Unshielded Optional
  • Locking Method: M12×1.0 Screw Lock
  • Screw Torque: Recommended: 0.4Nm, Maximum: 0.8Nm
  • Termination Method: PCB Dip Soldering
Category: Tag: Brand:

M12 D-Code 4Pin male front panel socket compliant with IEC 61076-2-101. Supports 100 Mbps (Fast Ethernet) industrial network transmission. Straight PCB dip soldering contacts. Unshielded design. IP67/IP68 waterproof. Front panel mount with M12x1.0mm screw locking. Rated 250V / 4A. Brass nickel-plated nut, gold-plated contacts. Insulation resistance ≥100MΩ, contact resistance ≤5mΩ. Operating temperature -25°C to +80°C (dynamic) / -40°C to +80°C (static). Ideal for industrial Ethernet, Profinet, DeviceNet, and factory automation networks.

  • Dynamic Operating Temperature: -25°C ~ +80°C
  • Static Operating Temperature: -40°C ~ +80°C
  • Ingress Protection: IP67, IP68
  • Pollution Degree: 3
  • Insulator Material: PA66+GF / TPU+GF
  • Pin Material: Phosphor Bronze with Gold Plating / Brass with Gold Plating
  • Sealing Material: FKM / Silicone / Epoxy
