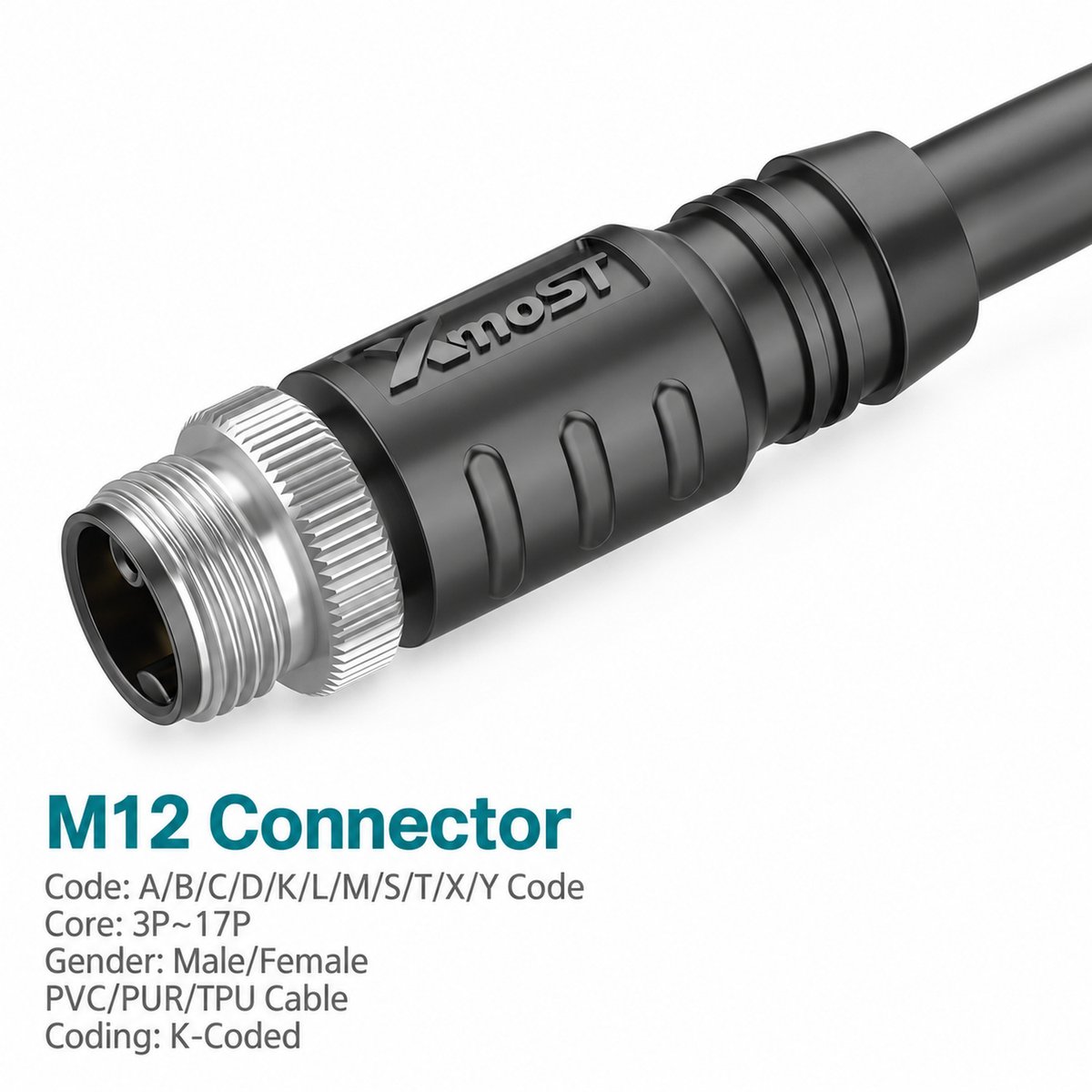

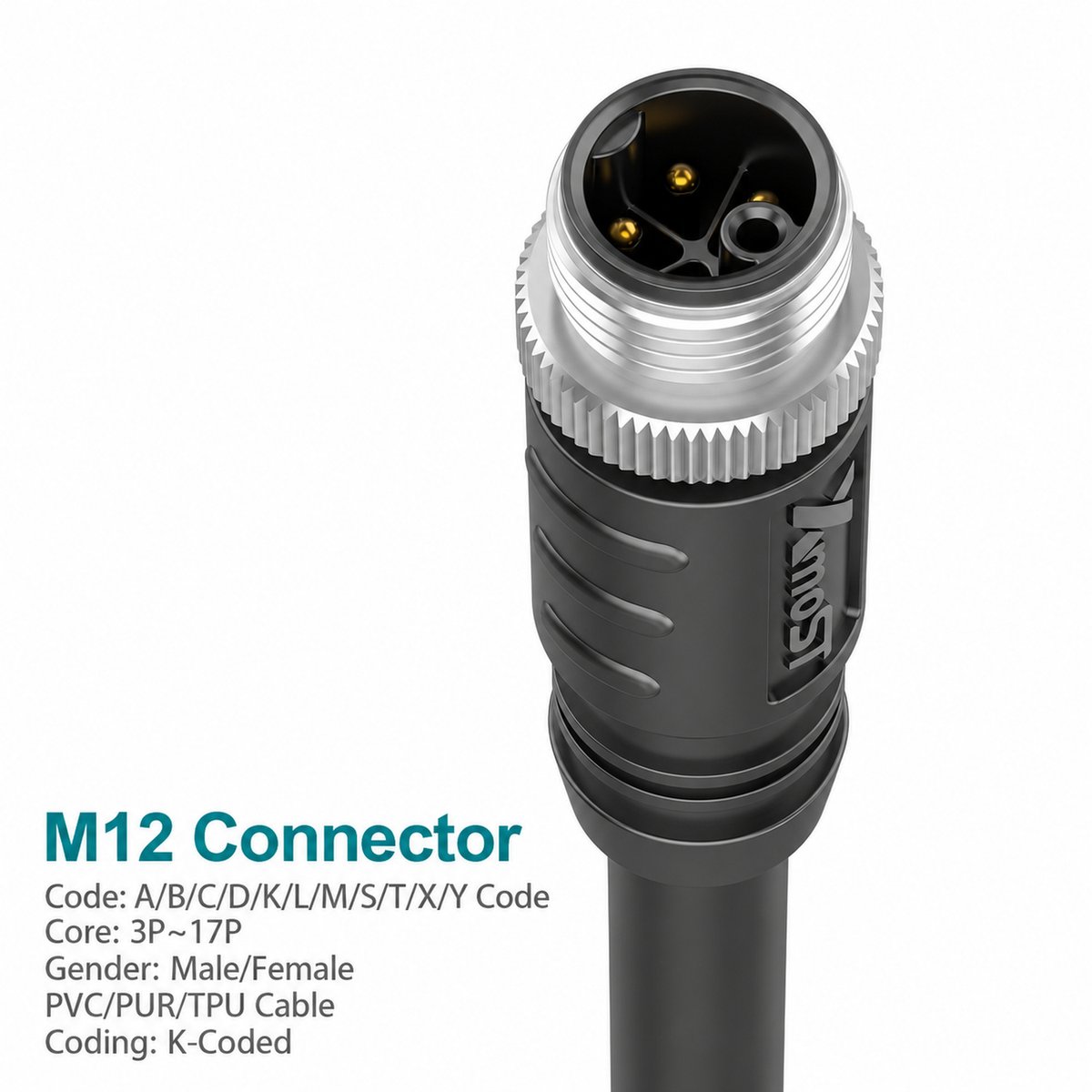

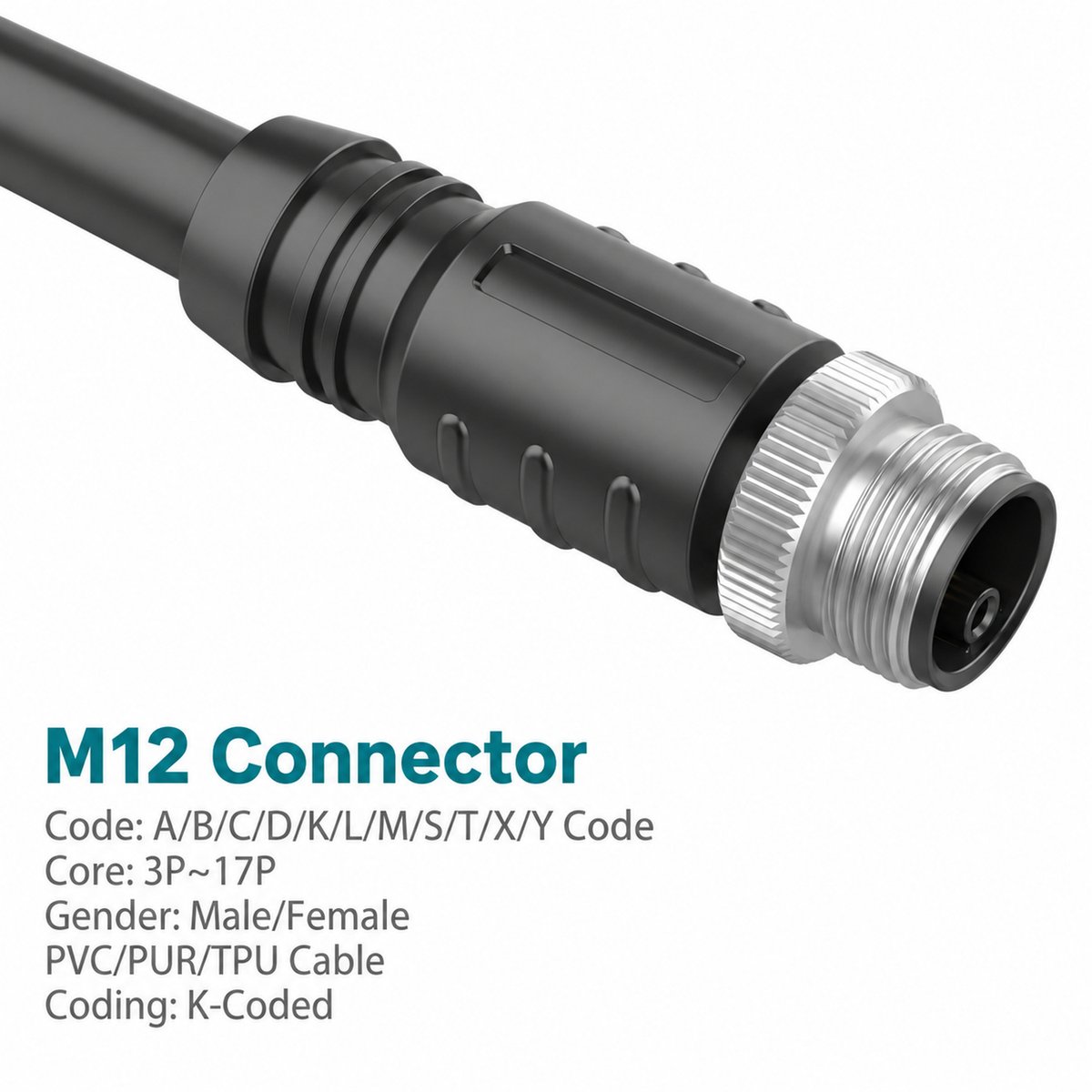

Xmost M12 K-coded male straight power connector provides a shielded cable connection for industrial equipment with matching K-coded female interfaces. Its single-ended molded construction combines the connector and cable into a preassembled power cable assembly.
The catalog lists a rated current of 16 A and a rated voltage of 630 V. Available contact configurations include 3-pin (2 + PE), 4-pin (3 + PE) and 5-pin (4 + PE). M12 × 1.0 screw locking secures the mating connection, while the straight cable exit directs the cable along the connector axis.
PVC and PUR cable options are listed in 1 m and 3 m lengths.
Key Features
- K-coded male interface for compatible AC power equipment.
- 16 A rated current and 630 V rated voltage, as listed in the catalog.
- Shielded M12 power cable assembly.
- Straight molded connector for axial cable routing.
- 3-, 4- and 5-pin configurations with protective earth contacts.
- M12 × 1.0 screw-locking interface.
- 2.5 mm² / AWG14 wire size listed in the technical specifications.
- PVC or PUR cable options, with 1 m and 3 m catalog lengths.

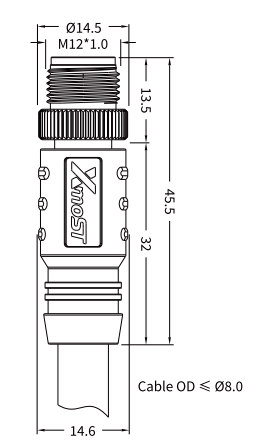

Product Dimensions
Dimensions (mm)
| Dimension | Value |
|---|---|
| Connector axial length shown | 45.5 |
| Coupling section axial span | 13.5 |
| Molded body axial span | 32 |
| Coupling outside diameter | Ø14.5 |
| Cable-exit width shown | 14.6 |
| Maximum cable outside diameter | ≤ Ø8.0 |
| Mating thread | M12 × 1.0 |
Dimensions correspond to the marked spans in the straight male connector drawing. Cable length is specified separately.
Product Specifications
Contact Configurations and Electrical Ratings
| Contact Configuration | Rated Current | Rated Voltage | Wire Size |
|---|---|---|---|
| 3-pin (2 + PE) | 16 A | 630 V | 2.5 mm² / AWG14 |
| 4-pin (3 + PE) | 16 A | 630 V | 2.5 mm² / AWG14 |
| 5-pin (4 + PE) | 16 A | 630 V | 2.5 mm² / AWG14 |
PE = Protective Earth.
General Specifications
| Parameter | Specification |
|---|---|
| Brand | Xmost |
| Connector Size | M12 |
| Coding | K-coded |
| Contact Gender | Male |
| Connector Orientation | Straight |
| Assembly Type | Single-ended molded cable assembly |
| Shielding | Shielded |
| Application Listed | AC Power |
| Standard Listed | IEC 61076-2-111 |
| Locking Method | M12 × 1.0 screw locking |
| Contact Termination | Soldering |
| Insulation Resistance | ≥ 100 MΩ |
| Contact Resistance | ≤ 5 mΩ |
| Recommended Tightening Torque | 0.4 N·m |
| Maximum Tightening Torque | 0.8 N·m |
| Dynamic Operating Temperature | −25 °C to +80 °C |
| Static Operating Temperature | −40 °C to +80 °C |
| Protection Ratings Listed | IP67 / IP68 / IP69K |
| Pollution Degree | 3 |
| Insulator Material Options | PA66 + GF / TPU + GF |
| Screw / Nut Material Options | Nickel-plated brass / nickel-plated zinc alloy |
| Contact Material Options | Gold-plated phosphor bronze / gold-plated brass |
| Sealing Material Options | FKM / silicone / epoxy |
| Outer Housing Material Options | TPU / PVC |
| Cable Jacket Options | PVC / PUR |
| Catalog Cable Lengths | 1 m / 3 m |
Applications
Suggested applications for this M12 K-coded male straight AC power connector include:
- Industrial machinery: AC supply connections to equipment with matching K-coded interfaces.
- Automation modules: Power wiring between compatible machine components.
- Modular equipment: Detachable power connections between equipment sections.
- Axial cable-routing layouts: Installations with clearance for the cable to exit directly behind the connector.
Select the contact configuration according to the equipment’s voltage, current and protective earth requirements.
Selection and Ordering
Specify the contact configuration, cable jacket and cable length. Select the corresponding straight male part number from the catalog ordering table.
Check the mating connector’s K-coding and contact arrangement. Follow the male connector’s front-view pin diagram and corresponding wire-color assignment, and maintain the specified shield connection during installation.
