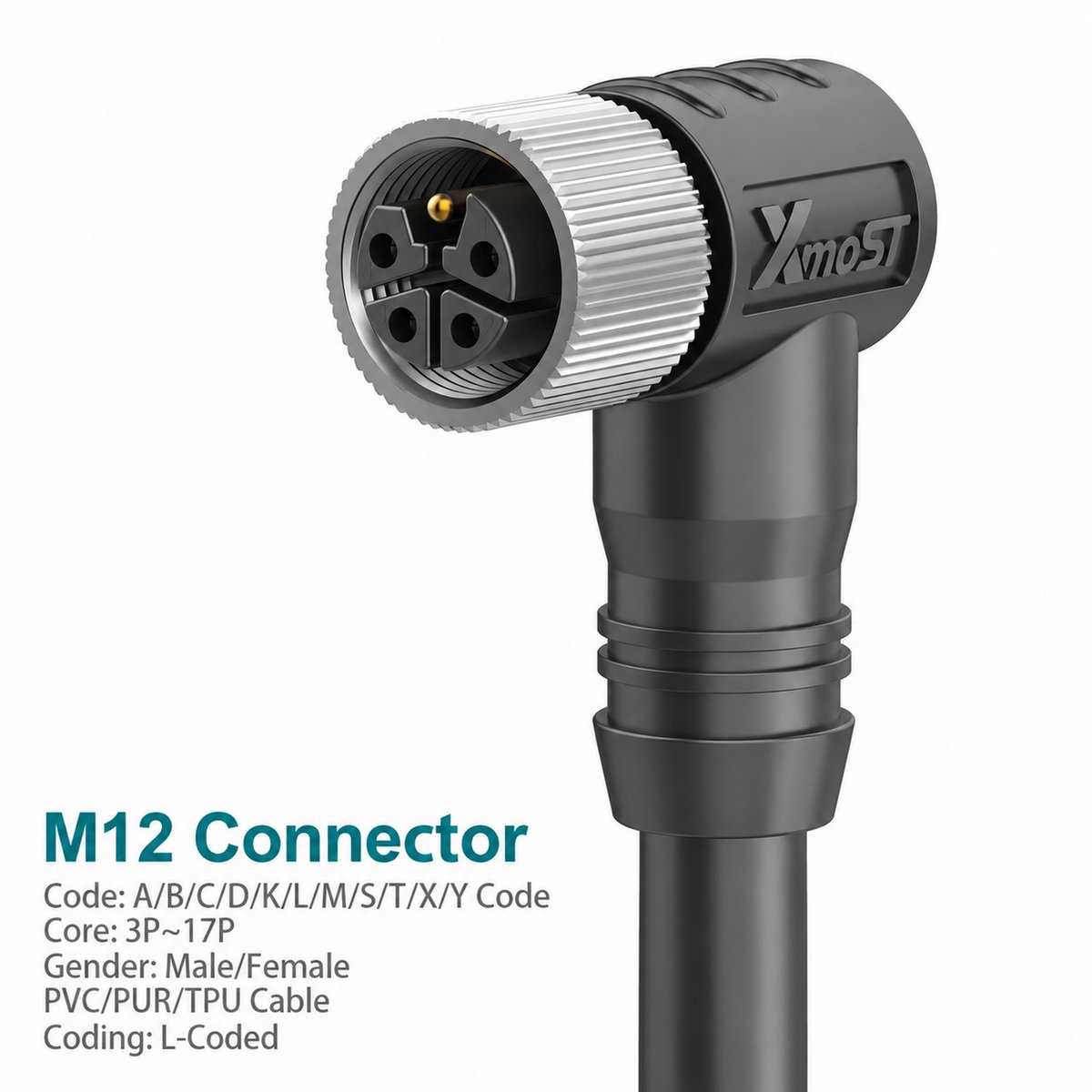

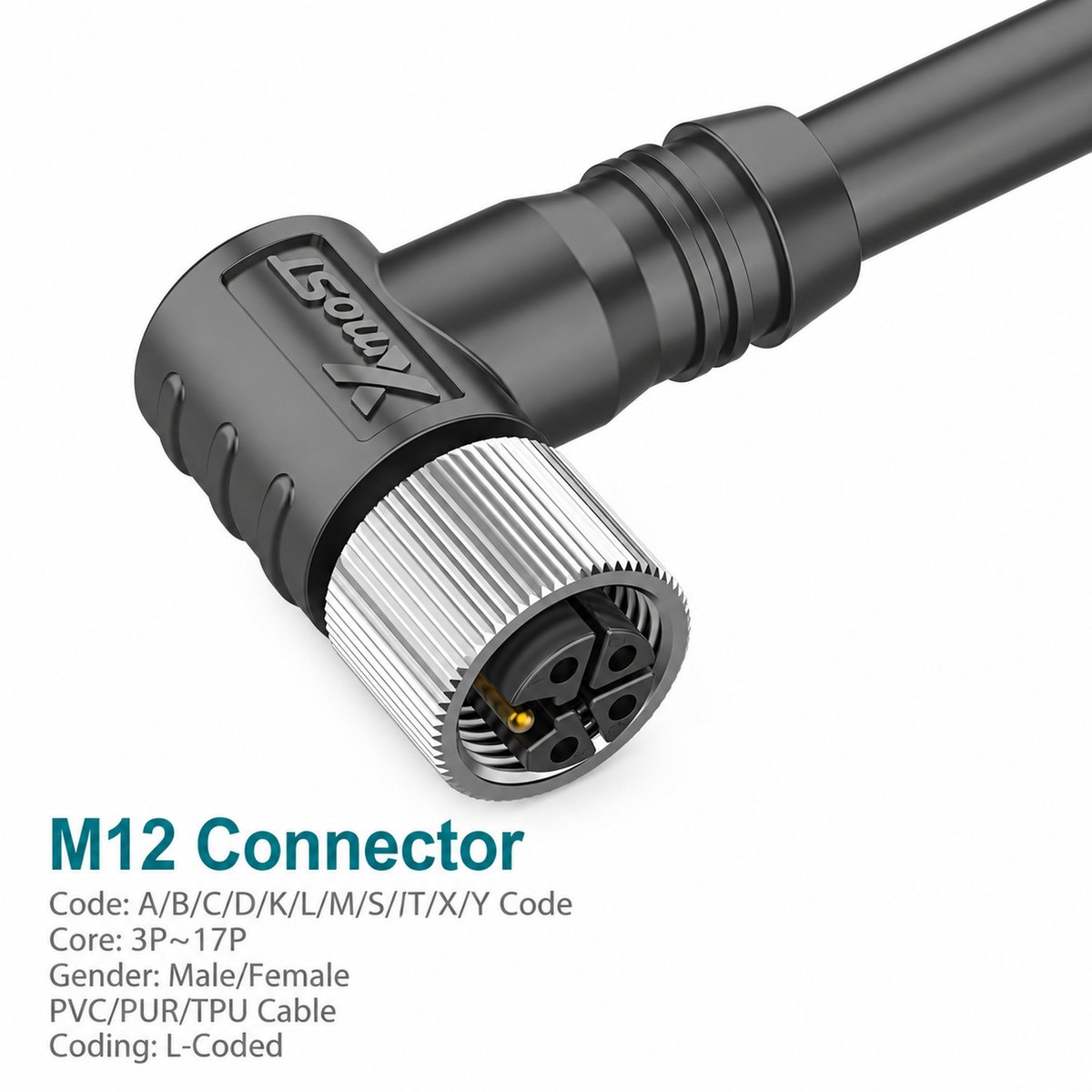

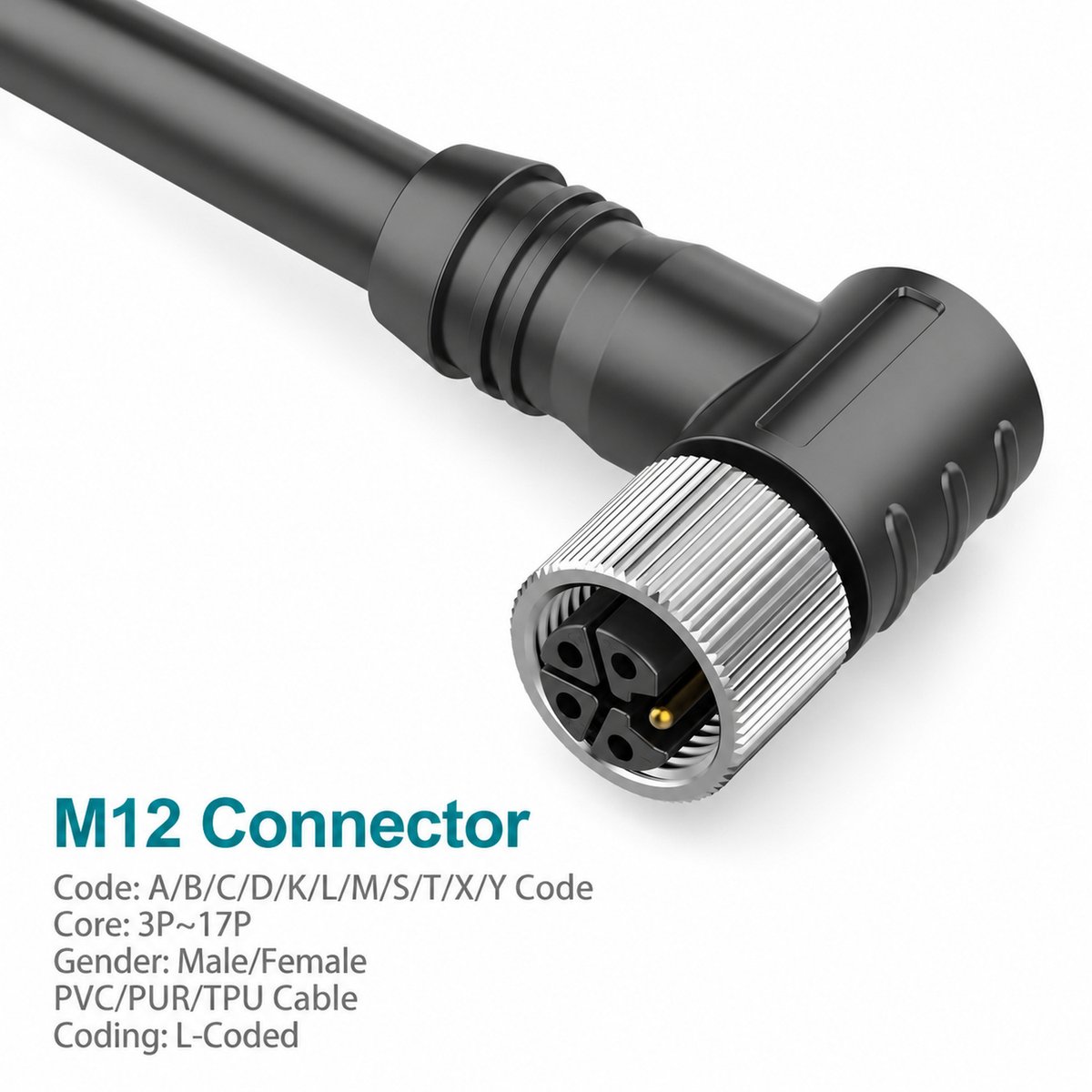

Xmost M12 L-coded female 90° power connector provides a shielded DC power cable connection for equipment with a matching L-coded male interface. Its right-angle molded design directs the cable perpendicular to the mating axis, accommodating layouts where a straight cable exit is impractical.
This single-ended M12 female power cable assembly uses M12 × 1.0 screw locking. The catalog lists 16 A and 63 V ratings for 3-pin (2 + FE), 3-pin without FE, 4-pin (3 + FE), 4-pin without FE and 5-pin (4 + FE) contact arrangements.
PVC and PUR cable options are listed in 1 m and 3 m lengths.
Key Features
- 90° right-angle cable exit for routing close to equipment.
- M12 L-coded female interface for compatible DC power connections.
- 16 A rated current and 63 V rated voltage, as listed in the catalog.
- Shielded, single-ended molded cable assembly.
- Contact configurations with or without functional earth.
- M12 × 1.0 screw locking.
- 2.5 mm² / AWG14 wire size listed in the technical specifications.
- PVC or PUR cable options, with 1 m and 3 m catalog lengths.

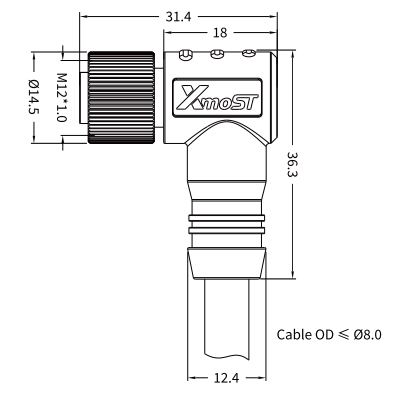

Product Dimensions
Dimensions (mm)
| Dimension | Value |
|---|---|
| Horizontal span shown | 31.4 |
| Horizontal molded section | 18 |
| Vertical span shown | 36.3 |
| Coupling outside diameter | Ø14.5 |
| Cable-exit width shown | 12.4 |
| Maximum cable outside diameter | ≤ Ø8.0 |
| Mating thread | M12 × 1.0 |
Dimensions correspond to the marked spans in the right-angle female connector drawing. Cable length is specified separately.
Product Specifications
Contact Configurations and Electrical Ratings
| Contact Configuration | Rated Current | Rated Voltage | Wire Size |
|---|---|---|---|
| 3-pin (2 + FE) | 16 A | 63 V | 2.5 mm² / AWG14 |
| 3-pin, without FE | 16 A | 63 V | 2.5 mm² / AWG14 |
| 4-pin (3 + FE) | 16 A | 63 V | 2.5 mm² / AWG14 |
| 4-pin, without FE | 16 A | 63 V | 2.5 mm² / AWG14 |
| 5-pin (4 + FE) | 16 A | 63 V | 2.5 mm² / AWG14 |
FE = Functional Earth.
General Specifications
| Parameter | Specification |
|---|---|
| Brand | Xmost |
| Connector Size | M12 |
| Coding | L-coded |
| Contact Gender | Female |
| Connector Orientation | 90° Right-angle |
| Assembly Type | Single-ended molded cable assembly |
| Shielding | Shielded |
| Application Listed | DC Power |
| Standard Listed | IEC 61076-2-111 |
| Locking Method | M12 × 1.0 screw locking |
| Contact Termination | Soldering |
| Insulation Resistance | ≥ 100 MΩ |
| Contact Resistance | ≤ 5 mΩ |
| Recommended Tightening Torque | 0.4 N·m |
| Maximum Tightening Torque | 0.8 N·m |
| Dynamic Operating Temperature | −25 °C to +80 °C |
| Static Operating Temperature | −40 °C to +80 °C |
| Protection Ratings Listed | IP67 / IP68 / IP69K |
| Pollution Degree | 3 |
| Insulator Material Options | PA66 + GF / TPU + GF |
| Screw / Nut Material Options | Nickel-plated brass / nickel-plated zinc alloy |
| Contact Material Options | Gold-plated phosphor bronze / gold-plated brass |
| Sealing Material Options | FKM / silicone / epoxy |
| Outer Housing Material Options | TPU / PVC |
| Cable Jacket Options | PVC / PUR |
| Catalog Cable Lengths | 1 m / 3 m |
Applications
Suggested applications for this M12 L-coded female right-angle DC power connector include:
- Automation modules: DC power connections to compatible L-coded male interfaces.
- Distributed field equipment: Supply wiring to devices with matching electrical and contact requirements.
- Compact machine layouts: Installations where adjacent components restrict a straight cable exit.
- Equipment panel connections: DC power cable routing alongside the panel through a 90° connection.
Select the contact arrangement to match the equipment’s electrical ratings and functional earth requirements.
Selection and Ordering
Specify the contact configuration, functional earth requirement, cable jacket and cable length. Select the corresponding right-angle female part number from the catalog ordering table.
Check the mating interface, pin assignment and cable-routing clearance. Follow the female connector’s front-view wiring diagram and maintain the specified shield connection during installation.
