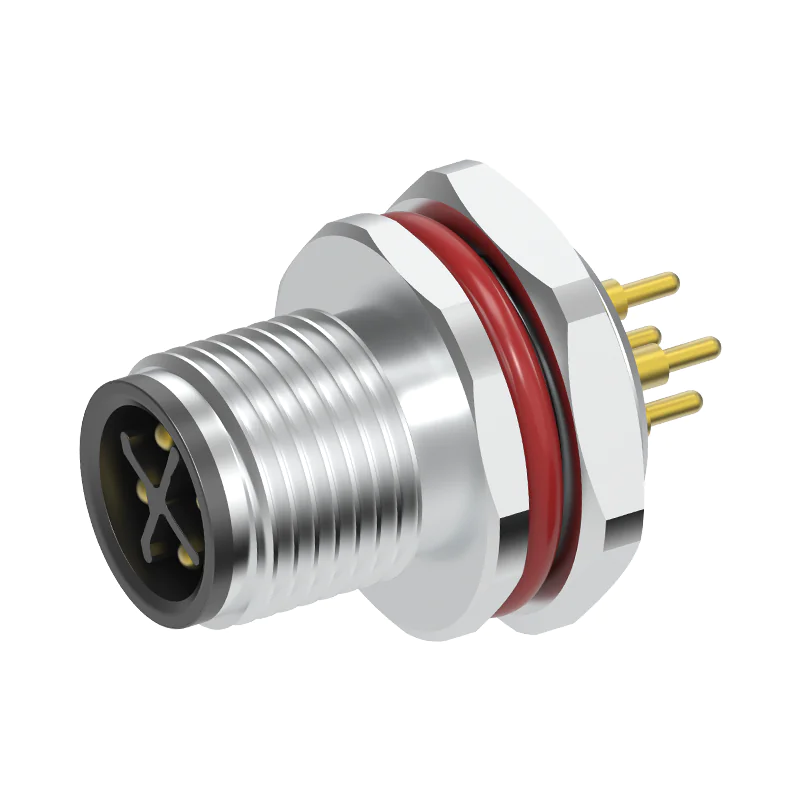

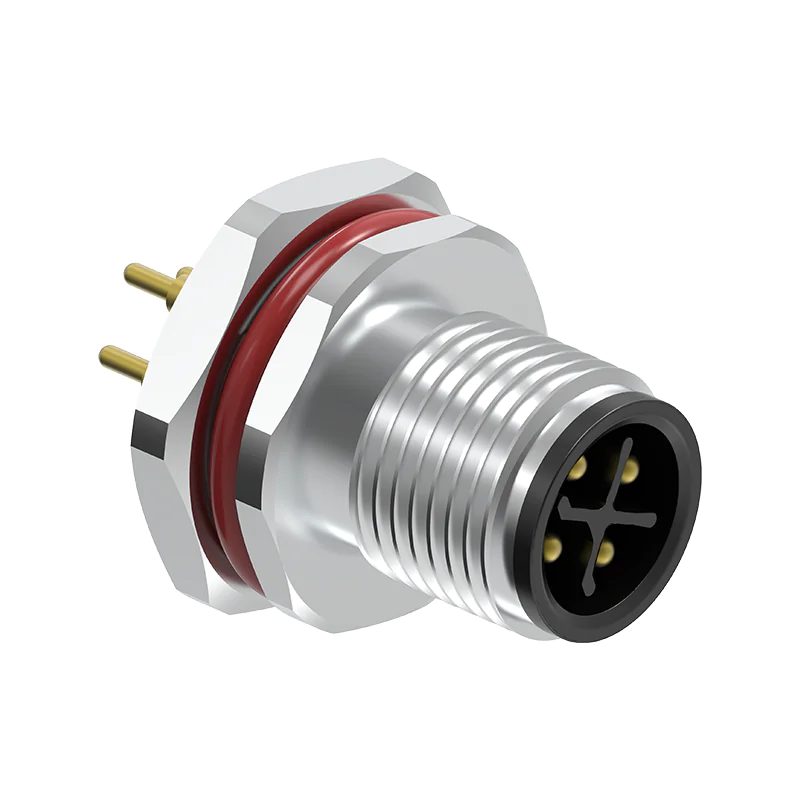

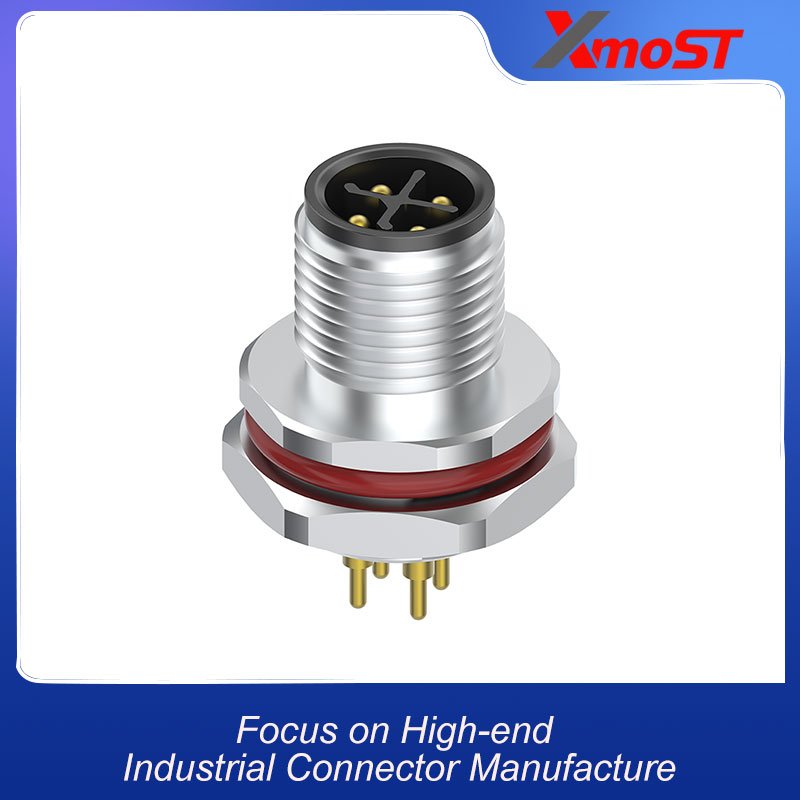

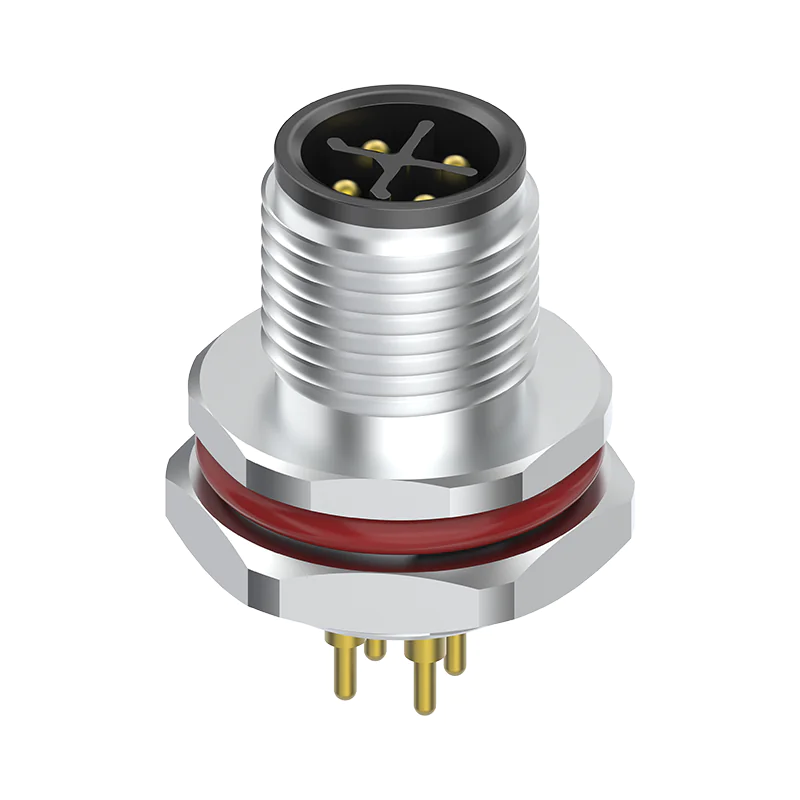

M12 S-Code 4Pin male rear panel mount socket with PCB dip soldering contacts, compliant with IEC 61076-2-101. Rated 630V / 12A AC for power transmission. Rear mounting for clean front panel appearance. M12x1.0mm screw locking (recommended torque 0.4Nm, max 0.8Nm), brass nickel-plated nut, phosphor bronze gold-plated pins. Insulation resistance ≥100MΩ, contact resistance ≤5mΩ. Insulator material: PA66+GF/TPU+GF. Sealing: FKM/Silicon/Epoxy. Operating temperature -25°C to +80°C (dynamic) / -40°C to +80°C (static). Ideal for AC power distribution, motor drives, and industrial automation equipment.
| Pin count | 3Pin(2+PE) | 4Pin(3+PE) |
| Operating standard | IEC 61076-2-101 | |
| Rated current | 12A | |
| Rated voltage | 630V | |
| Insulation resistance | ≥100MΩ | |
| Contact resistance | ≤5mΩ | |
| Shielding performance | Non-Shielded | |
| Locking method | M12x1.0mm screw | |
| Screw torque | Recommend：0.4Nm；Max：0.8Nm | |
| Wiring method | PCB Dip Soldering | |
| Operating temperature | -25℃ ~ +80℃ Dynamic -40℃ ~ +80℃ Static | |
| Ip rating | IP67，IP68 | |
| Pollution degree | 3 | |
| Insulator material | PA66+GF/TPU+GF | |
| Screw/nut material | Brass Ni/Zinc Alloy Ni | |
| Pin material | Phosphor Bronze Au/Brass Au | |
| Sealing material | FKM/Silicon/epoxy | |
