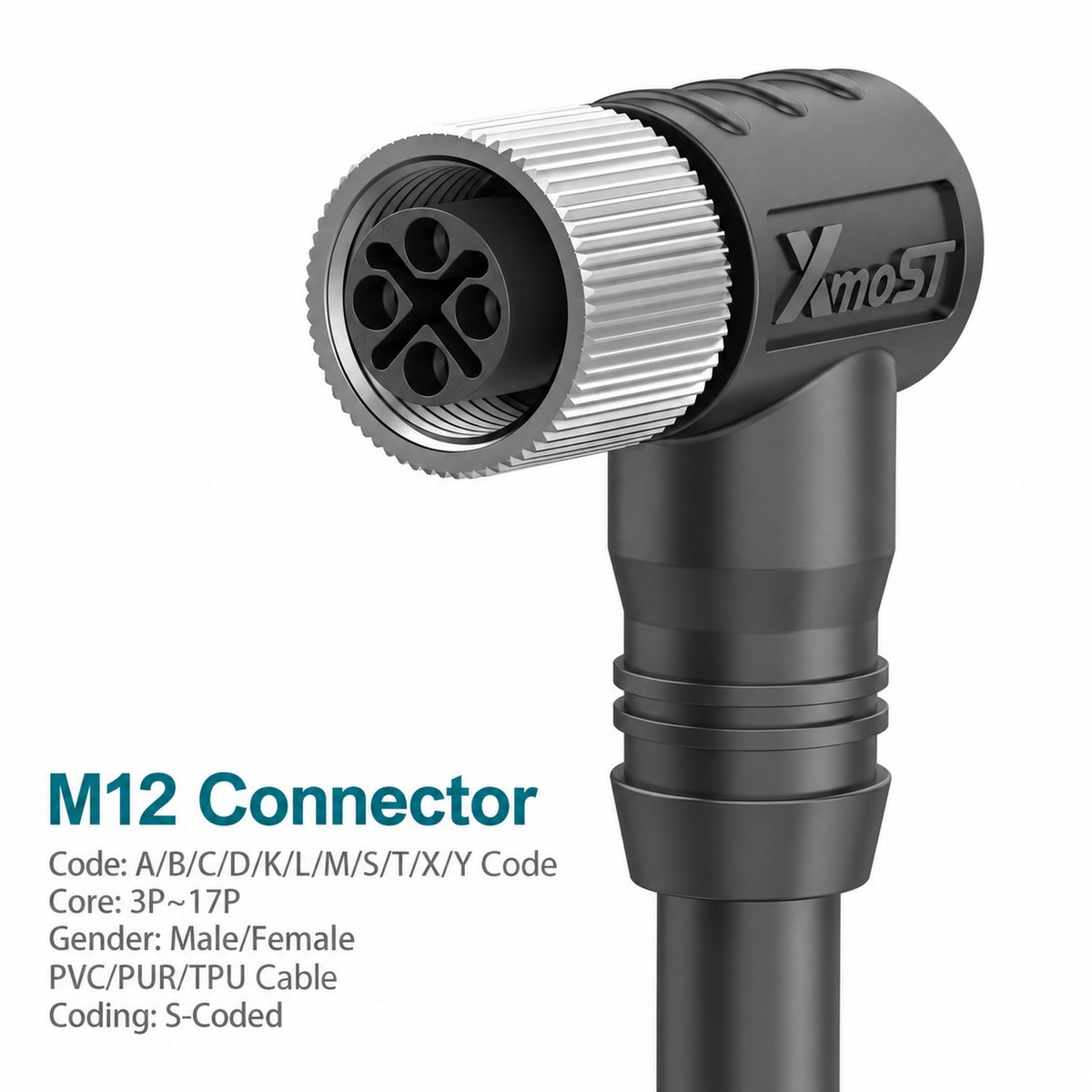

Xmost M12 S-coded female 90° power connector provides an unshielded AC power cable connection for equipment with a matching S-coded male interface. Its right-angle molded design directs the cable perpendicular to the mating axis, accommodating layouts where a straight cable exit is impractical.
This single-ended M12 female power cable assembly uses M12 × 1.0 screw locking. The catalog lists 12 A and 630 V AC ratings for 3-pin (2 + PE) and 4-pin (3 + PE) configurations.
PVC and PUR cable options are listed in 1 m and 3 m lengths.
Key Features
- 90° right-angle cable exit for routing close to equipment.
- M12 S-coded female interface for compatible AC power connections.
- 12 A rated current and 630 V AC rated voltage, as listed in the catalog.
- Unshielded, single-ended molded cable assembly.
- 3-pin and 4-pin configurations with protective earth contacts.
- M12 × 1.0 screw locking.
- 1.5 mm² / AWG16 wire size listed in the technical specifications.
- PVC or PUR cable options, with 1 m and 3 m catalog lengths.

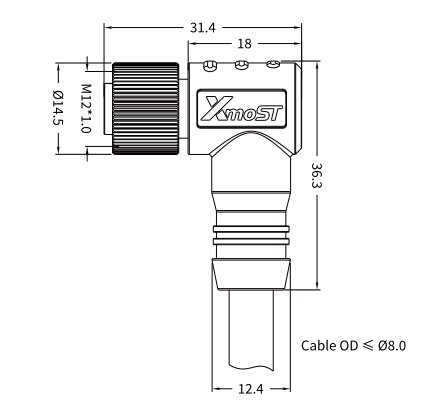

Product Dimensions
Dimensions (mm)
| Dimension | Value |
|---|---|
| Horizontal span shown | 31.4 |
| Horizontal molded section | 18 |
| Vertical span shown | 36.3 |
| Coupling outside diameter | Ø14.5 |
| Cable-exit width shown | 12.4 |
| Maximum cable outside diameter | ≤ Ø8.0 |
| Mating thread | M12 × 1.0 |
Dimensions correspond to the marked spans in the right-angle female connector drawing. Cable length is specified separately.
Product Specifications
Contact Configurations and Electrical Ratings
| Contact Configuration | Rated Current | Rated Voltage | Wire Size |
|---|---|---|---|
| 3-pin (2 + PE) | 12 A | 630 V AC | 1.5 mm² / AWG16 |
| 4-pin (3 + PE) | 12 A | 630 V AC | 1.5 mm² / AWG16 |
PE = Protective Earth.
General Specifications
| Parameter | Specification |
|---|---|
| Brand | Xmost |
| Connector Size | M12 |
| Coding | S-coded |
| Contact Gender | Female |
| Connector Orientation | 90° Right-angle |
| Assembly Type | Single-ended molded cable assembly |
| Shielding | Unshielded |
| Application Listed | AC Power |
| Standard Listed | IEC 61076-2-111 |
| Locking Method | M12 × 1.0 screw locking |
| Contact Termination | Soldering |
| Insulation Resistance | ≥ 100 MΩ |
| Contact Resistance | ≤ 5 mΩ |
| Recommended Tightening Torque | 0.4 N·m |
| Maximum Tightening Torque | 0.8 N·m |
| Dynamic Operating Temperature | −25 °C to +80 °C |
| Static Operating Temperature | −40 °C to +80 °C |
| Protection Ratings Listed | IP67 / IP68 |
| Pollution Degree | 3 |
| Insulator Material Options | PA66 + GF / TPU + GF |
| Screw / Nut Material Options | Nickel-plated brass / nickel-plated zinc alloy |
| Contact Material Options | Gold-plated phosphor bronze / gold-plated brass |
| Sealing Material Options | FKM / silicone / epoxy |
| Outer Housing Material Options | TPU / PVC |
| Cable Jacket Options | PVC / PUR |
| Catalog Cable Lengths | 1 m / 3 m |
Applications
Suggested applications for this M12 S-coded female right-angle AC power connector include:
- Industrial equipment: AC supply connections to compatible S-coded male interfaces.
- Automation systems: Power wiring between compatible machine modules.
- Compact machine layouts: Installations where nearby components restrict a straight cable exit.
- Equipment panel connections: AC power cable routing alongside the panel through a 90° connection.
Select the contact configuration to match the equipment’s electrical ratings and protective earth requirements.
Selection and Ordering
Specify the 3-pin or 4-pin contact configuration, cable jacket and cable length. Select the corresponding unshielded right-angle female part number from the catalog ordering table.
Check the mating interface, contact arrangement and cable-routing clearance. Follow the female connector’s front-view pin diagram and corresponding wire-color assignment when wiring.
